PREPARATION

WT-43

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005275758

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

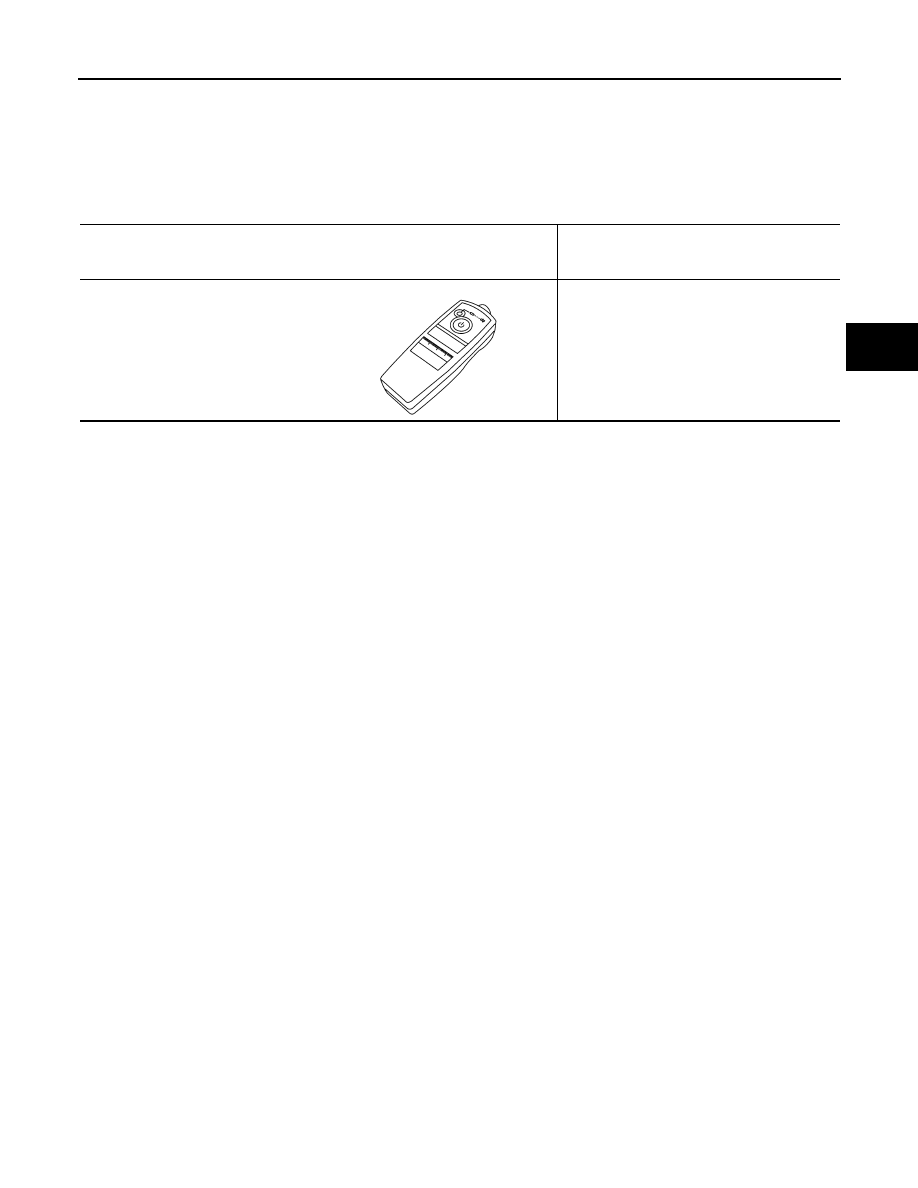

KV991B1000
(J-45295)
Transmitter activation tool

• Transmitter wake up operation
• ID registration procedure

WEIA0144E

WT-44

< ON-VEHICLE MAINTENANCE >

WHEEL

ON-VEHICLE MAINTENANCE

WHEEL

Inspection

INFOID:0000000005275759

1.

Remove wheel and tire using power tool.

2.

Check tires for wear and improper inflation.

3.

Check wheels for deformation, cracks and other damage. If
deformed, remove wheel and check wheel runout.

a.

Remove tire from wheel and mount wheel on a tire balance
machine.

b.

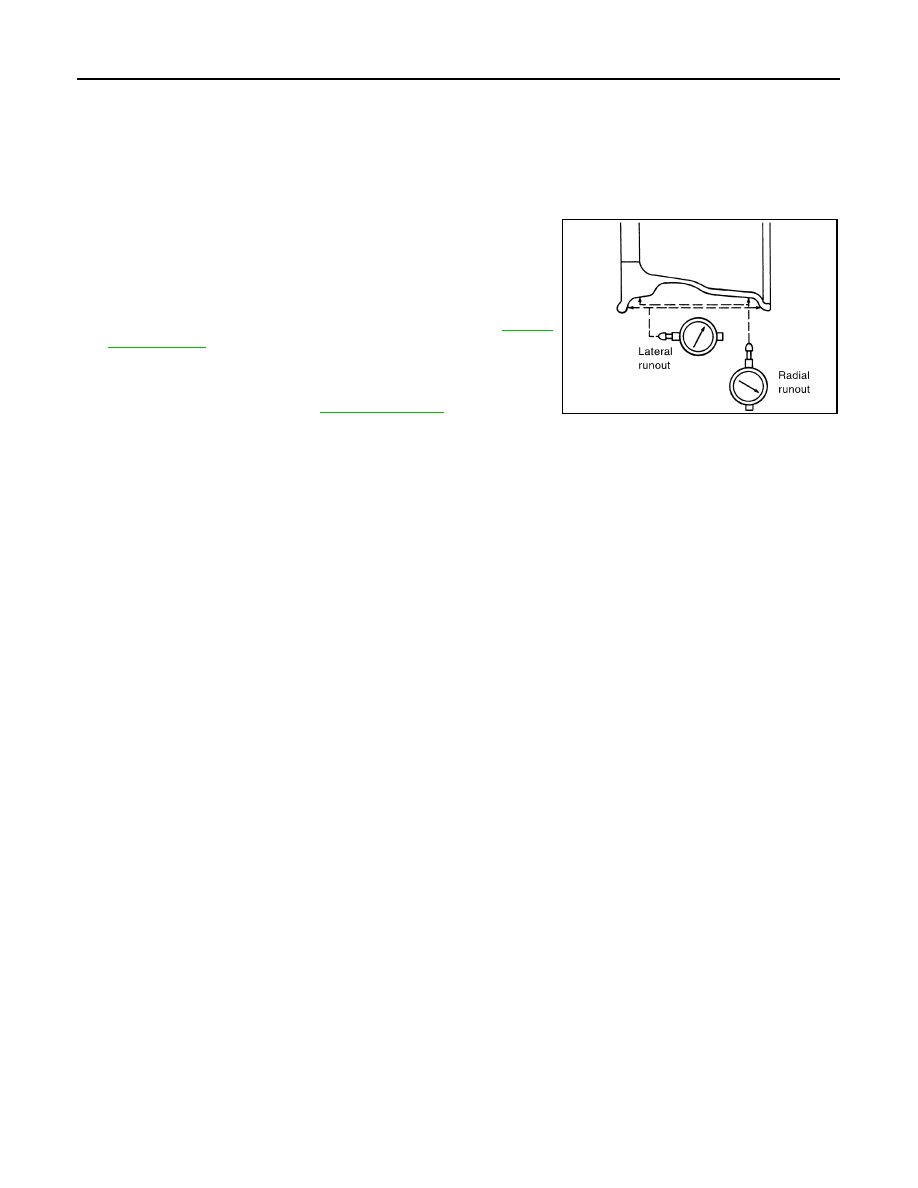

Set dial indicator as shown in the illustration. Refer to

WT-50,

"Road Wheel"

.

4.

Check front wheel bearings for looseness.

5.

Check front suspension for looseness.

6.

Install wheel and tire. Refer to

WT-46, "Rotation"

.

SFA975B

WHEEL AND TIRE ASSEMBLY

WT-45

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ON-VEHICLE REPAIR

WHEEL AND TIRE ASSEMBLY

Balancing Wheels

INFOID:0000000005275760

WHEEL BALANCE REMOVAL

1.

Remove wheel and tire using power tool.

2.

Using releasing agent, remove double-faced adhesive tape from the wheel.

CAUTION:

• Be careful not to scratch the wheel during removal.
• After removing double-faced adhesive tape, wipe clean traces of releasing agent from the wheel.

WHEEL BALANCE INSTALLATION AND ADJUSTMENT

• If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,

select and adjust a drive-in weight mode suitable for wheels.

1.

Set wheel on wheel balancer using the center hole as a guide. Start the tire balance machine.

2.

When inner and outer imbalance values are shown on the wheel balancer indicator, multiply outer imbal-
ance value by 1.6 to determine balance weight that should be used. Select the outer balance weight with
a value closest to the calculated value and install it to the designated outer position of, or at the desig-
nated angle in relation to the road wheel.

CAUTION:

• Do not install the inner balance weight before installing the outer balance weight.
• Before installing the balance weight, be sure to clean the mating surface of the wheel.

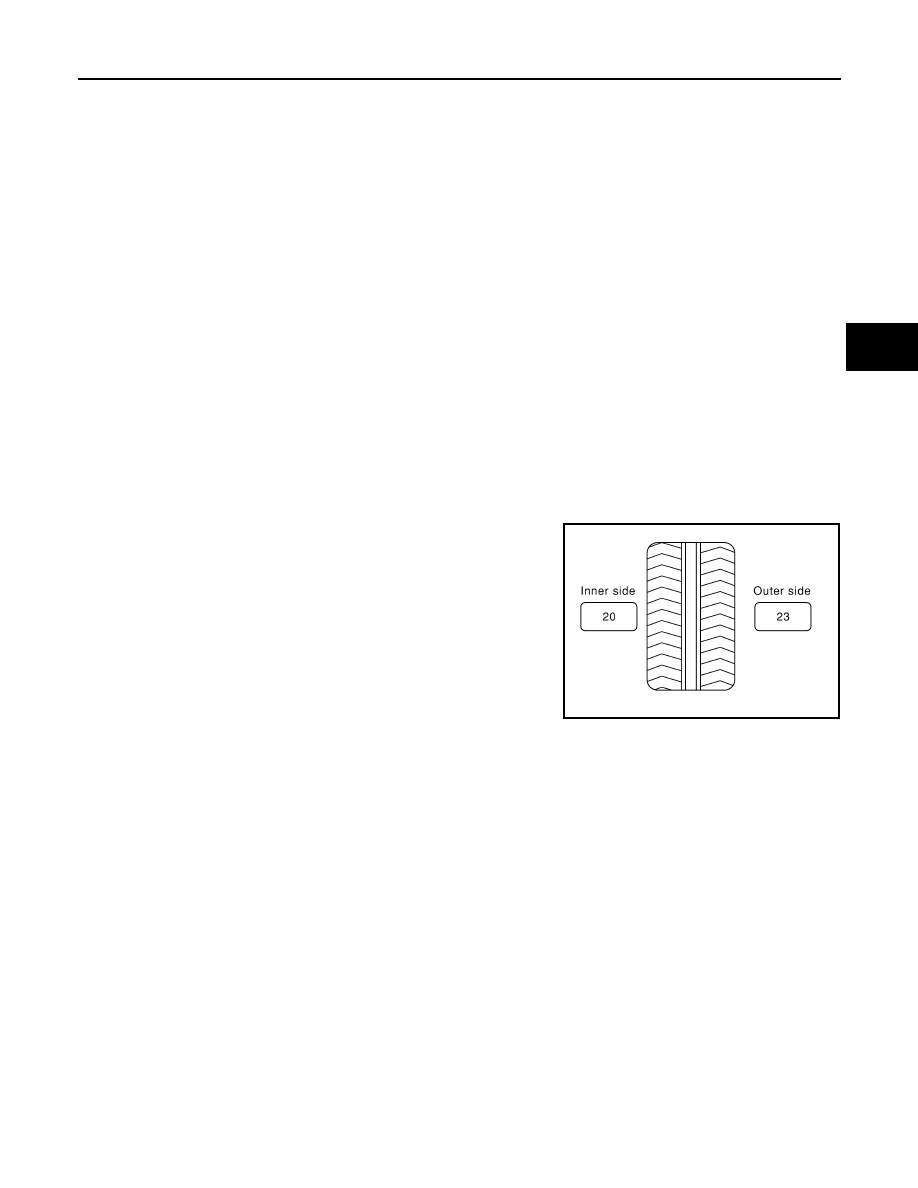

Indicated imbalance value

×

 5/3 = balance weight to be installed

Calculation example:
23 g (0.81 oz)

×

 5/3 = 38.33 g (1.35 oz) = 40 g (1.41 oz) balance

weight (closer to calculated balance weight value)
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
37.4 g = 35 g (1.23 oz)
37.5 g = 40 g (1.41 oz)

SMA054D

WT-46

< ON-VEHICLE REPAIR >

WHEEL AND TIRE ASSEMBLY

a.

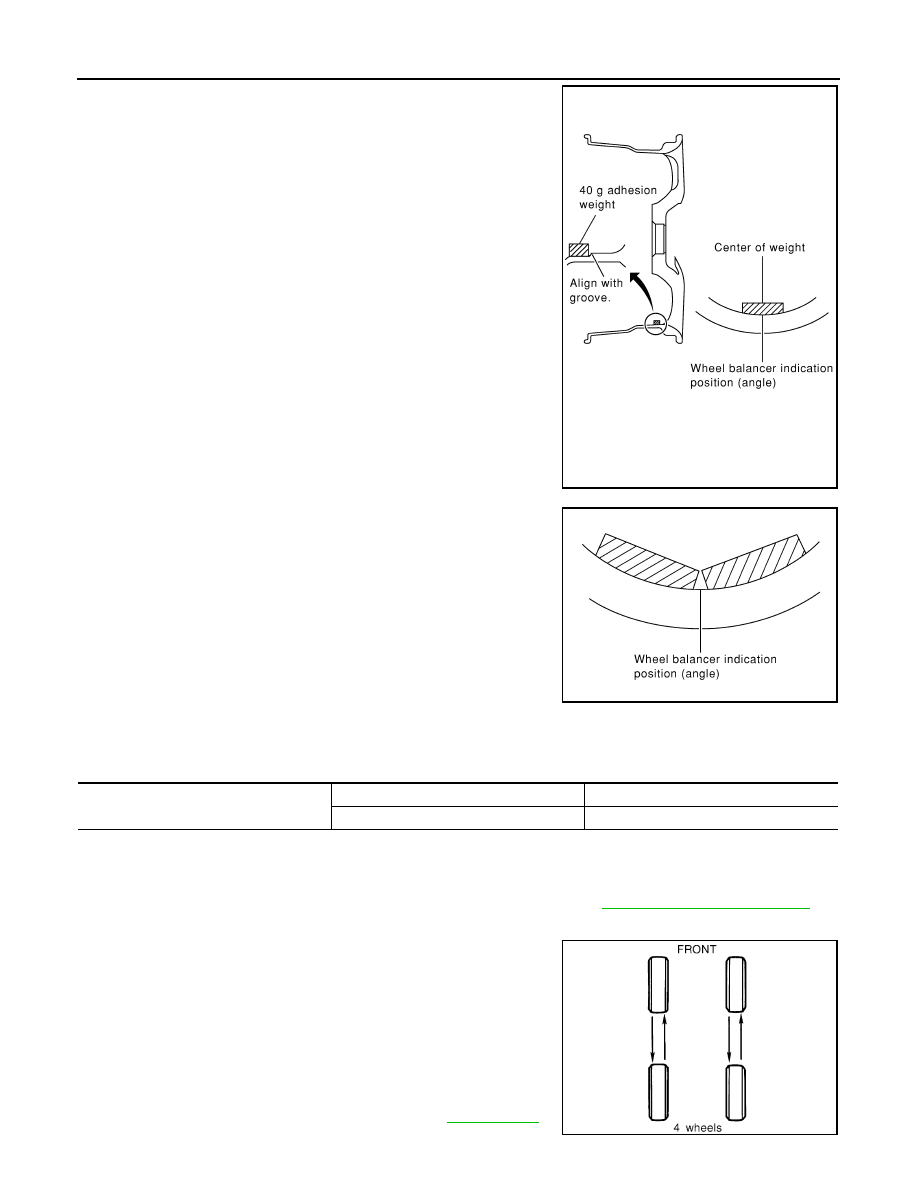

Install balance weight in the position shown.

b.

When installing balance weight to wheels, set it into the grooved
area on the inner wall of the wheel as shown so that the balance
weight center is aligned with the wheel balancer indication posi-
tion (angle).

CAUTION:

• Always use Genuine NISSAN adhesion balance weights.
• Balance weights are not reusable; always replace with

new ones.

• Do not install more than three sheets of balance weights.

c.

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top of another.

3.

Start wheel balancer again.

4.

Install drive-in balance weight on inner side of road wheel in the
wheel balancer indication position (angle).

CAUTION:

Do not install more than two balance weights.

5.

Start wheel balancer. Make sure that inner and outer residual
imbalance values are 5 g (0.18 oz) each or below.
• If either residual imbalance value exceeds 5 g (0.18 oz),

repeat installation procedures.

Wheel balance (Maximum allowable imbalance):

Rotation

INFOID:0000000005275761

NOTE:
Follow the maintenance schedule for tire rotation service intervals. Refer to

MA-6, "General Maintenance"

.

1.

Remove wheels and tires.

2.

Rotate wheels and tires on each side from front to back as
shown. Do not include the spare wheel and tire when rotating
the wheels and tires.

CAUTION:

When installing wheels and tires, tighten them diagonally
by dividing the work two to three times in order to prevent
the wheels from developing any distortion.

3.

Adjust the tire pressure to specification. Refer to

WT-50, "Tire"

.

WDIA0060E

Maximum allowable imbalance

Dynamic (At rim flange)

5 g (0.18 oz) (one side)

Static

10 g (0.35 oz)

SMA056D

 Wheel nut

: 133 N·m (14 kg-m, 98 ft-lb)

SMA829C
