Nissan Frontier D40. Manual - part 1123

VTL-6

< ON-VEHICLE MAINTENANCE >

IN-CABIN MICROFILTER

ON-VEHICLE MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000005275966

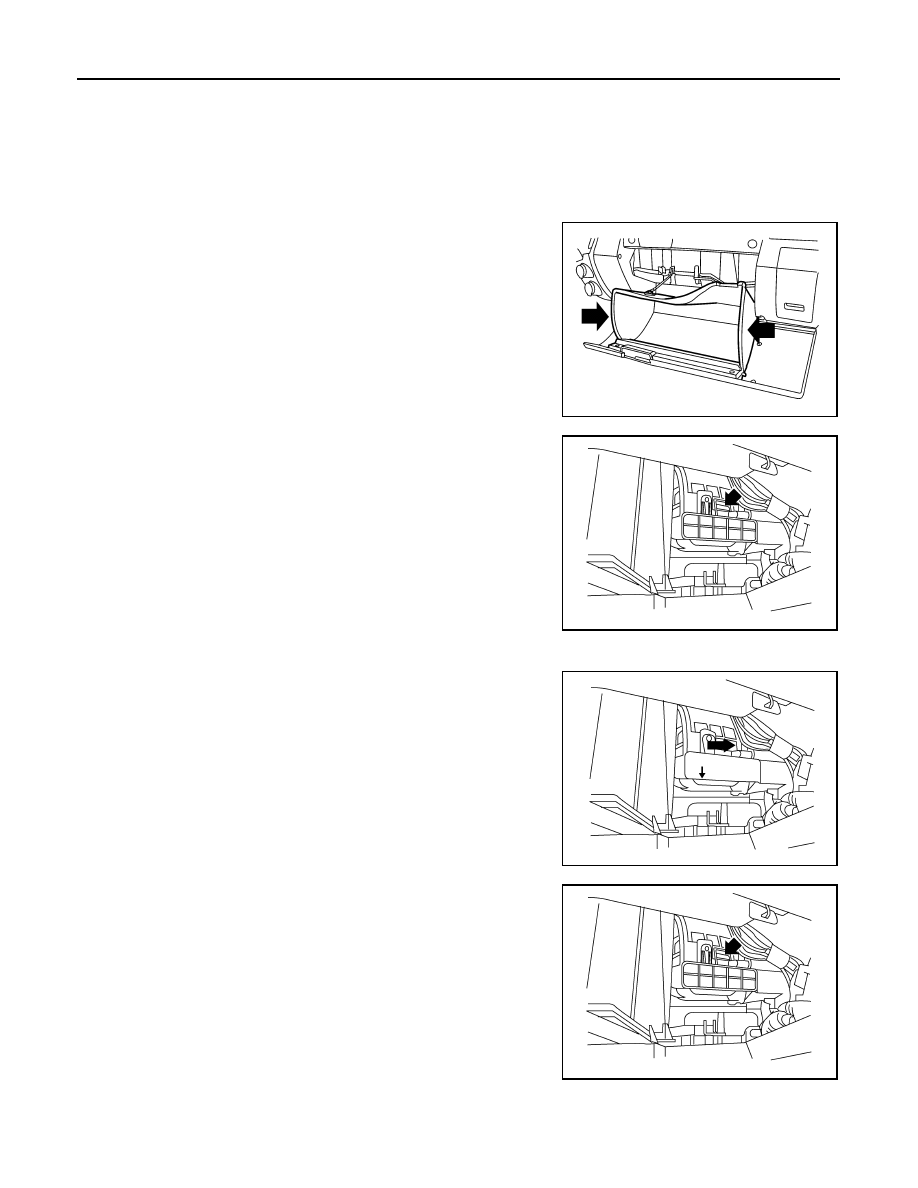

REPLACEMENT PROCEDURE

1.

Open the lower glove box and press in on the sides so that it will
open completely allowing it to hang by the cord.

2.

Depress the tab and remove the in-cabin microfilter cover as
shown.

3.

Remove the in-cabin microfilters from the heater and cooling unit housing.

4.

Insert the first new in-cabin microfilter into the heater and cool-
ing unit housing and slide it over to the right. Insert the second
new in-cabin microfilter into the heater and cooling unit housing
as shown.
NOTE:
The in-cabin microfilters are marked with air flow arrows. The
end of the microfilter with the arrow should face the rear of the
vehicle. The arrows should point downward.

5.

Install the in-cabin microfilter cover, make sure the tab is locked
in place as shown.

6.

Close the lower glove box completely.

WLIA0023E

ALIIA0359ZZ

ALIIA0360ZZ

ALIIA0359ZZ

CONTROL UNIT

VTL-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ON-VEHICLE REPAIR

CONTROL UNIT

Removal and Installation

INFOID:0000000005275967

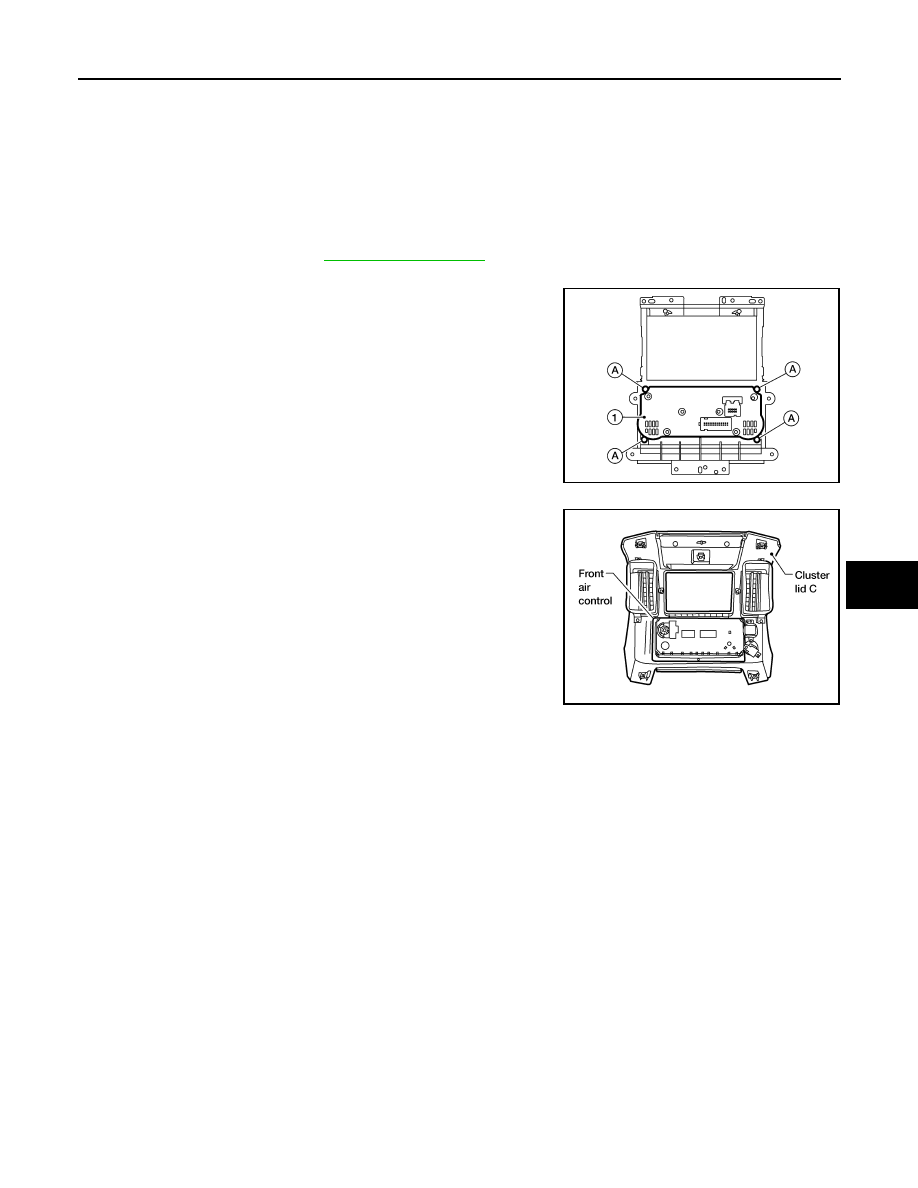

FRONT AIR CONTROL

Removal

1.

Remove cluster lid C. Refer to

IP-10, "Exploded View"

.

2.

Remove the front air control from cluster lid C.
• For type 1, remove the four screws (A) securing the front air

control (1) to cluster lid C.

• For type 2, remove the four screws securing the front air con-

trol to cluster lid C.

Installation

Installation is in the reverse order of removal.

ALIIA0361ZZ

LBIA0416E

VTL-8

< ON-VEHICLE REPAIR >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000005275968

REMOVAL

1.

Remove the front kick plate. Refer to

INT-18, "Removal and Installation"

.

2.

Remove the lower dash side finisher. Refer to

IP-10, "Exploded View"

.

3.

Remove the front pillar lower finisher. Refer to

INT-18, "Removal and Installation"

.

4.

Remove the assist grip handle. Refer to

INT-17, "Component"

.

5.

Remove the front pillar upper finisher. Refer to

INT-18, "Removal and Installation"

.

6.

Remove the lower glove box. Refer to

IP-10, "Exploded View"

.

7.

Remove the upper glove box (cluster lid E). Refer to

IP-10, "Exploded View"

.

8.

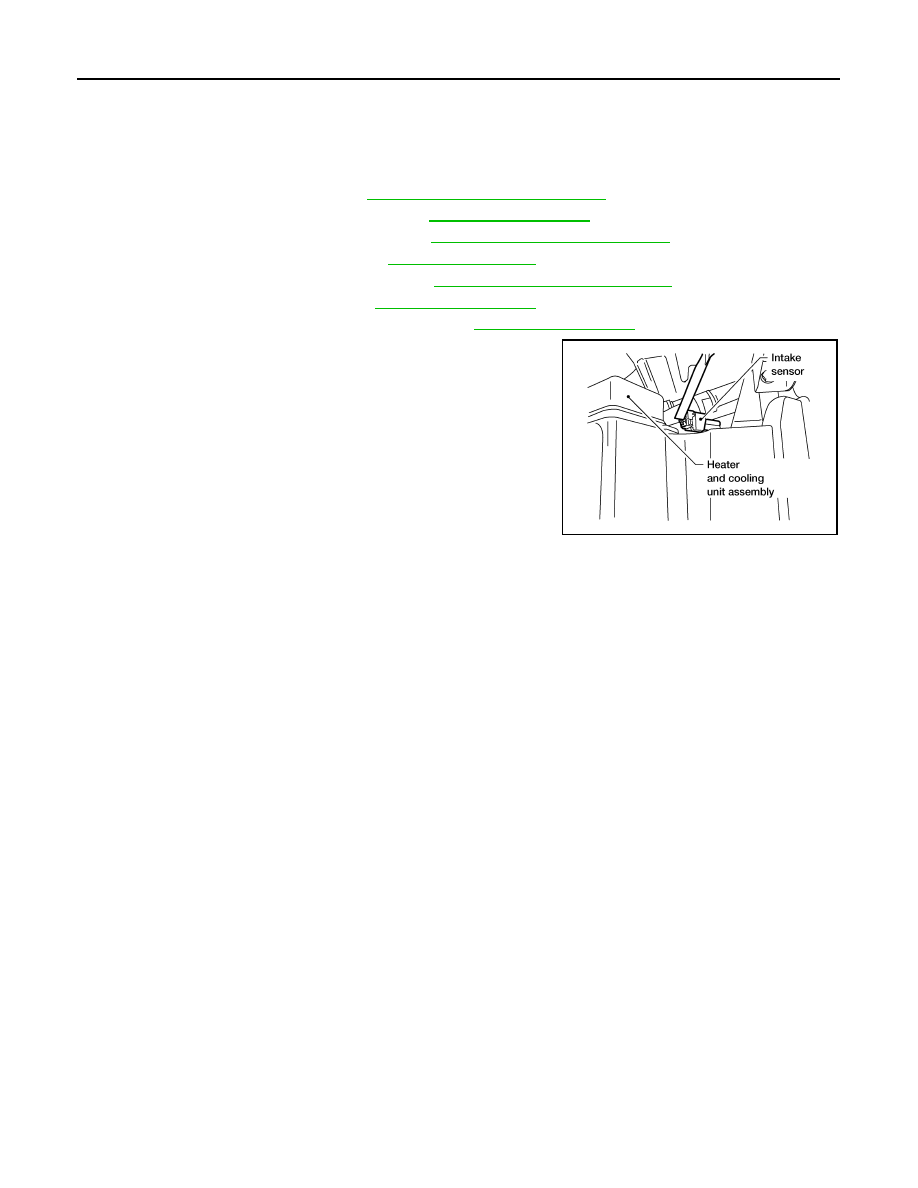

Disconnect the intake sensor electrical connector.
NOTE:
The intake sensor is located on the top of the heater and cooling
unit assembly next to the A/C evaporator cover.

9.

Twist the intake sensor to remove the intake sensor from the
heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1415E

BLOWER MOTOR

VTL-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

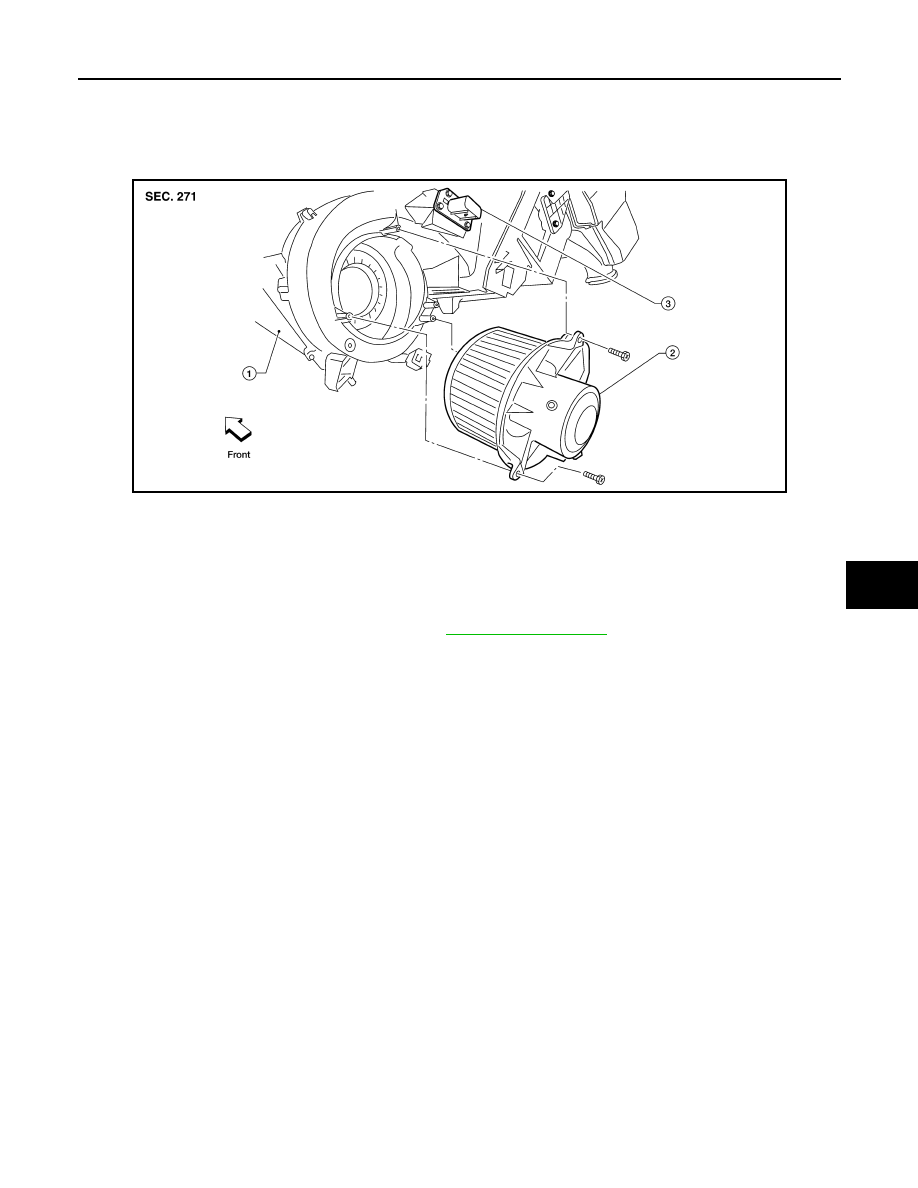

BLOWER MOTOR

Component

INFOID:0000000005275969

Blower Motor

Removal and Installation

INFOID:0000000005275970

REMOVAL

1.

Remove the lower glove box assembly. Refer to

IP-10, "Exploded View"

.

2.

Disconnect the blower motor electrical connector.

3.

Remove the three screws and remove the blower motor.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1479E

1.

Heater and cooling unit assembly

2.

Blower motor

3.

Variable blower control/Blower
motor resistor
