Nissan Frontier D40. Manual - part 1102

TM-306

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

DISASSEMBLY AND ASSEMBLY

OVERHAUL

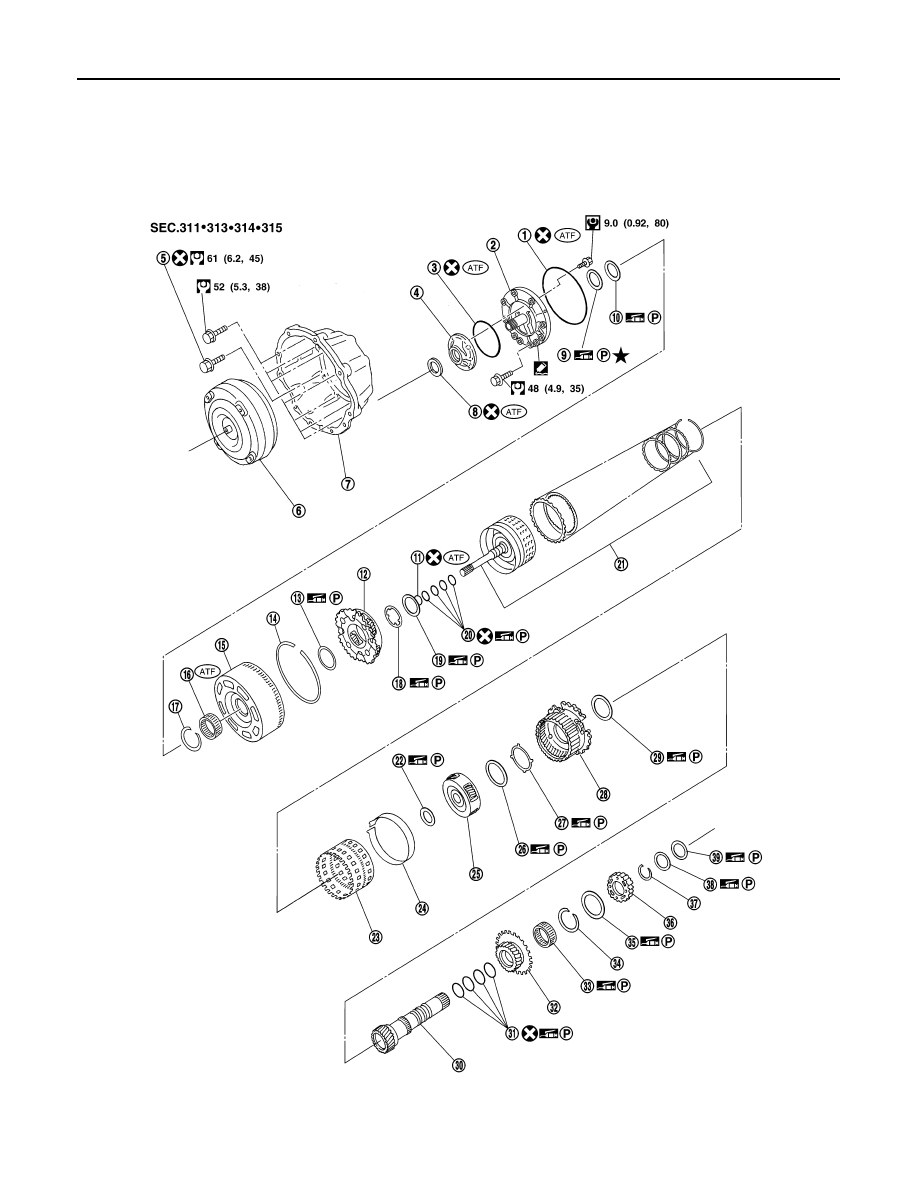

Component

INFOID:0000000005274217

SCIA7040E

OVERHAUL

TM-307

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolt

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11.

O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

TM-308

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

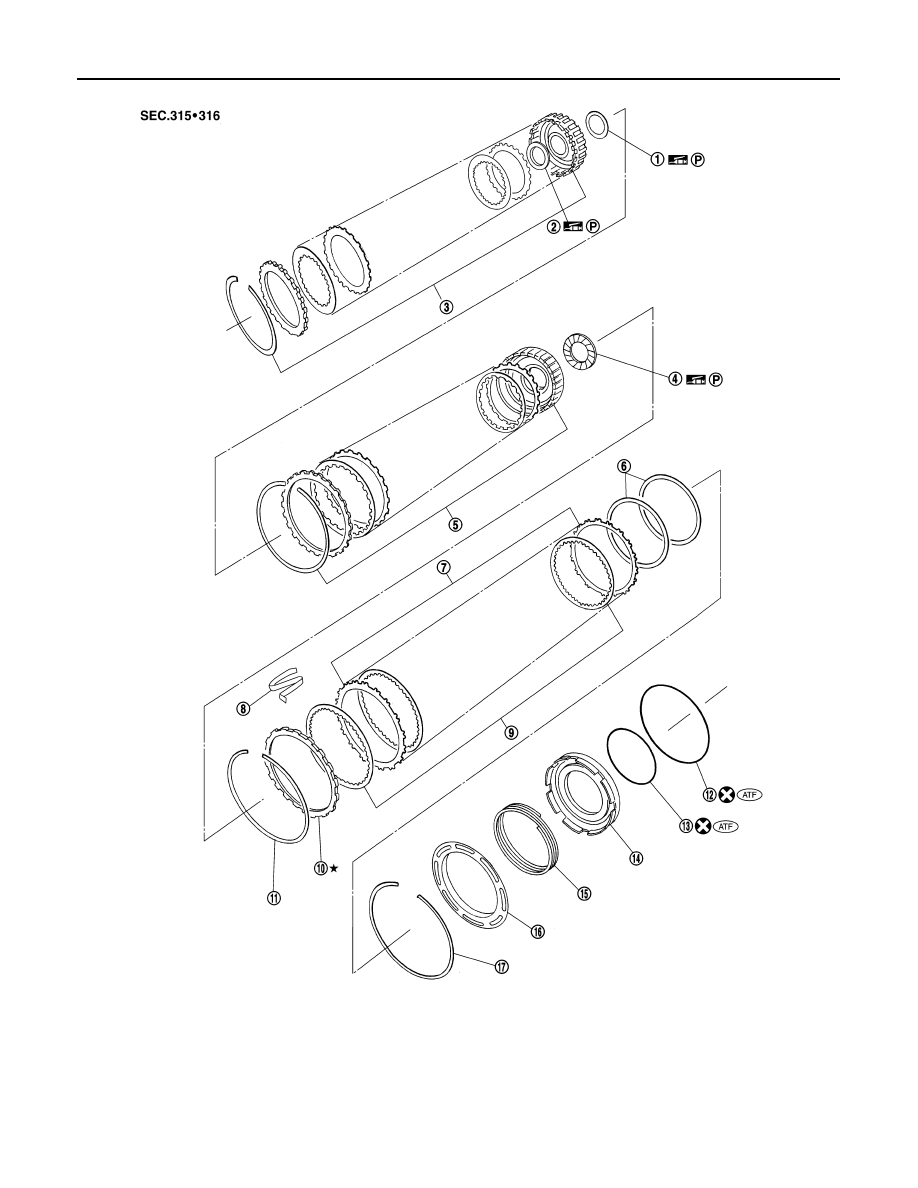

QR25DE models

WCIA0575E

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake driven plate

8.

N-spring

9.

Reverse brake drive plate

10. Reverse brake retaining plate

11.

Snap ring

12. D-ring

13. D-ring

14. Reverse brake piston

15. Return spring

16. Spring retainer

17. Snap ring

OVERHAUL

TM-309

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

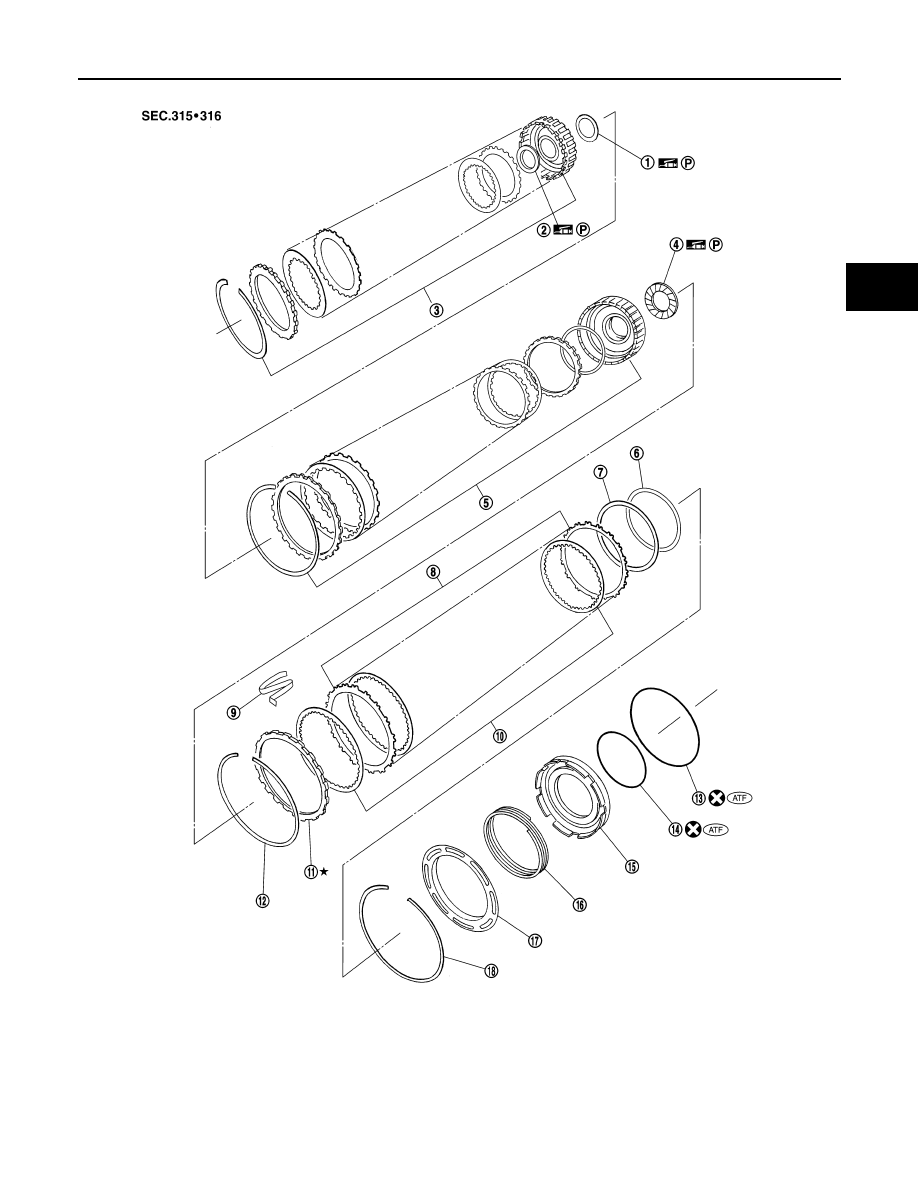

VQ40DE models

SCIA7001E

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Reverse brake drive plate

11.

Reverse brake retaining plate

12. Snap ring

13. D-ring

14. D-ring

15. Reverse brake piston

16. Return spring

17. Spring retainer

18. Snap ring
