S CONNECTOR CIRCUIT

STR-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

1.

Disconnect IPDM E/R connector E120 and starter motor con-
nector E207.

2.

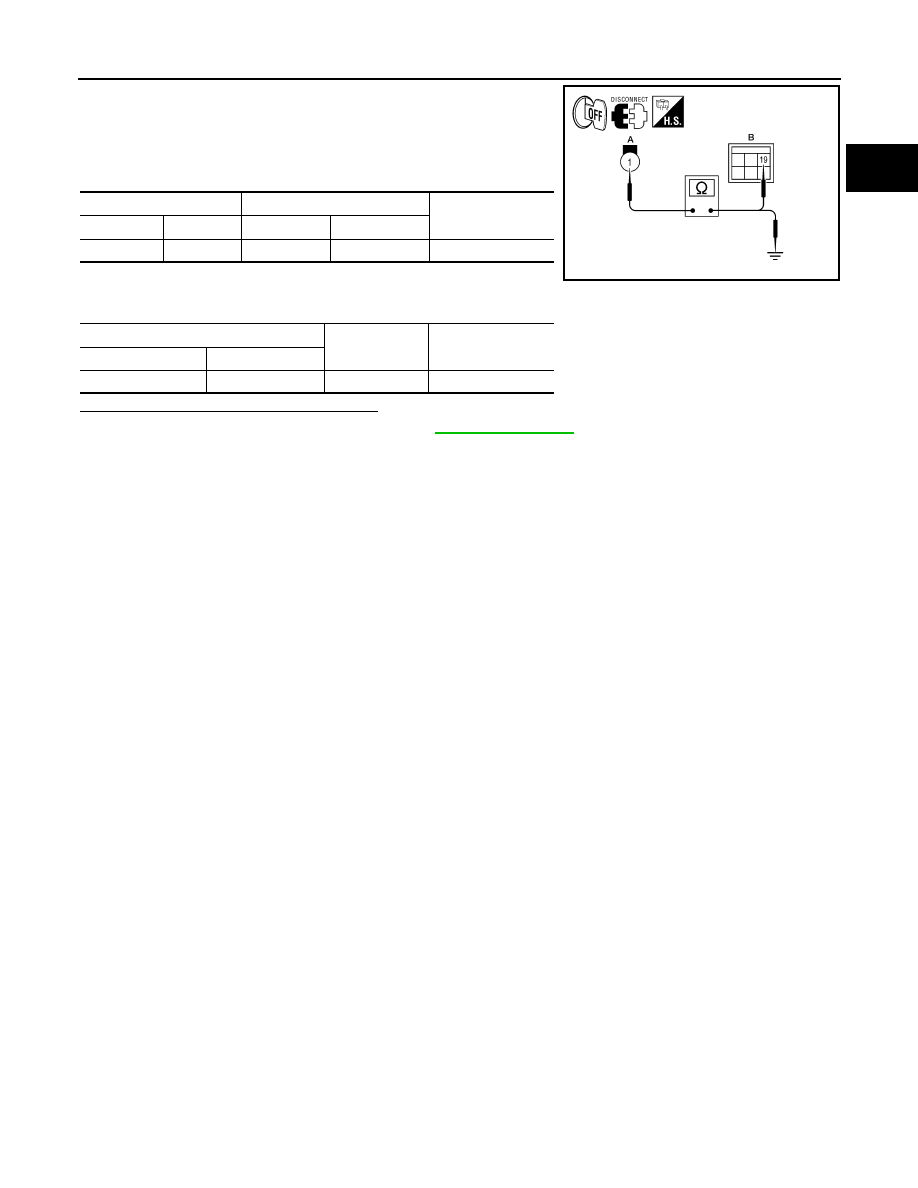

Check continuity between starter motor harness connector E207
(A) terminal 1 and IPDM E/R harness connector E120 (B) termi-
nal 19.

3.

Check continuity between starter motor harness connector E207
(A) terminal 1 and ground.

Are the continuity test results as specified?

YES

>> Further inspection necessary. Refer to

STR-5, "Work Flow"

.

NO

>> Repair the harness.

A

B

Continuity

Connector

Terminal

Connector

Terminal

E207

1

E120

19

Yes

A

—

Continuity

Connector

Terminal

E207

1

Ground

No

AWBIA0344ZZ

STR-18

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

STARTING SYSTEM

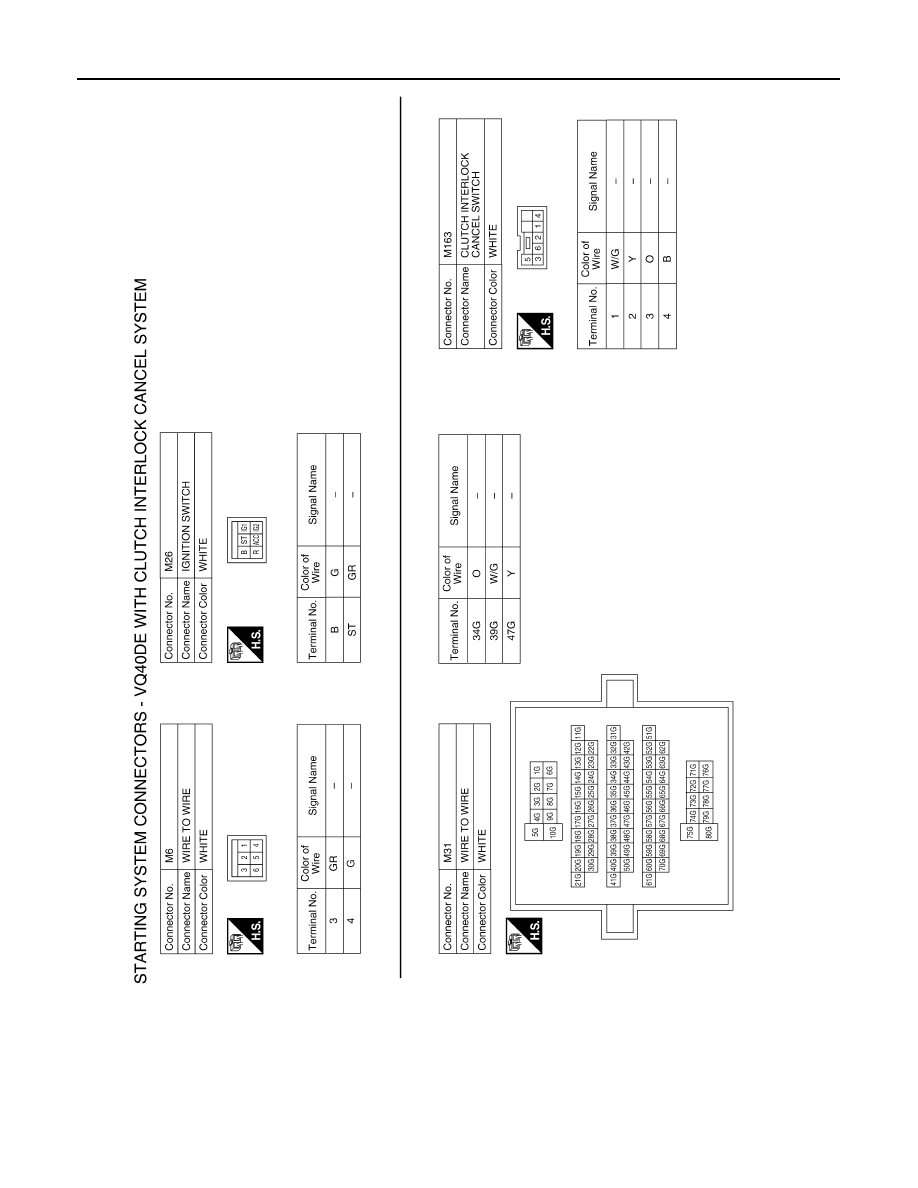

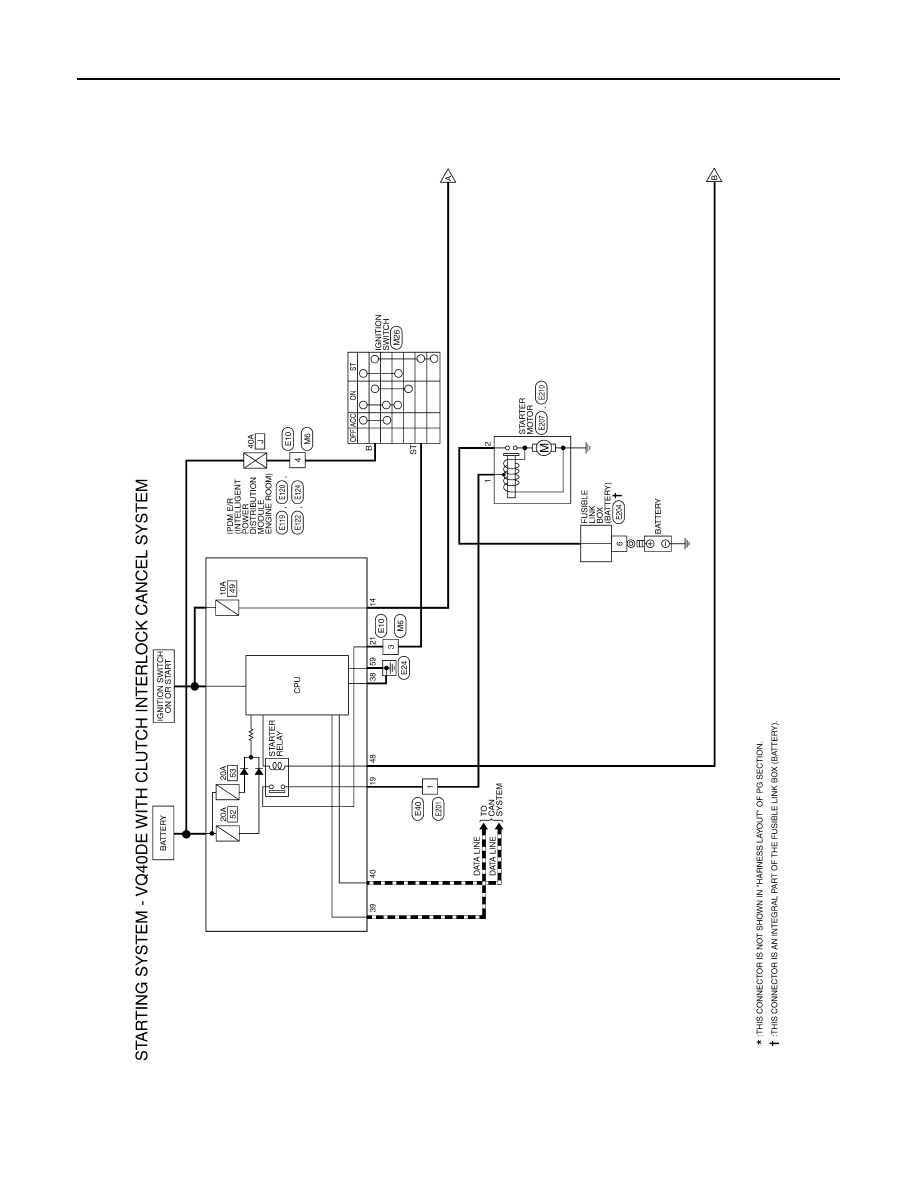

Wiring Diagram - VQ40DE - With Clutch Interlock Cancel Switch

INFOID:0000000005276069

ABBWA0369GB

STARTING SYSTEM

STR-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBWA0370GB

STR-20

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

ABBIA0477GB
