PREPARATION

ST-3

< PREPARATION >

PREPARATION

Special Service Tool

INFOID:0000000005276014

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

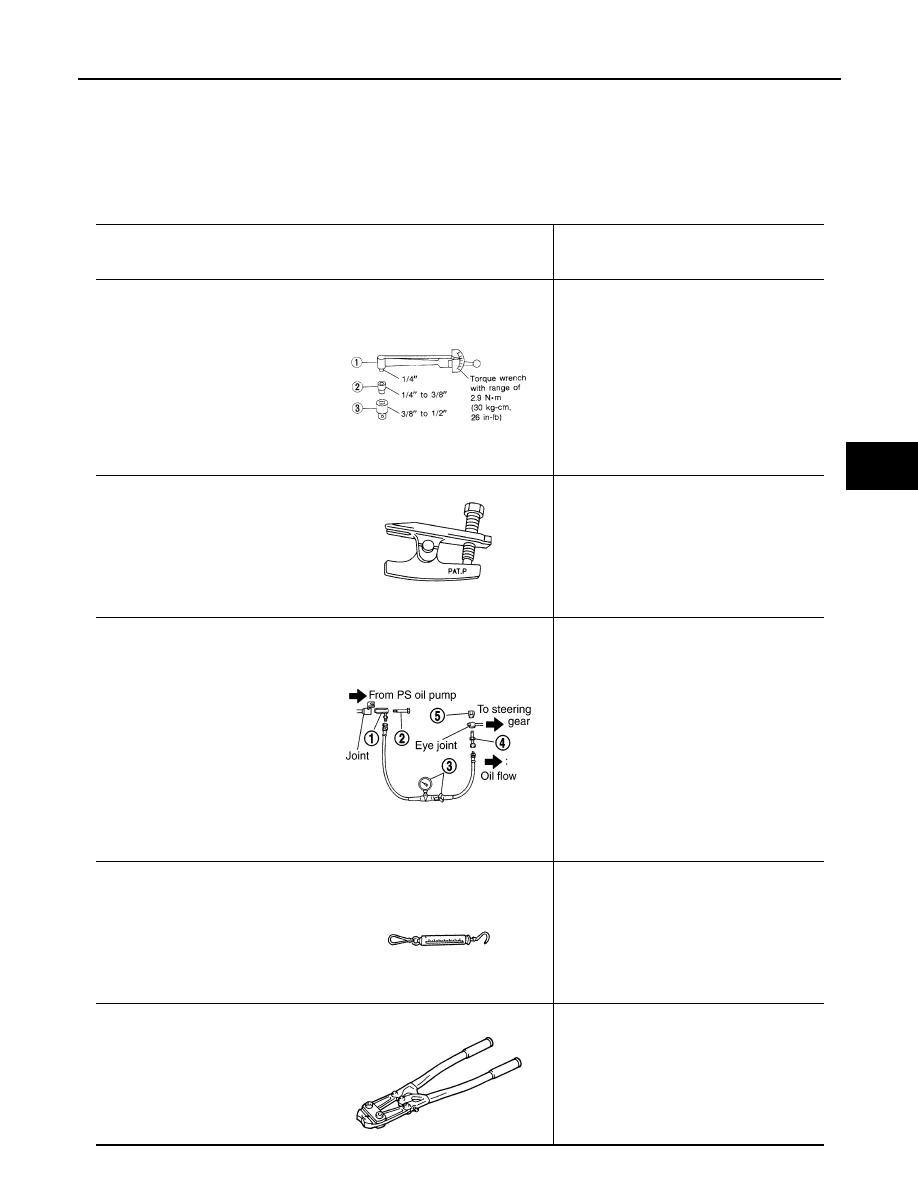

ST3127 S000
(See J-25765-A)
Preload gauge
1. GG9103000
   (J-25765-A)
   Torque wrench
2. HT62940000
   (

—

)

Socket adapter
3. HT62900000
(

—

)

Socket adapter

Inspecting of pinion rotating torque and rota-
tional torque for ball joint

HT72520000
(J-25730-A)
Ball joint remover

Removing steering outer socket

1. KV48105300-4 and 5295262U10
(

—

)

Connector A and O-ring
2. KV48105300-3 and 5295262U00
(

—

)

Eye-bolt and O-ring
3. KV48103500
(J-26357 and J-26357-10)
Pressure gauge and shut-off valve
4. KV48105300-1 and 5295262U00
(

—

)

Connector B and O-ring
5. KV48105300-2
(

—

)

Nut

Measuring oil pump relief pressure

—

(J-44372)
Spring gauge

Measuring steering wheel turning force

KV40107300
(

—

)

Crimping boot bands

S-NT541

NT146

SGIA0427E

LST024

ZZA1229D

ST-4

< PREPARATION >

PREPARATION

Commercial Service Tool

INFOID:0000000005276015

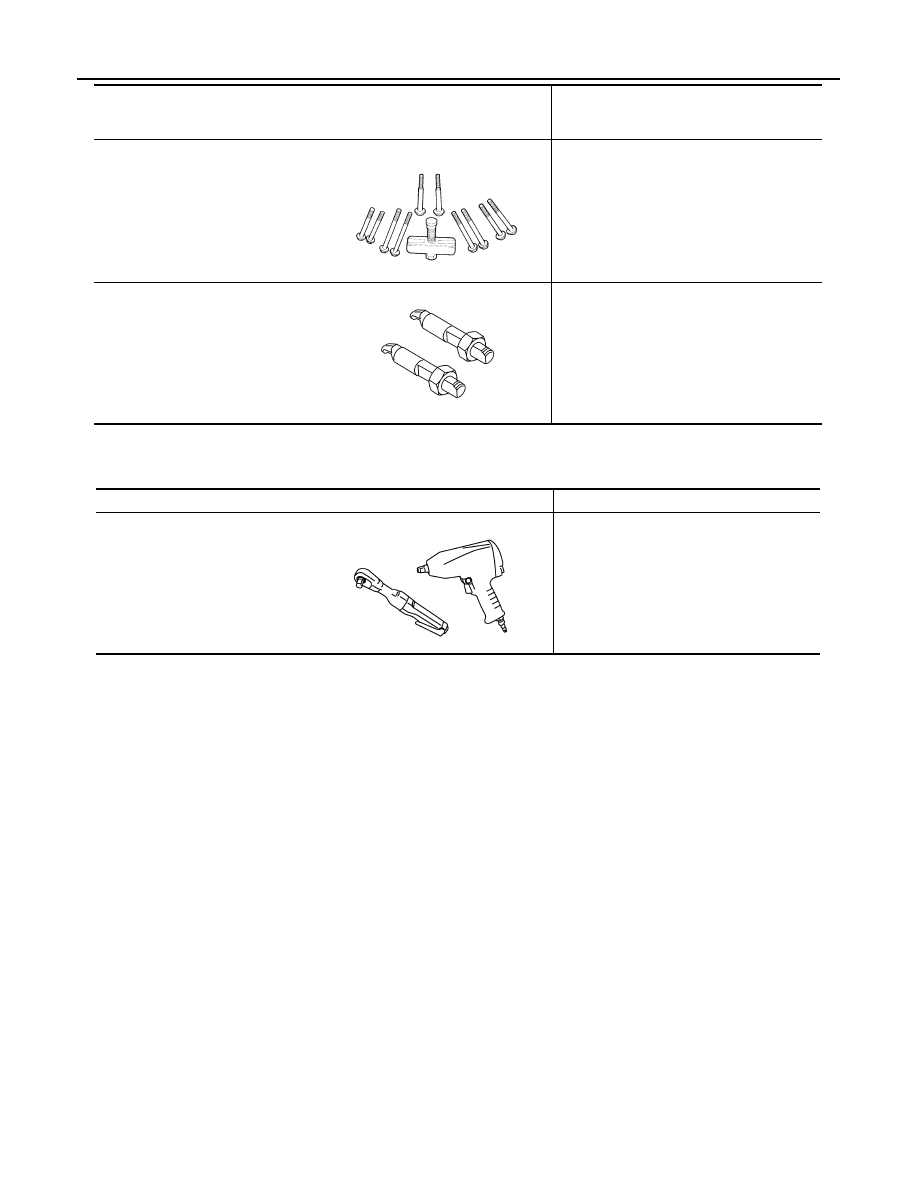

KV481J0010
(J-1859A)
Steering wheel puller

Removing steering wheel

KV481J0020
(J-42578)
Steering wheel puller legs

Removing steering wheel

Tool number
(Kent-Moore No.)
Tool name

Description

LHIA0043E

LHIA0044E

Tool name

Description

Power tool

Removing nuts and bolts

PBIC0190E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

ST-5

< SYMPTOM DIAGNOSIS >

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005276016

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

(QR25DE

(VQ

0DE

)

Possible cause and suspected parts

lui

d l

r i

dra

lic sy

ter

joi

t swi

ing

rce

ter

cket

joi

t rot

torq

ter

joi

t en

d p

eri

whe

l pl

ar rac

k sl

rce

Dri

loo

pro

r st

rop

er i

tal

tio

r lo

til

t lo

ting

er d

rio

rat

ion

tee

rin

lum

form

ion

r da

rop

er i

tal

tio

r lo

ring

eri

e l

OPE

LLE

R SHAFT

DIFFERENTIAL

PENSION

ROAD W

EEL

DRIV

E SHAFT

Symptom

Noise

× × × × × × × ×

× × × × × × ×

Shake

× × ×

× × × × ×

Vibration

× × × × ×

× × ×

Shimmy

× × ×

× × × ×

Shudder

× × × ×

ST-6

< ON-VEHICLE MAINTENANCE >

POWER STEERING FLUID

ON-VEHICLE MAINTENANCE

POWER STEERING FLUID

Checking Fluid Level

INFOID:0000000005276017

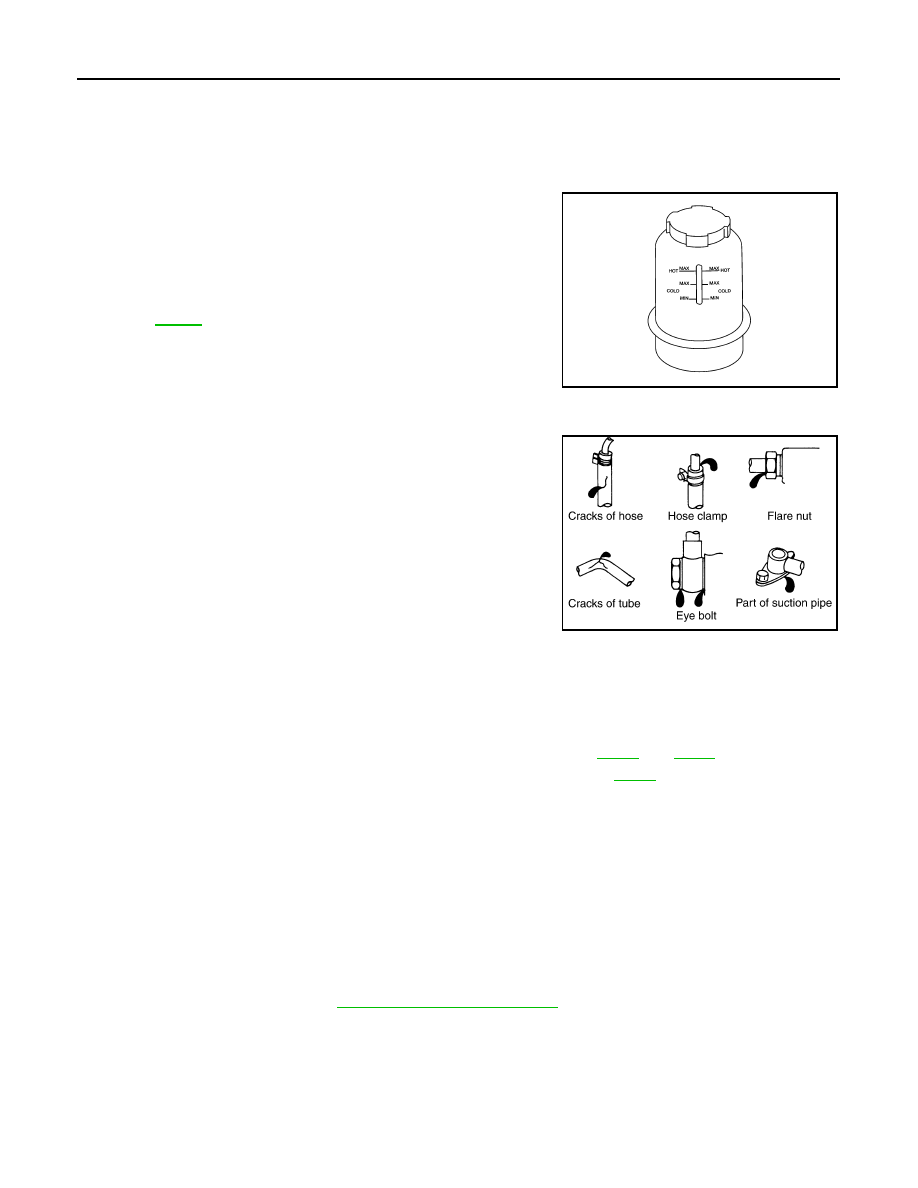

Check fluid level, referring to the scale on the reservoir tank.
Use HOT range for fluid temperatures of 50

– 80

C (122

– 176

F).

Use COLD range for fluid temperatures of 0

– 30

C (32

– 86

F).

CAUTION:

• Do not overfill.
• Do not reuse any power steering fluid.
• Recommended fluid is Genuine NISSAN PSF or equivalent.

Refer to

MA-16

Checking Fluid Leakage

INFOID:0000000005276018

Check the hydraulic piping lines for improper attachment, leaks,
cracks, damage, loose connections, chafing and deterioration.

CAUTION:

Do not reuse copper washers.

Run the engine until the fluid temperature reaches 50

– 80

(122

– 176

F) in the reservoir tank. Keep engine speed idle.

CAUTION:

Do not allow steering fluid reservoir tank to go below the
MIN level line. Check tank frequently and add fluid as
needed.

Turn the steering wheel to the right and left several times.

Hold the steering wheel at each “locked” position for five sec-
onds to check for fluid leakage.

CAUTION:

Do not hold steering wheel in the locked position for more than 10 seconds. (There is the possibil-
ity that the oil pump may be damaged.)

If fluid leakage at a connection is noticed, loosen the connection and then retighten. Do not over-tighten
connector as this can damage O-ring, washer and connector. Refer to

ST-10

and

ST-20

If fluid leakage from the oil pump is noticed, check the oil pump. Refer to

ST-10

Check steering gear boots for accumulation of fluid, indicating a leak from the steering gear.

Air Bleeding Hydraulic System

INFOID:0000000005276019

Incomplete air bleeding causes the following:
• Air bubbles in reservoir tank
• Clicking noise in oil pump
• Excessive buzzing in oil pump
When this happens bleed the air again.
NOTE:
When the vehicle is stationary or while the steering wheel is being turned slowly, some noise may be heard
from the oil pump or gear. This noise is normal and does not affect any system.
1.

Check for fluid leakage. Refer to

ST-6, "Checking Fluid Leakage"

Start the engine and turn the steering wheel fully to the right and left several times.

CAUTION:

Do not allow steering fluid reservoir tank to go below the MIN level line. Check tank frequently and
add fluid as needed.

Run the engine at idle speed. Hold the steering wheel at each "locked" position for three seconds.

CAUTION:

LGIA0021E

SGIA0506E
