Nissan Frontier D40. Manual - part 97





BRC-86

< FUNCTION DIAGNOSIS >

[TYPE 2]

TCS

TCS

System Diagram

INFOID:0000000005548221

System Description

INFOID:0000000005548222

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4
wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

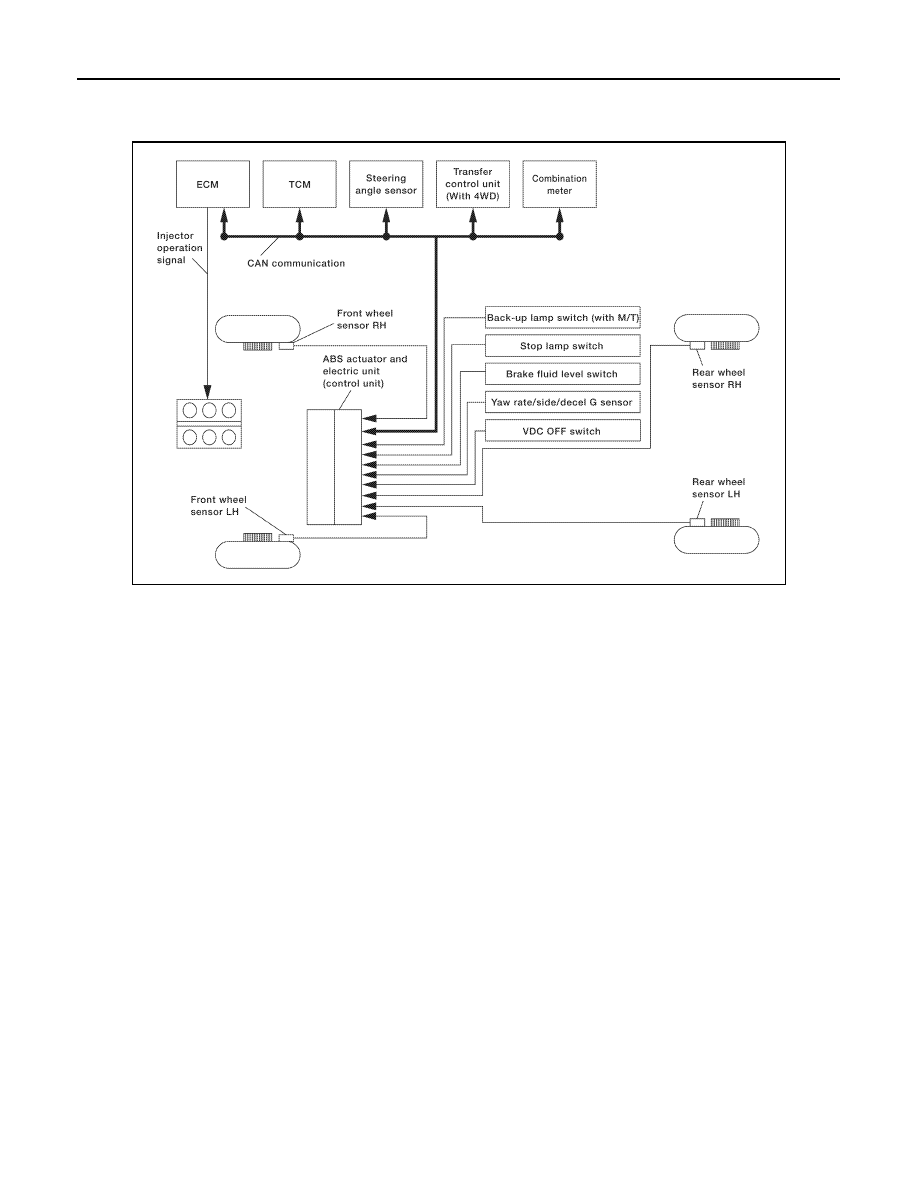

AWFIA0589GB

TCS

BRC-87

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Parts Location

INFOID:0000000005549010

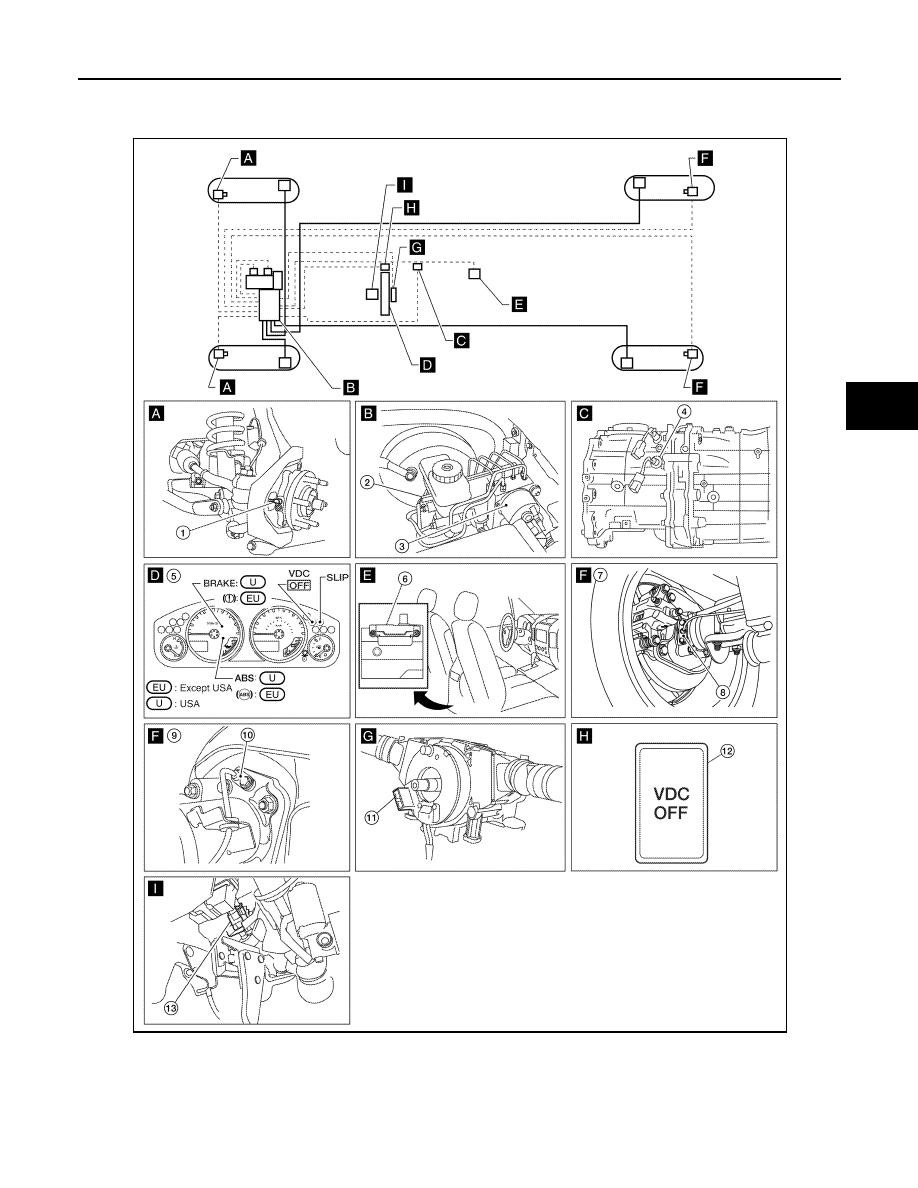

AWFIA0586GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake  fluid level switch  E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Back-up lamp switch F69

5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle

BRC-88

< FUNCTION DIAGNOSIS >

[TYPE 2]

TCS

Component Description

INFOID:0000000005549011

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch (with M/T) E38

Stop lamp switch (with A/T) E39

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-109, "Description"

Motor

Actuator relay

BRC-126, "Description"

Solenoid valve

BRC-118, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-137, "Description"

Wheel sensor

BRC-113, "Description"

Yaw rate/side/decel G sensor

BRC-111, "Description"

Brake fluid level switch

BRC-128, "Description"

Steering angle sensor

BRC-128, "Description"

Stop lamp switch

BRC-116, "Description"

VDC OFF switch

BRC-142, "Description"

ABS warning lamp

BRC-144, "Description"

Brake warning lamp

BRC-145, "Description"

VDC OFF indicator lamp

BRC-146, "Description"

SLIP indicator lamp

BRC-148, "Description"

ABS

BRC-89

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

System Diagram

INFOID:0000000005548225

System Description

INFOID:0000000005548226

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

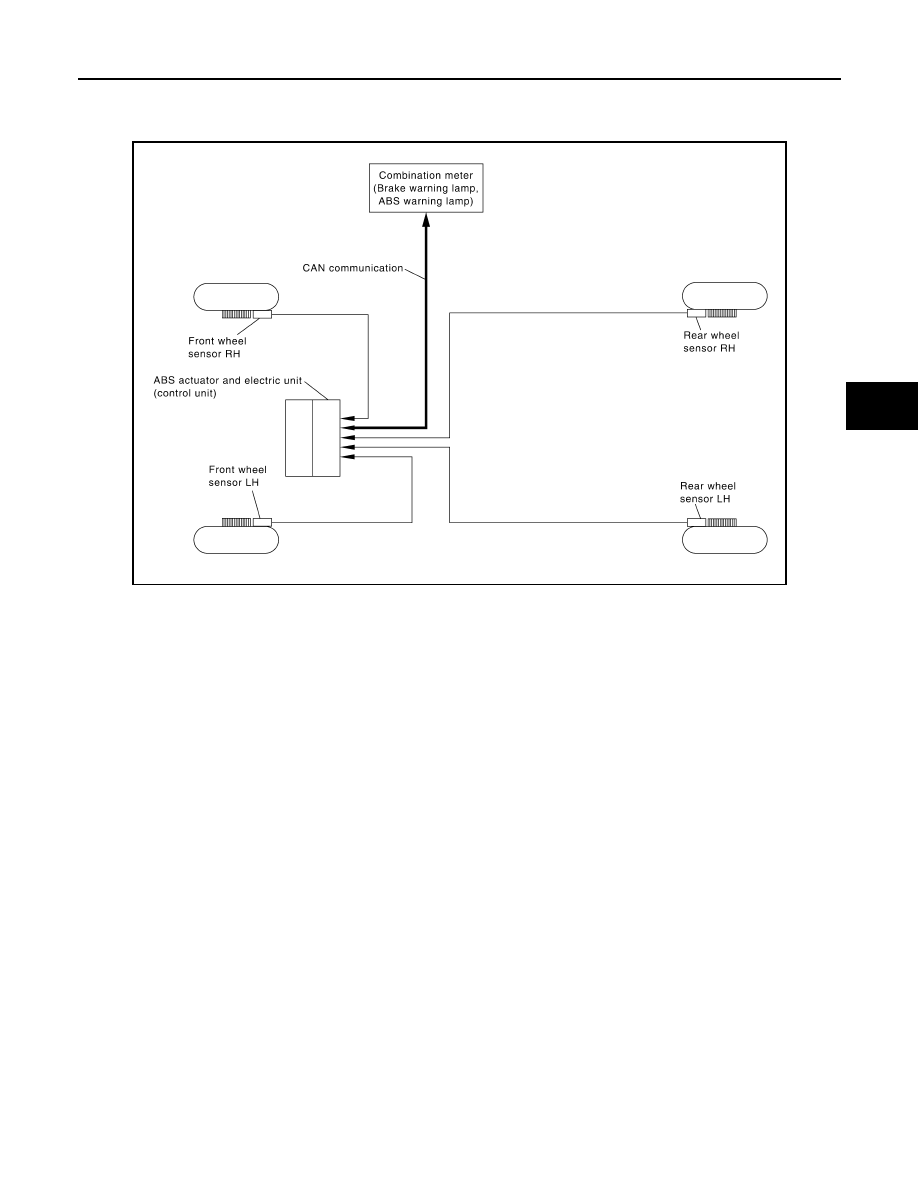

AWFIA0014GB
