Nissan Frontier D40. Manual - part 89

BRC-54

< ECU DIAGNOSIS >

[TYPE 1]

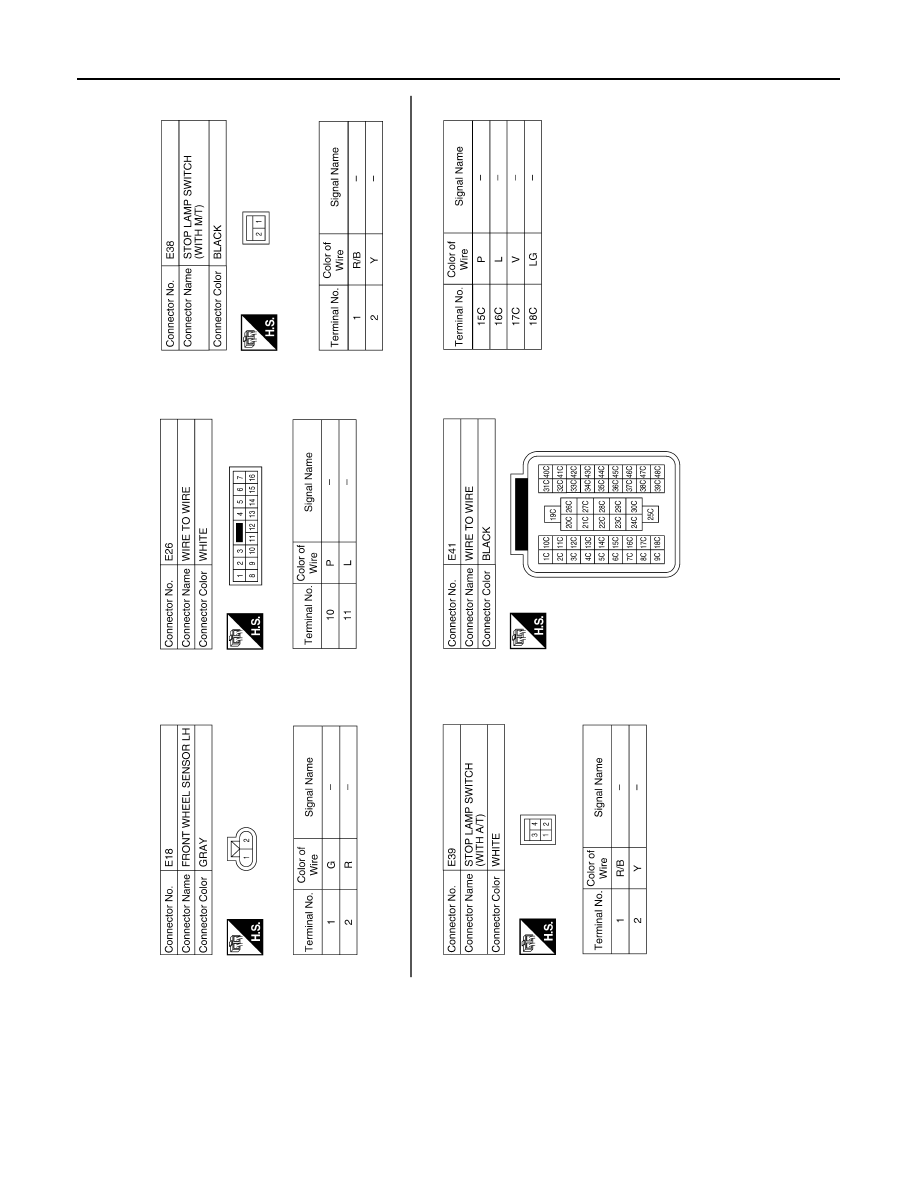

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ABFIA0068GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-55

< ECU DIAGNOSIS >

[TYPE 1]

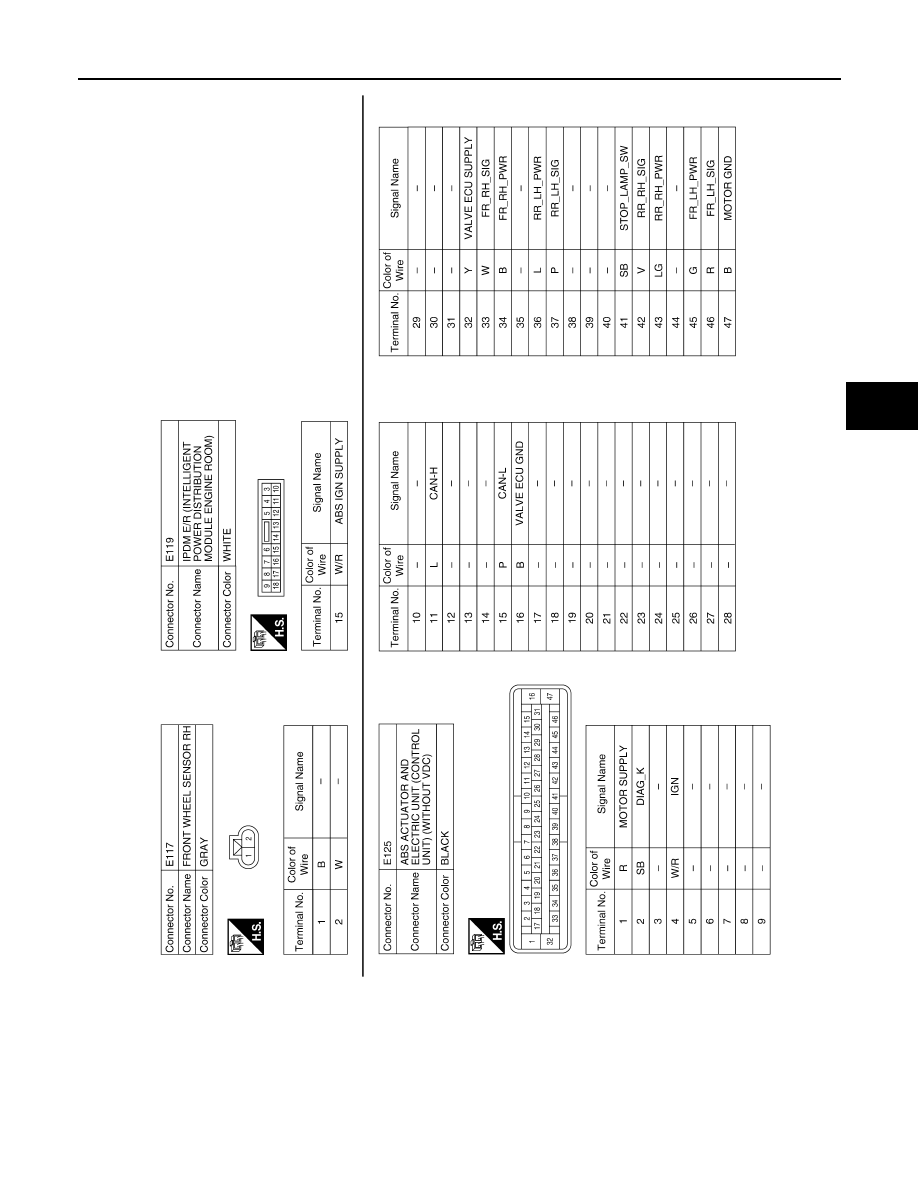

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0069GB

BRC-56

< ECU DIAGNOSIS >

[TYPE 1]

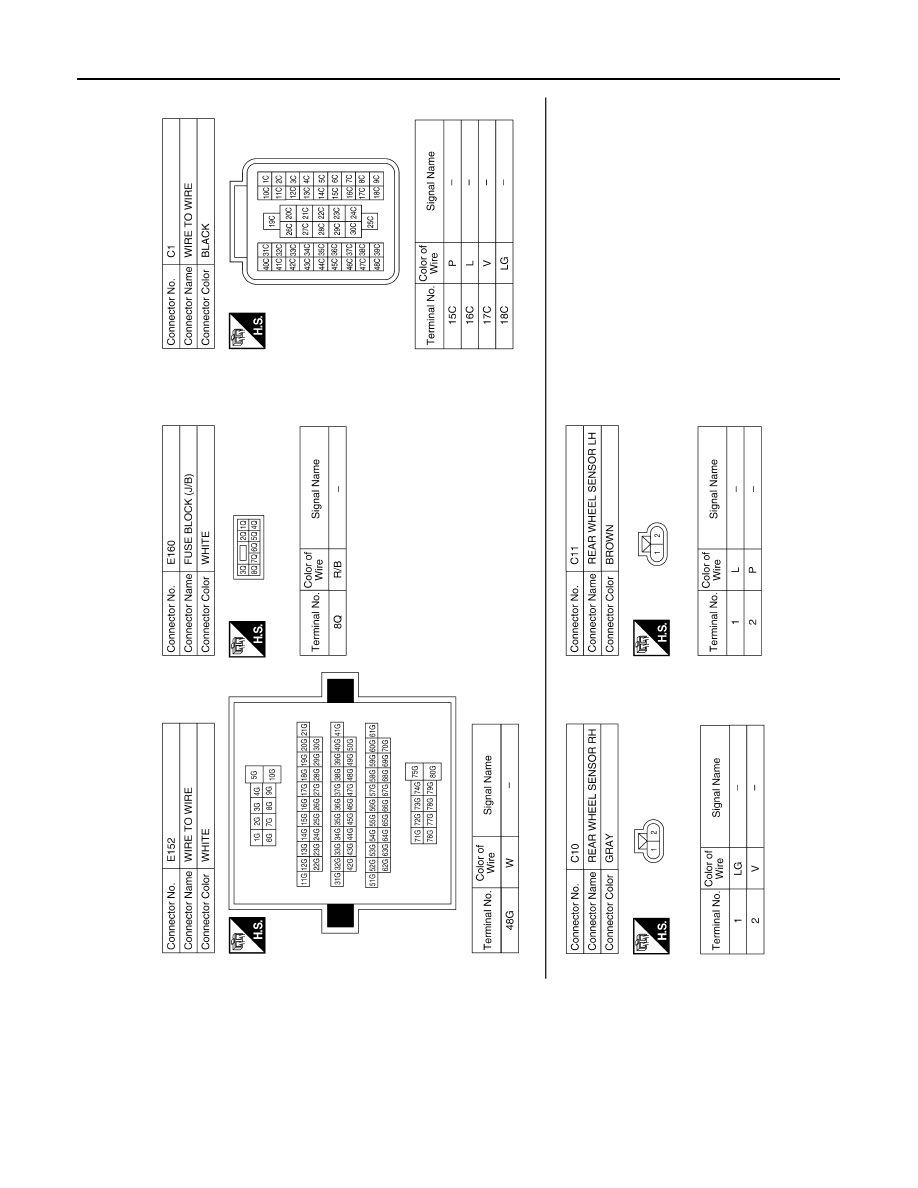

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Fail-Safe

INFOID:0000000005275094

CAUTION:

If the Fail-Safe function is activated, perform Self Diagnosis for ABS system.

ABS/EBD SYSTEM

In case of an electrical malfunction with the ABS, the ABS warning lamp will turn on. In case of an electrical
malfunction with the EBD system, the BRAKE warning lamp and the ABS warning lamp will turn on.

ABFIA0280GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-57

< ECU DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

The system will revert to one of the following conditions of the Fail-Safe function.

1.

For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of
vehicles without ABS system.

2.

For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same
as the condition of vehicles without ABS or EBD system.

DTC No. Index

INFOID:0000000005275095

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-25, "Description"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-28, "Description"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-31, "Description"

C1110

CONTROLLER FAILURE

BRC-33, "DTC Logic"

C1111

PUMP MOTOR

BRC-34, "Description"

C1113

G-SENSOR

BRC-33, "DTC Logic"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-36, "Description"

C1120

FR LH IN ABS SOL

BRC-39, "Description"

C1121

FR LH OUT ABS SOL

BRC-41, "Description"

C1122

FR RH IN ABS SOL

BRC-39, "Description"

C1123

FR RH OUT ABS SOL

BRC-41, "Description"

C1140

ACTUATOR RLY

BRC-43, "Description"

C1170

VARIANT CODING

BRC-33, "DTC Logic"

C1190

R-EV

BRC-39, "Description"

C1191

R-AV

BRC-41, "Description"

U1000

CAN COMM CIRCUIT

BRC-45, "Description"
