AV-84

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

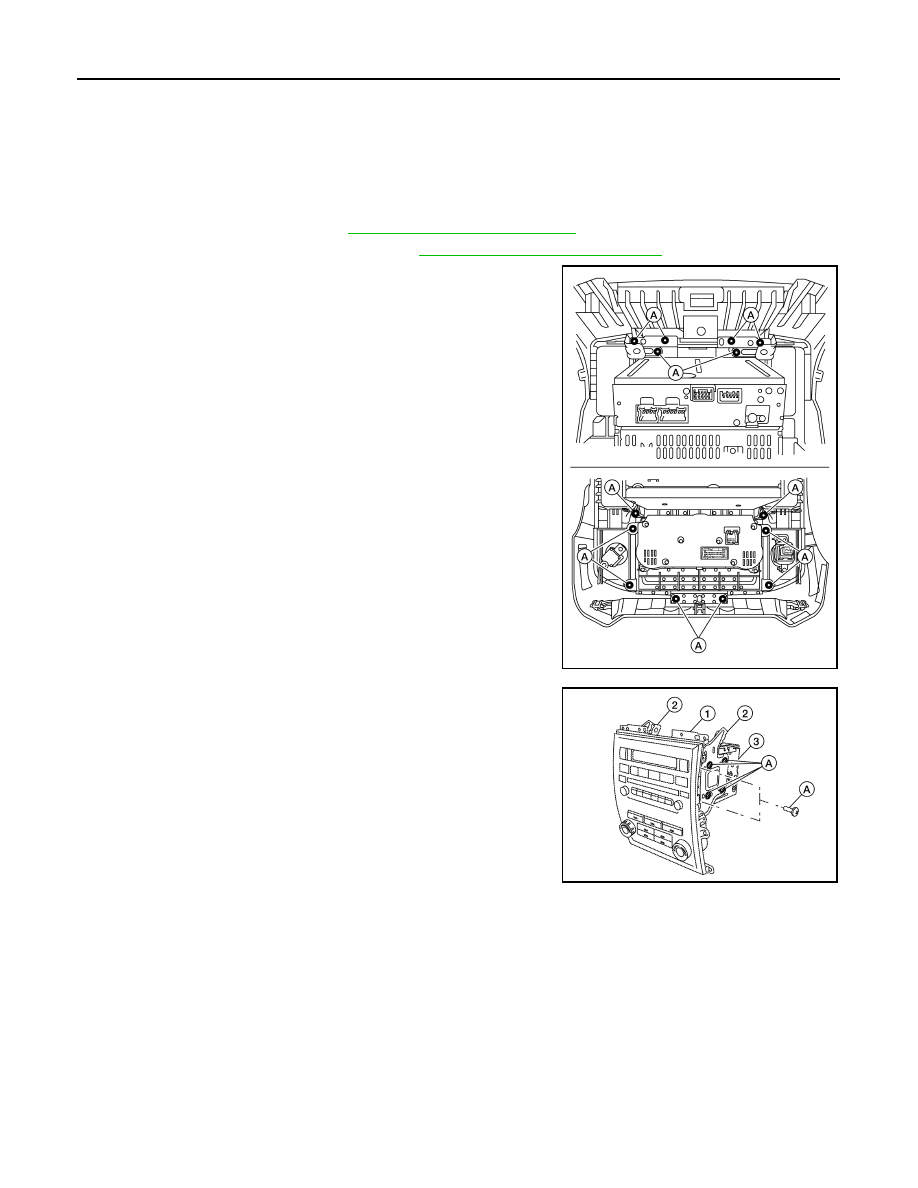

AUDIO UNIT

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000005274918

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the center ventilator ducts. Refer to

VTL-21, "Removal and Installation"

.

3.

Remove the audio unit control screws (A), then remove the
audio unit assembly, from cluster lid C.

4.

Remove the audio unit (3) from the audio control panel (1).

5.

Remove the audio unit screws (A), using power tool, then
remove the audio unit brackets (2).

6.

Pull out the audio unit (3) from the audio control panel (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1186ZZ

ALNIA1187ZZ

AV

FRONT TWEETER

AV-85

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

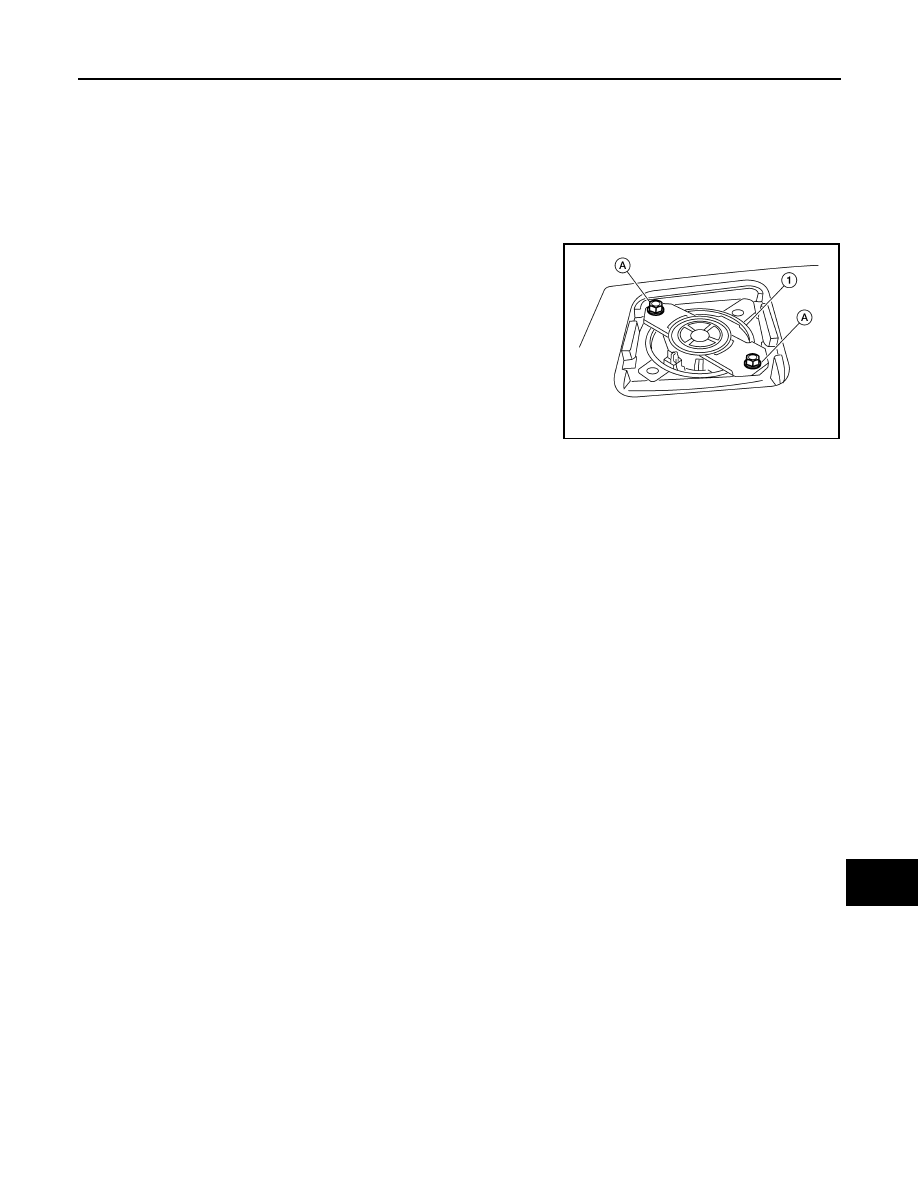

FRONT TWEETER

Removal and Installation

INFOID:0000000005274919

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1.

Remove the front tweeter grille.

2.

Remove the front tweeter screws (A).

3.

Pull out the front tweeter speaker (1) and disconnect front
tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ

AV-86

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

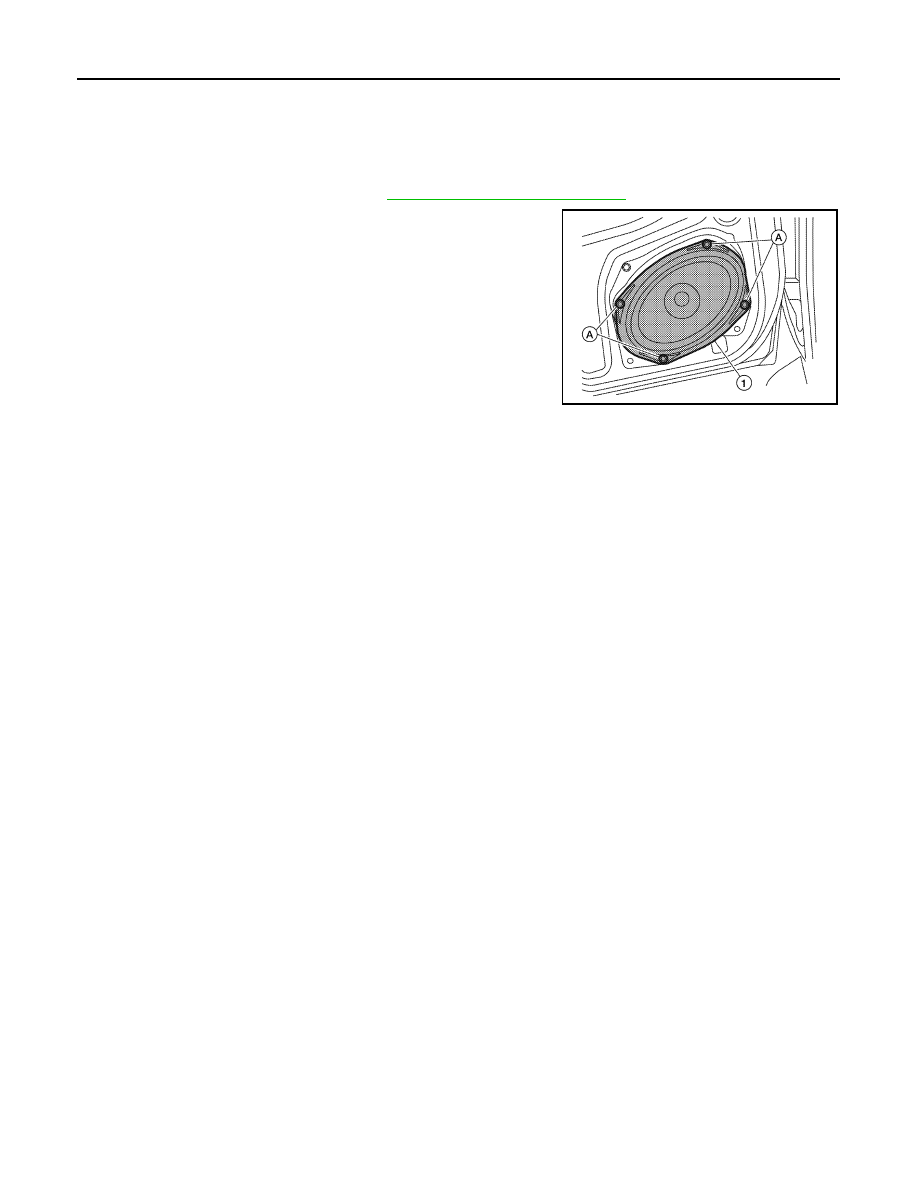

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005274920

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the front door speaker screws (A).

3.

Pull out the front door speaker (1), and disconnect the front door
speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-87

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

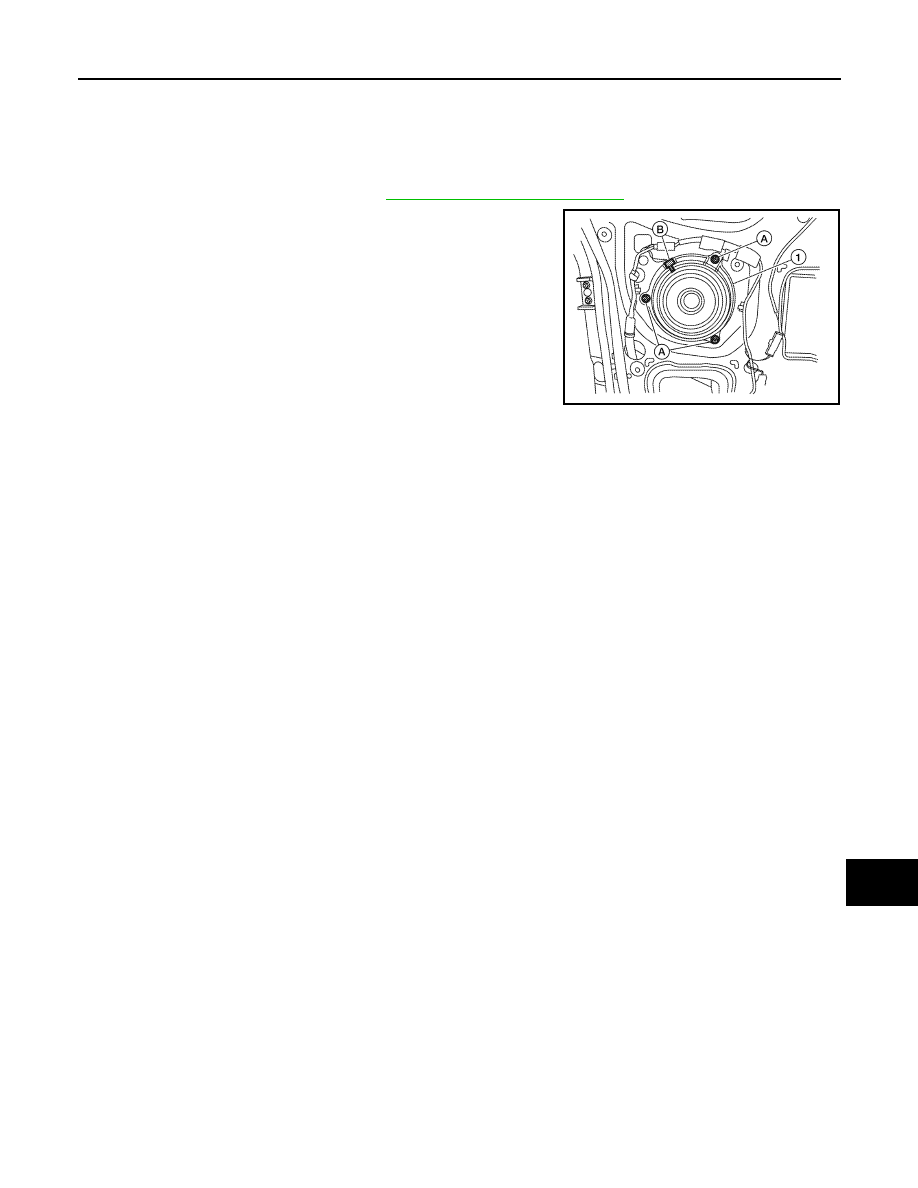

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005274921

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the rear door speaker screws (A).

3.

Remove the rear door speaker (1) and disconnect rear door
speaker connector (B).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ
