Nissan Altima L32. Manual - part 100

AV-392

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT (SEDAN)

5 (GR/V)

6 (W/L)

Sound signal rear LH

Output

Ignition

switch

ON

—

7 (V/Y)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

8 (V/W)

Ground

Vehicle speed (8-pulse)
signal

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25MPH)

9 (R/L)

Ground

Illumination signal

Input

OFF

Lighting switch is OFF.

0V

Lighting switch is ON.

Battery voltage

10 (G)

Ground

Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

11 (B)

12 (W)

Sound signal front RH

Output

Ignition

switch

ON

—

14 (V)

15 (LG)

Sound signal rear RH

Output

Ignition

switch

ON

—

16 (B/P)

Ground

Amp. ON signal

Output

Ignition

switch

ON

—

Battery voltage

17 (P/B)

Ground

Reverse signal

Input

Ignition

switch

ON

R position

Battery voltage

18 (R/Y)

Ground

Illumination control

Input

OFF

—

Refer to

INL-10, "System De-

scription"

.

19 (B)

Ground

Ground

—

Ignition

switch

ON

—

0V

20 (Y/R)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

SKIA6649J

SKIB3609E

SKIB3609E

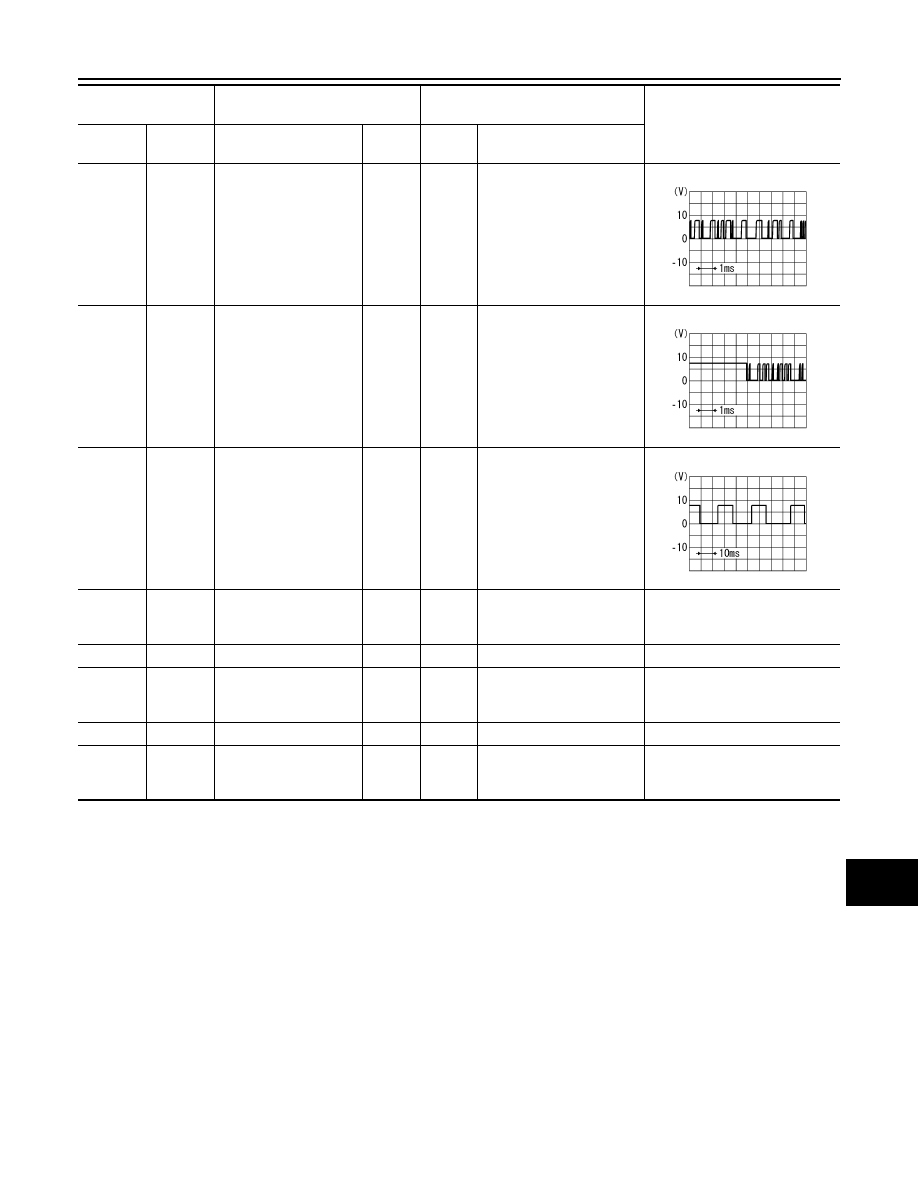

AV

AV CONTROL UNIT (SEDAN)

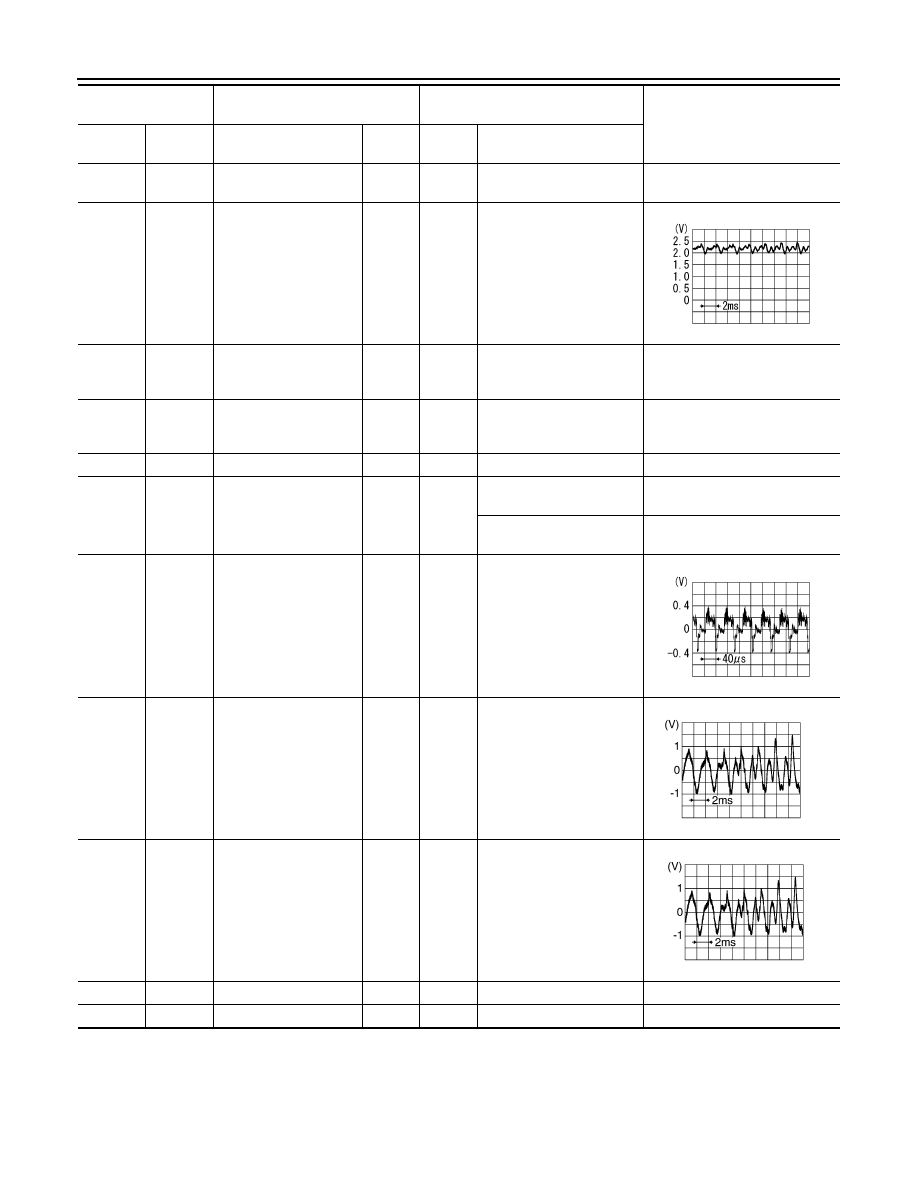

AV-393

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

24 (L)

—

CAN–H

Input/

Output

—

—

—

25 (W/G)

26 (L/B)

Steering switch signal 1

Input

Ignition

switch

ON

Keep pressing SOURCE
switch.

 0V

Keep pressing MENU UP
switch.

1V

Keep pressing MENU
DOWN switch.

2V

Keep pressing

 switch

3V

Keep pressing ENTER
switch.

4V

Except for above.

5V

26 (L/B)

Ground

Steering switch signal
ground

—

Ignition

switch

ON

—

0V

27 (GR/L)

26 (L/B)

Steering switch signal 2

Input

Ignition

switch

ON

Keep pressing VOL DOWN
switch.

0V

Keep pressing VOL UP
switch.

1V

Keep pressing

 switch.

2V

Keep pressing

 switch.

3V

Except for above.

5V

28

—

Shield

—

—

—

—

31 (W/R)

Ground

AUX sound signal RH

Input

Ignition

switch

ON

When AUX mode is select-
ed

32 (W)

Ground

AUX ground

—

Ignition

switch

ON

—

0V

33 (W/L)

Ground

AUX sound signal LH

Input

Ignition

switch

ON

When AUX mode is select-
ed

34 (W)

Ground

Camera image signal

Input

Ignition

switch

ON

Rear view camera image
displayed

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

SKIB3609E

SKIB2251J

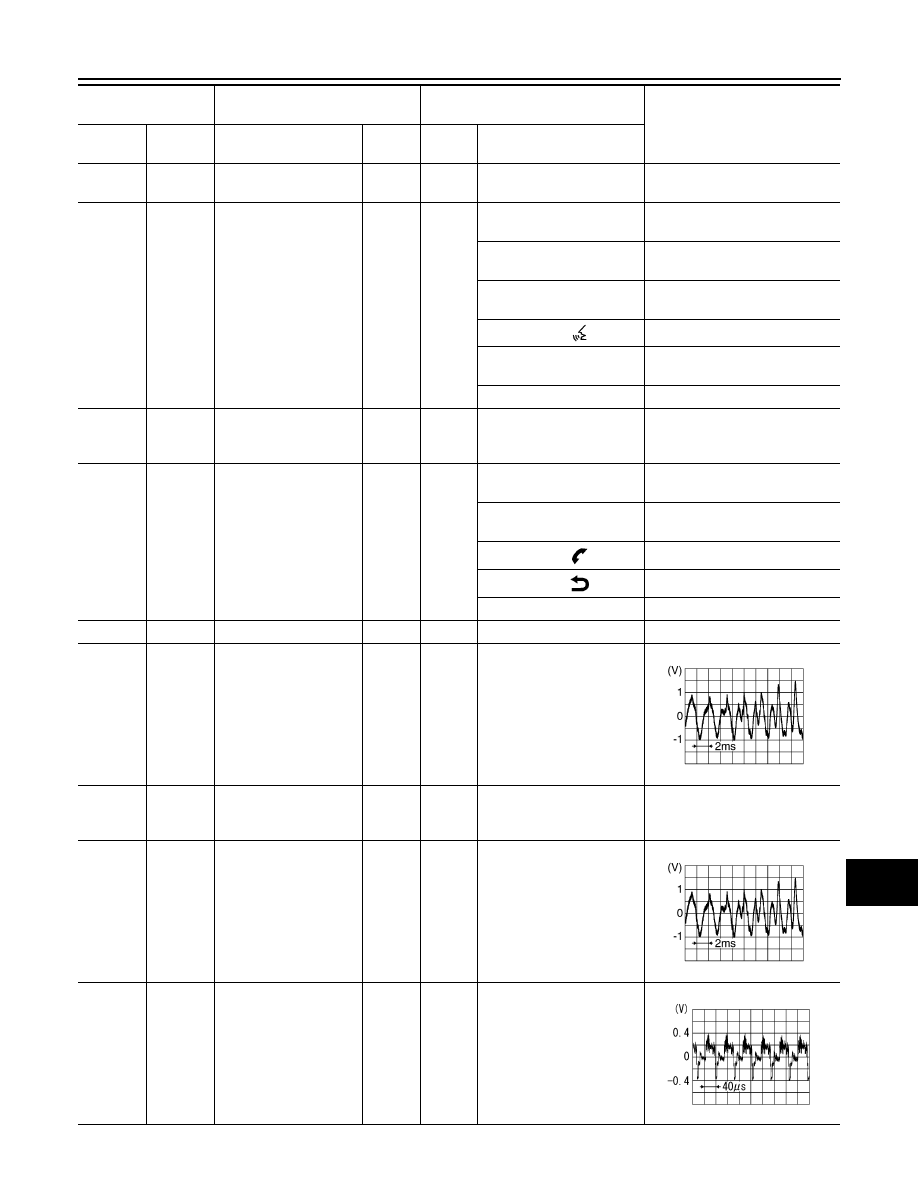

AV-394

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT (SEDAN)

44 (P)

—

CAN–L

Input/

Output

—

—

—

45 (B/R)

Ground

Microphone signal

Input

Ignition

switch

ON

—

46 (R/L)

Ground

Microphone VCC

Output

Ignition

switch

ON

—

5V

47 (R/B)

Ground

Microphone ground

—

Ignition

switch

ON

—

0V

48

—

Shield

—

—

—

—

53 (V/G)

Ground

Camera-connection rec-
ognition signal

Input

Ignition

switch

ON

Connected to camera con-
trol unit connector

0V

Not connected to camera
control unit connector

5V

55 (R)

Ground

Camera image signal

Input

Ignition

switch

ON

Rear view camera image
displayed

62 (Y/L)

61 (W/L)

CD changer sound sig-
nal LH

Input

Ignition

switch

ON

—

64 (Y/G)

63 (BR/L)

CD changer sound sig-
nal RH

Input

Ignition

switch

ON

—

65

—

Shield

—

—

—

—

66

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

PKIB5037J

SKIB2251J

SKIB3609E

SKIB3609E

AV

AV CONTROL UNIT (SEDAN)

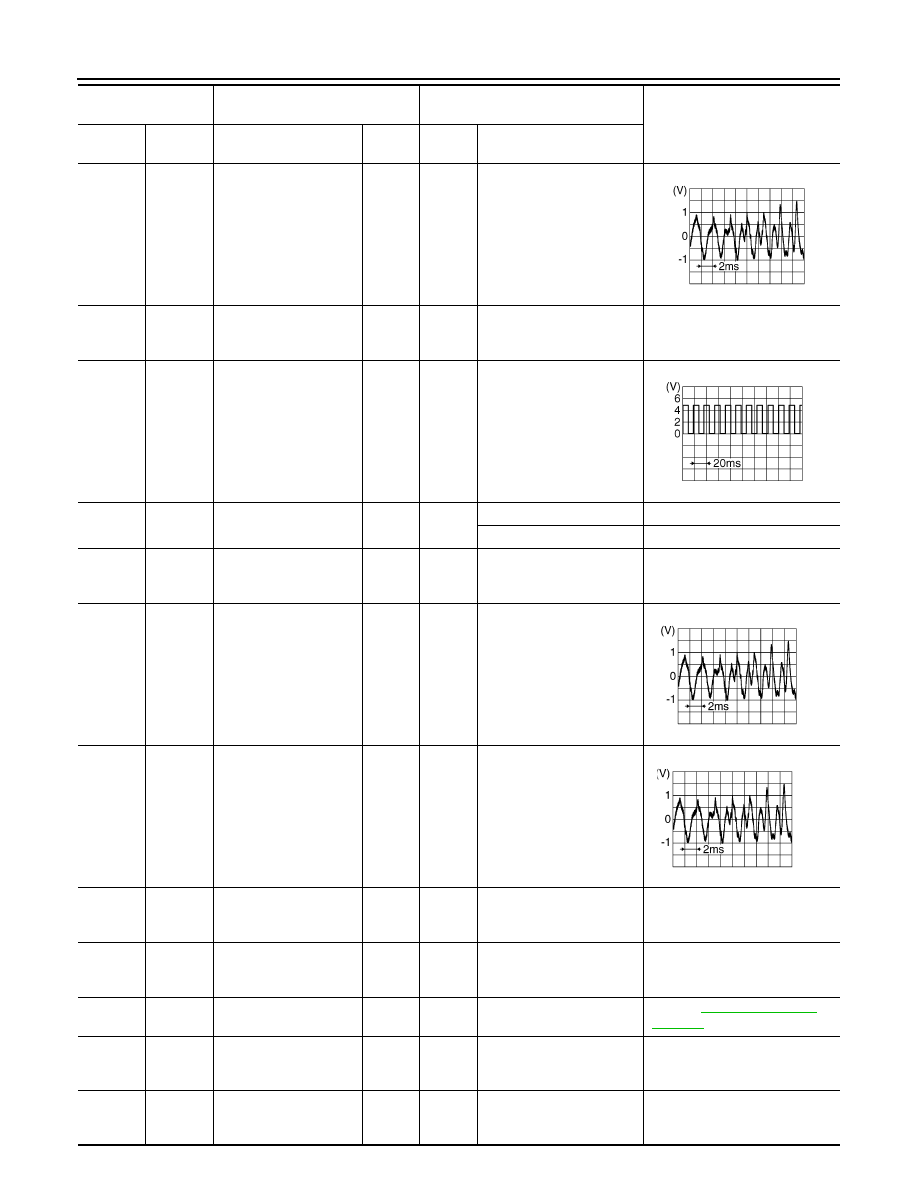

AV-395

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

69 (B)

Ground

Communication signal
(CD

→CONT)

Input

Ignition

switch

ON

—

70 (G)

Ground

Communication signal
(CONT

→CD)

Input

Ignition

switch

ON

—

72 (R)

Ground

Request signal
(CD

→CONT)

Output

Ignition

switch

ON

—

73 (B)

—

GPS signal

Input

Ignition

switch

ACC

Not connected to GPS an-
tenna connector

5V

74 (B)

—

Shield

—

—

—

—

75 (B)

Ground

Antenna amp. supply

Output

Ignition

switch

ACC

—

Battery voltage

76 (B)

—

Main antenna

Input

—

—

—

78 (B)

Ground

Satellite antenna signal

Input

Ignition

switch

ACC

Not connected to satellite
antenna connector

5V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIA9300J

SKIA9301J

SKIA9299J
