System Description

OUTLINE

Power door lock system with super lock and key reminder is controlled by super lock control unit. Super lock
has a higher anti-theft performance than conventional power door lock systems.

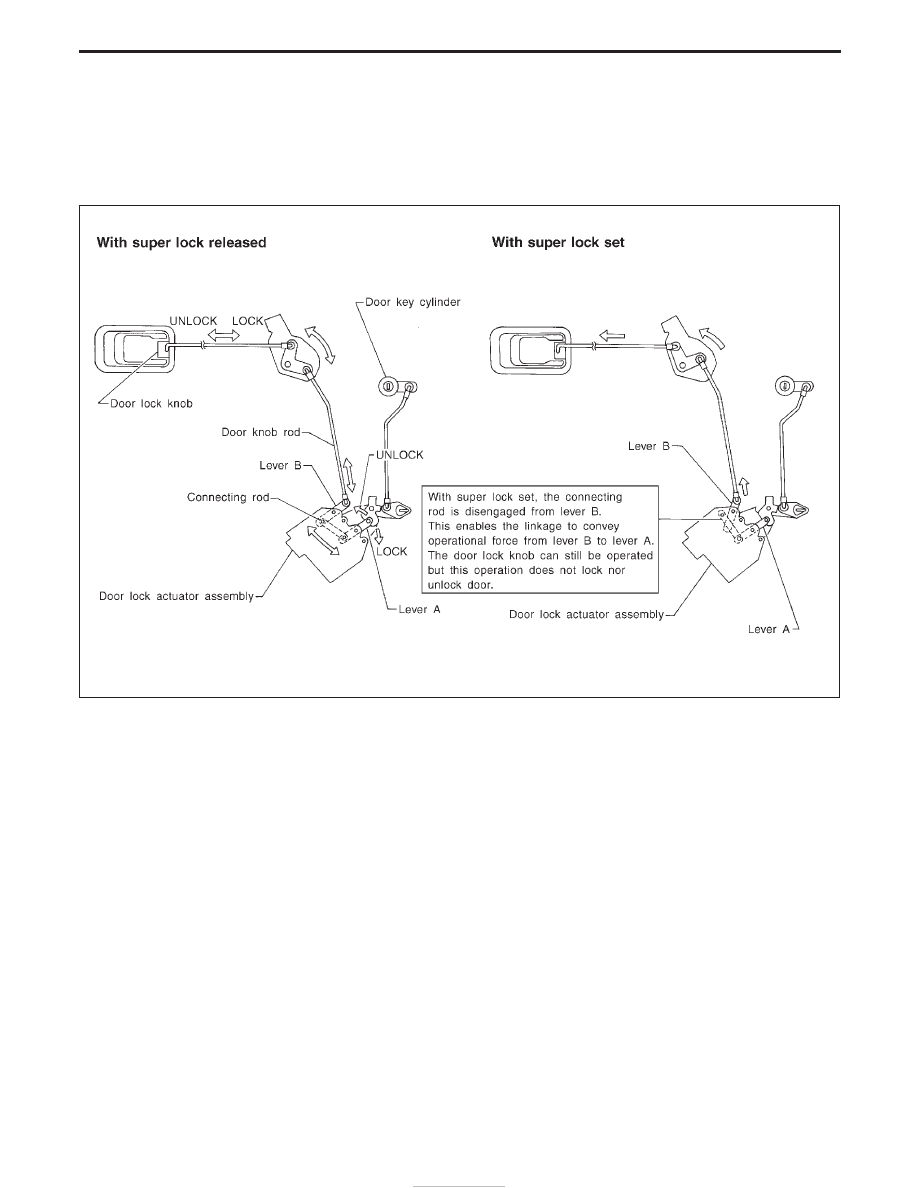

When super lock is in the released condition, lock knob operation can lock or unlock door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.

OPERATION

Power door lock/unlock and super lock set/release operation by door key cylinder

I

With the key inserted into door key cylinder on driver or passenger door, turning it to LOCK will lock all
doors and set super lock while all doors are closed or one or more door is open.

I

With the key inserted into door key cylinder on driver or passenger door, turning it to UNLOCK will unlock
all doors and release super lock.

Power door lock and super lock release operation (by NATS IMMU signal)

I

With the key inserted into ignition key cylinder and turning it to “ON” for about 5 - 6 sec. will unlock all
doors and release super lock.

Power door lock/unlock operation by lock knob

I

Setting lock knob on driver or passenger door to LOCK while all doors are closed, will cause all doors to
lock.
Setting lock knob on passenger door to lock when one or more doors are open will lock passen-
ger door only. (Power door lock system will not operate.)

I

Setting lock knob on driver or passenger door to UNLOCK while all doors are closed will unlock all doors.

Lock knob operation cannot control super lock.

SEL831U

POWER DOOR LOCK — SUPER LOCK —

EL-180

Key reminder system

I

If the ignition key is in the ignition cylinder and any door is open, setting the lock & unlock switch and lock
knob on driver door to “LOCK” locks the door once but then immediately unlocks it.

System initialization

I

System initialization is required when battery cables are reconnected. Conduct one of the following:
— insert the key into ignition key cylinder and turn it to “ON.”
— LOCK/UNLOCK operation using door key cylinder.

POWER DOOR LOCK — SUPER LOCK —

System Description (Cont’d)

EL-181

Schematic

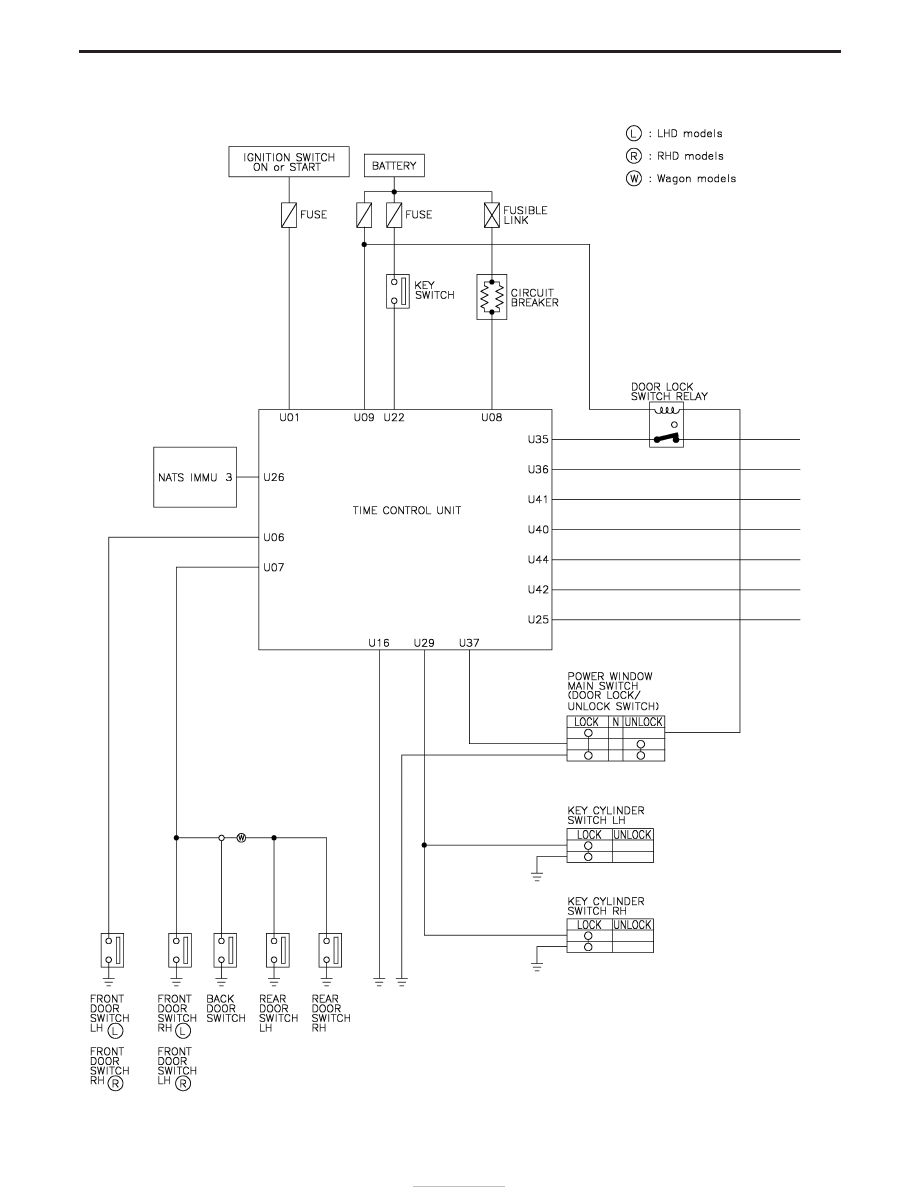

YEL864E

POWER DOOR LOCK — SUPER LOCK —

EL-182

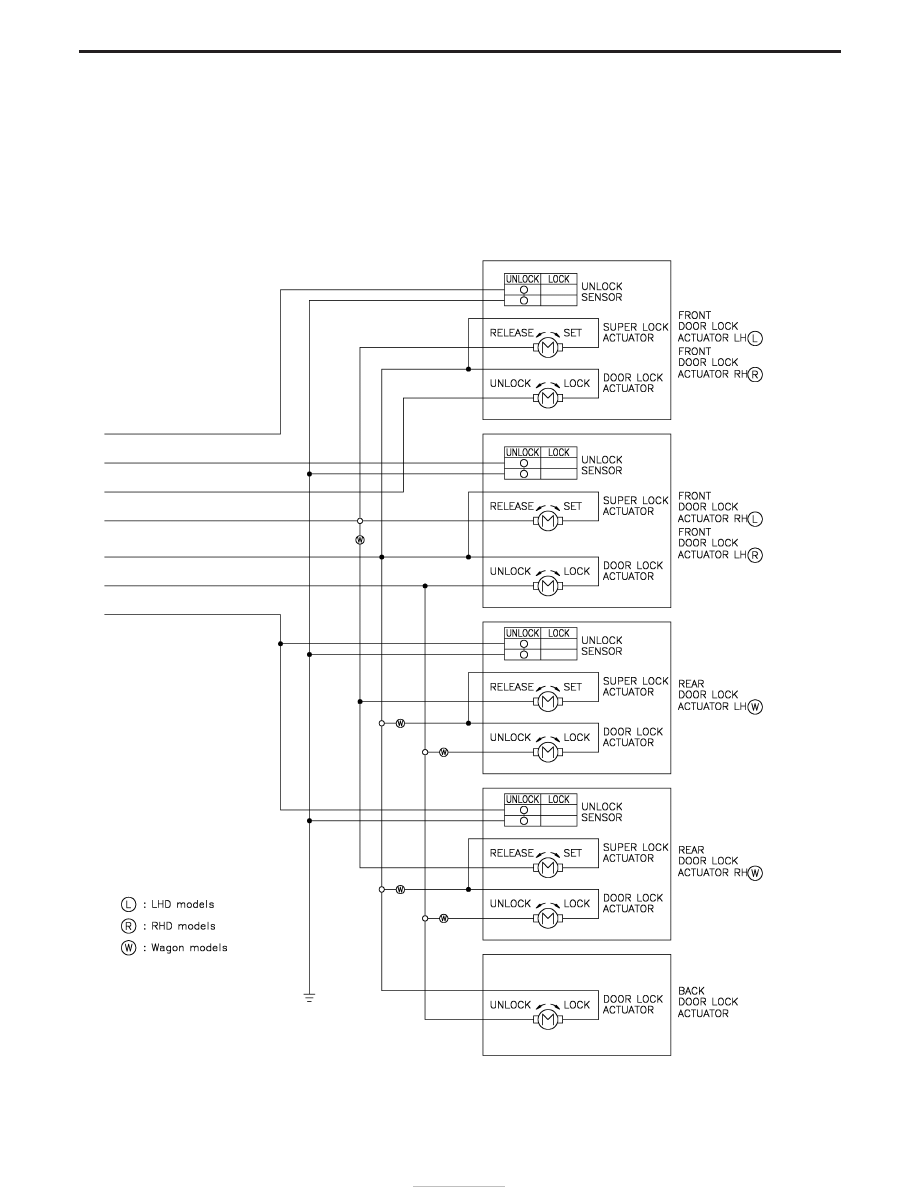

YEL150D

POWER DOOR LOCK — SUPER LOCK —

Schematic (Cont’d)

EL-183
