Nissan Terrano model r20 series 2004. Manual - part 348





Points

Hole dia.

mm (in)

Detailed points

Coordinates mm (in)

“X”

“Y”

“Z”

q

E

9 (0.35)

NBF025

Hood lock stay
mounting hole
on upper radia-
tor core support

37.0

(1.46)

−589.0

(−23.19)

494.0

(19.45)

q

I

Lower radiator
core support
mounting hole

0.0

(0.00)

−581.1

(−22.88)

−54.1

(−2.13)

q

G

q

g

12 (0.47)

Lower radiator
core support
location hole

280.0

(11.02)

−608.9

(−23.97)

−23.0

(−0.91)

q

C

q

c

7.2 (0.28)

NBF027

Front fender
mounting hole
on hoodledge

698.5

(27.50)

−110.1

(−4.34)

624.7

(24.59)

q

1

: Coordinate indicated is

LH

,

RH

coordinate is -

LH

coordinate.

E.g. if

LH

coordinate is: 698.5,

RH

coordinate is: −698.5.

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-52

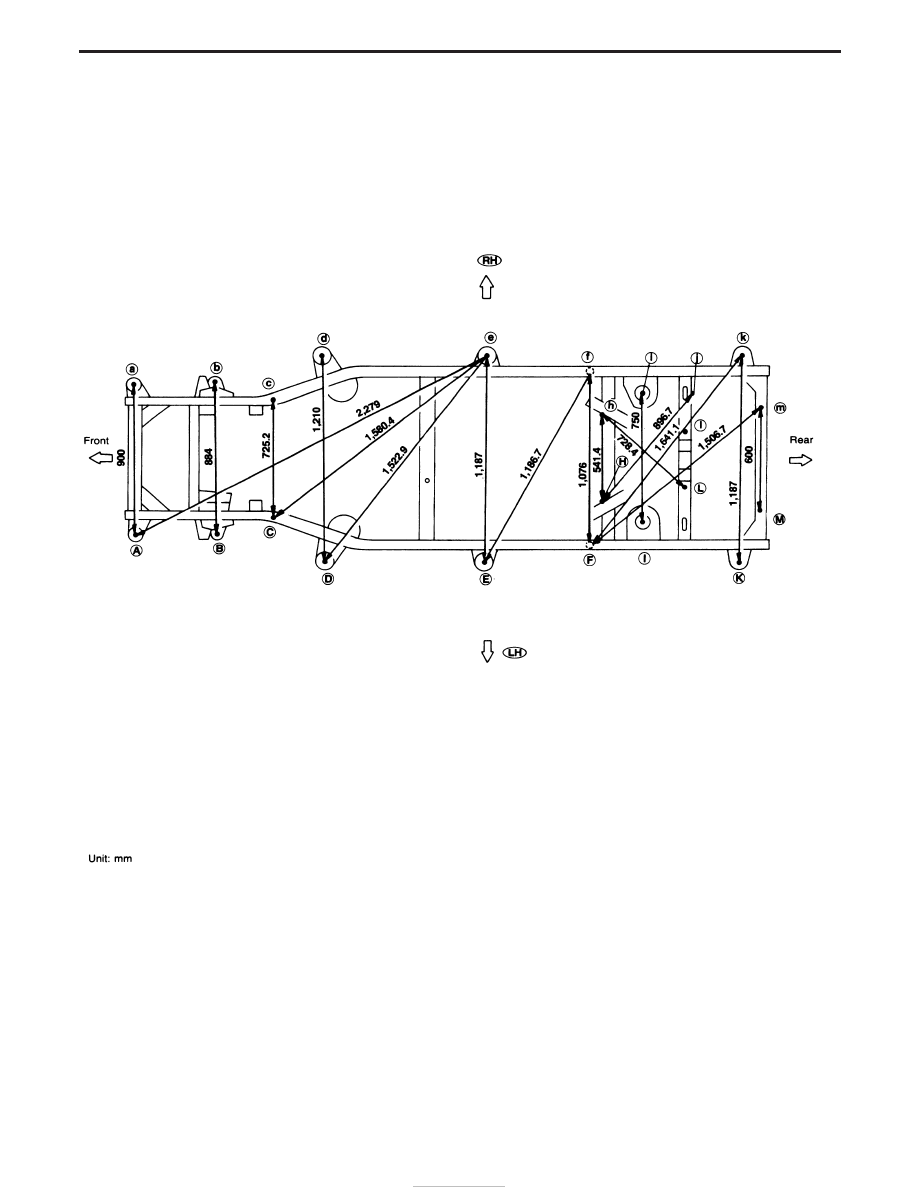

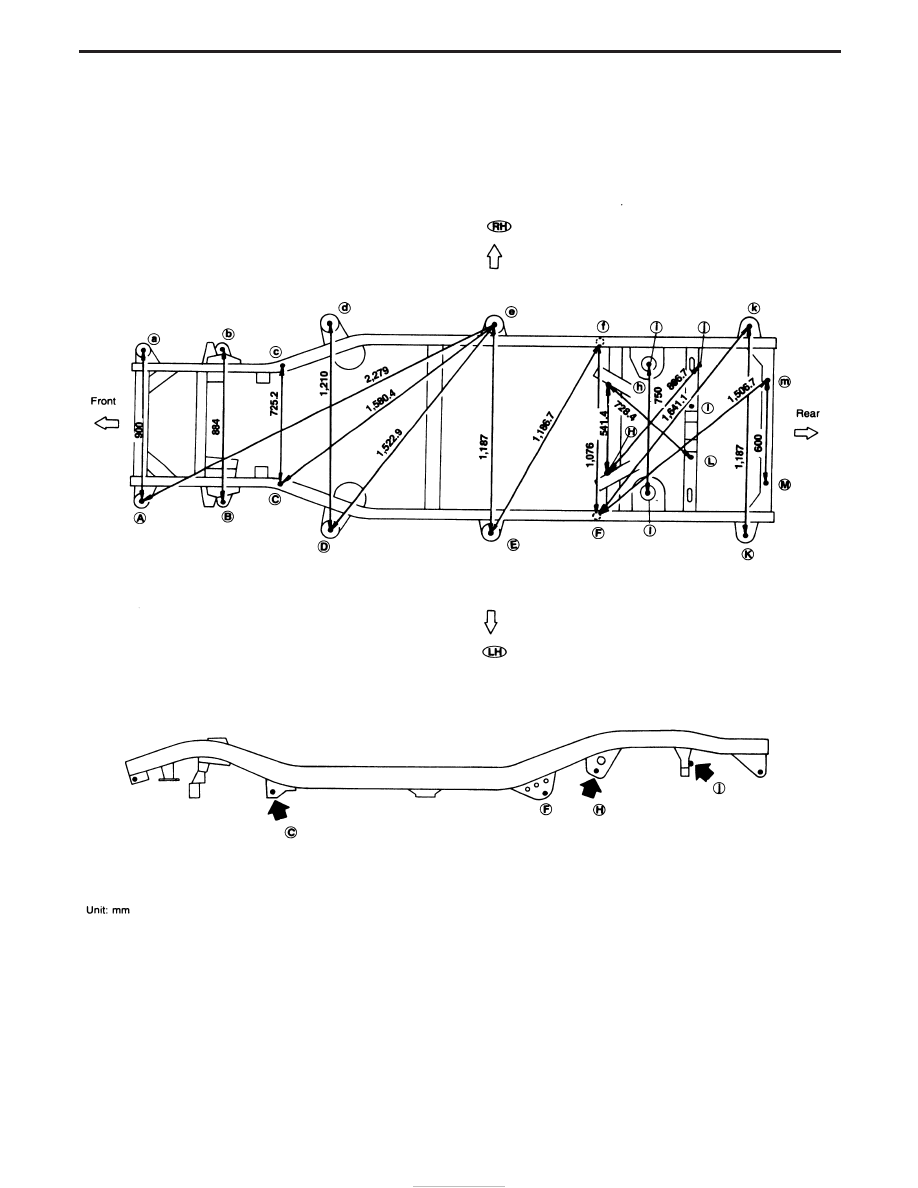

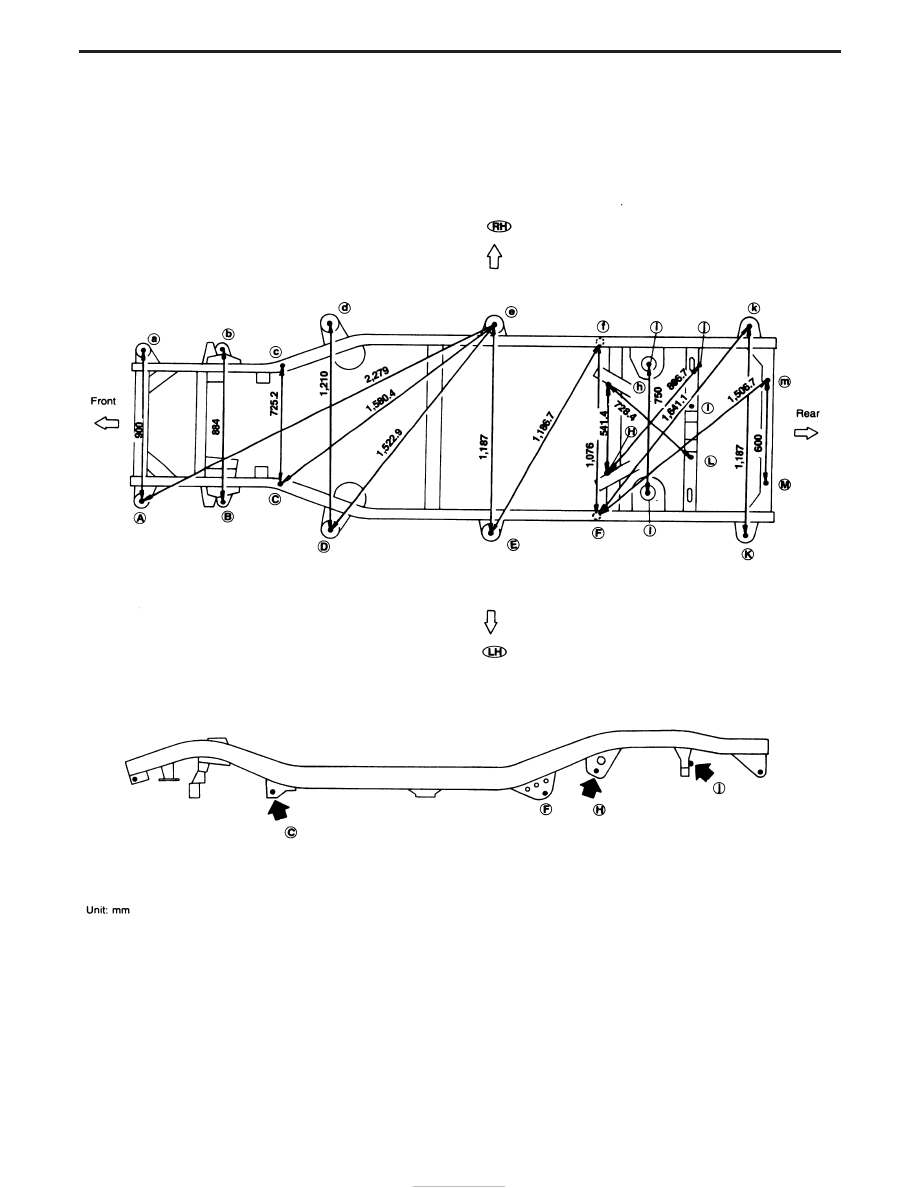

UNDERBODY

Measurement (Hardtop model)

NBF028

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-53

NBF029

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-54

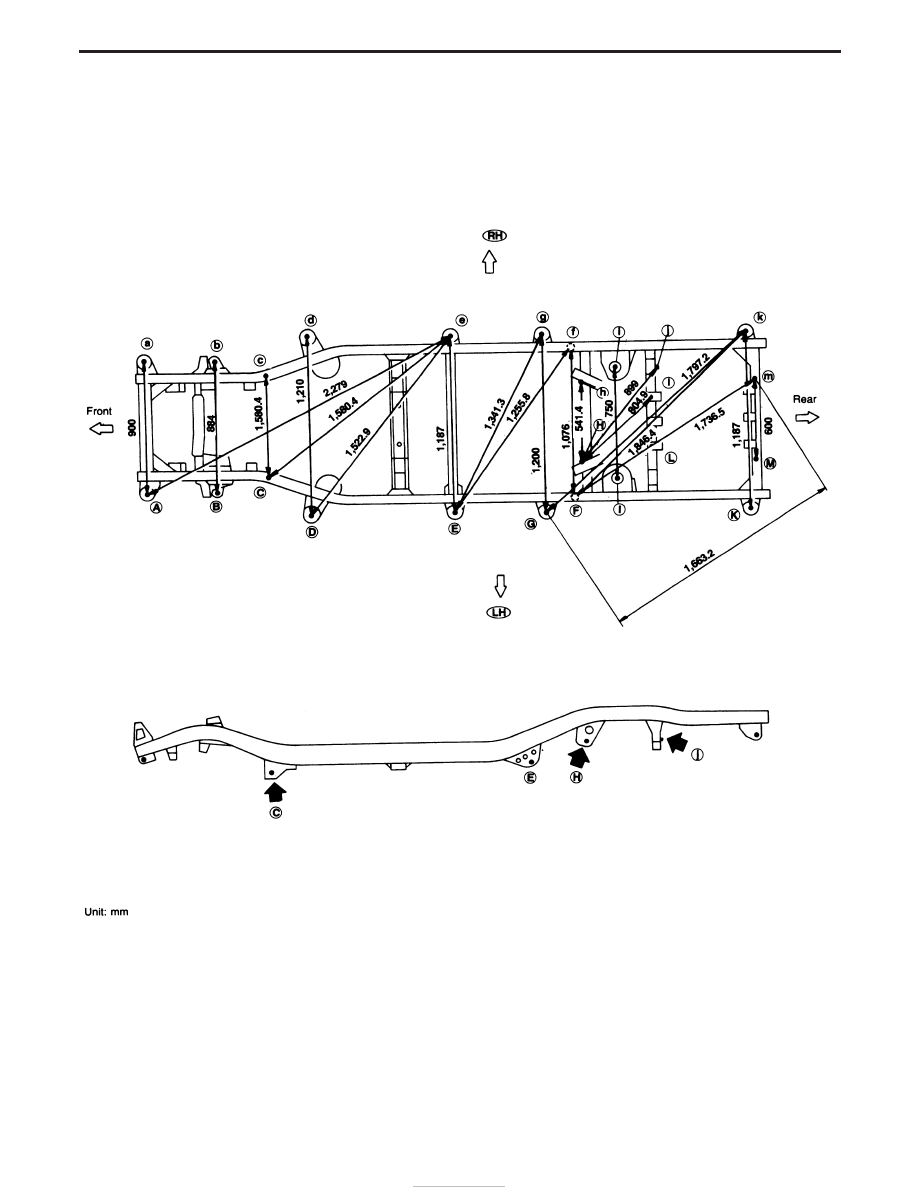

UNDERBODY

Measurement (Wagon model)

NBF030

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-55
