Nissan Terrano model r20 series 2004. Manual - part 343

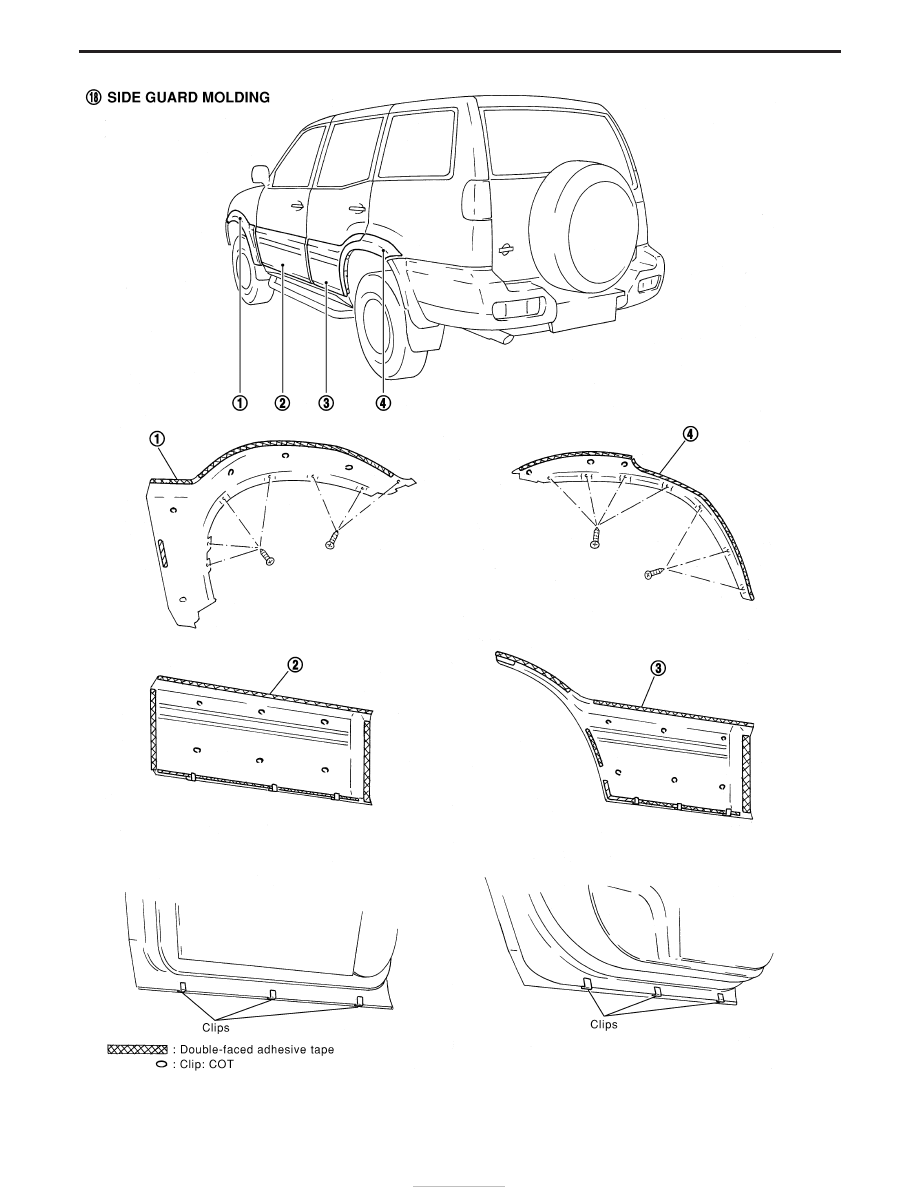

YBT132

EXTERIOR

Removal and Installation (Cont’d)

BT-32

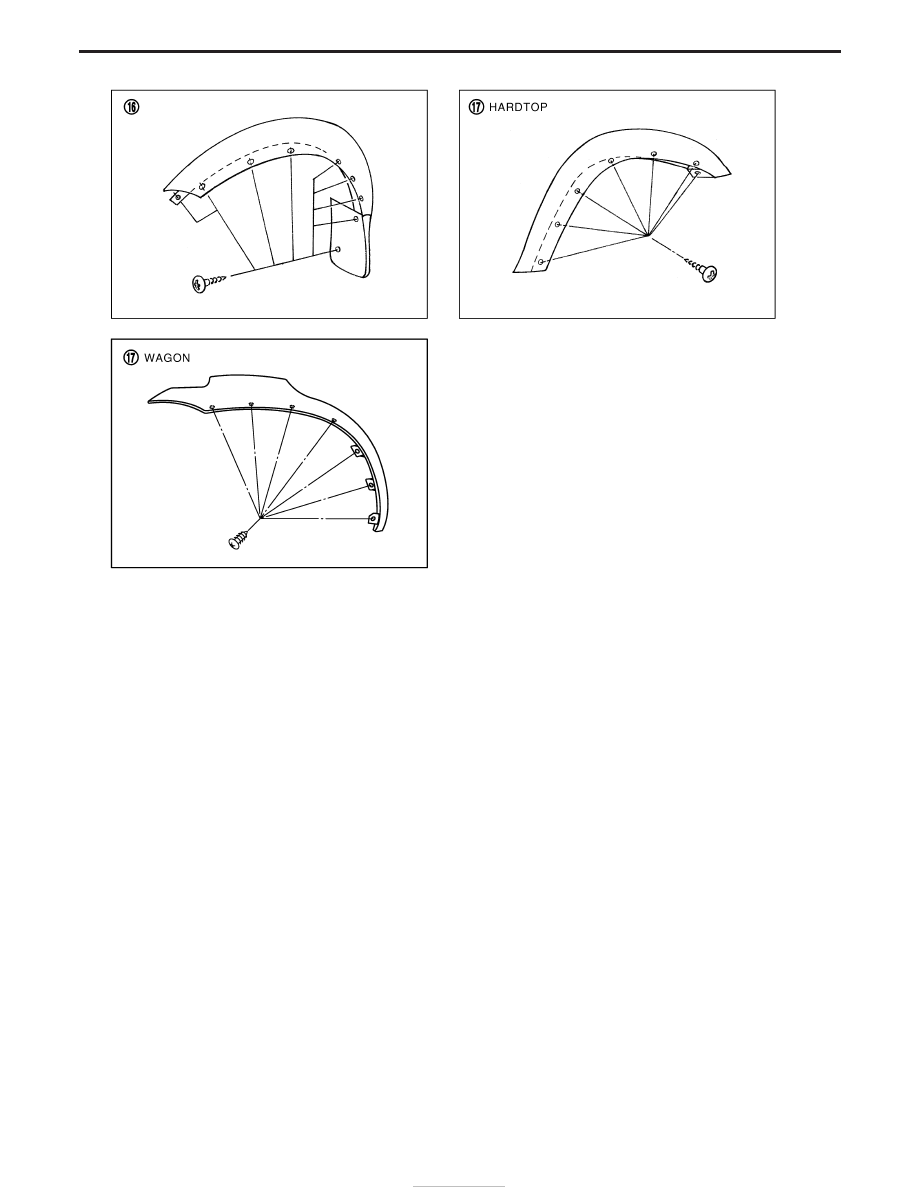

YBT075

EXTERIOR

Removal and Installation (Cont’d)

BT-33

Removal and Installation

I

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

CAUTION:

I

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes (models with side air bag).

I

Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.

I

Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.

I

Disconnect the side air bag harness connector before removing the seatback. Refer to RS-29,
“Front Side Air Bag Module” for details.

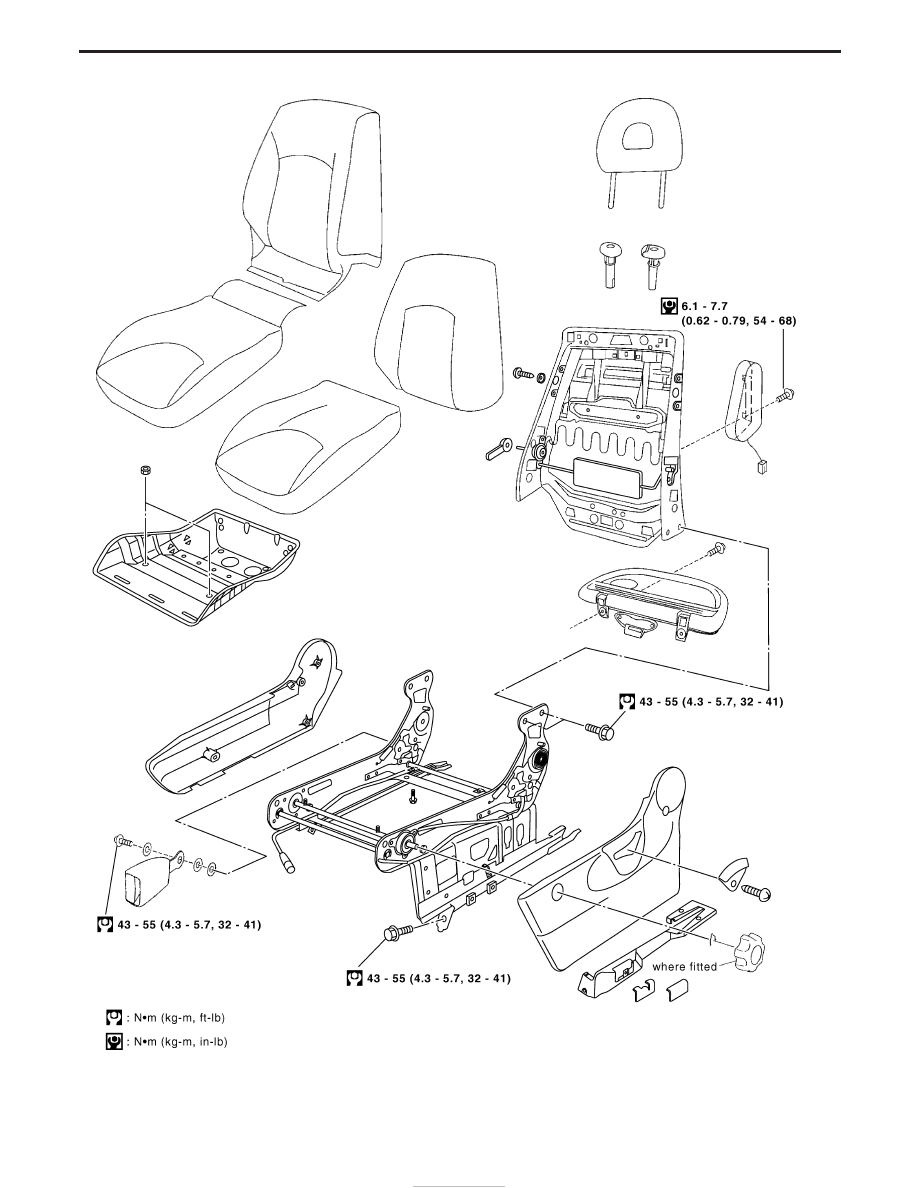

FRONT SEAT

BT-34

YBT133

FRONT SEAT

Removal and Installation (Cont’d)

BT-35
