Nissan Terrano model r20 series 2004. Manual - part 149





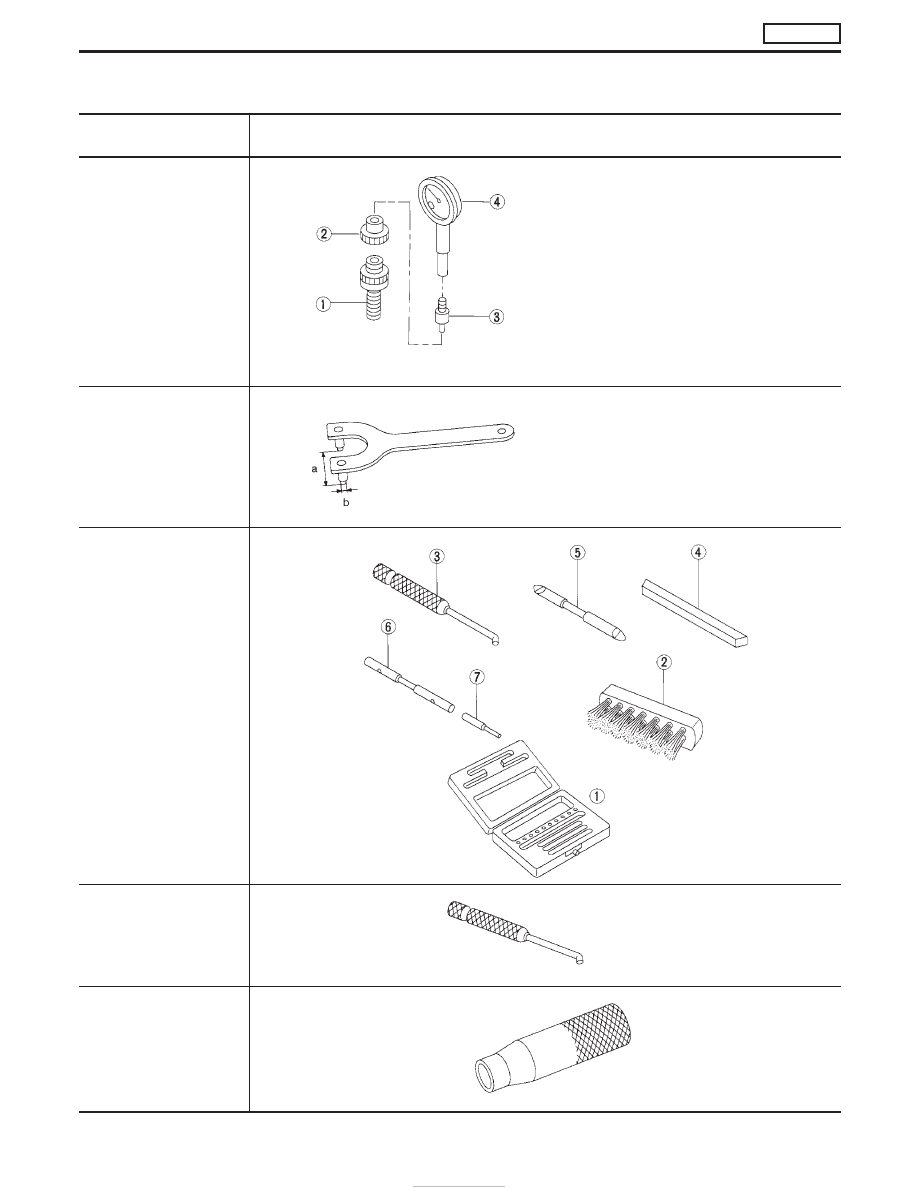

Special Service Tools

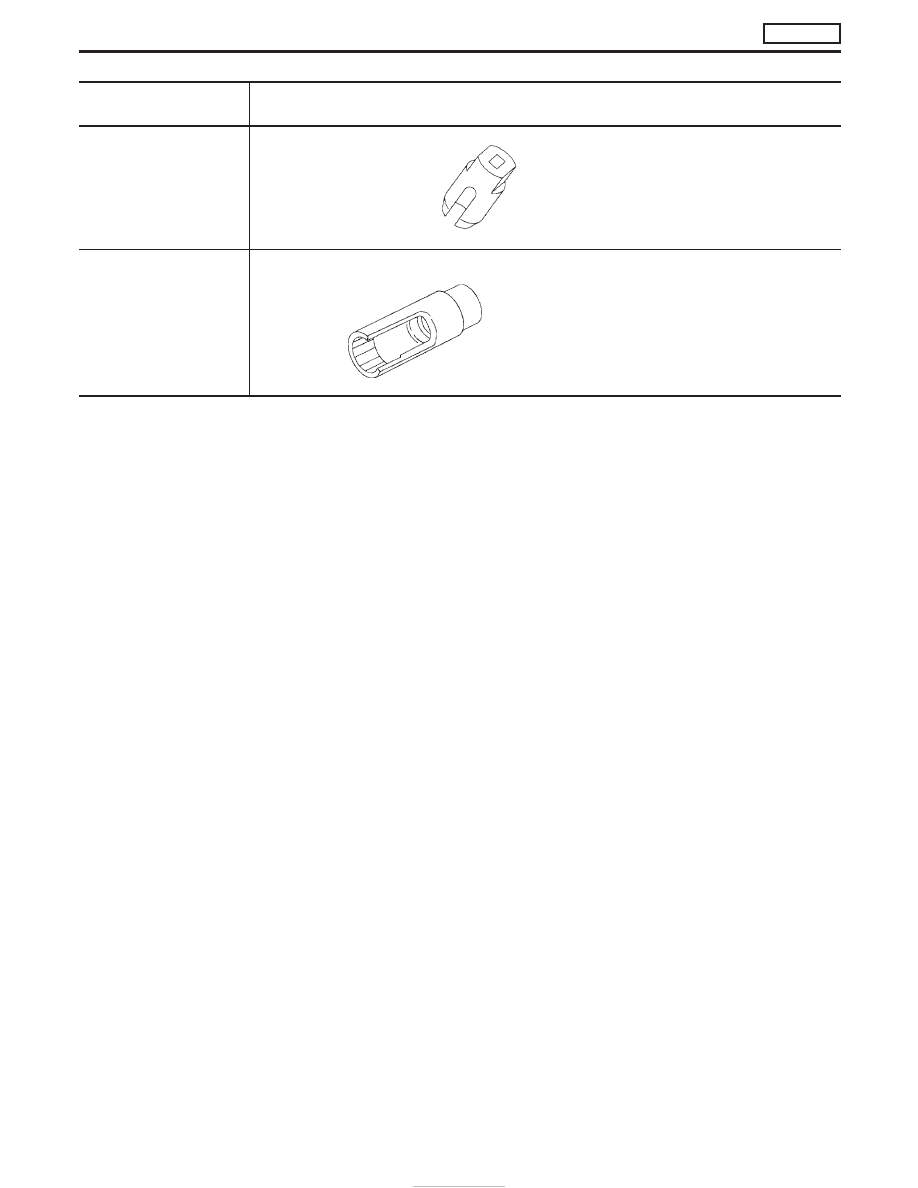

Tool number
Tool name

Description

KV11229352
Measuring device

q

1

KV11229350
Holder

q

2

KV11229360
Nut

q

3

KV11229370
Pin

q

4

KV11254410
Dial gauge

NT570

Measuring set length of plunger spring

ST16540000
Pulley holder

NT628

Removing injection pump drive gear

a: 68 mm (2.68 in)
b: 8 mm (0.31 in)

KV11289004
Nozzle cleaning kit

q

1

KV11290012
Box

q

2

KV11290110
Brush

q

3

KV11290122
Nozzle oil sump scraper

q

4

KV11290140
Nozzle needle tip
cleaner

q

5

KV11290150
Nozzle seat scraper

q

6

KV11290210
Nozzle holder

q

7

KV11290220
Nozzle hole cleaning
needle

NT296

KV11290632
Nozzle oil sump scraper

NT294

KV11292010
Nozzle centering device

NT293

PRECAUTIONS AND PREPARATION

TD27Ti

EC-318

Tool number
Tool name

Description

KV11100300
Nozzle holder socket
No. 2-4 injection nozzle
holder socket

NT563

KV111-05700
No. 1 injection nozzle
holder socket

NT648

PRECAUTIONS AND PREPARATION

TD27Ti

Special Service Tools (Cont’d)

EC-319

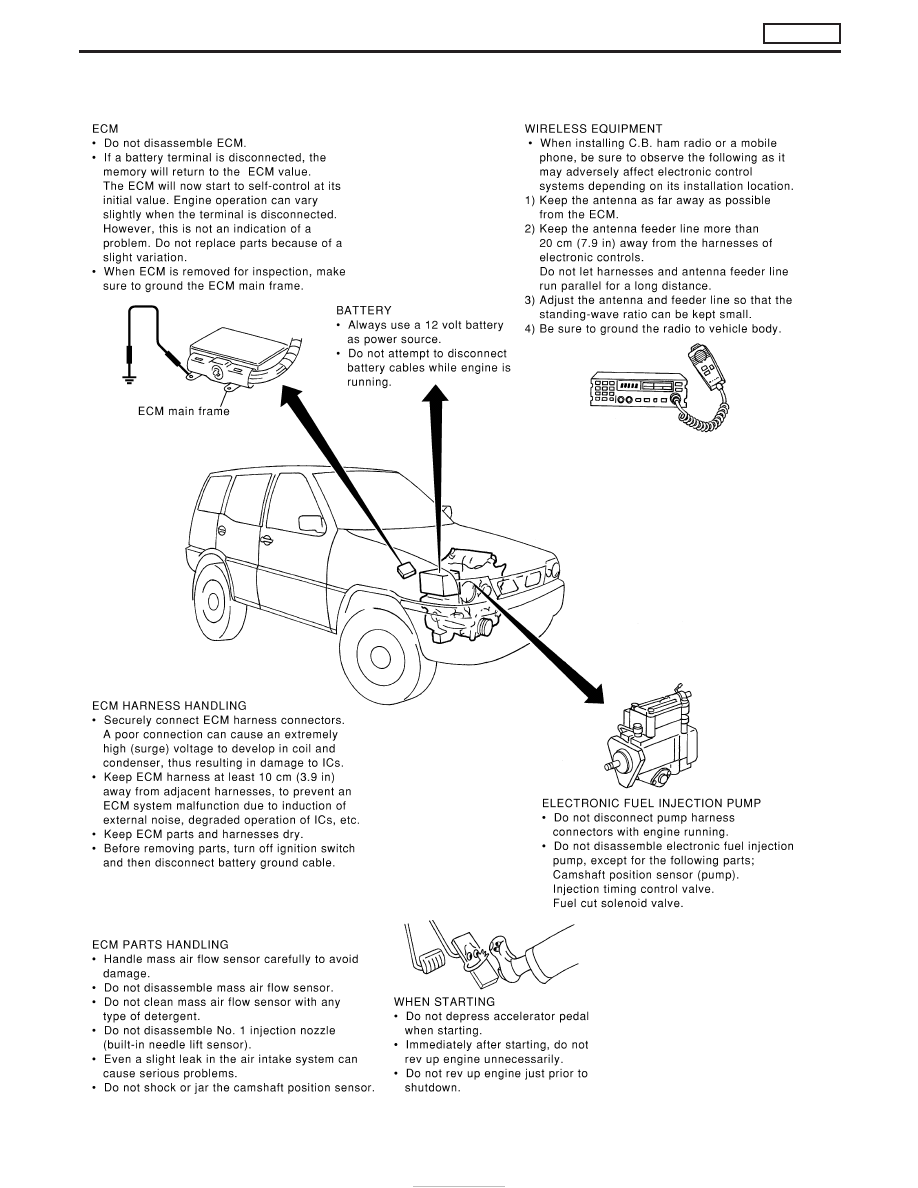

Engine Fuel & Emission Control System

MEC031E

PRECAUTIONS AND PREPARATION

TD27Ti

EC-320

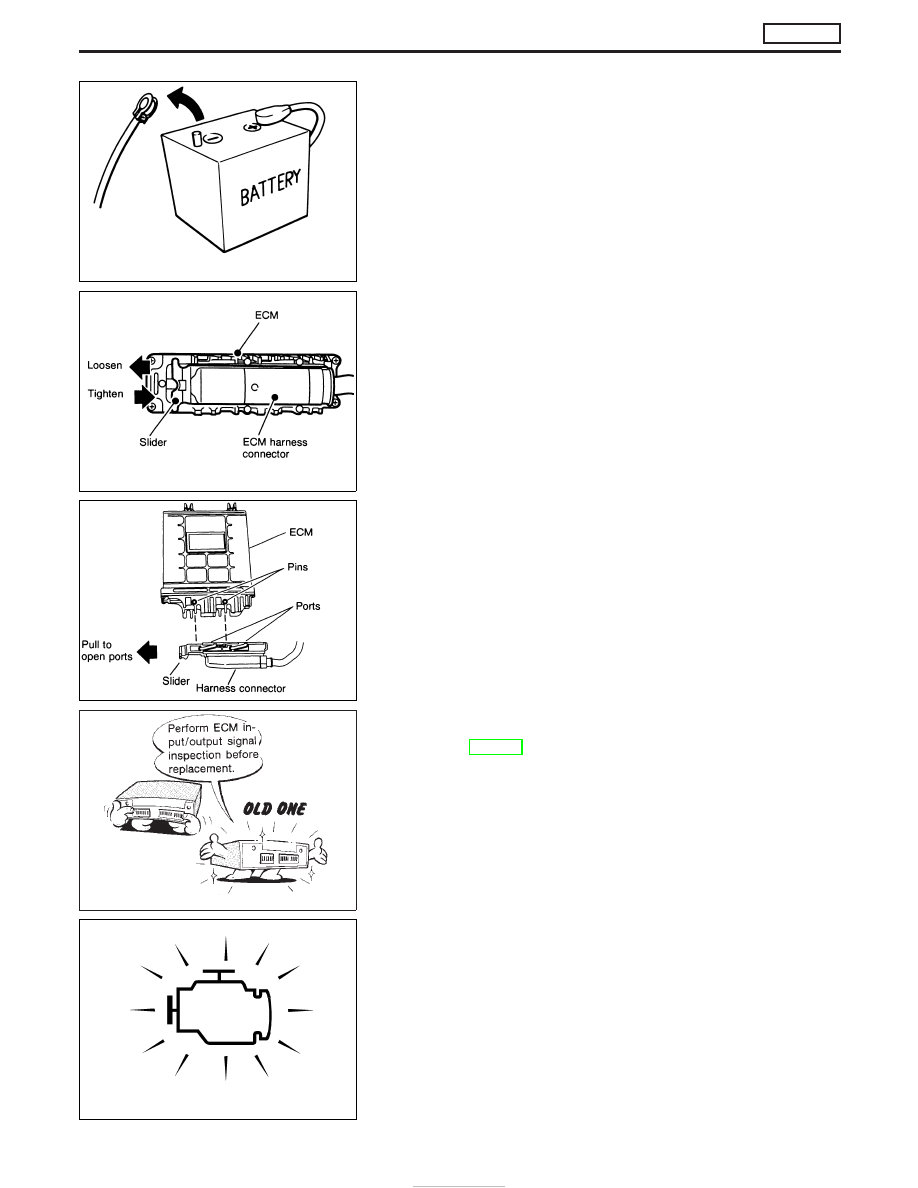

PRECAUTIONS

I

Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.

I

When connecting ECM harness connector, open the ports
on harness connector then meet the ports with the pins on
ECM as shown. Push slider on harness connector until it
stops.

I

Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-369.

I

If MI illuminates or flashes irregularly while the engine is
running, water may have accumulated in fuel filter. Drain
water from fuel filter. If this does not correct the problem,
perform specified trouble diagnostic procedures.

I

After performing each TROUBLE DIAGNOSIS, perform
“OVERALL FUNCTION CHECK” or “DTC (Diagnostic
Trouble Code) CONFIRMATION PROCEDURE”.
The DTC should not be displayed in the “DTC CONFIRMA-
TION PROCEDURE” if the repair is successful. The “OVER-
ALL FUNCTION CHECK” should indicate a good result if
the repair is completed successfully.

SEF289H

NEF754

NEF755

MEF040D

SAT652J

PRECAUTIONS AND PREPARATION

TD27Ti

Engine Fuel & Emission Control System
(Cont’d)

EC-321
