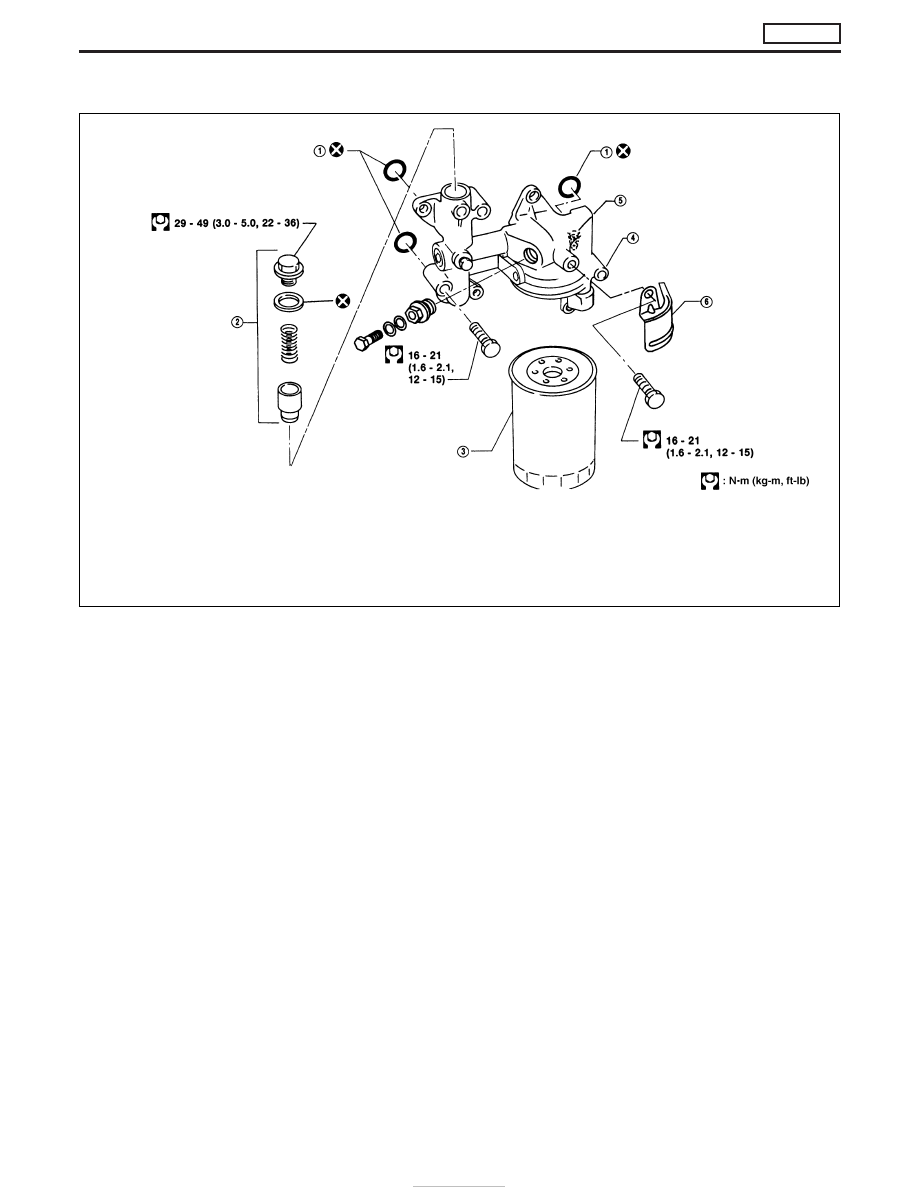

Oil Filter Bracket

q

1

O-ring

q

2

Oil pump relief valve

q

3

Oil filter

q

4

Oil filter bracket

q

5

Oil filter relief valve

q

6

Protection shield

OIL PUMP RELIEF VALVE INSPECTION

1. Visually inspect components for wear and damage.
2. Coat relief valve with engine oil and check that it falls smoothly

into the valve hole by its own weight.

If damaged, replace oil pump relief valve set.

OIL FILTER RELIEF VALVE INSPECTION

Inspect oil filter short valve for movement, cracks and breaks by
pushing the ball.
If damaged, replace oil filter bracket assembly.

NLC056

ENGINE LUBRICATION SYSTEM

TD27Ti

LC-24

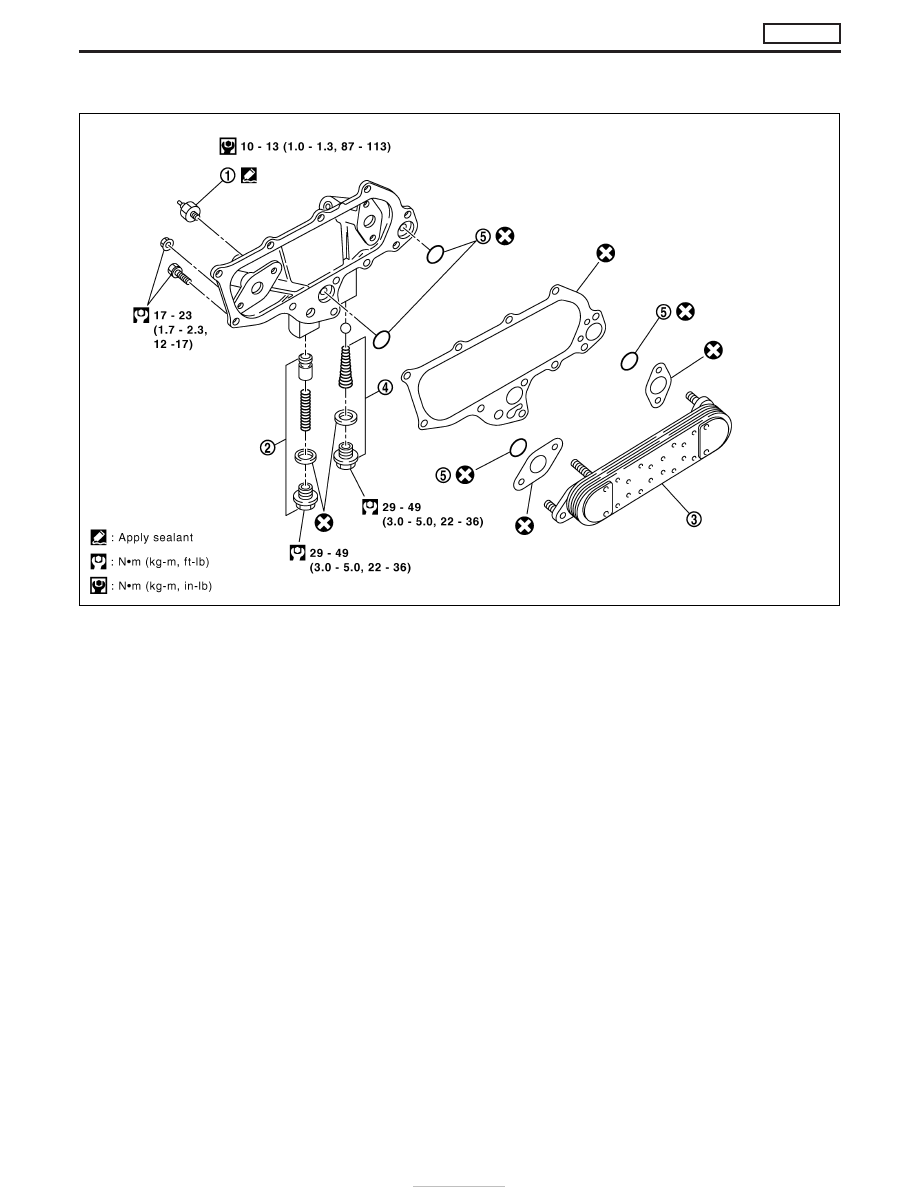

Oil Cooler

q

1

Oil pressure switch

q

2

Regulator valve

q

3

Oil cooler element

q

4

Oil filter relief valve

q

5

O-ring

OIL COOLER RELIEF VALVE INSPECTION

Inspect oil cooler relief valve for movement, cracks and breaks by
pushing the ball.
If damaged, replace oil cooler relief valve set.

REGULATOR VALVE INSPECTION

1. Visually inspect components for wear and damage.
2. Coat regulator valve with engine oil and check that it falls

smoothly into the valve hole by its own weight.

If damaged, replace regulator valve set.

YLC067

ENGINE LUBRICATION SYSTEM

TD27Ti

LC-25

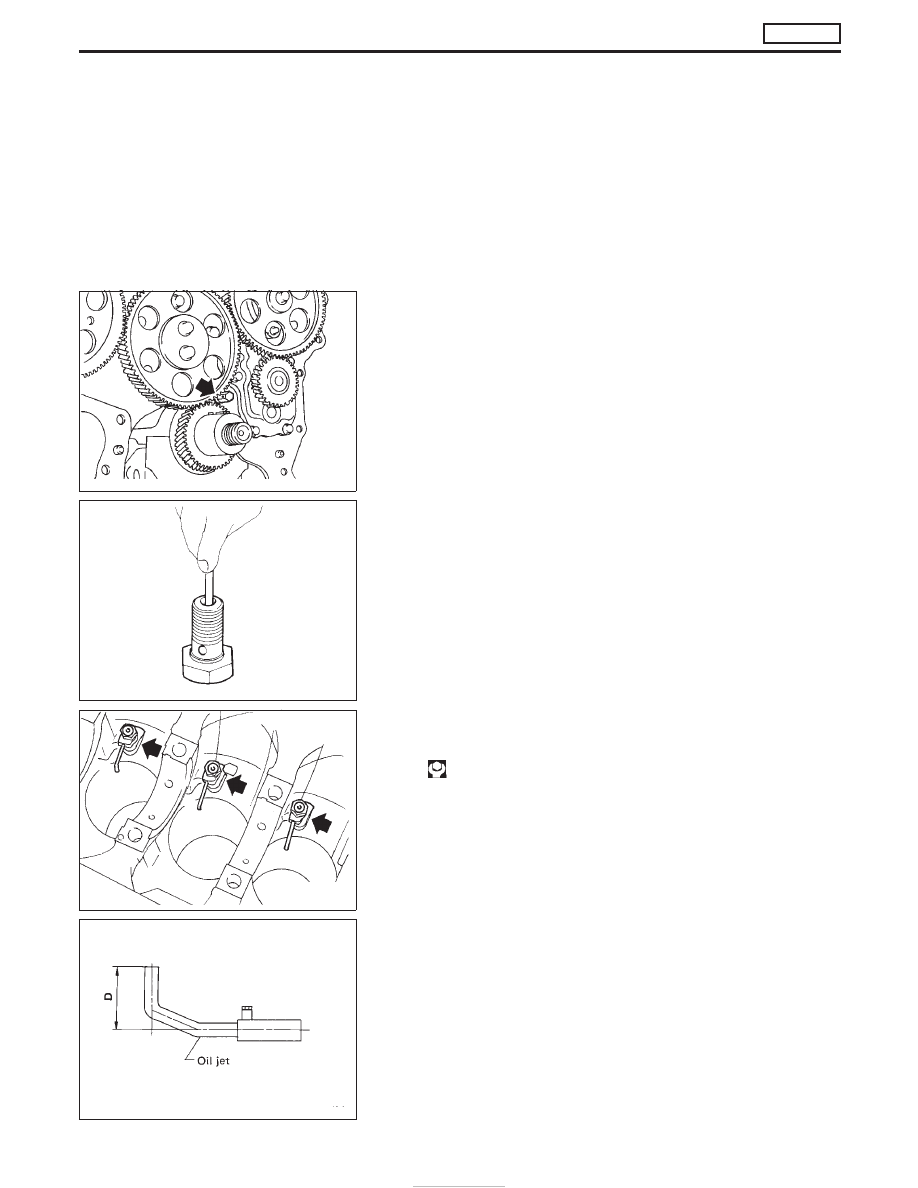

Oil Jet

INSPECTION (For gear train)

Make sure that the holes are not clogged. Clean them with a wire
if necessary.

Oil jet has to be installed with oil hole facing crank gear and
idler gear.

INSPECTION (For piston)

1. Blow through outlet of oil jet and make sure that air comes out

of inlet.

2. Push cut-off valve of oil jet bolt with a clean resin or brass rod

and make sure that cut-off valve moves smoothly with proper
repulsion.

When installing oil jet, align oil jet’s boss with hole on cylin-
der block.

Oil jet bolt:

: 29 - 39 N

m

(3.0 - 4.0 kg-m, 22 - 29 ft-lb)

Dimension “D”:

22 mm (0.87 in)

SLC974

SLC015

SLC975

SLC325A

ENGINE LUBRICATION SYSTEM

TD27Ti

LC-26

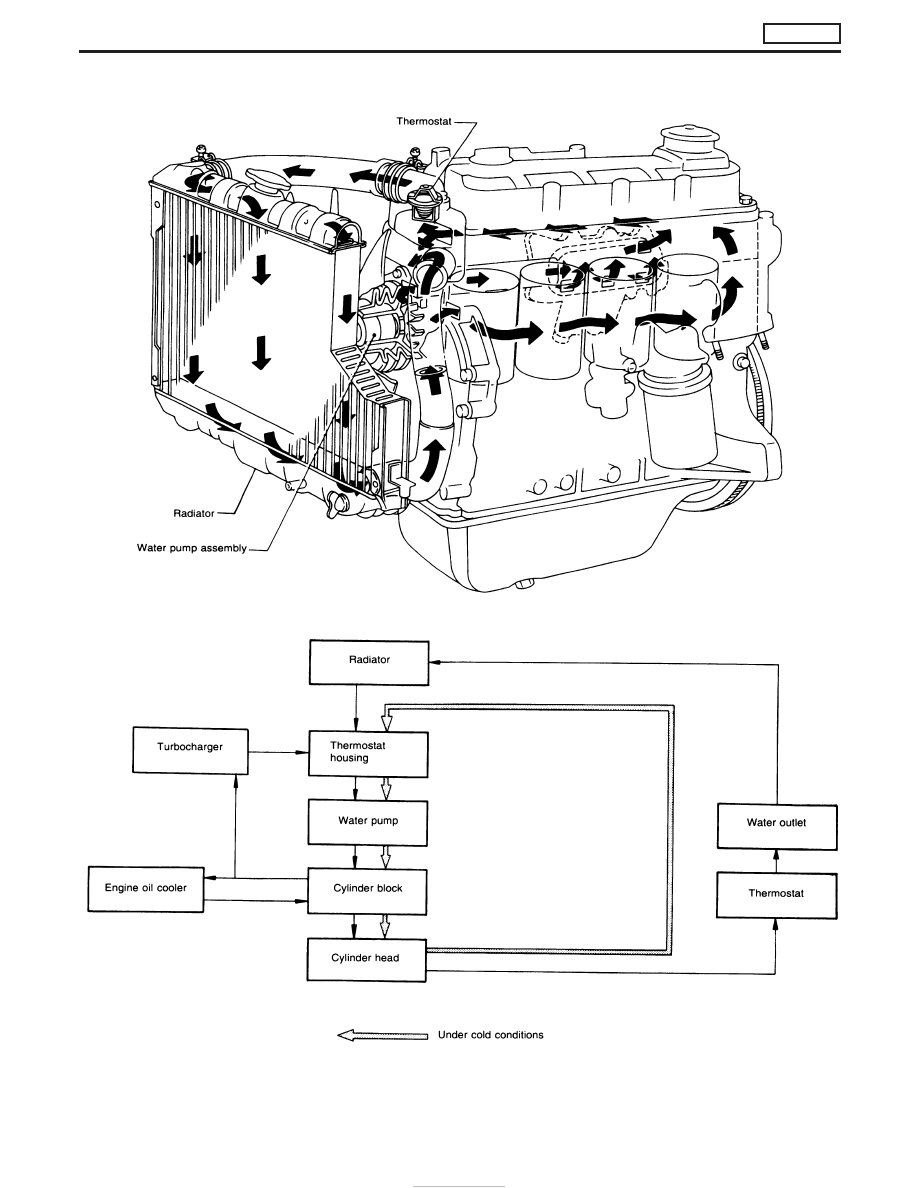

Cooling Circuit

NLC011

ENGINE COOLING SYSTEM

TD27Ti

LC-27
