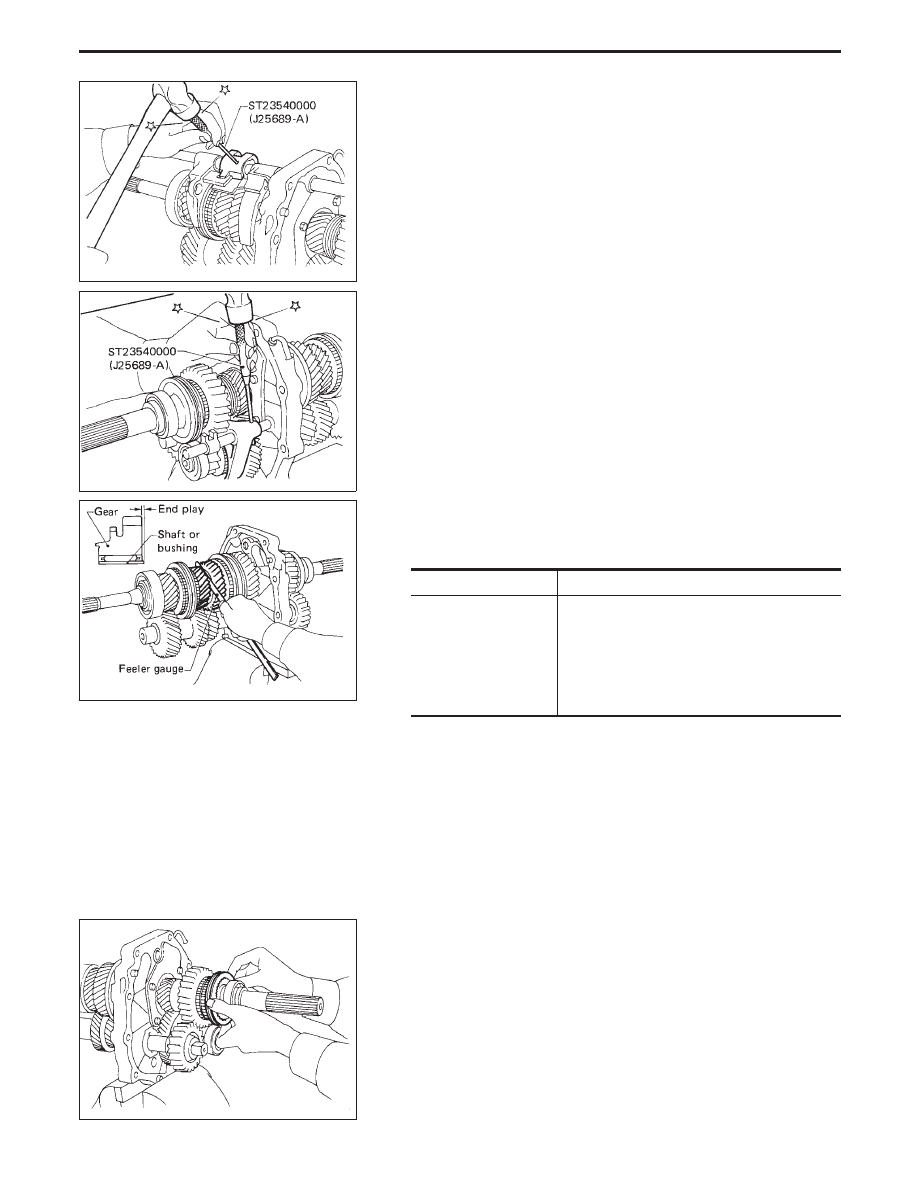

3. Drive out retaining pin from striking lever.
4. While pulling out striking rod, remove striking lever and striking

interlock. Then remove 1st & 2nd, 3rd & 4th and reverse shift
fork.

5. Drive out retaining pin from OD shift fork.
6. Pull out OD fork rod and then remove OD shift fork.

Gear Components

1. Before removing gears and shafts, measure each gear end

play.

Gear

End play mm (in)

1st main gear

0.23 - 0.33 (0.0091 - 0.0130)

2nd main gear

0.23 - 0.33 (0.0091 - 0.0130)

3rd main gear

0.23 - 0.33 (0.0091 - 0.0130)

OD counter gear

0.23 - 0.33 (0.0091 - 0.0130)

Reverse main gear

0.33 - 0.43 (0.0130 - 0.0169)

I

If not within specification, disassemble and check contact sur-
face of gear to hub, washer, bushing, needle bearing and shaft.

2. Remove rear side components on mainshaft and counter gear.
a. Remove reverse coupling sleeve.

SMT374A

SMT375A

SMT376A

SMT463A

DISASSEMBLY

Shift Control Components (Cont’d)

MT-16

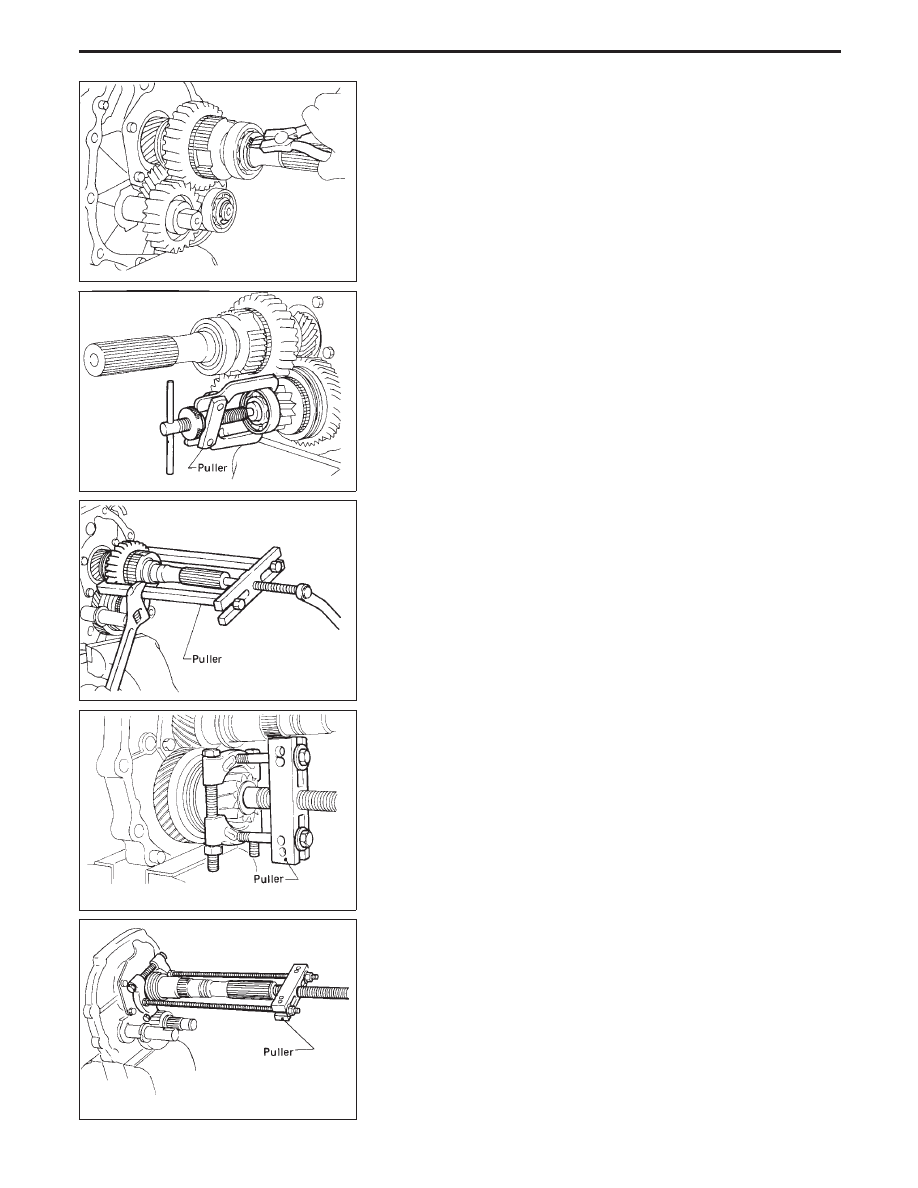

b. Remove mainshaft rear snap ring and counter gear snap ring.
c. Remove C-ring holder and mainshaft C-rings from mainshaft.

Use punch and hammer to remove C-rings.

d. Pull out counter gear ring and bearing.
e. Remove reverse idler gear and reverse idler thrust washers.

f.

Pull out reverse main gear together with mainshaft spacer and
reverse synchronizer hub. Then remove reverse gear needle
bearings.

g. Pull out reverse counter gear.
h. Remove OD coupling sleeve together with OD baulk ring,

reverse baulk ring and spring inserts.

i.

Pull out reverse gear bushing.

SMT377A

SMT378A

SMT380A

SMT773A

SMT770A

DISASSEMBLY

Gear Components (Cont’d)

MT-17

j.

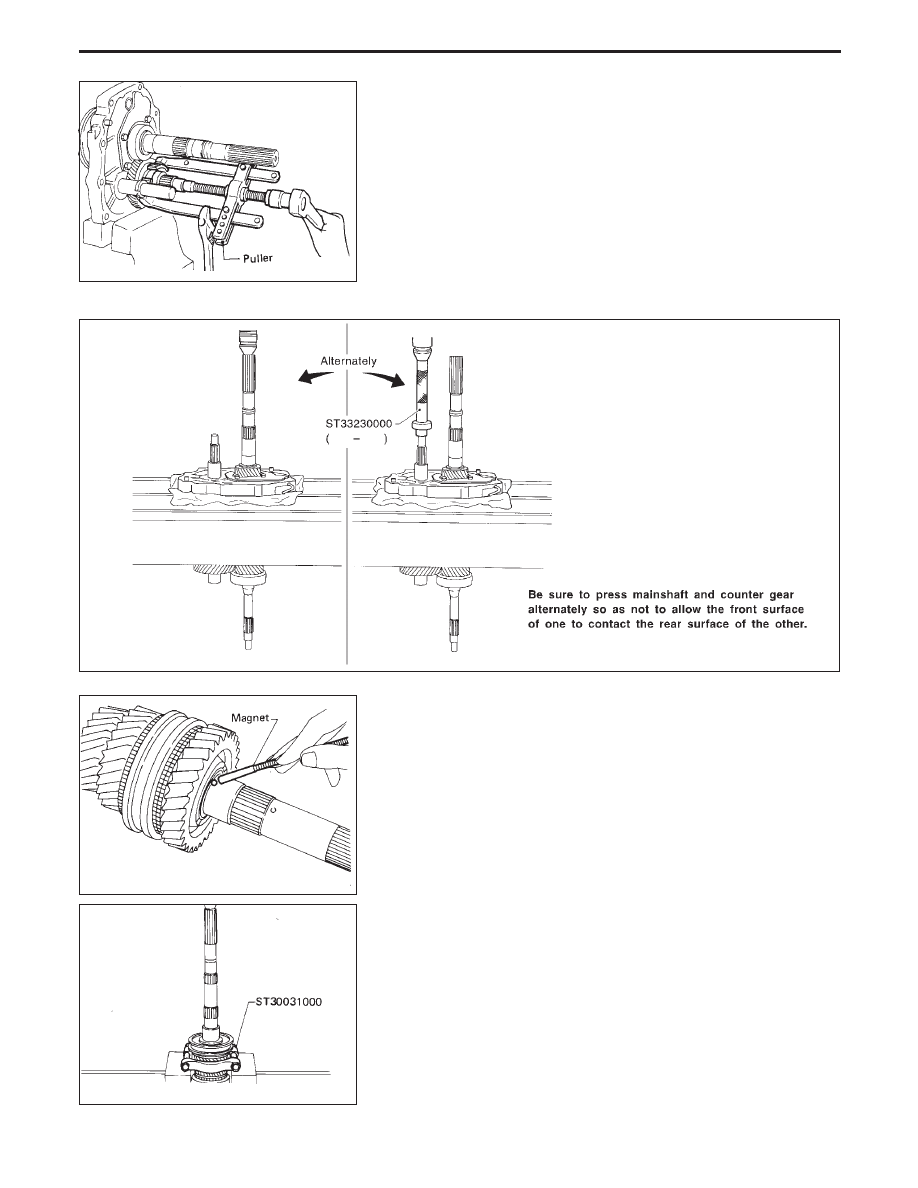

Pull out OD counter gear together with reverse cone.

3. Press out mainshaft and counter gear alternately.

4. Remove front side components on mainshaft.
a. Remove 1st gear washer and steel ball.
b. Remove 1st main gear and 1st gear needle bearing.

c. Press out 2nd main gear together with 1st gear bushing and 1st

& 2nd synchronizer assembly.

d. Remove mainshaft front snap ring.

SMT771A

SMT772A

SMT383A

SMT384A

DISASSEMBLY

Gear Components (Cont’d)

MT-18

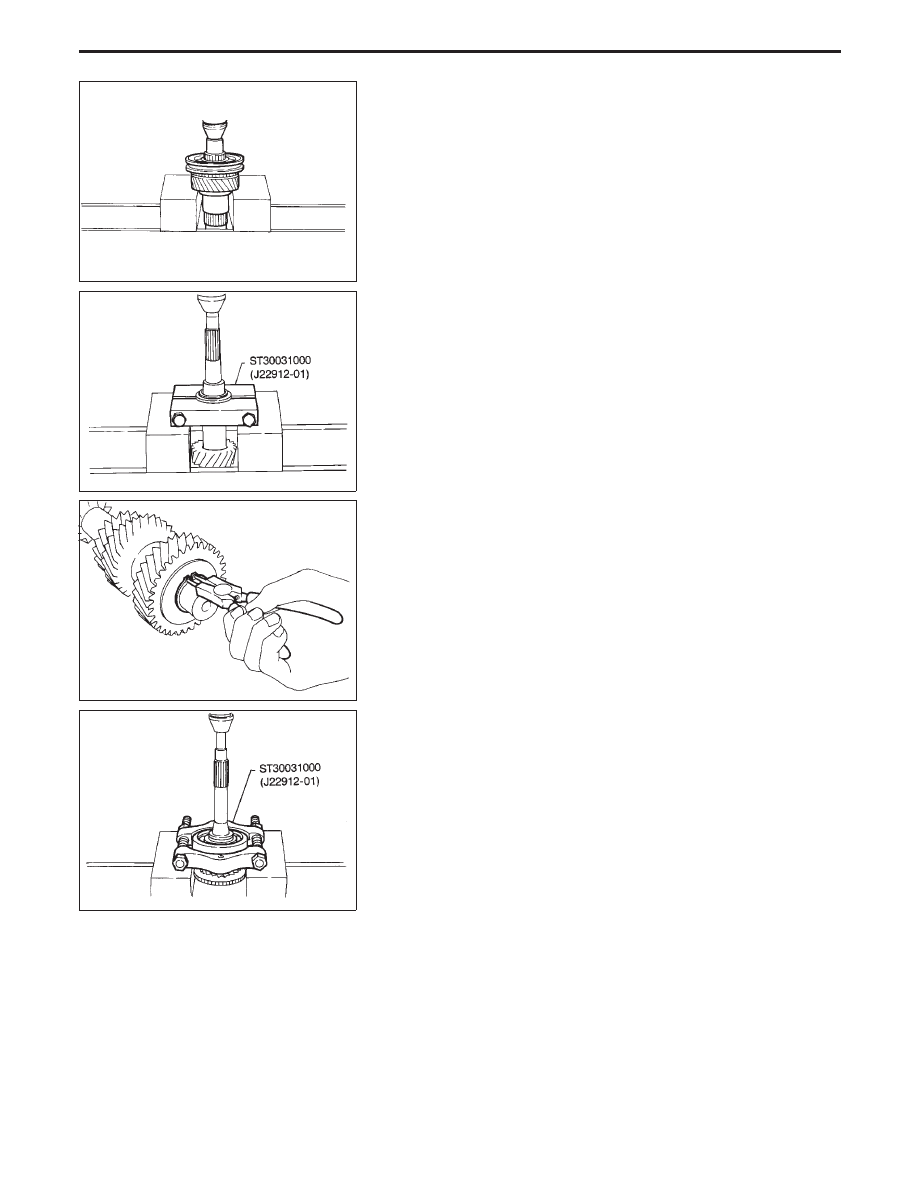

e. Press out 3rd main gear together with 3rd & 4th synchronizer

assembly and 3rd gear needle bearing.

5. Remove front side components on counter gear.
a. Remove counter gear rear thrust bearing.

b. Remove sub-gear components.

6. Remove main drive gear bearing.
a. Remove main drive gear snap ring and spacer.
b. Press out main drive gear bearing.

SMT385A

SMT404A

SMT470A

SMT420A

DISASSEMBLY

Gear Components (Cont’d)

MT-19
