NOTES

ENGINE LUBRICATION &

COOLING SYSTEMS

SECTION

LC

CONTENTS

ZD

PRECAUTIONS AND PREPARATION

............................2

Liquid Gasket Application Procedure ..........................2
Special Service Tools ..................................................2

ENGINE LUBRICATION SYSTEM

..................................3

Lubricating Circuit ........................................................3
Oil Pressure Check......................................................4
Oil Pump ......................................................................5
Oil Jet...........................................................................7
Oil Cooler.....................................................................8

ENGINE COOLING SYSTEM

..........................................9

Cooling Circuit .............................................................9
System Check............................................................10
Water Pump ............................................................... 11
Thermostat.................................................................12
Water Outlet...............................................................13
Radiator .....................................................................14
Cooling Fan (Crankshaft driven) ...............................15
EGR Cooler ...............................................................16

SERVICE DATA AND SPECIFICATIONS (SDS)

..........17

Engine Lubrication System........................................17
Engine Cooling System .............................................17

TD27Ti

PREPARATION

..............................................................18

PRECAUTION

................................................................19

ENGINE LUBRICATION SYSTEM

................................20

Lubrication Circuit ......................................................20
Oil Pressure Check....................................................21
Oil Pump ....................................................................22
Oil Filter Bracket ........................................................24
Oil Cooler...................................................................25
Oil Jet.........................................................................26

ENGINE COOLING SYSTEM

........................................27

Cooling Circuit ...........................................................27
System Inspection .....................................................28
Water Pump ...............................................................29
Thermostat.................................................................31
Radiator .....................................................................32
Cooling Fan ...............................................................33

SERVICE DATA AND SPECIFICATIONS (SDS)

..........34

Engine Lubrication System........................................34
Engine Cooling System .............................................34

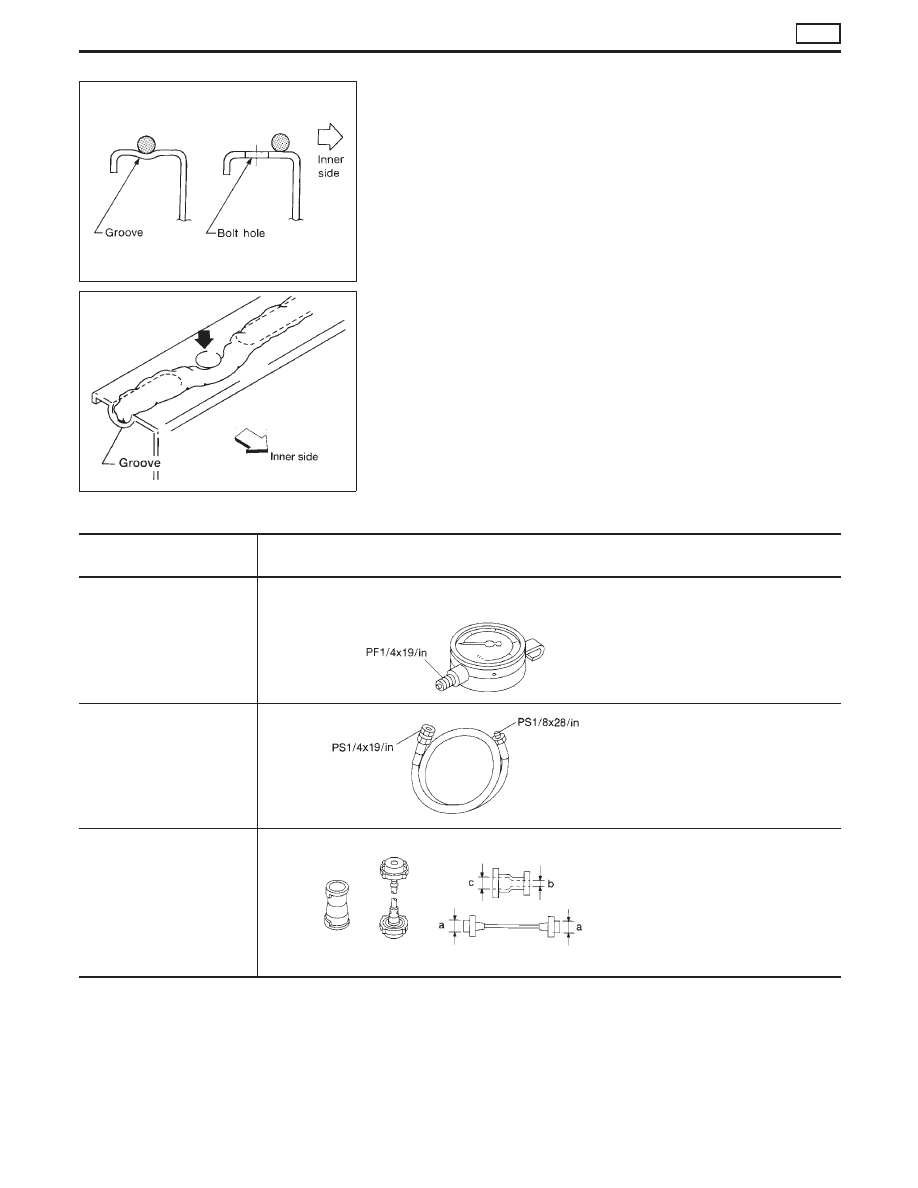

Liquid Gasket Application Procedure

a. Use a scraper to remove all traces of old liquid gasket from

mating surfaces and grooves. Also, completely clean any oil
from these areas.

b. Apply a continuous bead of liquid gasket to mating surfaces.

(Use Genuine Liquid Gasket or equivalent.)

I

For oil pan, be sure liquid gasket diameter is 3.5 to 4.5 mm
(0.138 to 0.177 in).

I

For areas except oil pan, be sure liquid gasket diameter is
2.0 to 3.0 mm (0.079 to 0.118 in).

c. Apply liquid gasket around the inner side of bolt holes (unless

otherwise specified).

d. Assembly should be done within 5 minutes after coating.
e. Wait at least 30 minutes before refilling engine oil and engine

coolant.

Special Service Tools

*: Special tool or commercial equivalent

Tool number
Tool name

Description

ST25051001*
Oil pressure gauge

NT558

Measuring oil pressure

Maximum measuring range:
2,452 kPa (24.5 bar, 25
kg/cm

2

, 356 psi)

ST25052000*
Hose

NT559

Adapting oil pressure gauge
to cylinder block

EG17650301
Radiator cap tester
adapter

NT564

Adapting radiator cap tester
to radiator filler neck and reser-
voir tank cap

a: 28 (1.10) dia.

b: 31.4 (1.236) dia.

c: 41.3 (1.626) dia.

Unit: mm (in)

SEM164F

AEM080

PRECAUTIONS AND PREPARATION

ZD

LC-2

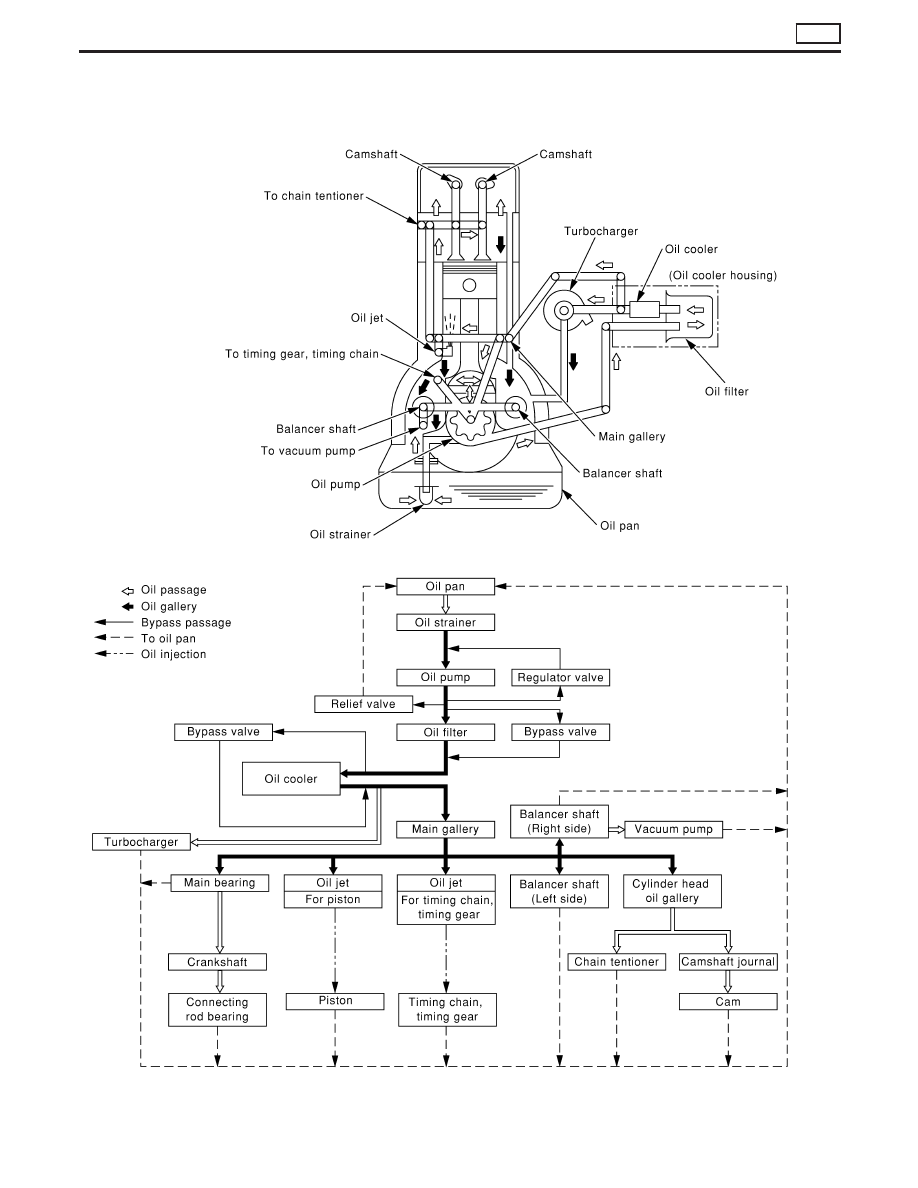

Lubricating Circuit

SLC361B

ENGINE LUBRICATION SYSTEM

ZD

LC-3
