Nissan Terrano r20e. Manual - part 217

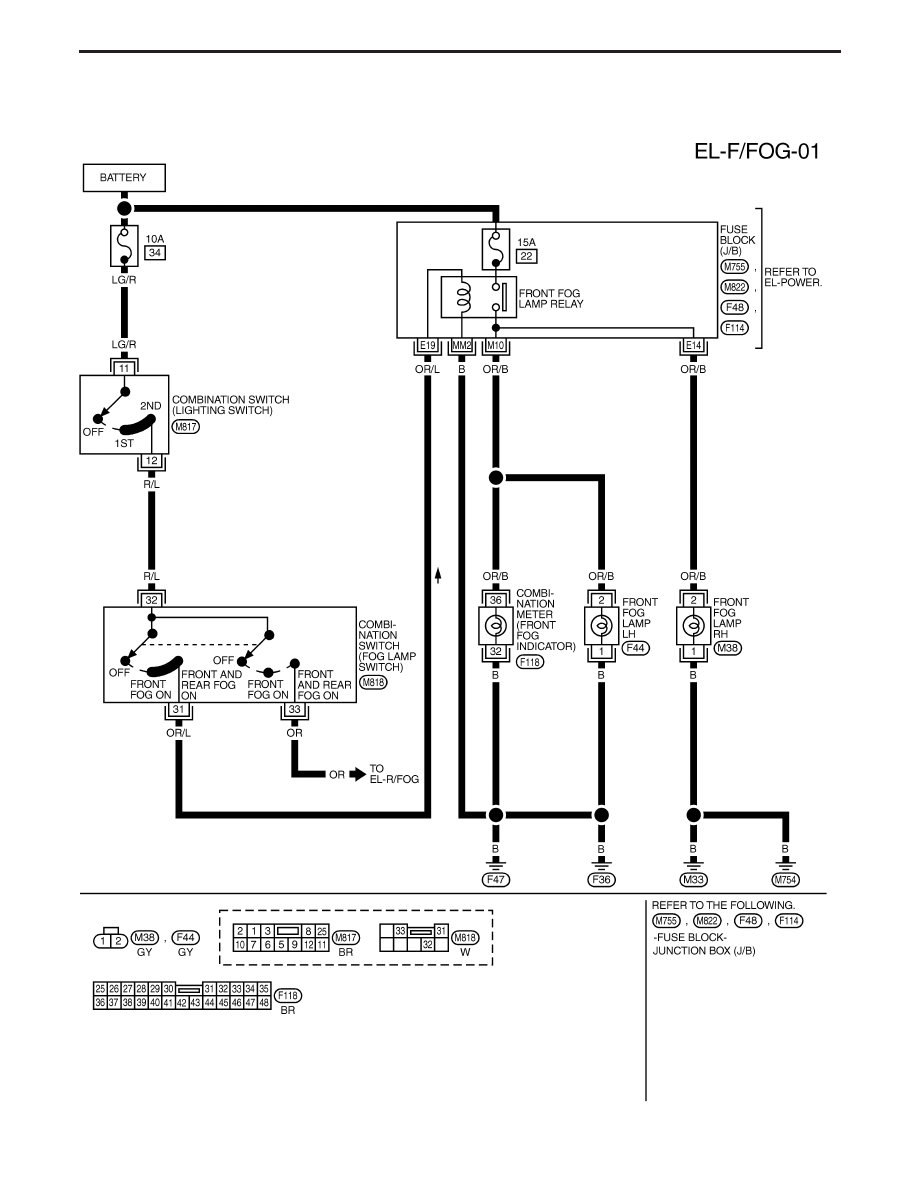

Wiring Diagram — F/FOG —

LHD MODELS

YEL077D

EXTERIOR LAMP

EL-51

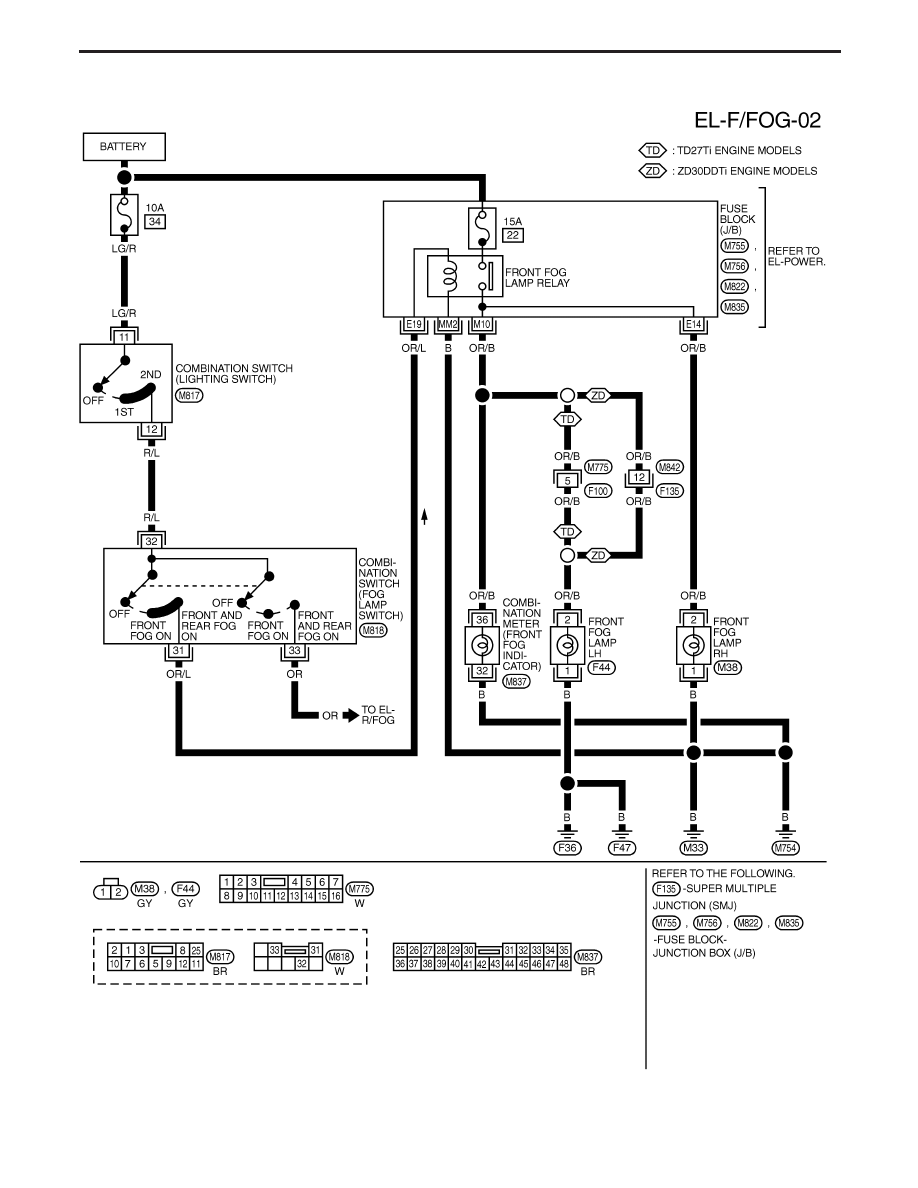

RHD MODELS

YEL078D

EXTERIOR LAMP

Wiring Diagram — F/FOG — (Cont’d)

EL-52

Front Fog Lamp Aiming Adjustment

When performing fog lamp aiming adjustment, use an aiming
machine, aiming wall screen or headlamp tester. The aimer should
be in good operational condition, calibrated and used according to
the relevant operation manuals supplied with the unit.
If an aimer is not available, aiming adjustment can be done as fol-
lows:
For details, refer to the regulations in your own country.

CAUTION:

I

Keep all tires inflated to correct pressures.

I

Place vehicle and tester on one and the same flat surface.

I

Ensure that there is no-load in the vehicle other than
coolant, engine oil (filled up to correct level), full fuel tank
and the driver (or equivalent weight placed in driver’s posi-
tion).

For details of front fog lamp aiming adjustment, refer to “Aiming
Adjustment”, EL-43.

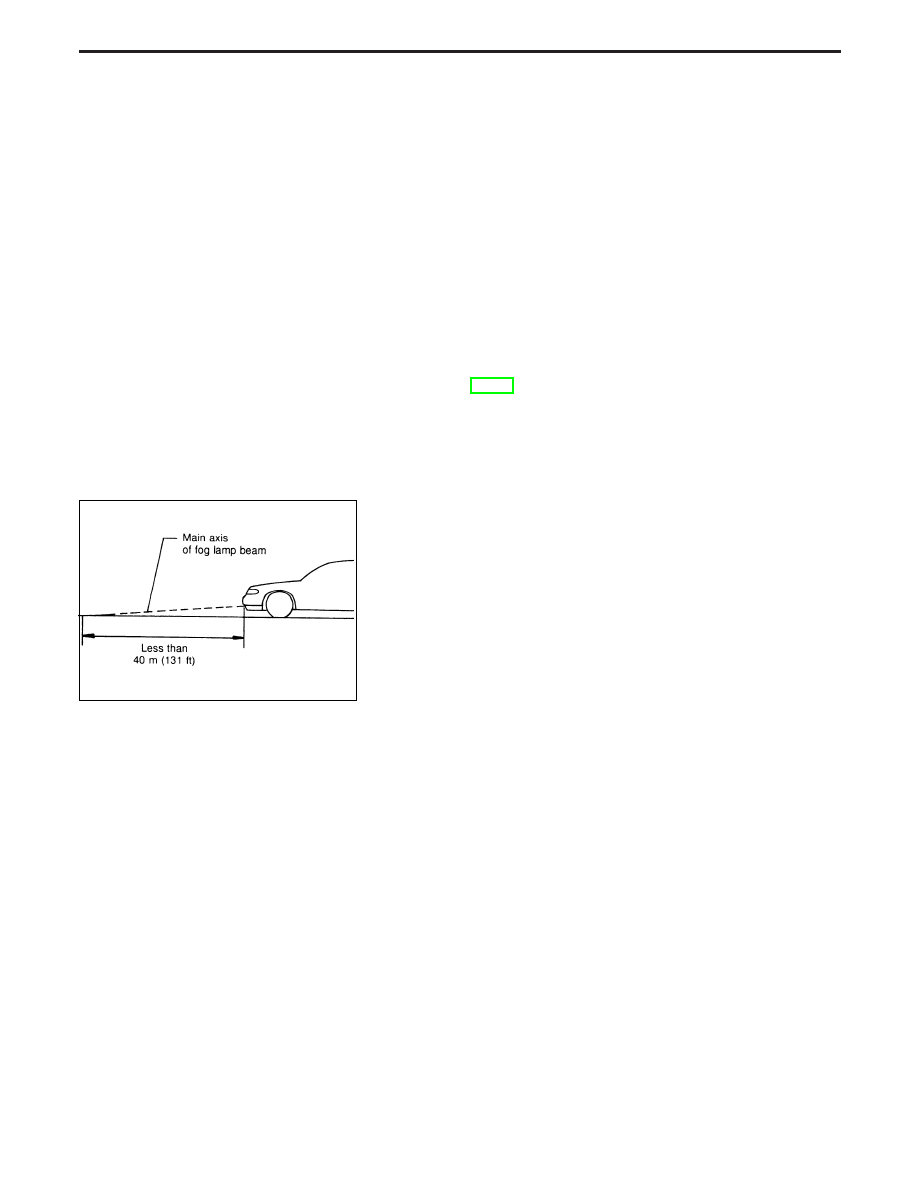

Check the distance between the vehicle and the ground illumina-
tion point of the main axis of the fog lamp beam. Keep the distance
to approximately 40 m (131 ft).

NEL331

EXTERIOR LAMP

EL-53

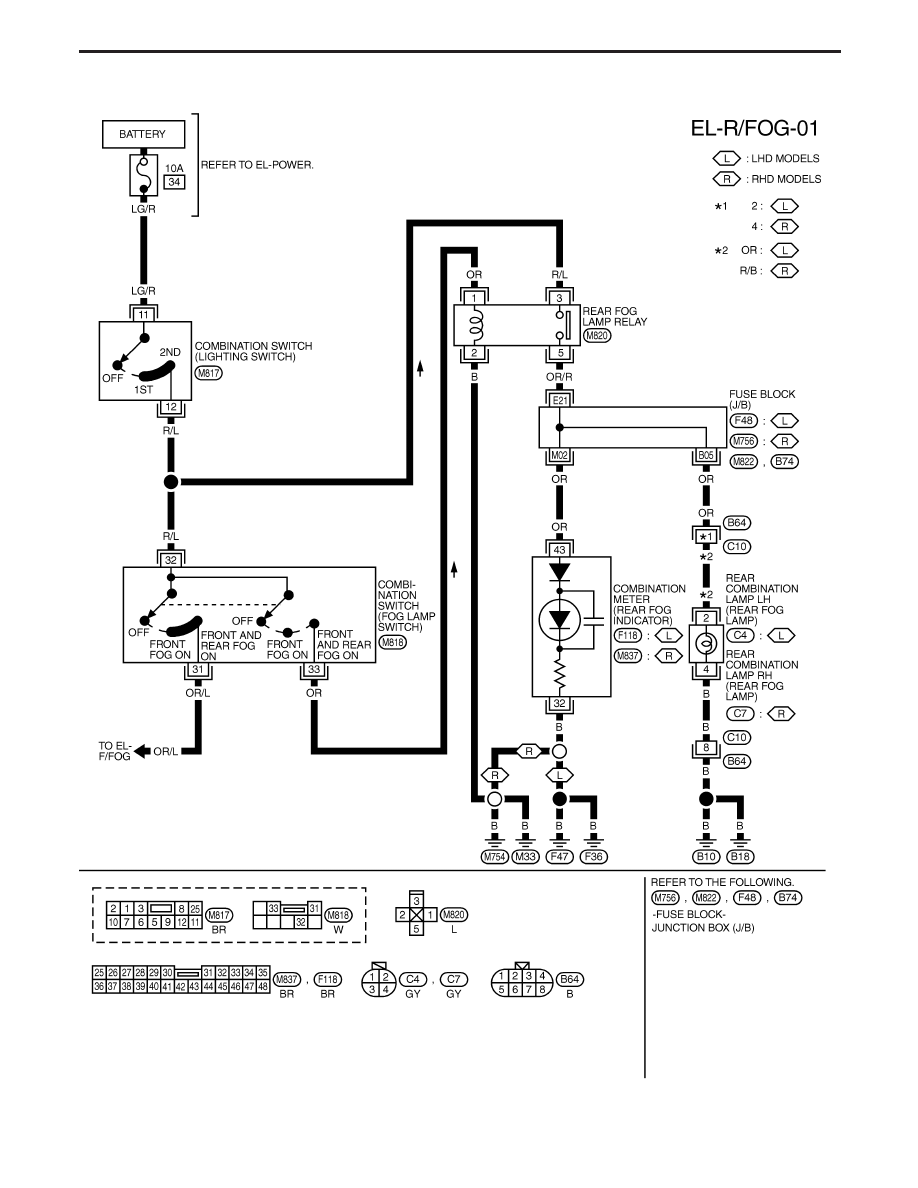

Wiring Diagram — R/FOG —

YEL079D

EXTERIOR LAMP

EL-54
