LEAKAGE TEST

1. Maintain the pressure at about 981 to 1,961 kPa (9.8 to 19.6

bar, 10 to 20 kg/cm

2

, 142 to 284 psi) below initial injection

pressure.

2. Check that there is no dripping from the nozzle tip or around the

body.

3. If there is leakage, replace nozzle assembly.

SPRAY PATTERN TEST

1. Check spray pattern by pumping tester handle one full stroke

per second.

a. If main spray angle is within 30 degrees as shown, injec-

tion nozzle is good.

b. It is still normal even if a thin stream of spray deviates from

the main spray (pattern B).

2. If the spray pattern is not correct, disassemble and clean

nozzle.

3. Test again and if spray pattern is not corrected, replace nozzle.

SEF674A

SEF079S

INJECTION NOZZLE

TD27Ti

Test and Adjustment (Cont’d)

EC-317

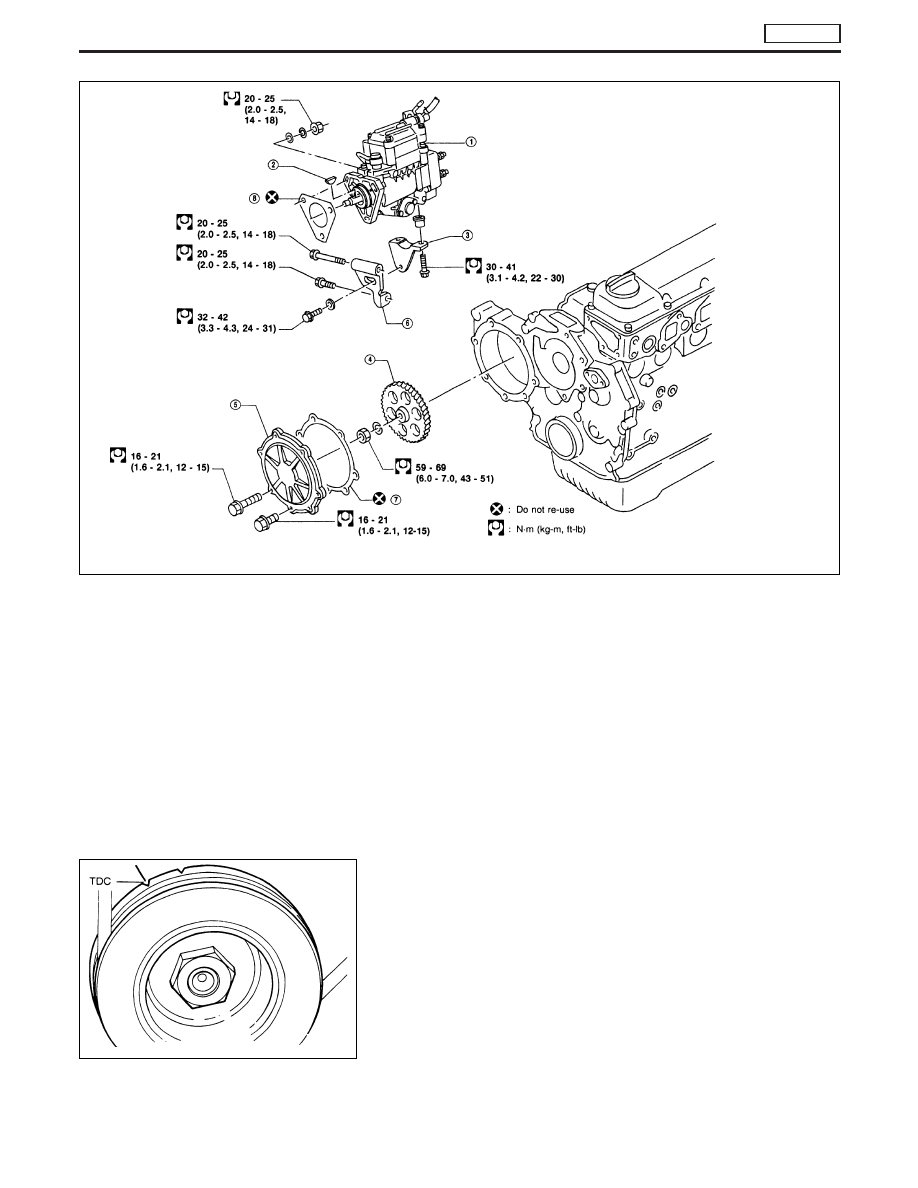

q

1

Electric fuel injection pump

q

2

Key

q

3

Bracket

q

4

Injection pump drive gear

q

5

Dust cover

q

6

Bracket

q

7

Gasket

q

8

Gasket

Removal

1. Remove battery.

Disconnect electronic injection pump harness connectors.

2. Set No. 1 piston at TDC on its compression stroke.

3. Remove fuel hoses (supply, return and spill) and injection

tubes.

NEF460

EEF181

ELECTRONIC FUEL INJECTION PUMP

TD27Ti

EC-318

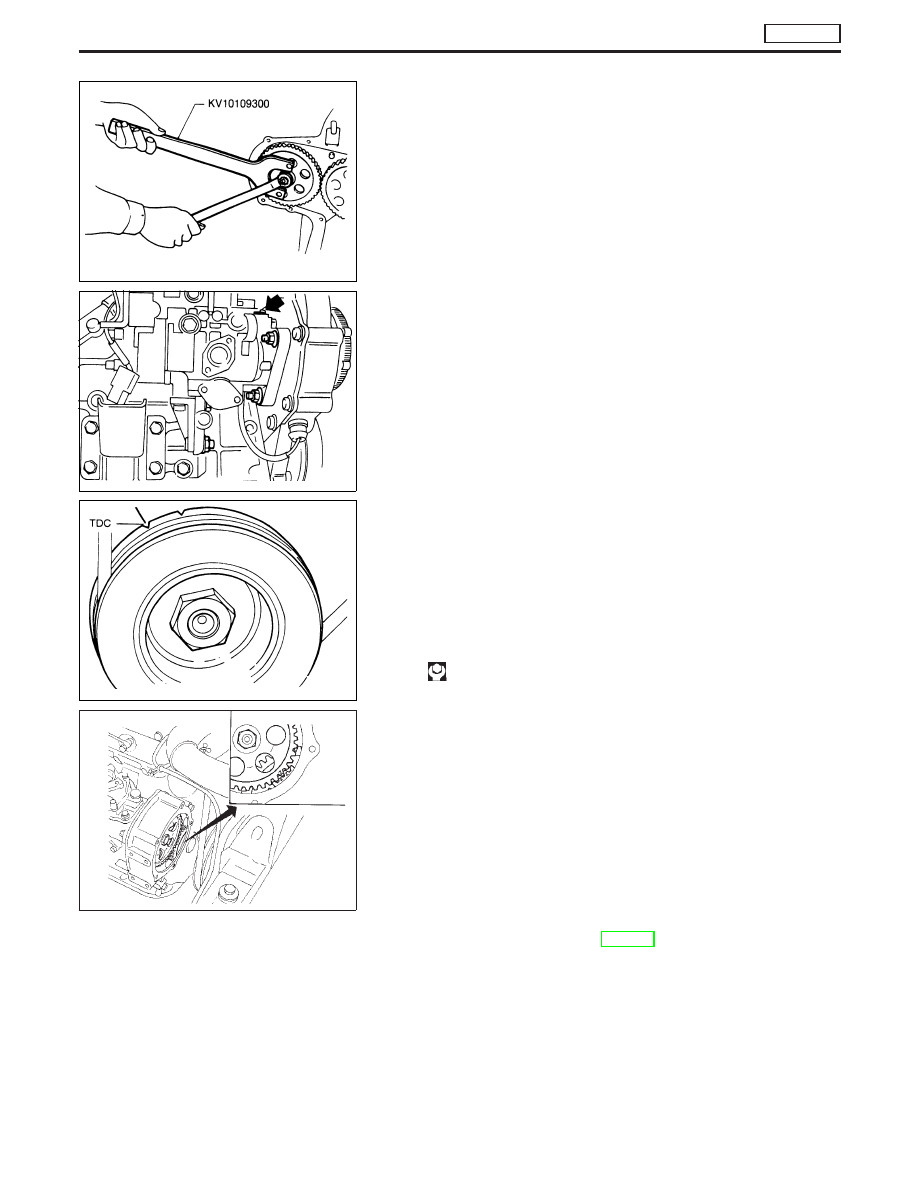

4. Remove dust cover and injection pump gear.

Refer to EM section.

5. Remove fixing nuts and bolts. Then remove injection pump.

Installation

Install injection pump assembly in the reverse order of removal,
observing the following:
1. Confirm that No. 1 cylinder is set at TDC on its compression

stroke.

2. Install injection pump (Refer to EM section).
(1) Temporarily set injection pump so that the flange of the pump

is aligned with aligning mark on front cover.

(2) Install injection pump gear.

: 59 - 69 N

m (6 - 7 kg-m, 43 - 51 ft-lb)

Make sure that the key does not fall into the front cover.
Make sure that “Z” marks are aligned.
(3) Apply liquid gasket to mating surface of injection pump gear

cover and install it.

3. Adjust injection timing.

Refer to “Basic Inspection”, EC-338.

4. Install all parts removed.

SEM653B

EEF160

EEF181

SEF337F

ELECTRONIC FUEL INJECTION PUMP

TD27Ti

Removal (Cont’d)

EC-319

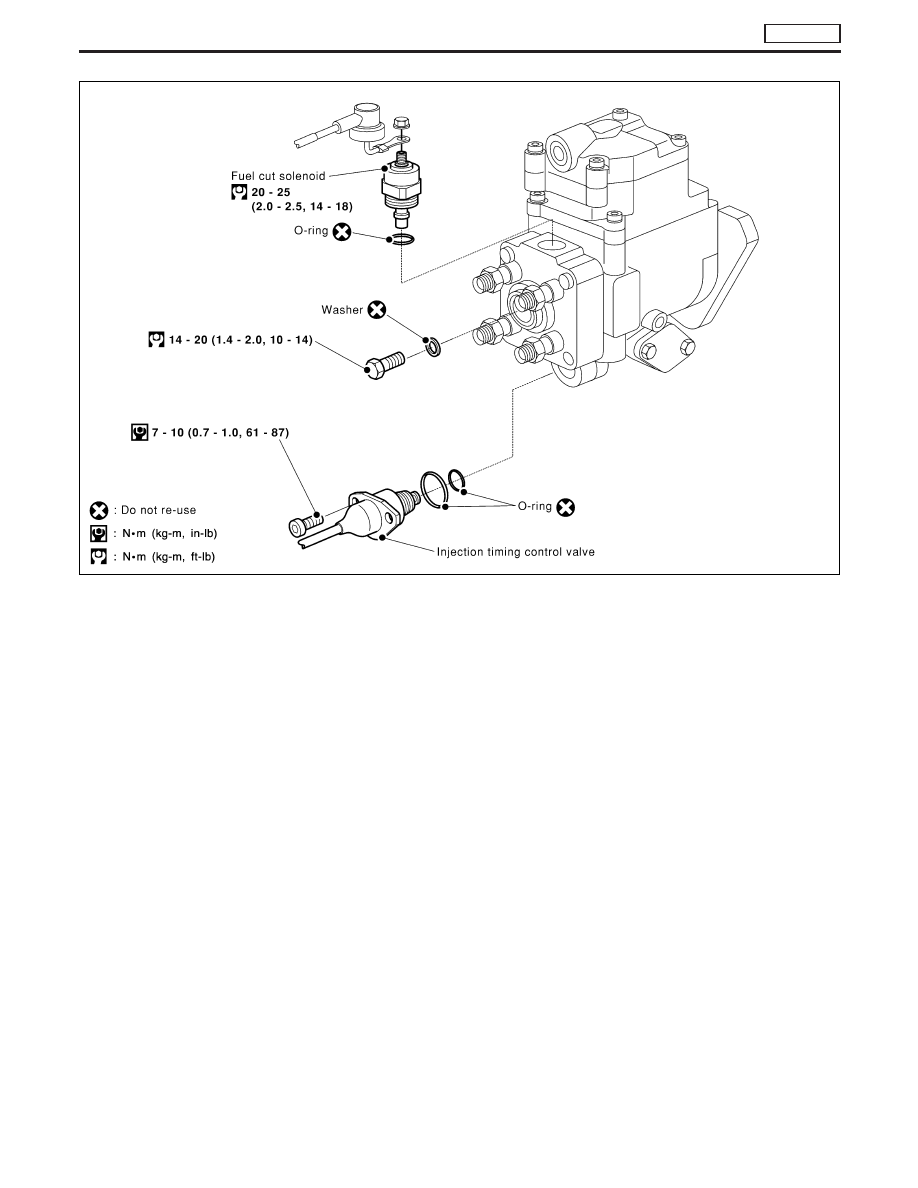

Disassembly and Assembly

CAUTION:

I

Do not disassemble the parts not shown in the illustration
above.

I

Before installing injection timing control valve, smear a
coat of diesel fuel to O-ring and its mating area. Insert
injection timing control valve straight into bore in fuel
pump body. After positioning the injection timing control
valve correctly, visually check that the fuel does not leak.

I

After re-assembling the parts, erase Diagnostic Trouble
Code (DTC), and perform DTC CONFIRMATION PROCE-
DURE (or OVERALL FUNCTION CHECK).

YEC236A

ELECTRONIC FUEL INJECTION PUMP

TD27Ti

EC-320
