Precautions

I

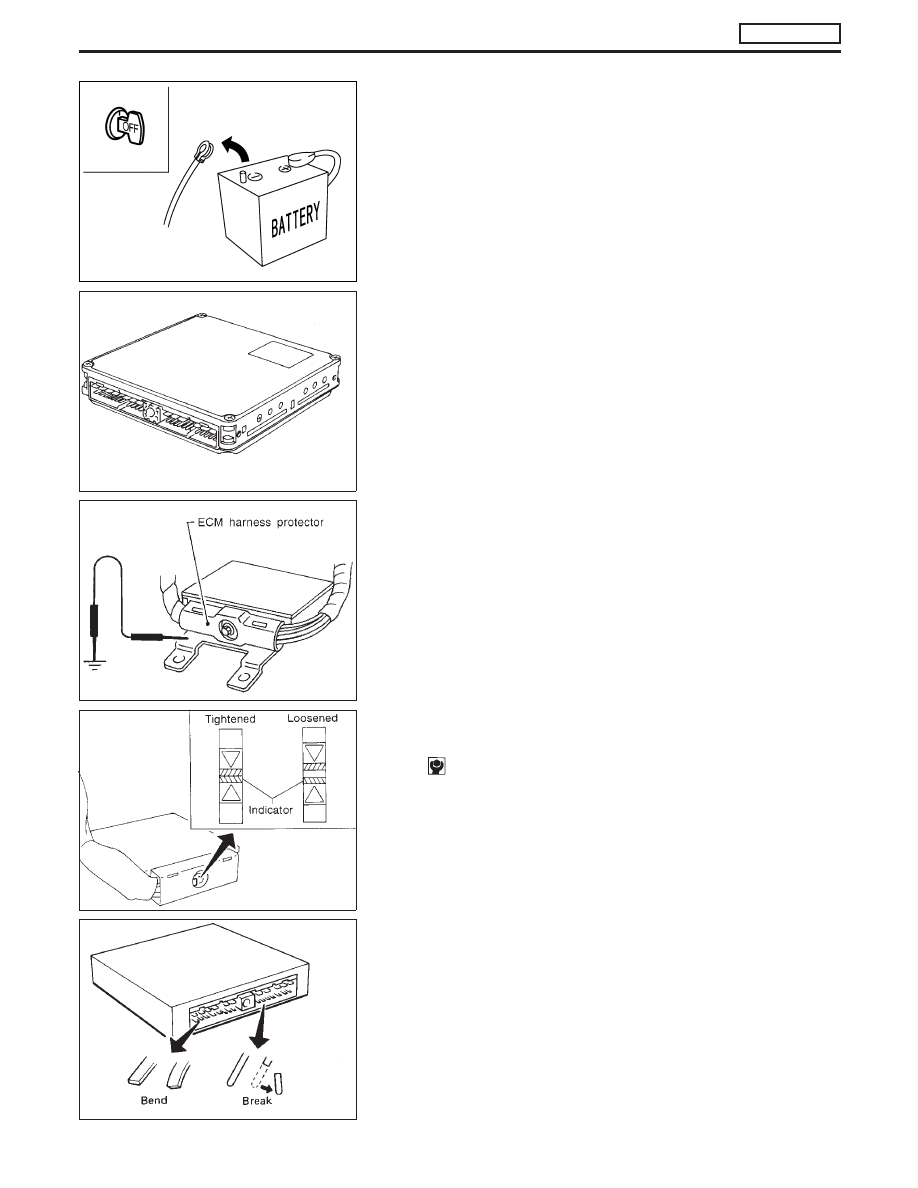

Always use a 12 volt battery as power source.

I

Do not attempt to disconnect battery cable while engine is
running.

I

Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.

I

Before removing parts, turn off ignition switch and then
disconnect battery ground cable.

I

Do not disassemble ECM.

I

If a battery terminal is disconnected, the memory will
return to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is
disconnected. However, this is not an indication of a prob-
lem. Do not replace parts because of a slight variation.

I

When ECM is removed for inspection, make sure to ground
the ECM mainframe.

I

When connecting ECM harness connector, tighten secur-
ing bolt until the gap between the orange indicators disap-
pears.

: 3.0 - 5.0 N

m (0.3 - 0.5 kg-m, 26 - 43 in-lb)

I

When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminal, when connecting pin connectors.

I

Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in the circuit, thus resulting in damage
to ICs.

I

Keep ECM harness at least 10 cm (3.9 in) away from adja-
cent harnesses, to prevent an ECM system malfunction

SEF706Y

SEC220B

SEF665S

SEF308Q

SEF291H

PRECAUTIONS

ZD30DDTi

EC-9

due to receiving external noise, degraded operation of ICs,
etc.

I

Keep ECM parts and harnesses dry.

I

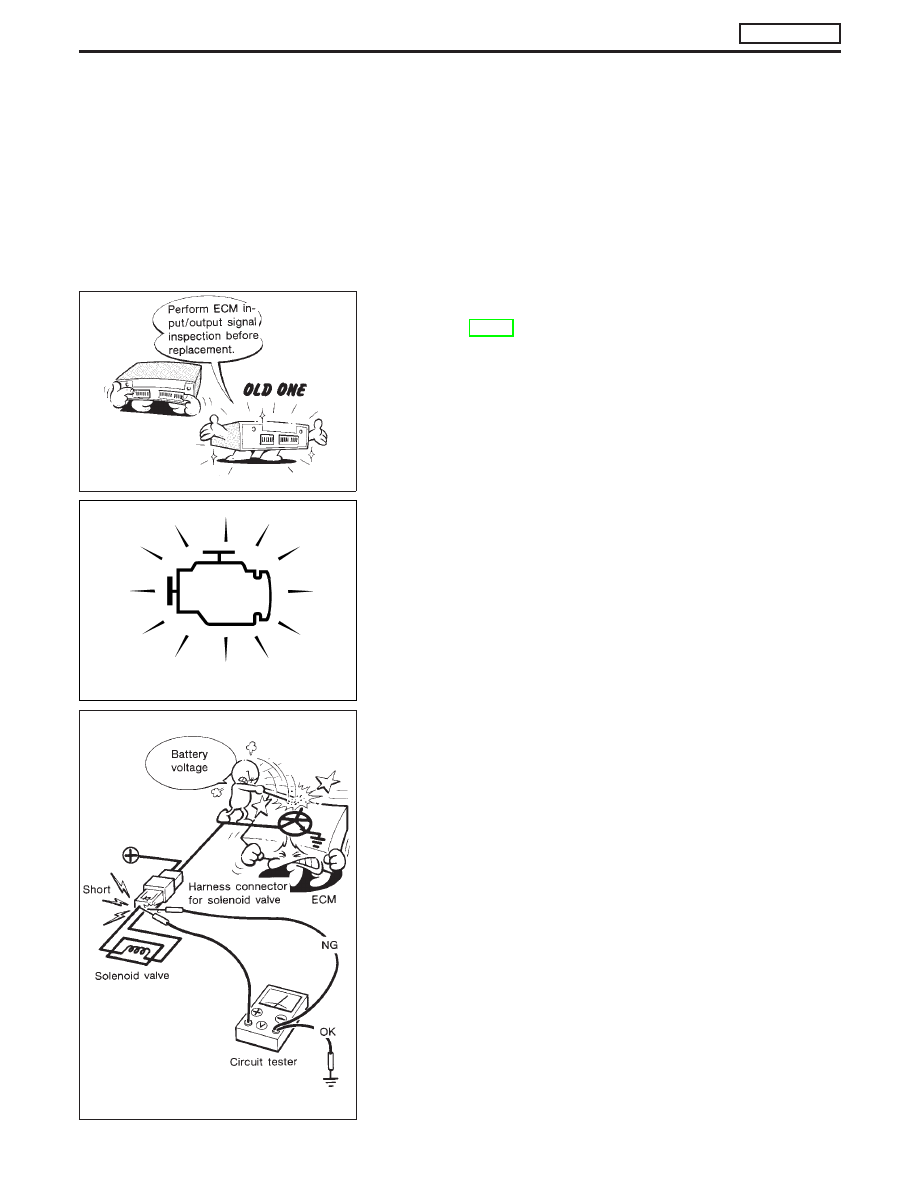

Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-69.

I

If MI (MIL) illuminates or blinks irregularly when engine is
running, water may have accumulated in fuel filter. Drain
water from fuel filter. If this does not correct the problem,
perform specified trouble diagnostic procedures.

I

After performing each TROUBLE DIAGNOSIS, perform
“DTC Confirmation Procedure” or “Overall Function
Check”.
The DTC should not be displayed in the “DTC Confirmation
Procedure” if the repair is completed. The “Overall Func-
tion Check” should be a good result if the repair is com-
pleted.

I

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

I

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the
ECM’s transistor. Use a ground other than ECM terminals,
such as the ground.

MEF040D

SAT652J

SEF348N

PRECAUTIONS

ZD30DDTi

Precautions (Cont’d)

EC-10

I

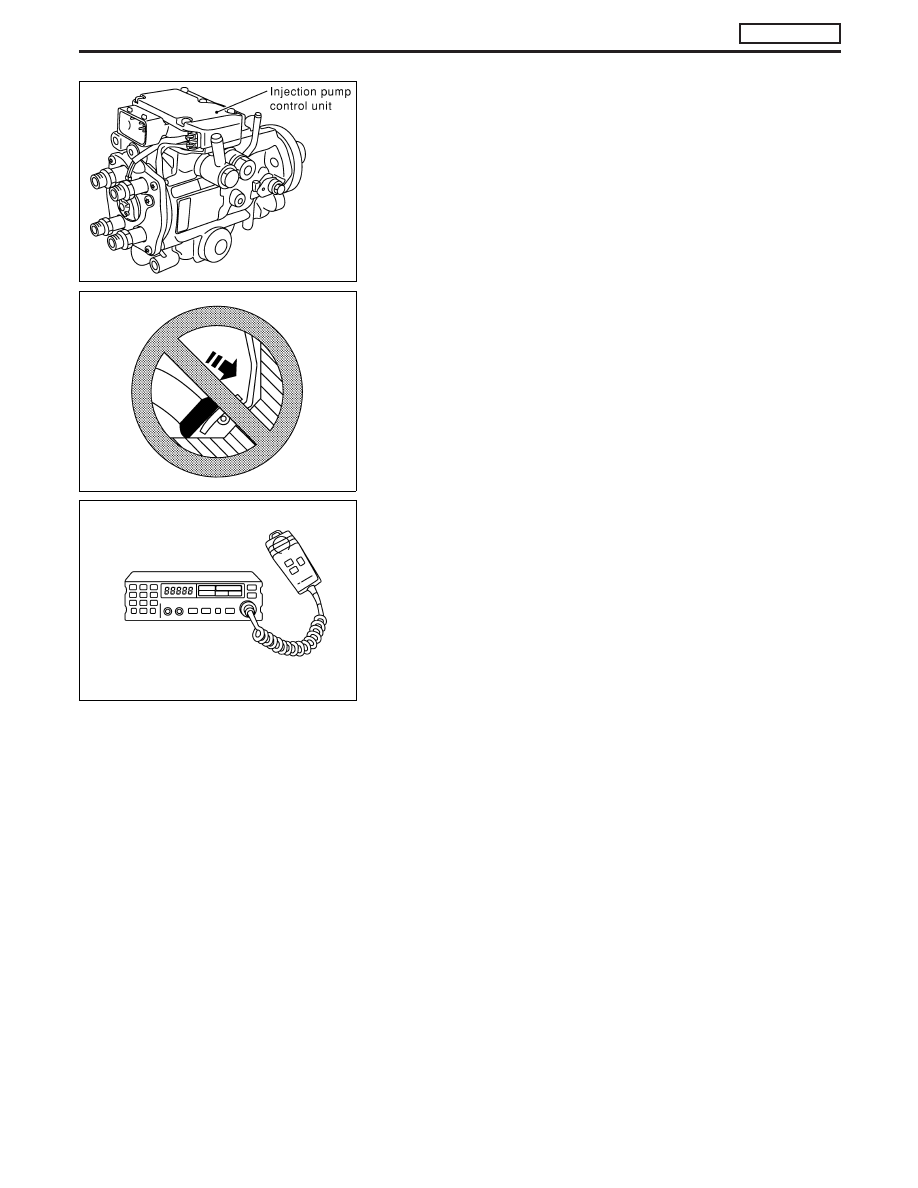

Do not disconnect pump harness connector with engine
running.

I

Do not disassemble electronic fuel injection pump.
If NG, take proper action.

I

Do not disassemble injection nozzle.
If NG, replace injection nozzle.

I

Even a slight leak in the air intake system can cause seri-
ous problems.

I

Do not shock or jar the crankshaft position sensor (TDC).

I

Do not depress accelerator pedal when starting.

I

Immediately after starting, do not rev up engine unneces-
sarily.

I

Do not rev up engine just prior to shutdown.

I

When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on its installation loca-
tion.

1) Keep the antenna as far as possible away from the ECM.
2) Keep the antenna feeder line more than 20 cm (7.9 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

3) Adjust the antenna and feeder line so that the standing-

wave ratio can be kept smaller.

4) Be sure to ground the radio to vehicle body.

SEF437Y

SEF709Y

SEF708Y

PRECAUTIONS

ZD30DDTi

Precautions (Cont’d)

EC-11

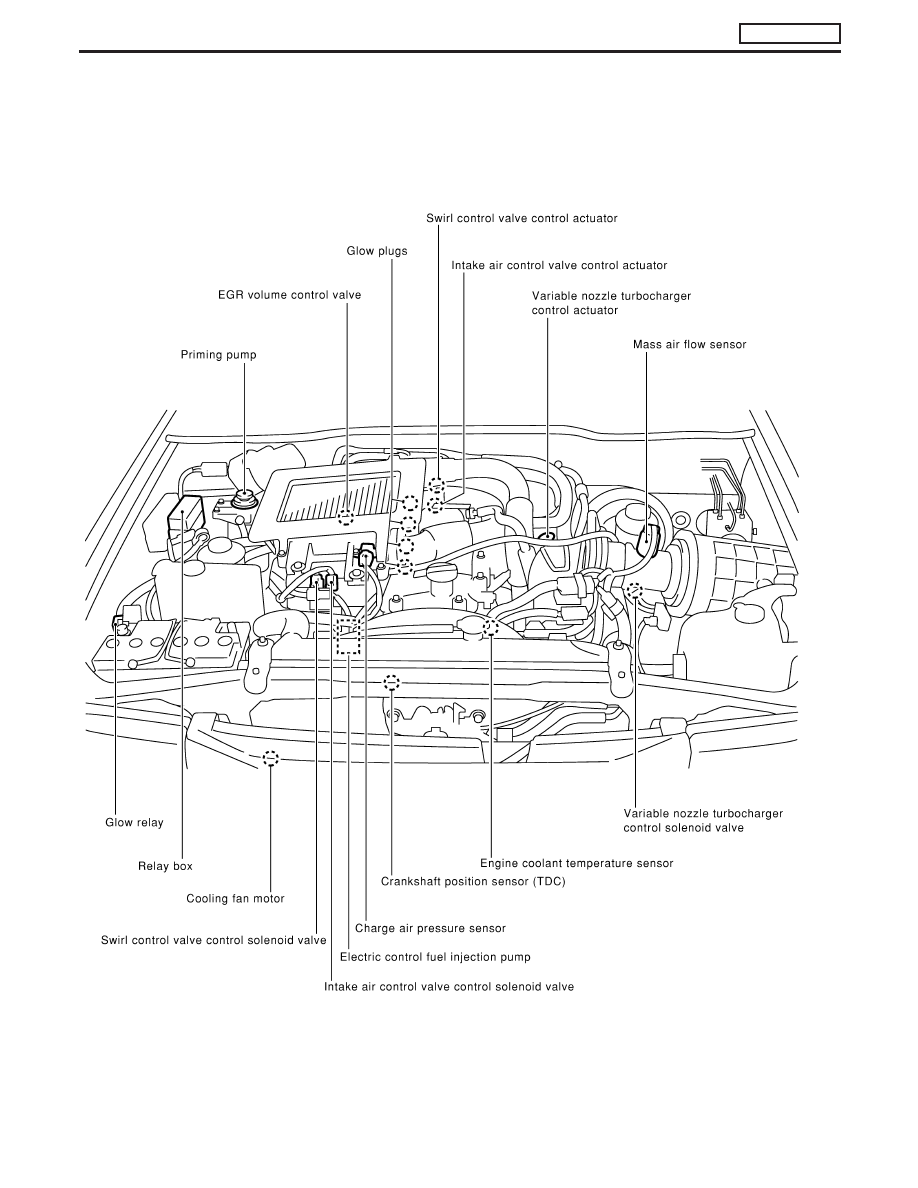

Engine Control Component Parts Location
