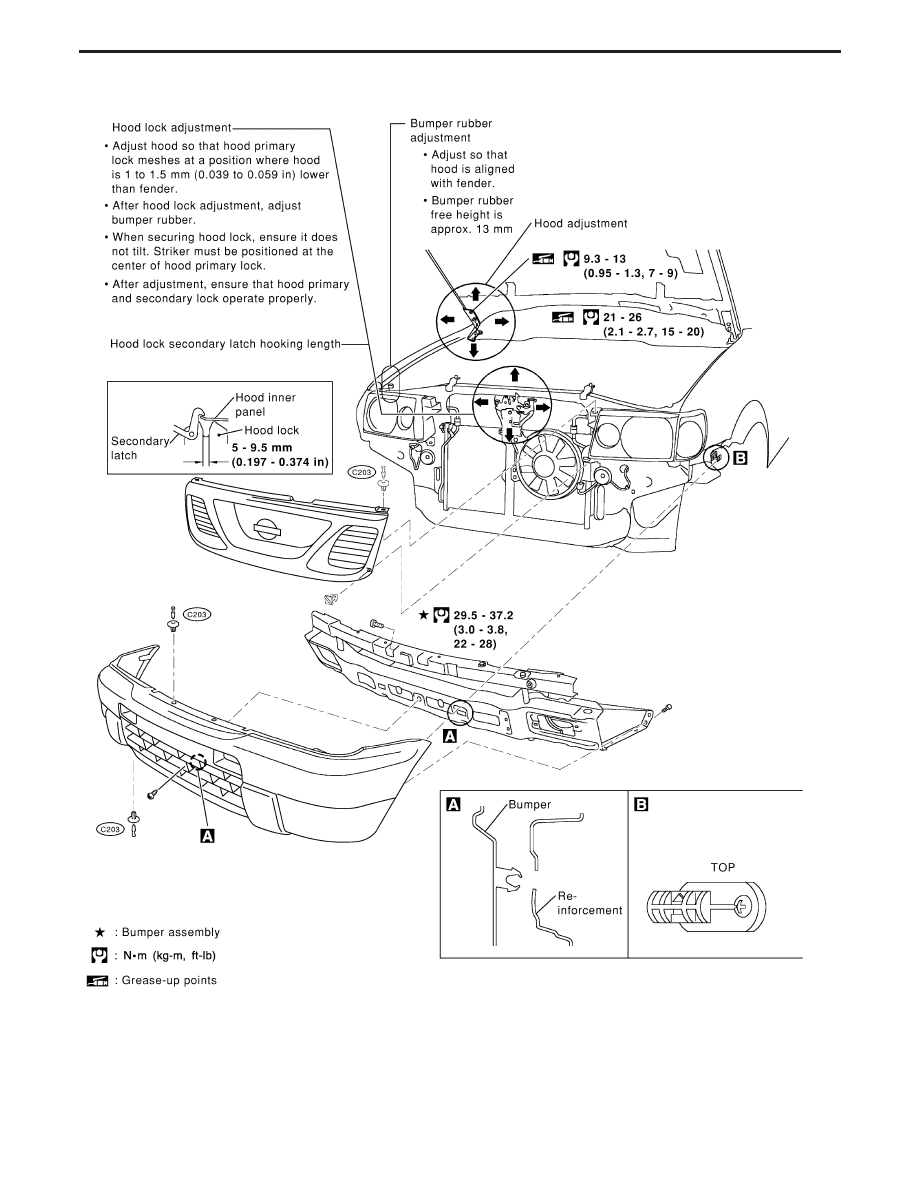

FRONT BUMPER ASSEMBLY

YBT063

BODY FRONT END

Removal and Installation (Cont’d)

BT-7

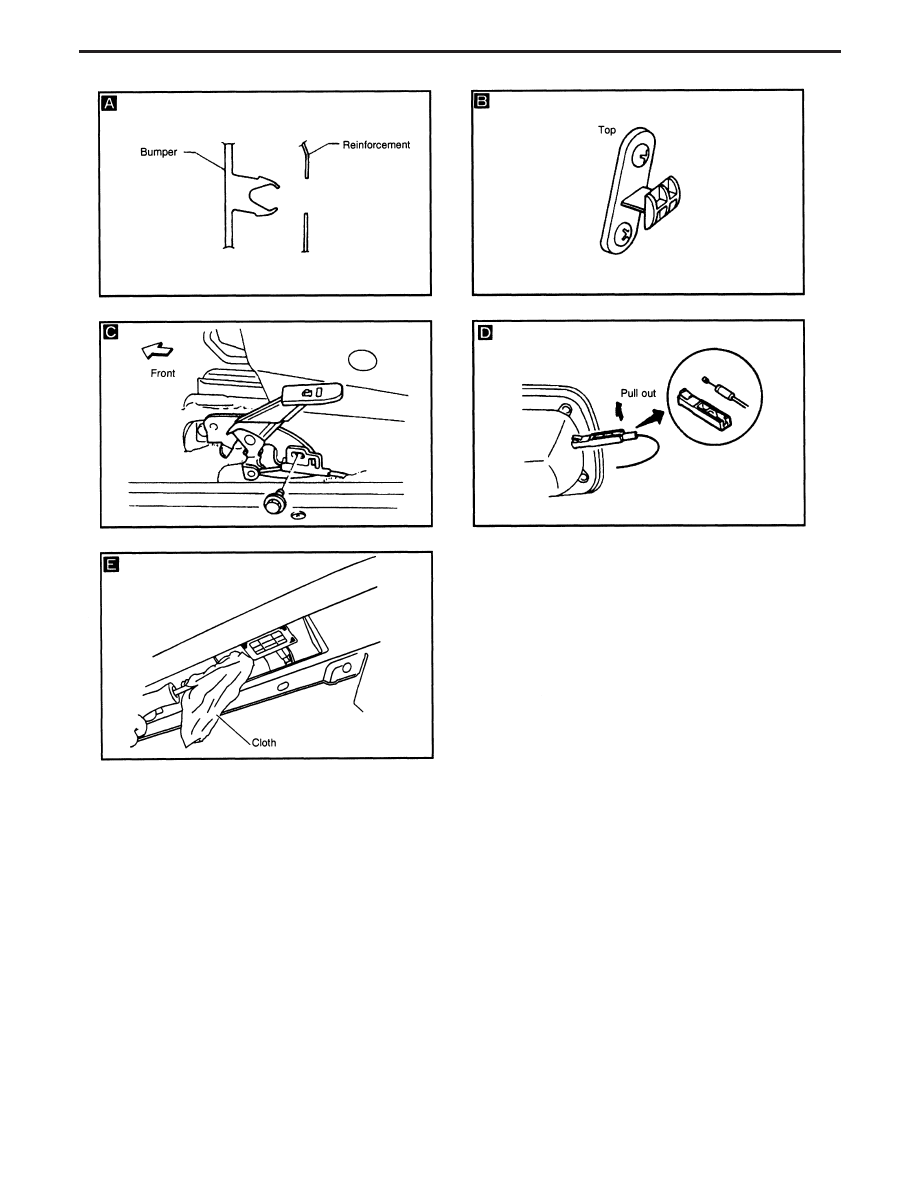

Removal and Installation

I

When removing or installing back door, place a cloth or other padding on back door. This prevents vehicle
body from being scratched.

I

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

I

Back door adjustment: Adjust at hinge-back door portion for proper back door fit.

I

Back door lock system adjustment: Adjust striker so that it is in the center of the lock. After adjustment,
check back door lock operation.

I

After installation, make sure that back door and fuel filler lid open smoothly.

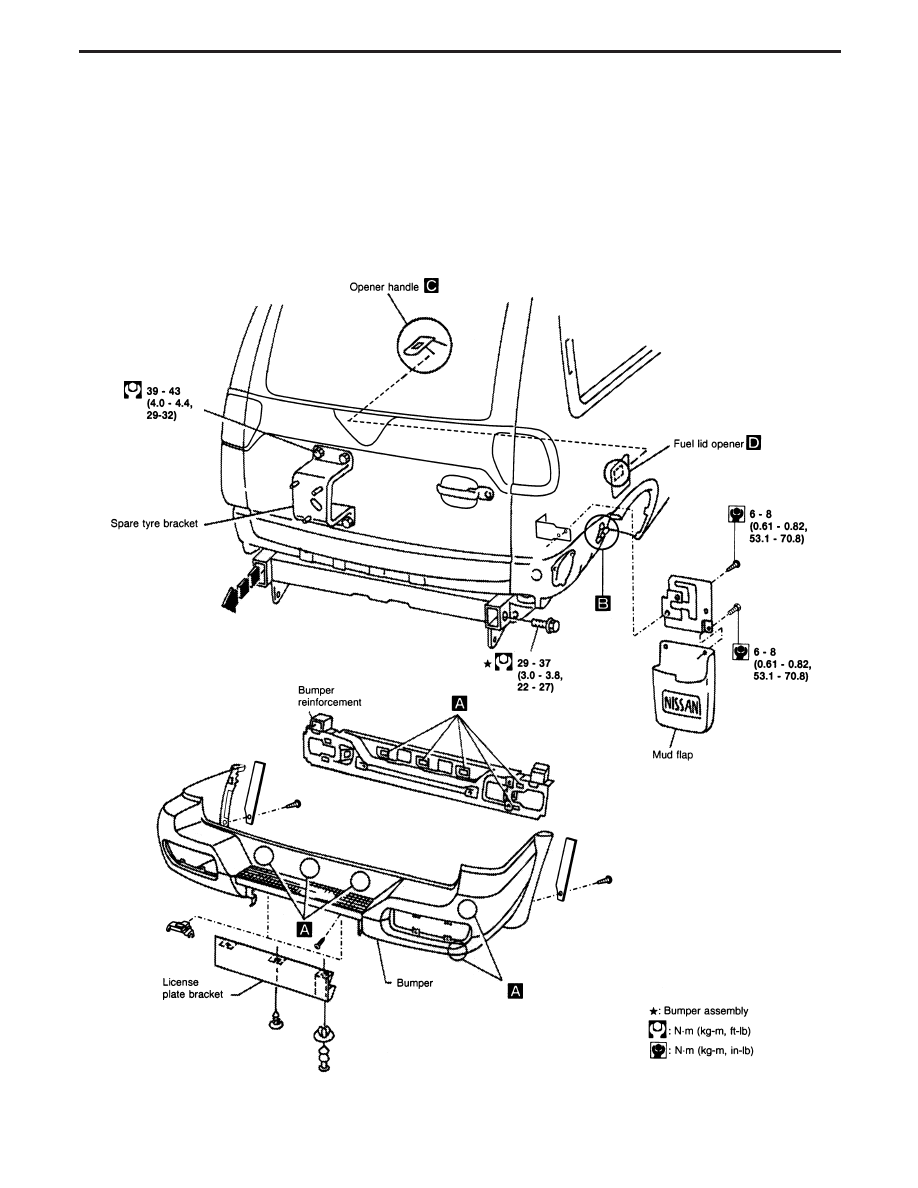

REAR BUMPER ASSEMBLY

NBF363

BODY REAR END AND OPENER

BT-8

NBF364

BODY REAR END AND OPENER

Removal and Installation (Cont’d)

BT-9

Removal and Installation

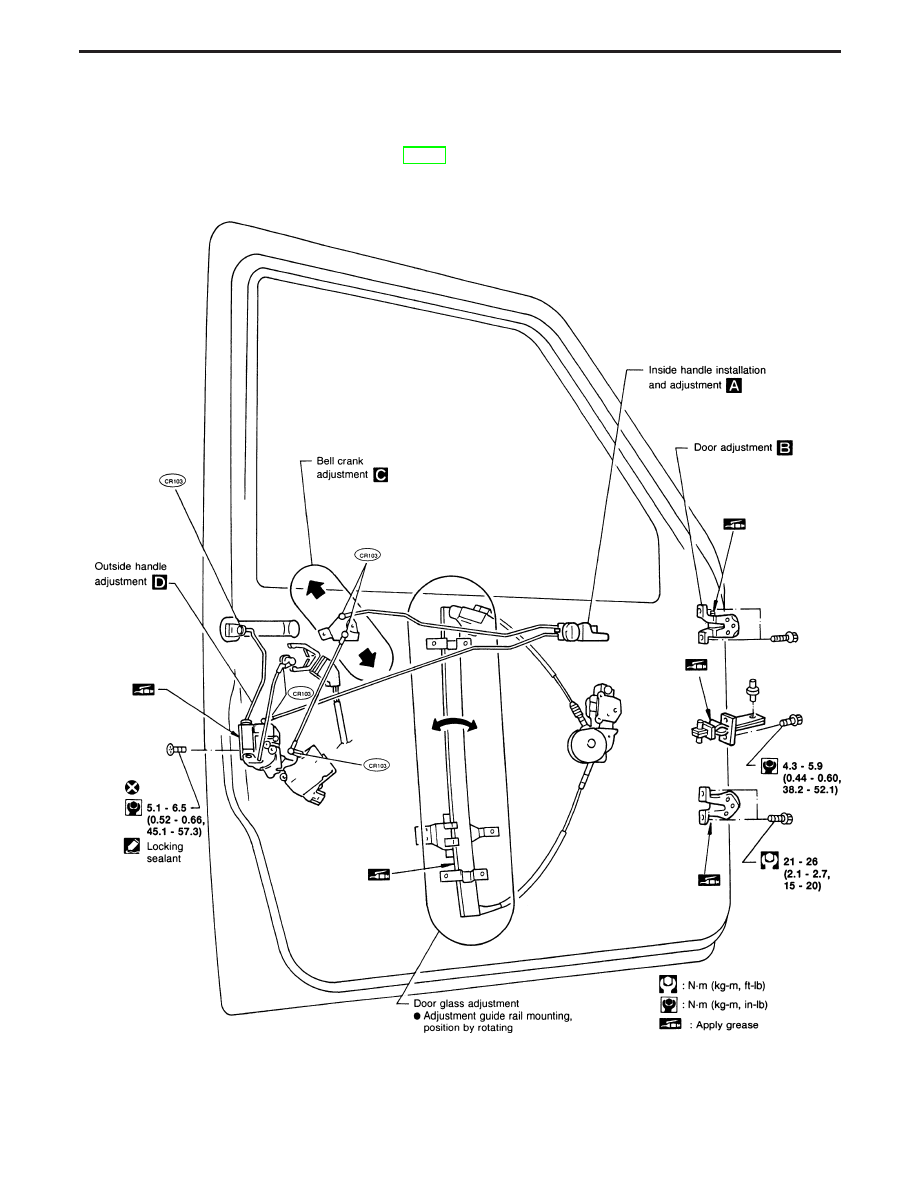

FRONT DOOR

I

For removal of front door finisher, refer to “DOOR TRIM”,
BT-19.

I

Remove sealing screen.

I

After adjusting door or door lock, check door lock operation.

NBF226

DOOR

BT-10
