ASSEMBLY

TM-287

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

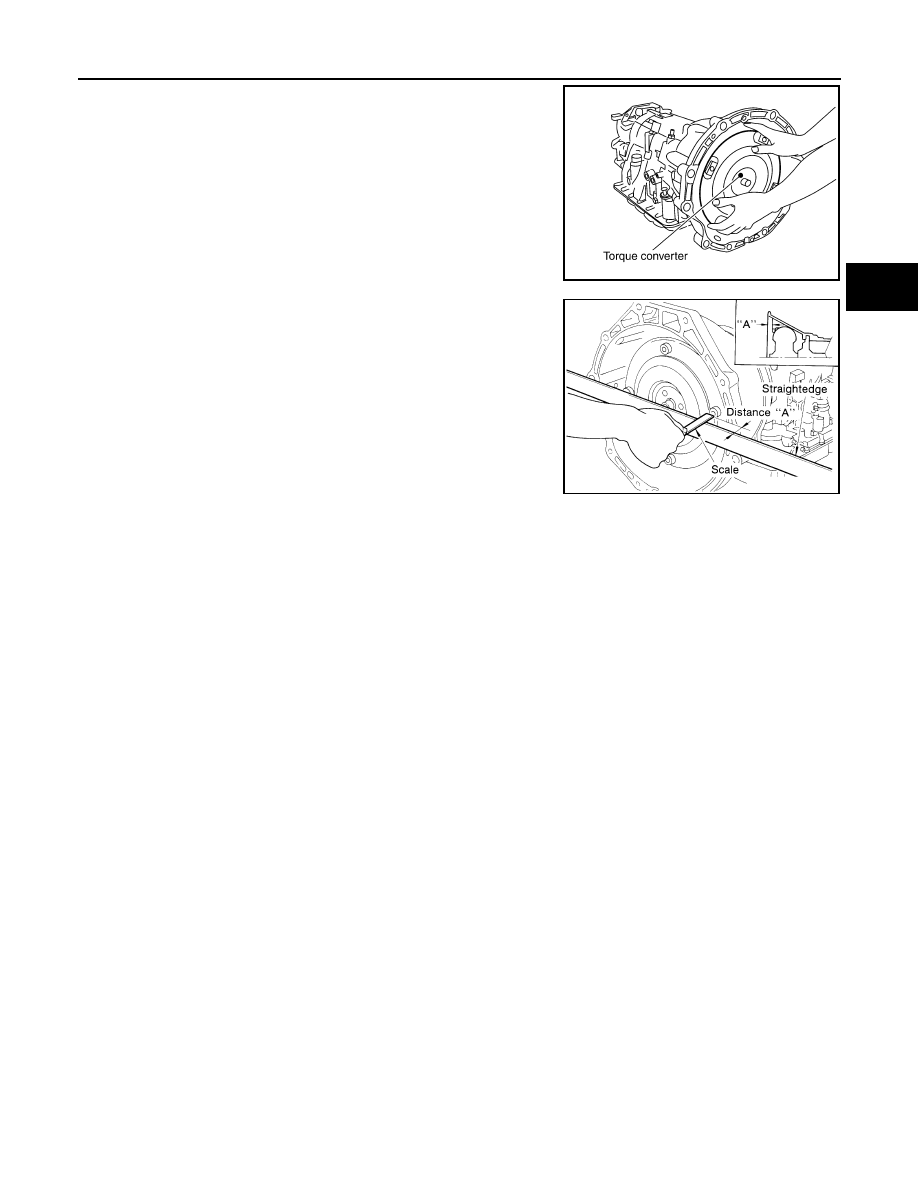

b. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

c. Measure distance (A) to make sure that torque converter is in

proper position.

SCIA5010E

Distance (A)

: 24.0 mm (0.94 in) or more

SCIA5694E

TM-288

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009885938

*1: Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

 (For USA and Canada)

MA-16, "FOR MEXICO : Fluids and Lubri-

cants"

 (Mexico).

*2: The fluid capacity is the reference value. Check the fluid level with A/T fluid level gauge.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000009885939

NORMAL MODE

• At half throttle, the accelerator opening is 1/2 of the full opening.

TOW MODE

Applied model

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

63X2B

63X3A

63X2C

63X2E

Stall torque ratio

2.0 : 1

Transmission gear ratio

1st

3.827

2nd

2.368

3rd

1.520

4th

1.000

5th

0.834

Reverse

2.613

Remarks

Final gear ratio

2.937

3.357

2.937

3.357

Recommended fluid

Genuine NISSAN Matic S ATF

*1

Fluid capacity

10.6 liter (11-1/4 US qt, 9-3/8 Imp qt)

*2

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using ATF other than Gen-

uine NISSAN Matic S ATF or  Matic J ATF will cause deterioration driveability and A/T durability, and may damage the A/T,
which is not covered by the NISSAN new vehicle limited warranty.

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

46 - 50

(28 - 31)

75 - 81

(47 - 50)

104 - 112

(65 - 70)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

75 - 83

(47 - 51)

44 - 50

(27 - 31)

11 - 15

(7 - 10)

3.357

Full throttle

61 - 65

(38 - 41)

97 - 105

(61 - 66)

153 - 163

(95 - 102)

236 - 246

(147 - 153)

232 - 242

 (144 - 151)

143 - 153

(89 - 95)

87 - 95

(54 - 59)

43 - 47

(27 - 29)

Half throttle

41 - 45

(26 - 28)

67 - 73

(42 - 45)

90 - 98

(56 - 61)

119 - 127

 (74 - 79)

97 - 105

(60 - 65)

65 - 73

(40 - 45)

39 - 45

(24 - 28)

11 - 15

(7 - 10)

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

50 - 54

(31 - 34)

82 - 88

(51 - 55)

114 - 122

(71 - 76)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

76 - 84

(47 - 52)

44 - 50

(27 - 31)

11 - 15

(7 - 10)

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-289

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• At half throttle, the accelerator opening is 1/2 of the full opening.

Vehicle Speed at Which Lock-up Occurs/Releases

INFOID:0000000009885940

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal OFF)
• At half throttle, the accelerator opening is 1/2 of the full opening.

Stall Speed

INFOID:0000000009885941

Line Pressure

INFOID:0000000009885942

Input Speed Sensor

INFOID:0000000009885943

Output Speed Sensor

INFOID:0000000009885944

Reverse Brake

INFOID:0000000009885945

3.357

Full throttle

61 - 65

(38 - 41)

97 - 105

(61 - 66)

153 - 163

(95 - 102)

236 - 246

(147 - 153)

232 - 242

 (144 - 151)

143 - 153

(89 - 95)

87 - 95

(54 - 59)

43 - 47

(27 - 29)

Half throttle

46 - 50

(29 - 31)

73 - 79

(45 - 59)

99 - 107

(62 - 66)

119 - 127

 (74 - 79)

97 - 105

(60 - 65)

65 - 73

(40 - 45)

39 - 45

(24 - 28)

11 - 15

(7 - 10)

Final

gear
ratio

Throttle position

Vehicle speed km/h (MPH)

Lock-up ON

Lock-up OFF

2.937

Closed throttle

51 - 59 (32 - 36)

48 - 56 (30 - 34)

Half throttle

177 - 185 (110 - 115)

111 - 119 (69 - 73)

3.357

Closed throttle

44 - 52 (28 - 32)

41 - 49 (26 - 30)

Half throttle

161 - 169 (100 - 105)

97 - 105 (61 - 65)

Stall speed

2,550 - 2,850 rpm

Engine speed

Line pressure kPa (kg/cm

2

, psi)

“R” position

“D” position

At idle speed

425 – 465 (4.3 – 4.7, 62 – 67)

379 – 428 (3.9 – 4.4, 55 – 62)

At stall speed

1,605 – 1,950 (16.4 – 19.9, 233 – 283)

1,310 – 1,500 (13.4 – 15.3, 190 – 218)

Name

Condition

Data (Approx.)

Input speed sensor 1

When running at 50 km/h (31 MPH) in 4th speed witch the closed throttle position
signal OFF.

1.3 kHz

Input speed sensor 2

When running at 20 km/h (12 MPH) in 1st speed witch the closed throttle position
signal OFF.

Name

Condition

Data (Approx.)

Output speed sensor

When running at 20 km/h (12 MPH).

185 Hz

Number of drive plates

7

Number of driven plates

7

Clearance mm (in)

Standard

0.7 – 1.1 (0.028 – 0.043)

TM-290

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Total End Play

INFOID:0000000009885946

BEARING RACE FOR ADJUSTING TOTAL END PLAY

Torque Converter

INFOID:0000000009885947

Thickness of retaining plates

Thickness mm (in)

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)
5.4 (0.213)

Total end play mm (in)

0.25 – 0.55 (0.0098 – 0.0217)

Thickness mm (in)

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

Distance between end of converter housing and torque
converter mm (in)

24.0 (0.94) or more
