P0615 STARTER RELAY

TM-51

< DTC/CIRCUIT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

CHECK DTC

Perform “DTC Confirmation Procedure”.

• Refer to

TM-49, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

TM-52

< DTC/CIRCUIT DIAGNOSIS >

P0700 TRANSMISSION CONTROL

P0700 TRANSMISSION CONTROL

Description

INFOID:0000000009885719

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The

TCM controls the A/T.

On Board Diagnosis Logic

INFOID:0000000009885720

• This is an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0700 ” with CONSULT is detected when the TCM is malfunctioning.

Possible Cause

INFOID:0000000009885721

TCM.

DTC Confirmation Procedure

INFOID:0000000009885722

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

3. Start engine.

4. Run engine for at least 2 consecutive seconds at idle speed.

5. If DTC is detected, go to

TM-52, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “With CONSULT”.

Diagnosis Procedure

INFOID:0000000009885723

1.

CHECK DTC

With CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “SELF DIAG RESULTS” mode for “TRANSMISSION” with CONSULT.

3. Touch “ERASE”.

4. Turn ignition switch “OFF” and wait at least 10 seconds.

5. Perform DTC Confirmation Procedure,

TM-52, "DTC Confirmation Procedure"

.

Is the “P0700” displayed again?

YES

>> Replace the control valve with TCM. Refer to

TM-201, "Control Valve with TCM"

.

NO

>> INSPECTION END

P0705 TRANSMISSION RANGE SWITCH A

TM-53

< DTC/CIRCUIT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0705 TRANSMISSION RANGE SWITCH A

Description

INFOID:0000000009885724

The transmission range switch detects the selector lever position and sends a signal to the TCM.

CONSULT Reference Value in Data Monitor Mode

INFOID:0000000009885725

On Board Diagnosis Logic

INFOID:0000000009885726

• This is an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0705” with CONSULT or 9th judgment flicker without CONSULT is detected under

the following conditions.

- When TCM does not receive the correct voltage signal from the transmission range switch 1, 2, 3, 4 based

on the gear position.

- When no other position but “P” position is detected from “N” positions.

Possible Cause

INFOID:0000000009885727

• Harness or connectors

(The transmission range switch 1, 2, 3, 4 and TCM circuit is open or shorted.)

• Transmission range switch 1, 2, 3, 4

DTC Confirmation Procedure

INFOID:0000000009885728

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

3. Start engine.

4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.

ACCELE POSI: More than 1.0/8

5. If DTC is detected, go to

TM-53, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “With CONSULT”.

Diagnosis Procedure

INFOID:0000000009885729

1.

CHECK TRANSMISSION RANGE SW CIRCUIT

With CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

Item name

Condition

Display value

SLCTLVR POSI

 Selector lever in “N”,“P” positions.

N/P

Selector lever in “R” position.

R

Selector lever in “D” position.

D

Selector lever in “4” position.

4

Selector lever in “3” position.

3

Selector lever in “2” position.

2

Selector lever in “1” position.

1

TM-54

< DTC/CIRCUIT DIAGNOSIS >

P0705 TRANSMISSION RANGE SWITCH A

3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each posi-

tion.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Perform TCM power supply and ground circuit. Refer to

TM-105, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following items:

• A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SUB-HARNESS

1. Remove control valve with TCM. Refer to

TM-201, "Control Valve with TCM"

.

2. Disconnect transmission range switch connector and TCM connector.

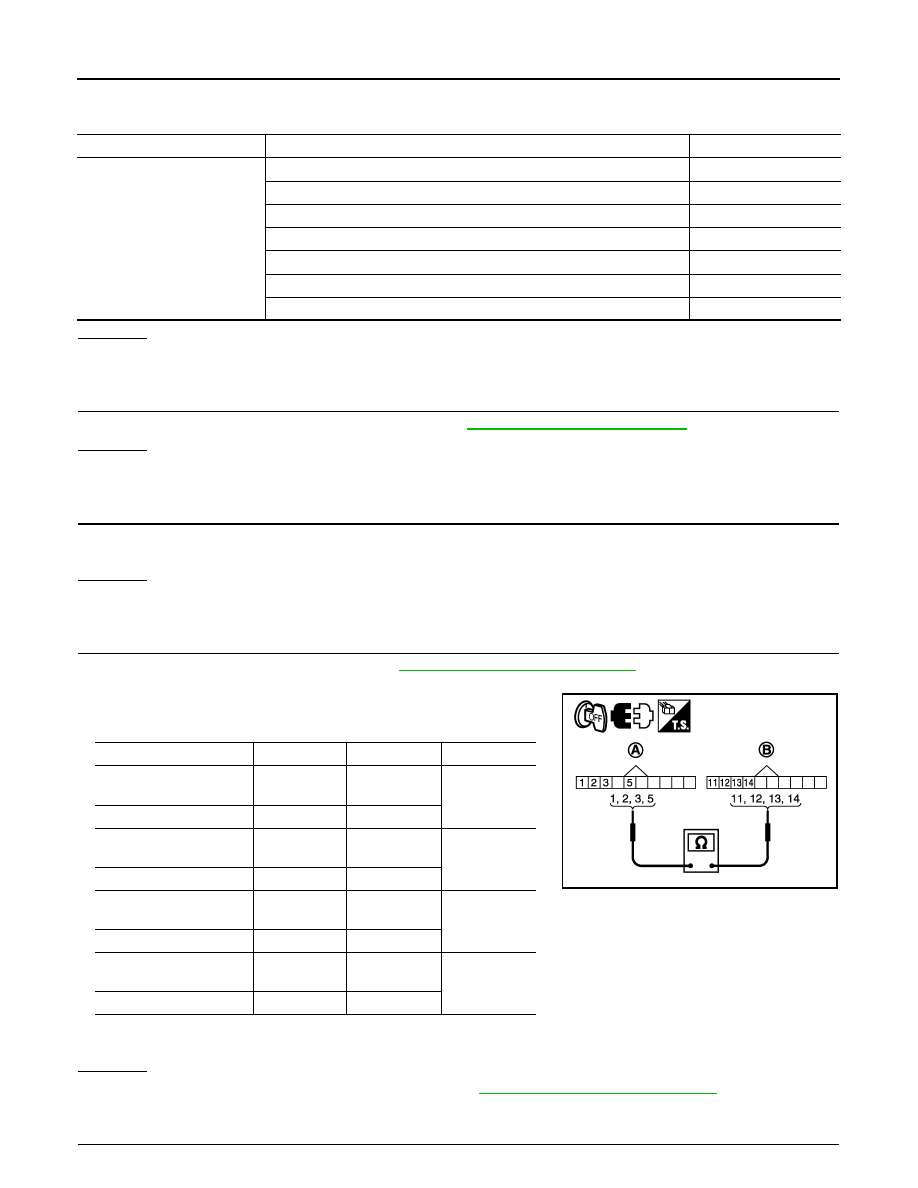

3. Check continuity between transmission range switch connector

(A) terminals and TCM connector (B) terminals.

4. If OK, check harness for short to ground and short to power.

5. Reinstall any part removed.
OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-201, "Control Valve with TCM"

.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

5.

CHECK DTC

Item name

Condition

Display value

SLCTLVR POSI

Selector lever in “N”,“P” positions.

N/P

Selector lever in “R” position.

R

Selector lever in “D” position.

D

Selector lever in “4” position.

4

Selector lever in “3” position.

3

Selector lever in “2” position.

2

Selector lever in “1” position.

1

Item

Connector Terminal  Continuity

Transmission range
switch connector

F505

1

Yes

TCM connector

F503

13

Transmission range
switch connector

F505

2

Yes

TCM connector

F503

11

Transmission range
switch connector

F505

3

Yes

TCM connector

F503

12

Transmission range
switch connector

F505

5

Yes

TCM connector

F503

14

JSDIA1328GB
