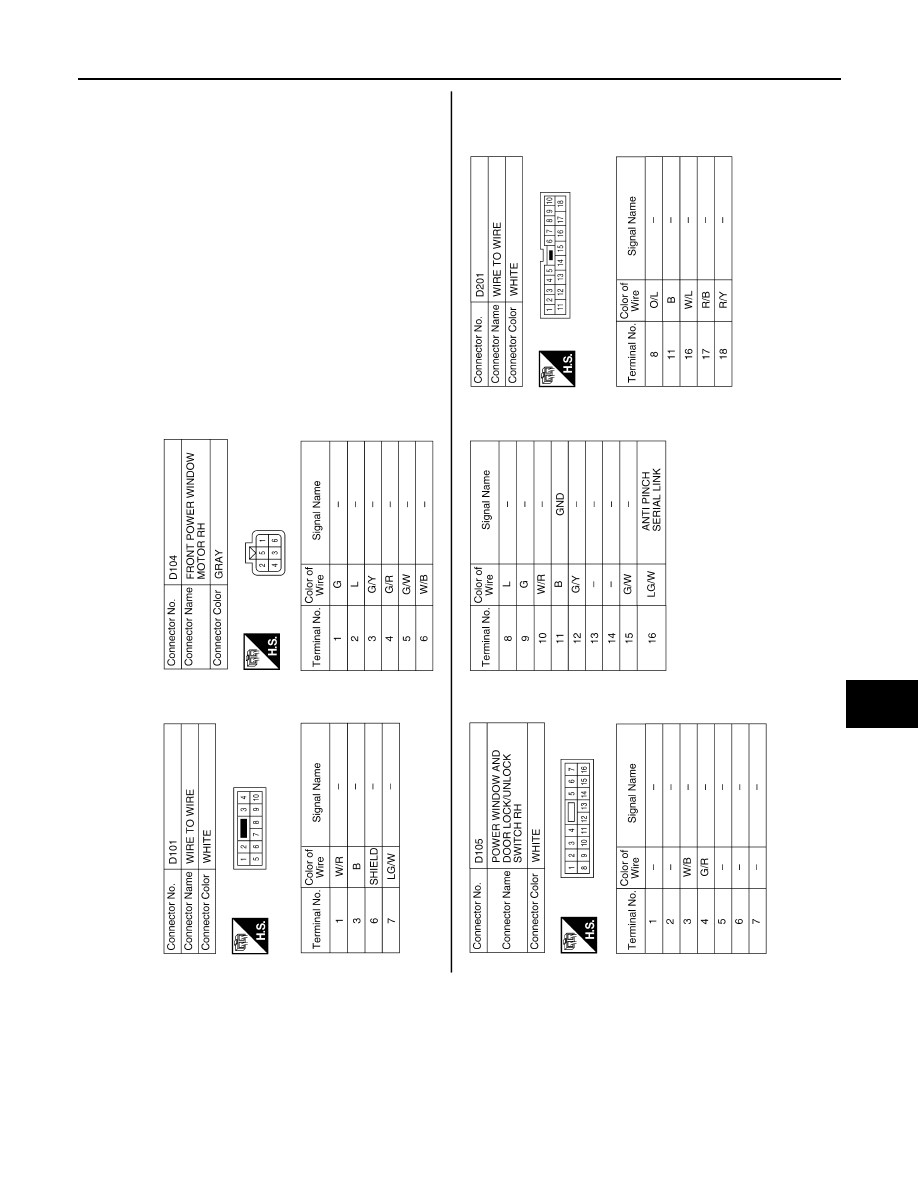

POWER WINDOW SYSTEM

PWC-97

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA4097GB

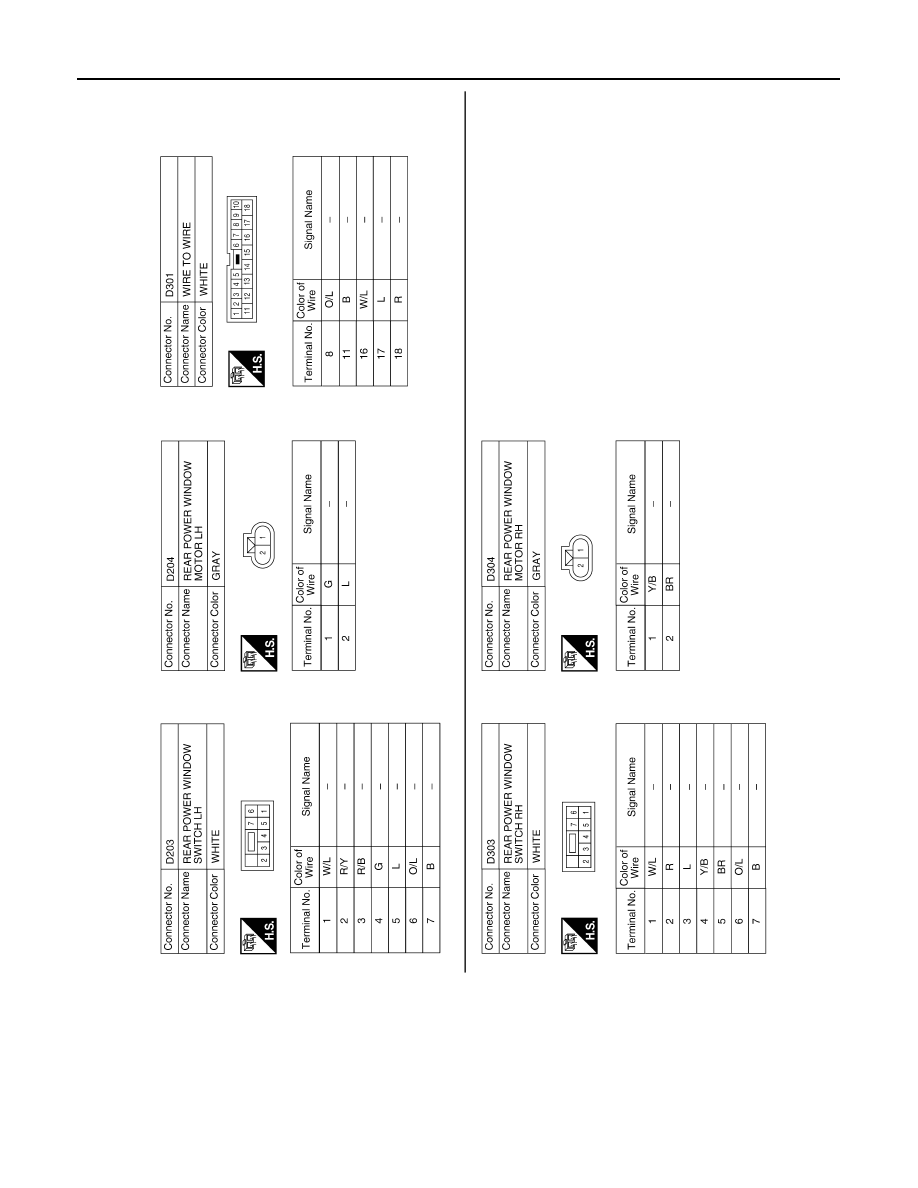

PWC-98

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

ABKIA4098GB

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY SWITCH

PWC-99

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYMPTOM DIAGNOSIS

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY
SWITCH

Diagnosis Procedure

INFOID:0000000009879023

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

BCS-28, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY AND

GROUND CIRCUIT

Check power window switch main power supply and ground circuit.

Refer to

PWC-12, "POWER WINDOW MAIN SWITCH : Component Function Check"

 (Crew Cab) or

PWC-21,

"POWER WINDOW MAIN SWITCH : Component Function Check"

 (King Cab).

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the malfunctioning parts.

3.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SERIAL CIRCUIT

Check main power window and door lock/unlock switch serial circuit.

Refer to

PWC-12, "POWER WINDOW MAIN SWITCH : Component Function Check"

 (Crew Cab) or

PWC-21,

"POWER WINDOW MAIN SWITCH : Component Function Check"

 (King Cab).

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace the malfunctioning parts.

4.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window and door lock/unlock switch.

Refer to

PWC-12, "POWER WINDOW MAIN SWITCH : Component Function Check"

 (Crew Cab) or

PWC-21,

"POWER WINDOW MAIN SWITCH : Component Function Check"

 (King Cab).

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

PWC-100

< SYMPTOM DIAGNOSIS >

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

DRIVER SIDE POWER WINDOW ALONE DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000009879024

1.

 CHECK FRONT POWER WINDOW MOTOR LH

Check front power window motor LH.

Refer to

PWC-25, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.
