MAGNET CLUTCH

HAC-141

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

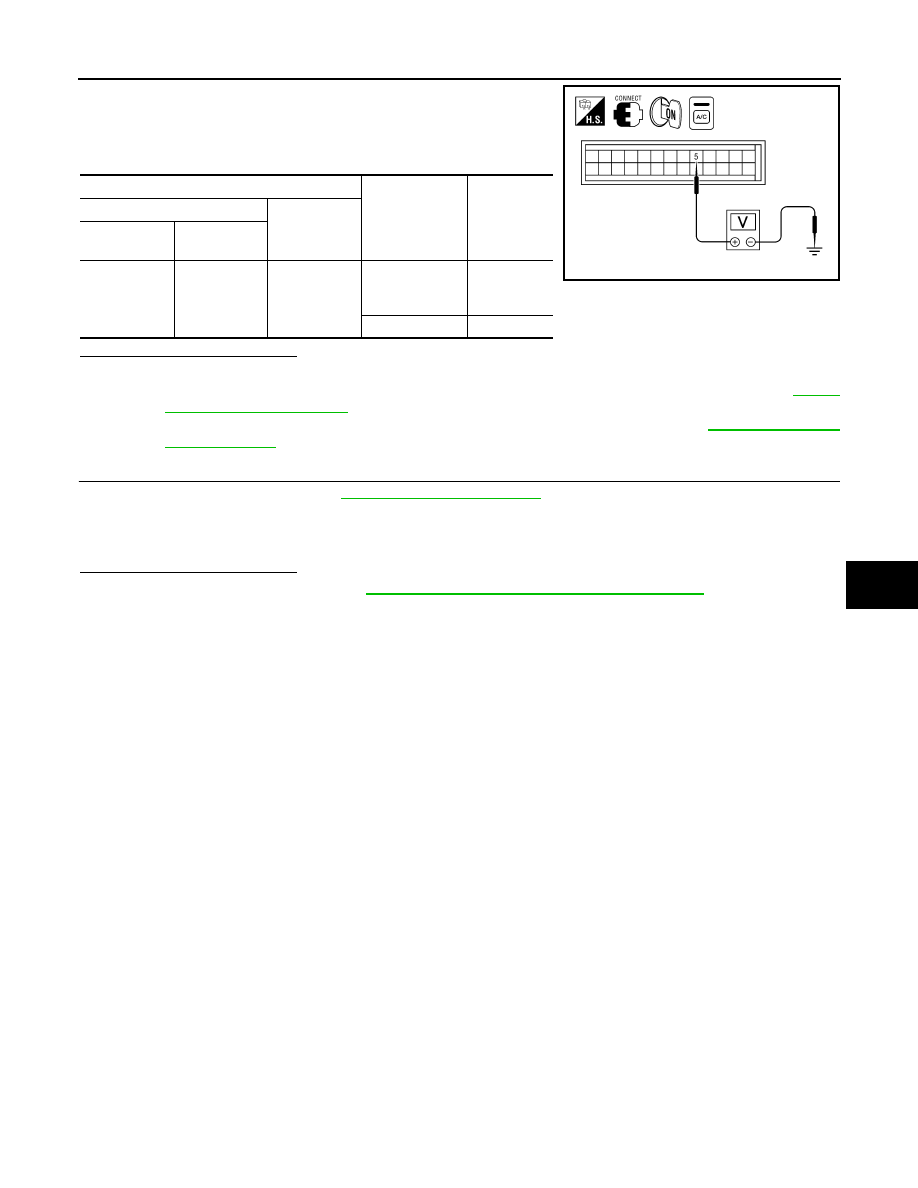

1. Reconnect BCM connector and front air control connector.

2. Turn ignition switch ON.

3. Check voltage between front air control harness connector

M180 terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 12.

NO-1 >> If the voltage is approx. 5V when blower motor is ON, replace front air control. Refer to

VTL-8,

"Removal and Installation"

.

NO-2 >> If the voltage is approx. 0V when blower motor is OFF, replace BCM. Refer to

BCS-52, "Removal

and Installation"

.

12.

CHECK CAN COMMUNICATION

Check CAN communication. Refer to

LAN-4, "System Description"

.

• BCM  –  ECM

• ECM – IPDM E/R

• ECM – Front air control
Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace malfunctioning part(s).

Terminals

Condition

Voltage

(+)

(-)

front air con-

trol connector

Terminal No.

M180

5

Ground

A/C switch: ON
Blower motor
operates

Approx. 0V

A/C switch: OFF

Approx. 5V

AWIIA0419ZZ

HAC-142

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

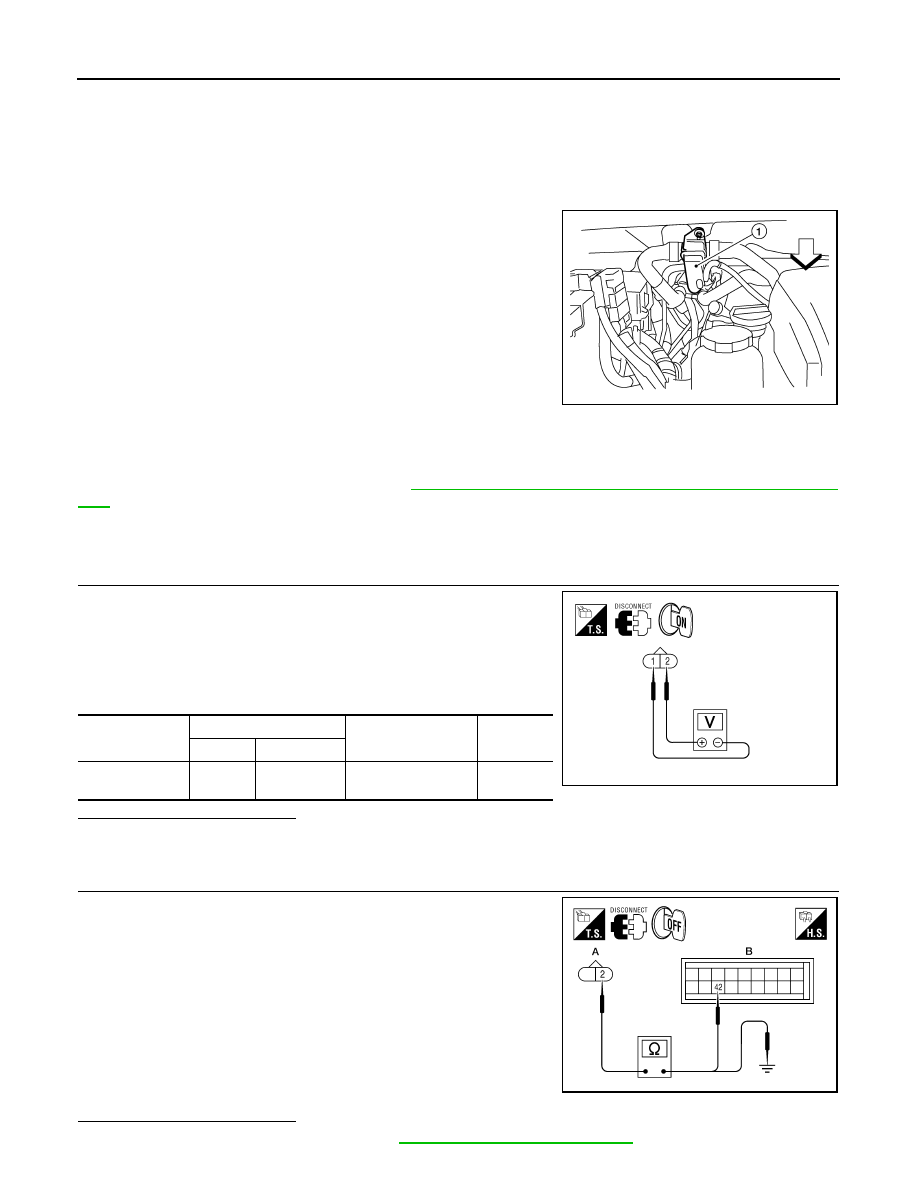

WATER VALVE CIRCUIT

WATER VALVE CIRCUIT

Description

INFOID:0000000009882535

COMPONENT DESCRIPTION

Water Valve

The water valve (1) cuts the flow of engine coolant to the heater core

to allow for maximum cooling during A/C operation. It is controlled by

the front air control.

Water Valve Diagnosis Procedure

INFOID:0000000009882536

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

DIAGNOSTIC PROCEDURE FOR WATER VALVE

1.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Disconnect water valve connector F68.

2. Turn ignition switch ON.

3. Rotate temperature control dial to maximum heat.

4. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial to

maximum cold.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect front air control connector M181.

3. Check continuity between water valve harness connector F68

(A) terminal 2 and front air control harness connector M181 (B)

terminal 42.

4. Check continuity between water valve harness connector F68

(A) terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace front air control. Refer to

VTL-8, "Removal and Installation"

.

WJIA1791E

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

1

Rotate temperature

control dial

Battery
voltage

WJIA1794E

2 - 42

: Continuity should exist.

2 - Ground

: Continuity should not exist.

AWIIA0420ZZ

WATER VALVE CIRCUIT

HAC-143

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

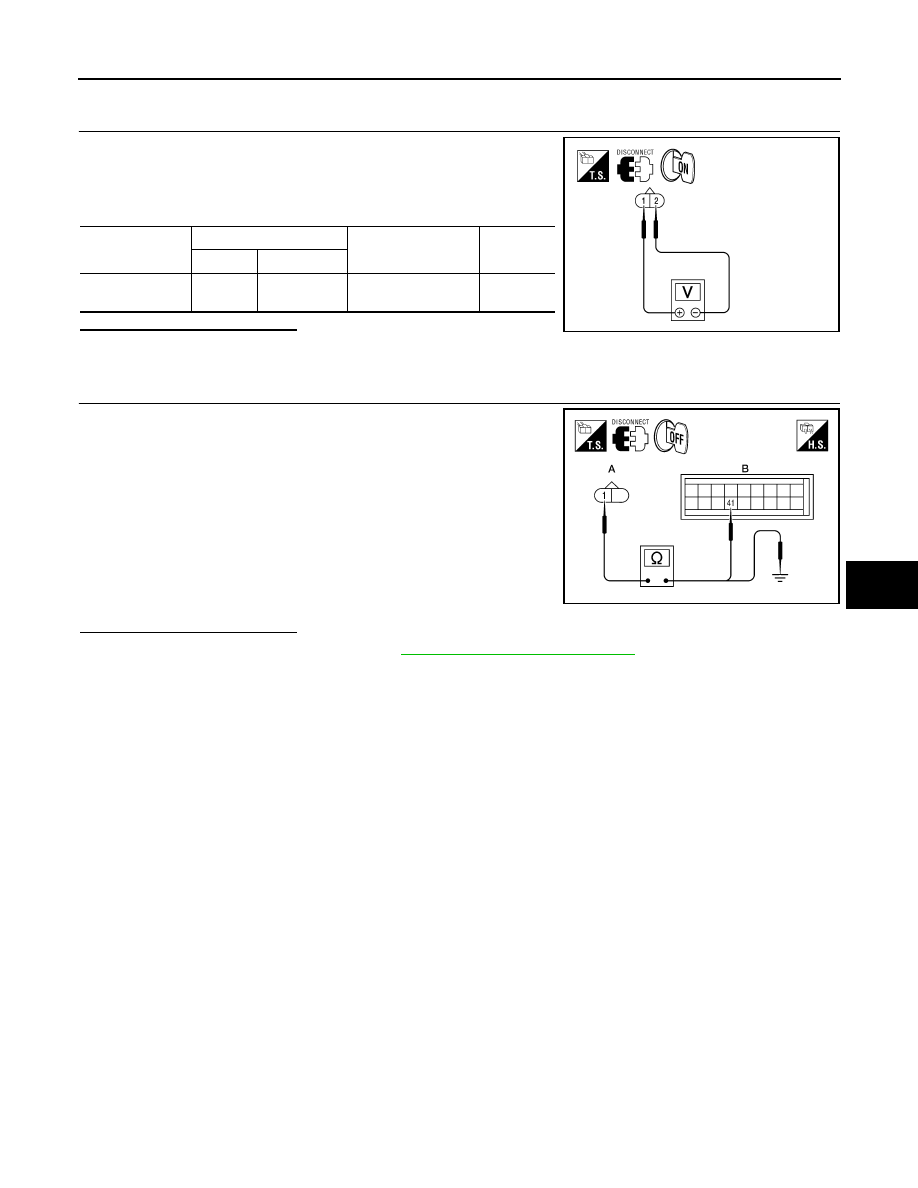

NO

>> Repair harness or connector.

3.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Rotate temperature control dial to maximum cold.

2. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial to

maximum heat.

Is the inspection result normal?

YES

>>  Replace the water valve.

NO

>> GO TO 4.

4.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect front air control connector M181.

3. Check continuity between water valve harness connector F68

(A) terminal 1 and front air control harness connector M181 (B)

terminal 41.

4. Check continuity between water valve harness connector F68

(A) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace front air control. Refer to

VTL-8, "Removal and Installation"

.

NO

>> Repair harness or connector.

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

2

Rotate temperature

control dial

Battery
voltage

WJIA1792E

1 - 41

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0421ZZ

HAC-144

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

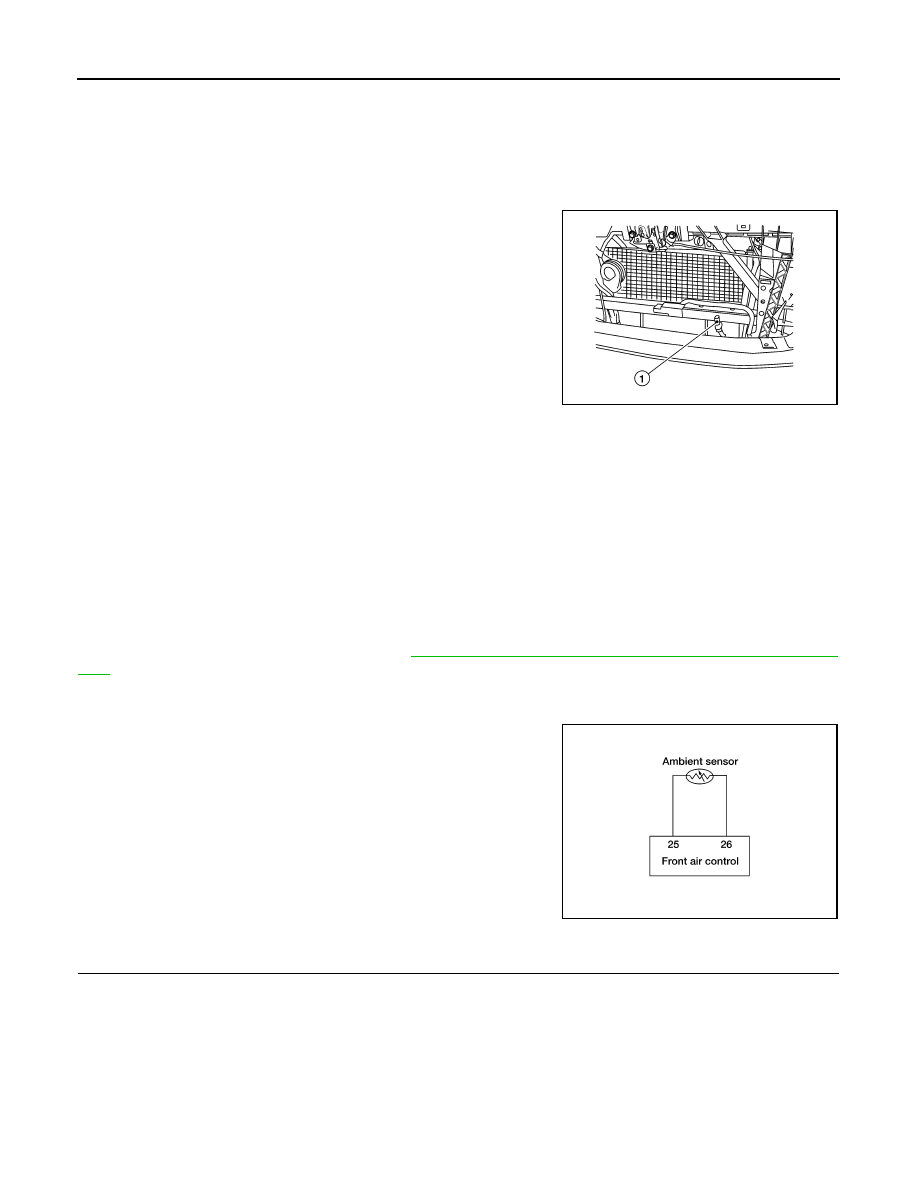

AMBIENT SENSOR

AMBIENT SENSOR

Component Description

INFOID:0000000009882537

COMPONENT DESCRIPTION

Ambient Sensor

The ambient sensor (1) is attached on the radiator core support (left

side). It detects ambient temperature and converts it into a value

which is then input into the front air control.

AMBIENT TEMPERATURE INPUT PROCESS

The front air control includes a processing circuit for the ambient sensor input. However, when the tempera-

ture detected by the ambient sensor increases quickly, the processing circuit retards the front air control func-

tion. It only allows the front air control to recognize an ambient temperature increase of 0.33

°C (0.6°F) per 100

seconds.

This prevents constant adjustments due to momentary conditions, such as stopping after high speed driving.

Although the actual ambient temperature has not changed, the temperature detected by the ambient sensor

will increase. This is because the heat from the engine compartment can radiate to the front grille area, loca-

tion of the ambient sensor.

Ambient Sensor Diagnosis Procedure

INFOID:0000000009882538

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR

SYMPTOM: Ambient sensor circuit is open or shorted.

1.

CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND

AWIIA1074ZZ

AWIIA0422GB
