Nissan Titan. Manual - part 308





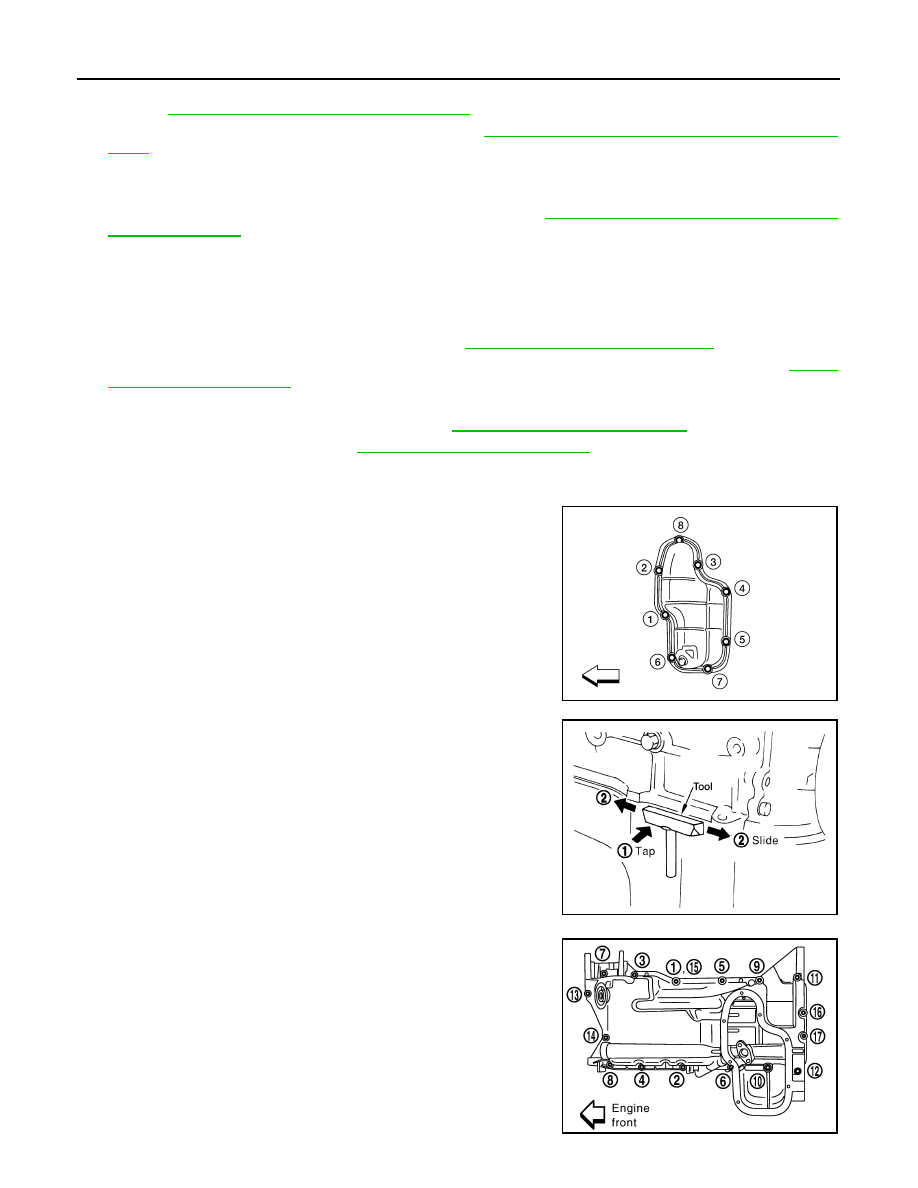

EM-36

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

8. Remove the power steering pump without disconnecting the power steering hoses and position aside.

Refer to

ST-10, "On-Vehicle Inspection and Service"

.

9. Remove air duct and resonator assembly. Refer to

EM-16, "Removal and Installation (Viscous paper

type)"

.

10. Remove upper radiator hose.
11. Disconnect coolant reservoir hose from radiator.
12. Remove engine cooling fan (crankshaft driven type). Refer to

CO-18, "Removal and Installation (Crank-

shaft Driven Type)"

.

13. Disconnect the following connectors.

• Harness ground

• Power steering switch

• A/C compressor

• Oil pressure switch

14. Remove generator and generator bracket. Refer to

CHG-28, "Removal and Installation"

.

15. Remove A/C compressor without disconnecting the A/C pipes and position aside. Refer to

HA-31,

"Removal and Installation"

.

16. Remove front frame crossmember using power tool.
17. Remove the front final drive (4WD only). Refer to

FAX-8, "Removal and Installation"

.

18. Remove the steering gear. Refer to

ST-15, "Removal and Installation"

.

19. Remove the oil pressure switch.
20. Remove the oil pan (lower). Using the following steps.
a. Remove the oil pan (lower) bolts in the reverse order as shown

using power tool.

b. Insert Tool between the oil pan (lower) and the oil pan (upper).

CAUTION:

• Be careful not to damage the mating surface.

• Do not insert a screwdriver, this will damage the mating

surfaces.

c.

Tap (1) Tool to insert it then slide (2) Tool by tapping its side with

a hammer to remove the oil pan (lower) from the oil pan (upper).

21. Remove the oil strainer from the oil pan (upper).
22. Remove the oil pan (upper) using the following steps.
a. Remove the oil pan (upper) bolts in the reverse order as shown.

AWBIA0832ZZ

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC2553E

OIL PAN AND OIL STRAINER

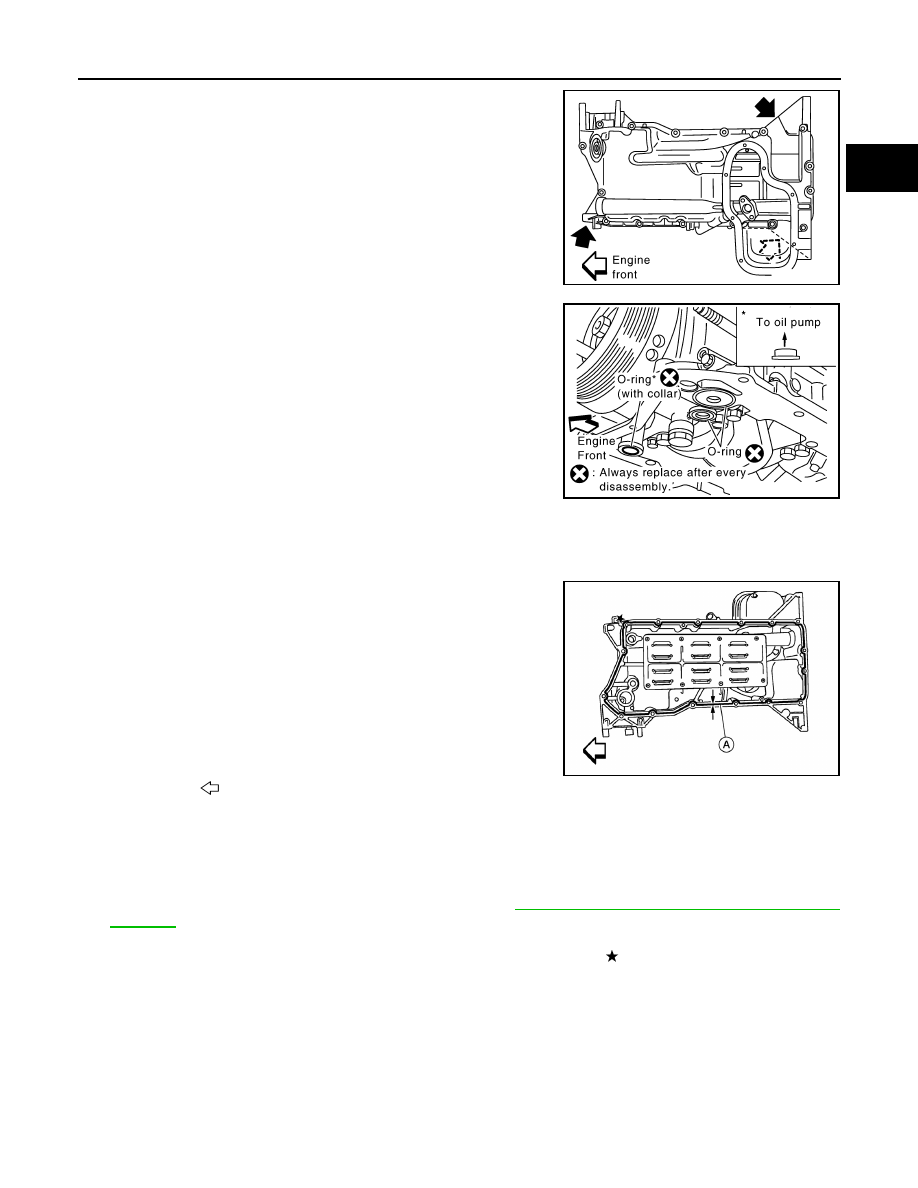

EM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b. Remove the oil pan (upper) from the cylinder block by prying it at

the points shown, using suitable tool.

CAUTION:

Do not damage mating surface.

23. Remove the O-rings from the oil pump and front cover.

CAUTION:

Do not reuse O-rings.

INSPECTION AFTER REMOVAL

Clean the oil strainer.

INSTALLATION

1. Install the oil pan (upper) using the following steps.
a. Using a scraper to remove old liquid gasket from mating sur-

faces.

• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off old liquid gasket.

b. Apply a continuous bead of liquid gasket as shown using Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and

Sealants"

.

CAUTION:

• Apply liquid gasket to outside of bolt hole for the hole shown by  .

Installation should be done within 5 minutes after applying liquid gasket.

KBIA2468E

KBIA2469E

: Engine front

Tool number

: WS39930000 ( — )

Bead diameter (A) : 4.0 - 5.0 mm (0.157 - 0.197 in)

AWBIA1075GB

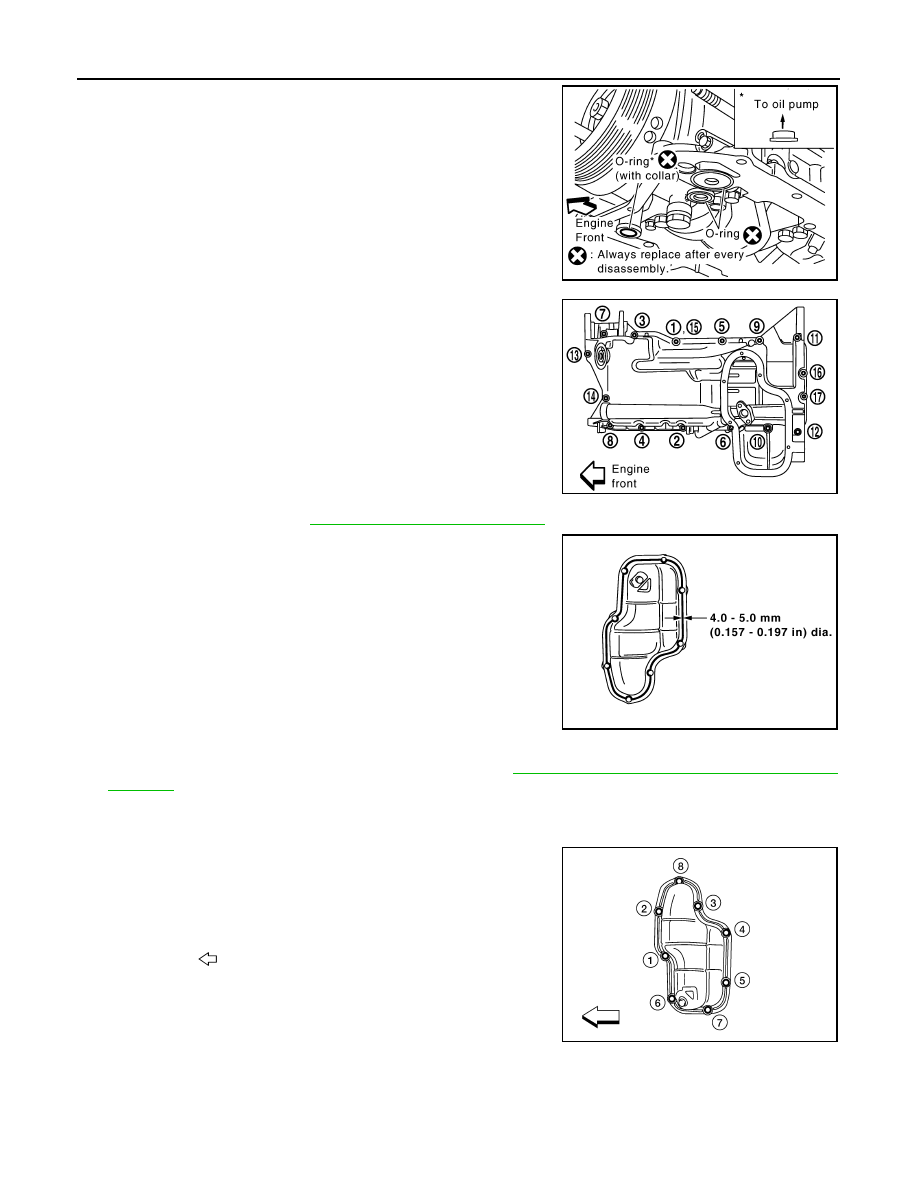

EM-38

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

c.

Install new O-rings to the oil pump and front cover side.

CAUTION:

Do not reuse O-rings.

d. Tighten the bolts to the specified torque in numerical order as

shown.

2. Install the oil strainer to the oil pan (upper).

3. Install the oil cooler. Refer to

LU-12, "Removal and Installation"

.

4. Install the oil pan (lower).
a. Using a scraper to remove old liquid gasket from mating sur-

faces.

• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from bolt holes and thread.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off old liquid gasket.

b. Apply a continuous bead of liquid gasket using Tool as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Installation should be done within 5 minutes after applying liquid gasket.

c.

Tighten the oil pan (lower) bolts to the specified torque in numer-

ical order as shown.

CAUTION:

Do not fill the engine with oil for at least 30 minutes after oil

pan is installed to allow the sealant to cure.

5. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

KBIA2469E

M6

× 30 mm (1.18 in)

: No. 16, 17

M8

× 25 mm (0.98in)

: No. 1(15), 3, 5, 7, 9, 13

M8

× 45 mm (1.77 in)

: No. 2, 4, 6, 8, 10, 14

M8

× 123 mm (4.84in) : No. 11, 12

PBIC2553E

Tool number

: WS39930000 ( — )

KBIA2471E

: Engine front

AWBIA0832ZZ

OIL PAN AND OIL STRAINER

EM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

 (United

States and Canada) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

Leakage
