INTAKE VALVE TIMING CONTROL

EC-493

< REMOVAL AND INSTALLATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

REMOVAL AND INSTALLATION

INTAKE VALVE TIMING CONTROL

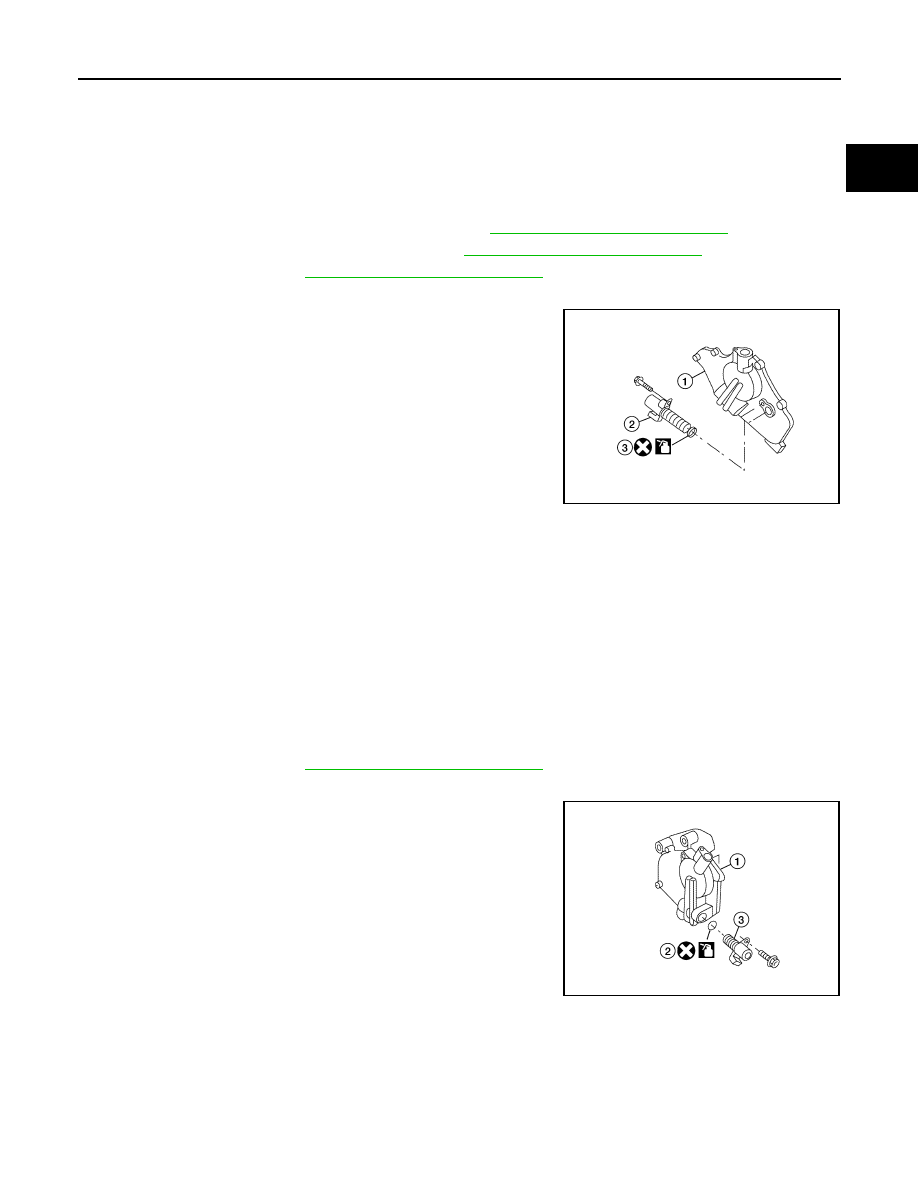

Intake Valve Timing Control Solenoid Valve (LH)

INFOID:0000000009886936

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-25, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

3. Remove drive belt. Refer to

EM-14, "Removal and Installation"

.

4. Disconnect Intake valve timing control intake valve timing control solenoid valve connector (LH).
5. Remove Intake valve timing control solenoid valve (LH) (2) from

Intake valve timing control solenoid valve cover (LH) (1).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring of the Intake valve timing control solenoid valve with a new one, then lubricate O-

ring with engine oil before installing.

Do not reuse O-ring.

Intake Valve Timing Control Solenoid Valve (RH)

INFOID:0000000009886937

REMOVAL

1. Remove drive belt. Refer to

EM-14, "Removal and Installation"

.

2. Disconnect Intake valve timing control solenoid valve connector (RH).
3. Remove Intake valve timing control solenoid valve (RH) (3) from

Intake valve timing control solenoid valve cover (RH) (1).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring of the Intake valve timing control solenoid valve with a new one, then lubricate O-

ring with engine oil before installing.

Do not reuse O-ring.

AWBIA0145ZZ

Intake valve timing control sole-
noid valve bolt

: 9.0 N·m (0.92 kg-m, 80 in-lb)

AWBIA0144ZZ

EC-494

< REMOVAL AND INSTALLATION >

[VK56DE]

INTAKE VALVE TIMING CONTROL

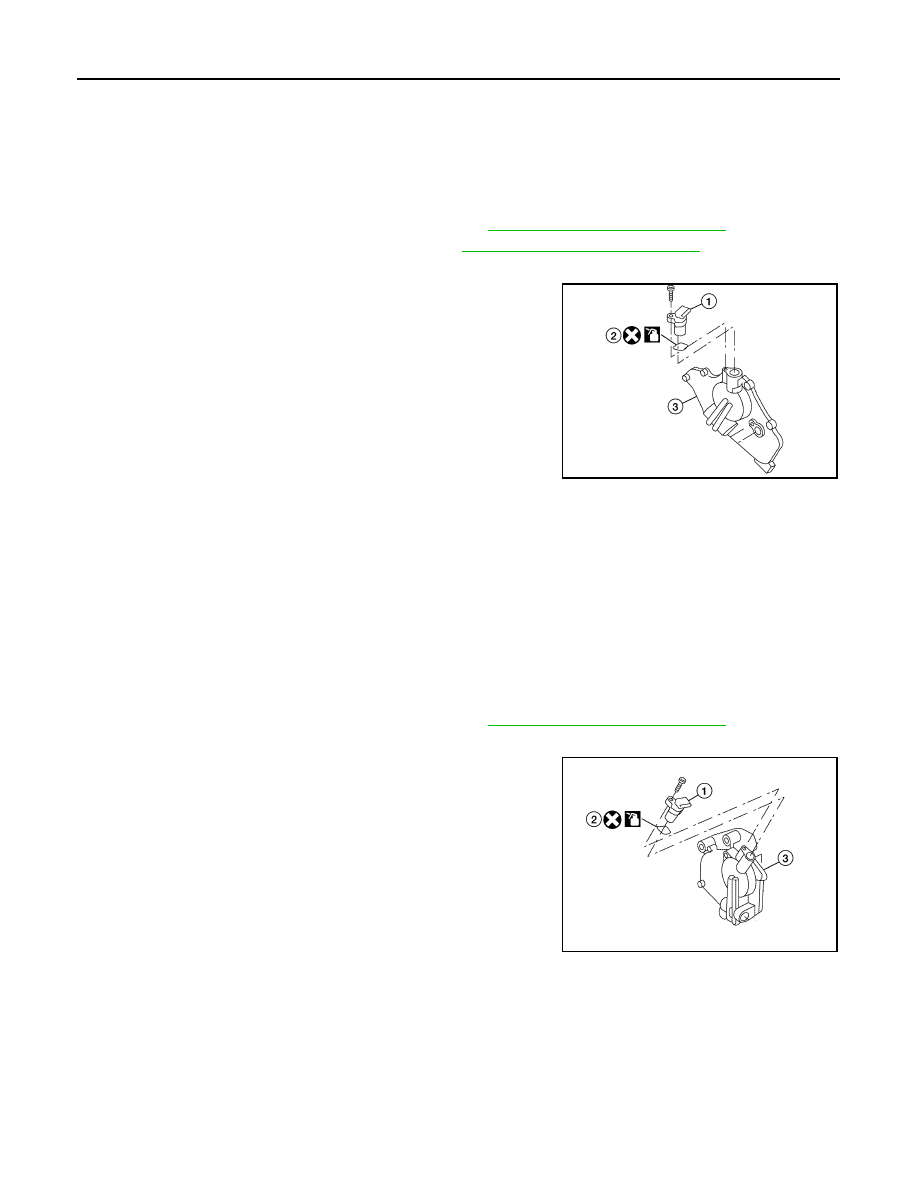

Intake Valve Timing Control Position Sensor (LH)

INFOID:0000000009886938

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-25, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

3. Disconnect intake valve timing control position sensor connector (LH).
4. Remove intake valve timing control position sensor (LH) (1) from

Intake valve timing control solenoid valve cover (LH) (3).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring of the intake valve timing control position sensor with a new one, then lubricate O-

ring with engine oil before installing.

Do not reuse O-ring.

Intake Valve Timing Control Position Sensor (RH)

INFOID:0000000009886939

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-25, "Removal and Installation"

.

2. Disconnect intake valve timing control position sensor connector (RH).
3. Remove intake valve timing control position sensor (RH) (1)

from Intake valve timing control solenoid valve cover (RH) (3).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring of the intake valve timing control position sensor with a new one, then lubricate O-

ring with engine oil before installing.

Do not reuse O-ring.

Intake valve timing control sole-
noid valve bolt

: 9.0 N·m (0.92 kg-m, 80 in-lb)

AWBIA0141ZZ

Intake valve timing control position sensor bolt

: 9.0 N·m (0.92 kg-m, 80 in-lb)

AWBIA0143ZZ

Intake valve timing control position sensor bolt

: 9.0 N·m (0.92 kg-m, 80 in-lb)

INTAKE VALVE TIMING CONTROL

EC-495

< REMOVAL AND INSTALLATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Camshaft Position Sensor (PHASE)

INFOID:0000000009886940

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-25, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

3. Disconnect camshaft position sensor connector.
4. Remove camshaft position sensor (2) from Intake valve timing

control solenoid valve cover (LH) (1).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring of the camshaft position sensor with a new one, then lubricate O-ring with engine

oil before installing.

Do not reuse O-ring.

AWBIA0142ZZ

Camshaft position sensor bolt

: 9.0 N·m (0.92 kg-m, 80 in-lb)

EC-496

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Pressure

INFOID:0000000009886941

Idle Speed and Ignition Timing

INFOID:0000000009886942

*: Under the following conditions:
• Air conditioner switch: OFF
• Electric load: OFF (Lights and heater fan)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000009886943

Mass Air Flow Sensor

INFOID:0000000009886944

*: Engine is warmed up to normal operating temperature and running under no load.

Intake Air Temperature Sensor

INFOID:0000000009886945

Engine Coolant Temperature Sensor

INFOID:0000000009886946

A/F Sensor 1 Heater

INFOID:0000000009886947

Fuel pressure at idling kPa (kg/cm

2

, psi)

Approximately 350 (3.57, 51)

Target idle speed

No-load* (in P or N position)

650

±50 rpm

Air conditioner: ON

In P or N position

700 rpm or more

Ignition timing

In P or N position

15

° ± 5° BTDC

Condition

Calculated load value % (Using CONSULT or GST)

At idle

14.0 - 33.0

At 2,500 rpm

12.0 - 25.0

Supply voltage

Battery voltage (11 - 14V)

Output voltage at idle

0.9 - 1.3V*

Mass air flow (Using CONSULT or GST)

3.0 - 9.0 g/s at idle*

9.0 - 28.0 g/s at 2,500 rpm*

Temperature

°C (°F)

Resistance k

Ω

25 (77)

1.800 - 2.200

Temperature

°C (°F)

Resistance k

Ω

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°C (77°F)]

1.80 - 2.44

Ω
