P0442 EVAP CONTROL SYSTEM

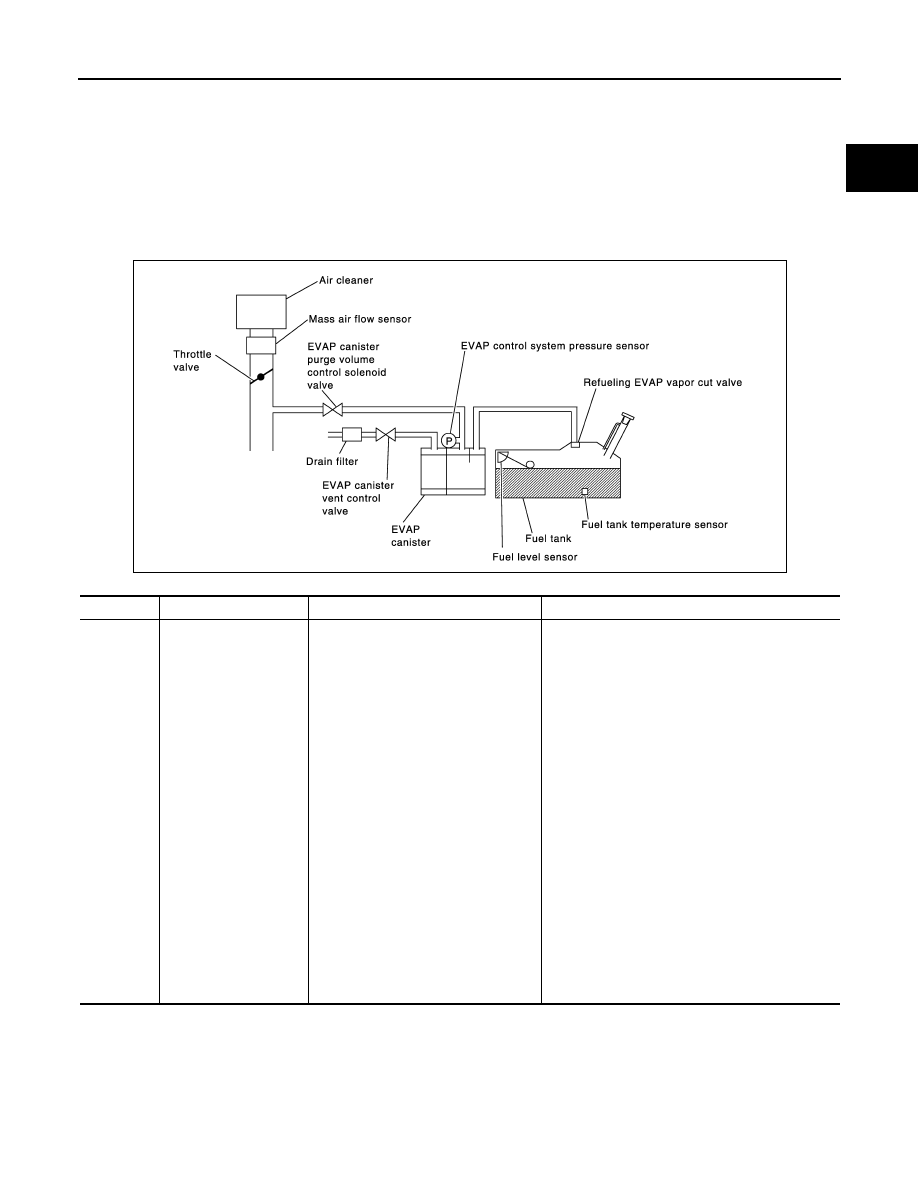

On Board Diagnosis Logic

INFOID:0000000009886698

This diagnosis detects leaks in the EVAP purge line using engine intake manifold vacuum.

If pressure does not increase, the ECM will check for leaks in the line between the fuel tank and EVAP canister

purge volume control solenoid valve, under the following “Vacuum test” conditions.

The EVAP canister vent control valve is closed to shut the EVAP purge line off. The EVAP canister purge vol-

ume control solenoid valve will then be opened to depressurize the EVAP purge line using intake manifold

vacuum. After this occurs, the EVAP canister purge volume control solenoid valve will be closed.

CAUTION:

• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

MIL may come on.

• If the fuel filler cap is not tightened properly, the MIL may come on.

• Use only a genuine NISSAN rubber tube as a replacement.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0442
0442

EVAP control system
small leak detected
(negative pressure)

EVAP control system has a leak, EVAP
control system does not operate prop-
erly.

• Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Fuel filler cap remains open or fails to close.
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP

canister purge volume control solenoid valve.

• Foreign matter caught in EVAP canister vent con-

trol valve.

• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• EVAP canister purge volume control solenoid

valve and the circuit

• Fuel tank temperature sensor
• Drain filter
• O-ring of EVAP canister vent control valve is

missing or damaged

• EVAP canister is saturated with water
• EVAP control system pressure sensor
• Fuel level sensor and the circuit
• Refueling EVAP vapor cut valve
• ORVR system leaks

PBIB3640E

EC-290

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0442 EVAP CONTROL SYSTEM

DTC Confirmation Procedure

INFOID:0000000009886699

NOTE:

• If DTC Confirmation Procedure has been previously conducted, always perform the following before con-

ducting the next step.

1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:

• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed

on flat level surface.

• Always perform test at a temperature of 0 to 30

°C (32 to 86°F).

 WITH CONSULT

1. Turn ignition switch ON.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT.

4. Make sure that the following conditions are met.

COOLAN TEMP/S: 0 - 70

°C (32 - 158°F)

INT/A TEMP SE: 0 - 30

°C (32 - 86°F)

5. Select “EVP V/S LEAK P0456/P1456” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode

with CONSULT.

Follow the instruction displayed.

NOTE:

If the engine speed cannot be maintained within the range displayed on the CONSULT screen, go to

EC-

117, "Basic Inspection"

.

6. Make sure that “OK” is displayed.

If “NG” is displayed, refer to

EC-290, "Diagnosis Procedure"

.

NOTE:

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve

properly.

 WITH GST

NOTE:

Be sure to read the explanation of

EC-75, "DTC Index"

 before driving vehicle.

1. Start engine.

2. Drive vehicle according to

EC-75, "DTC Index"

.

3. Stop vehicle.

4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

5. Select Service $07 with GST.

-

If P0442 is displayed on the screen, go to

EC-290, "Diagnosis Procedure"

.

-

If P0441 is displayed on the screen, go to

EC-285, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009886700

1.

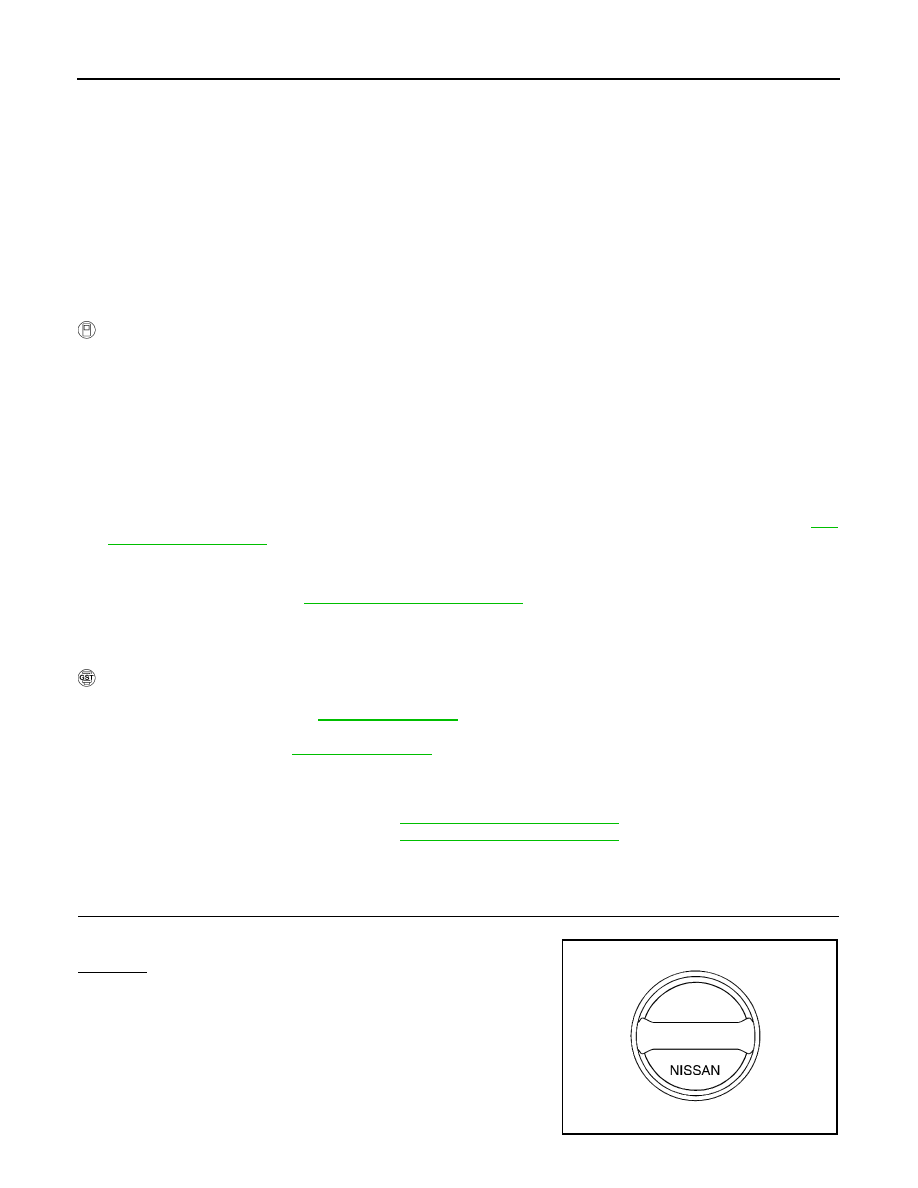

CHECK FUEL FILLER CAP DESIGN

1. Turn ignition switch OFF.

2. Check for genuine NISSAN fuel filler cap design.
OK or NG

OK

>> GO TO 2.

NG

>> Replace with genuine NISSAN fuel filler cap.

SEF915U

P0442 EVAP CONTROL SYSTEM

EC-291

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK FUEL FILLER CAP INSTALLATION

Check that the cap is tightened properly by rotating the cap clockwise.
OK or NG

OK

>> GO TO 3.

NG

>> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.

2. Retighten until ratcheting sound is heard.

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK FUEL TANK VACUUM RELIEF VALVE

Refer to

EC-295, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel filler cap with a genuine one.

5.

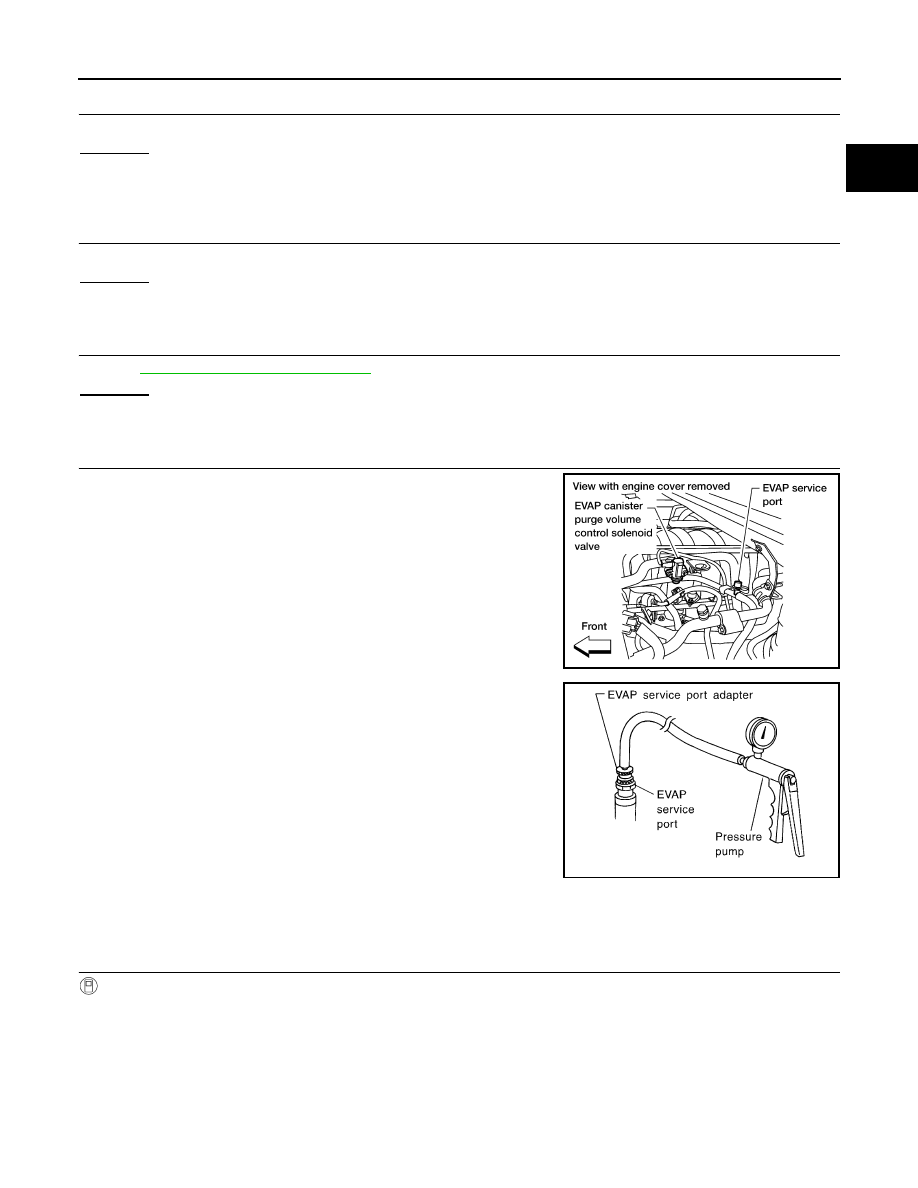

INSTALL THE PRESSURE PUMP

To locate the EVAP leak, install EVAP service port adapter (commer-

cial service tool) and pressure pump to EVAP service port securely.

NOTE:

Improper installation of the EVAP service port adapter to the

EVAP service port may cause leaking.

With CONSULT>>GO TO 6.

Without CONSULT>>GO TO 7.

6.

CHECK FOR EVAP LEAK

 With CONSULT

1. Turn ignition switch ON.

2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT.

3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of

the bar graph.

CAUTION:

• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

BBIA0366E

SEF916U

EC-292

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0442 EVAP CONTROL SYSTEM

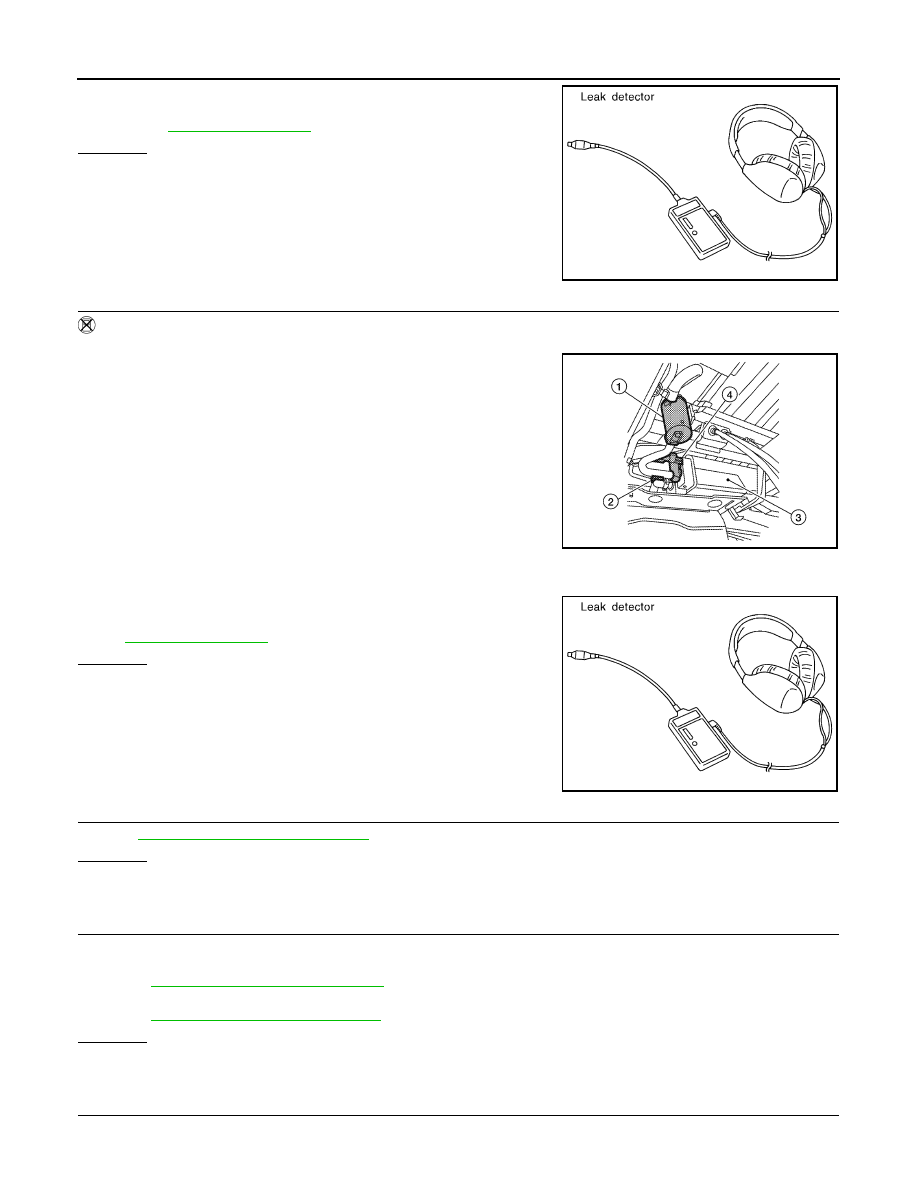

4. Using EVAP leak detector, locate the EVAP leak. For the leak

detector, refer to the instruction manual for more details.

Refer to

EC-31, "Description"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace.

7.

CHECK FOR EVAP LEAK

 Without CONSULT

1. Turn ignition switch OFF.

2. Apply 12 volts DC to EVAP canister vent control valve (4). The

valve will close. (Continue to apply 12 volts until the end of test.)

3. Pressurize the EVAP line using pressure pump with 1.3 to 2.7

kPa (10 to 20 mmHg, 0.39 to 0.79 inHg), then remove pump and

EVAP service port adapter.

CAUTION:

• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure

in the system.

4. Using EVAP leak detector, locate the EVAP leak. For the leak

detector, refer to the instruction manual for more details. Refer

to

EC-31, "Description"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace.

8.

CHECK DRAIN FILTER

Refer to

EC-295, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Replace drain filter.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the following.

• EVAP canister vent control valve is installed properly.

Refer to

FL-16, "Removal and Installation"

.

• EVAP canister vent control valve.

Refer to

EC-306, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace EVAP canister vent control valve and O-ring.

10.

CHECK IF EVAP CANISTER SATURATED WITH WATER

SEF200U

1

: Drain filter

2

: EVAP control system pressure sensor

3

:  EVAP  canister

ALBIA0401ZZ
