Nissan Titan. Manual - part 222

P0117, P0118 ECT SENSOR

EC-189

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

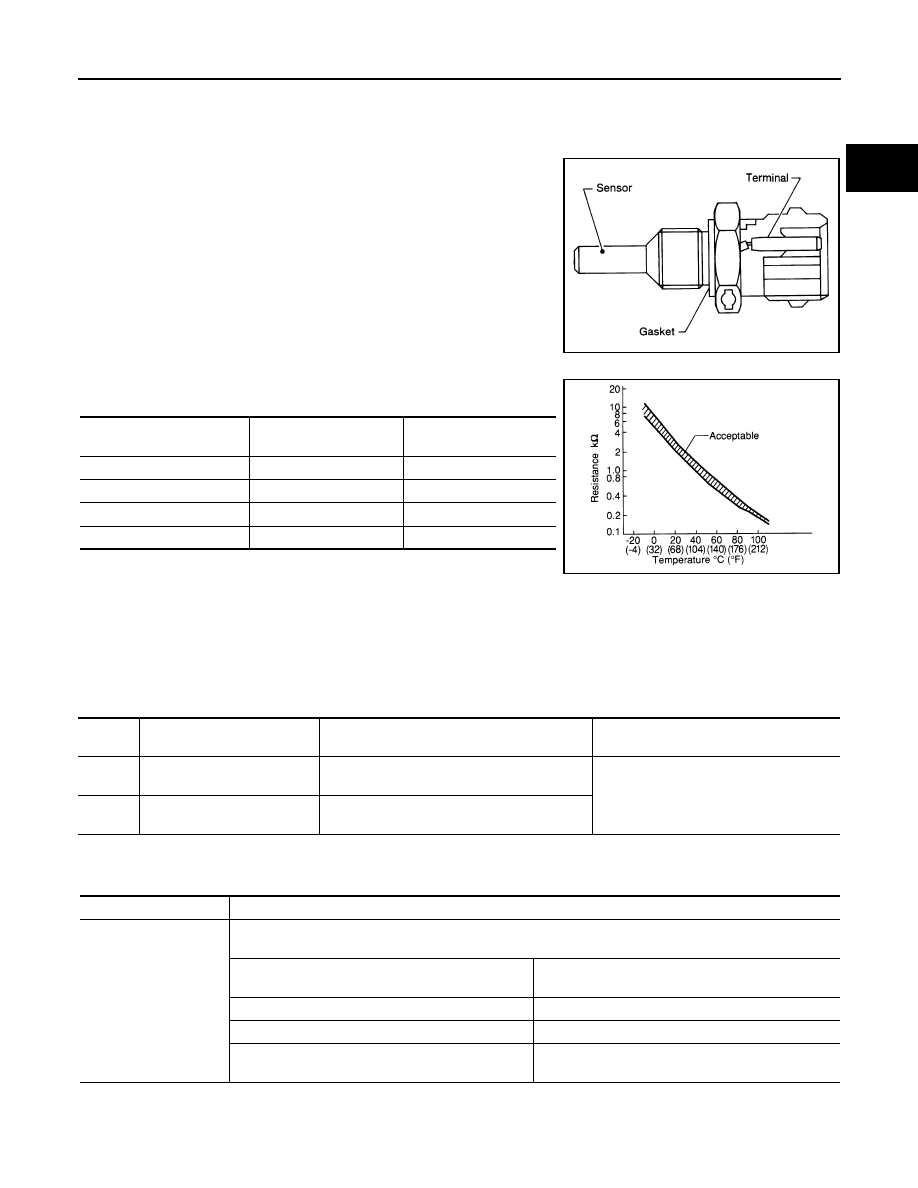

P0117, P0118 ECT SENSOR

Component Description

INFOID:0000000009886590

The engine coolant temperature sensor is used to detect the engine

coolant temperature. The sensor modifies a voltage signal from the

ECM. The modified signal returns to the ECM as the engine coolant

temperature input. The sensor uses a thermistor which is sensitive to

the change in temperature. The electrical resistance of the ther-

mistor decreases as temperature increases.

<Reference data>

*: This data is reference value and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-

age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

On Board Diagnosis Logic

INFOID:0000000009886591

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

SEF594K

Engine coolant temperature

°C (°F)]

Voltage* (V)

Resistance (k

Ω

–10 (14)

4.4

7.0 - 11.4

20 (68)

3.5

2.1 - 2.9

50 (122)

2.2

0.68 - 1.00

90 (194)

0.9

0.236 - 0.260

SEF012P

DTC

No.

Trouble Diagnosis Name

DTC Detecting Condition

Possible Cause

P0117
0117

Engine coolant temperature
sensor circuit low input

An excessively low voltage from the sensor is
sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Engine coolant temperature sensor

P0118
0118

Engine coolant temperature
sensor circuit high input

An excessively high voltage from the sensor is
sent to ECM.

Detected items

Engine operating condition in fail-safe mode

Engine coolant temper-

ature sensor circuit

Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT displays the engine coolant temperature decided by ECM.

Condition

Engine coolant temperature decided

(CONSULT display)

Just as ignition switch is turned ON or START

40

°C (104°F)

Approx. 4 minutes or more after engine starting

80

°C (176°F)

Except as shown above

40 - 80

°C (104 - 176°F)

(Depends on the time)

EC-190

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0117, P0118 ECT SENSOR

DTC Confirmation Procedure

INFOID:0000000009886592

1. If DTC Confirmation Procedure has been previously conducted, always perform the following before con-

ducting the next step.

a. Turn ignition switch OFF and wait at least 10 seconds.
b. Turn ignition switch ON.
c.

Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.
3. Wait at least 5 seconds.
4. Check DTC.
5. If DTC is detected, go to

EC-190, "Diagnosis Procedure"

.

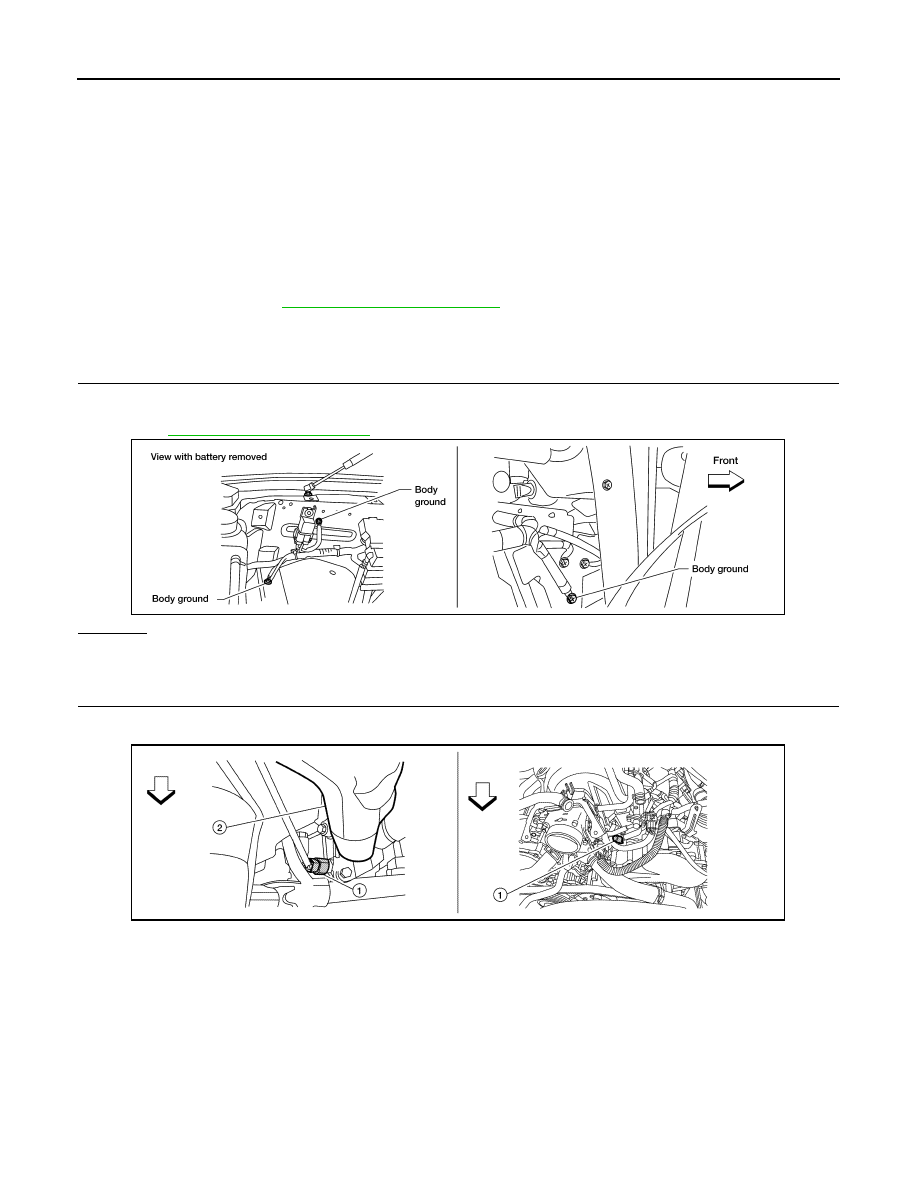

Diagnosis Procedure

INFOID:0000000009886593

1.

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.

2. Loosen and retighten three ground screws on the body.

Refer to

EC-154, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK ECT SENSOR POWER SUPPLY CIRCUIT

1. Disconnect engine coolant temperature (ECT) sensor (1) harness connector.

2. Turn ignition switch ON.

BBIA0354E

1.

Engine coolant temperature (ETC)
sensor

2.

Intake manifold

BBIA0775E

P0117, P0118 ECT SENSOR

EC-191

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

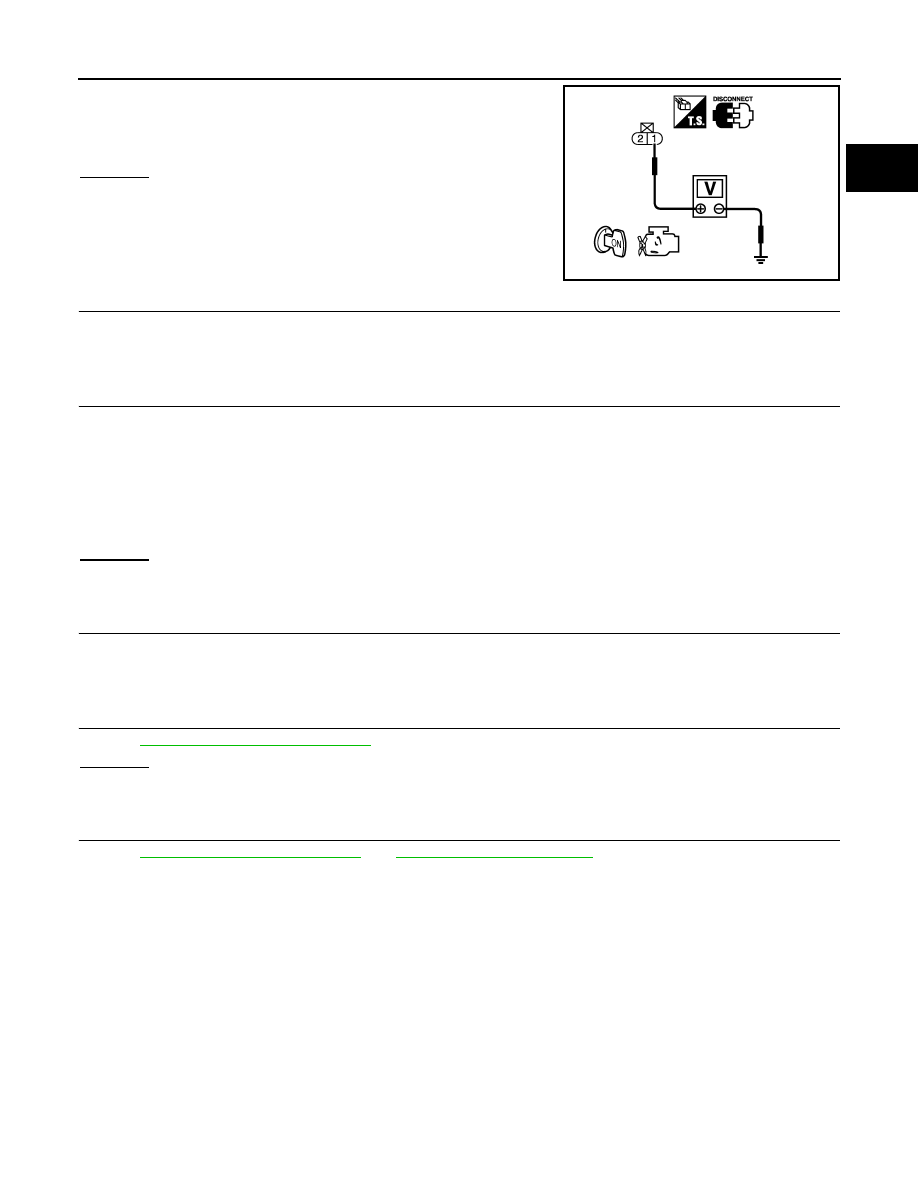

3. Check voltage between ECT sensor (1) terminal 1 and ground

with CONSULT or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING RART

Check the harness for open or short between ECM and engine coolant temperature sensor.

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECT sensor terminal 2 and ECM terminal 67.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

 OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the harness for open and short between ECT sensor and ECM.

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-191, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace engine coolant temperature sensor.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "How to Check Terminal"

 and

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009886594

ENGINE COOLANT TEMPERATURE SENSOR

Voltage: Approximately 5V

PBIB0080E

Continuity should exist.

EC-192

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0117, P0118 ECT SENSOR

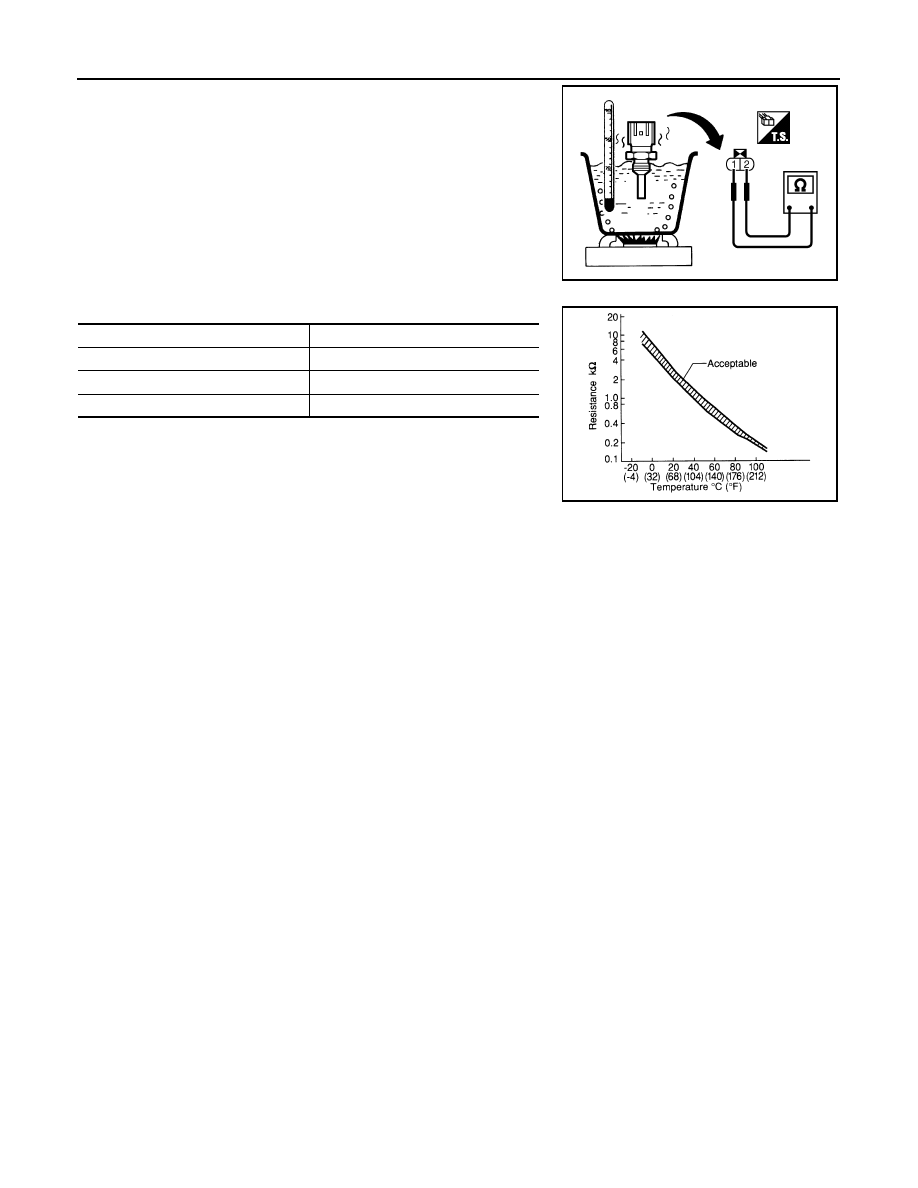

1. Check resistance between engine coolant temperature sensor

terminals 1 and 2 as shown in the figure.

2. If NG, replace engine coolant temperature sensor.

PBIB2005E

Engine coolant temperature

°C (°F)]

Resistance (k

Ω)

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

 0.236 - 0.260

SEF012P
