KEYLESS PANIC

PANIC button of key fob is not pressed

Off

PANIC button of key fob is pressed

On

KEYLESS UNLOCK

UNLOCK button of key fob is not pressed

Off

UNLOCK button of key fob is pressed

On

LIGHT SW 1ST

Lighting switch OFF

Off

Lighting switch 1st

On

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

Off

Ignition switch ON

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

VEHICLE SPEED

While driving

Equivalent to speedometer reading

WARNING LAMP

Low tire pressure warning lamp in combination meter OFF

Off

Low tire pressure warning lamp in combination meter ON

On

Monitor Item

Condition

Value/Status

DLK-66

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Terminal Layout

INFOID:0000000009878816

Physical Values

INFOID:0000000009878817

LIIA2443E

BCM (BODY CONTROL MODULE)

DLK-67

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

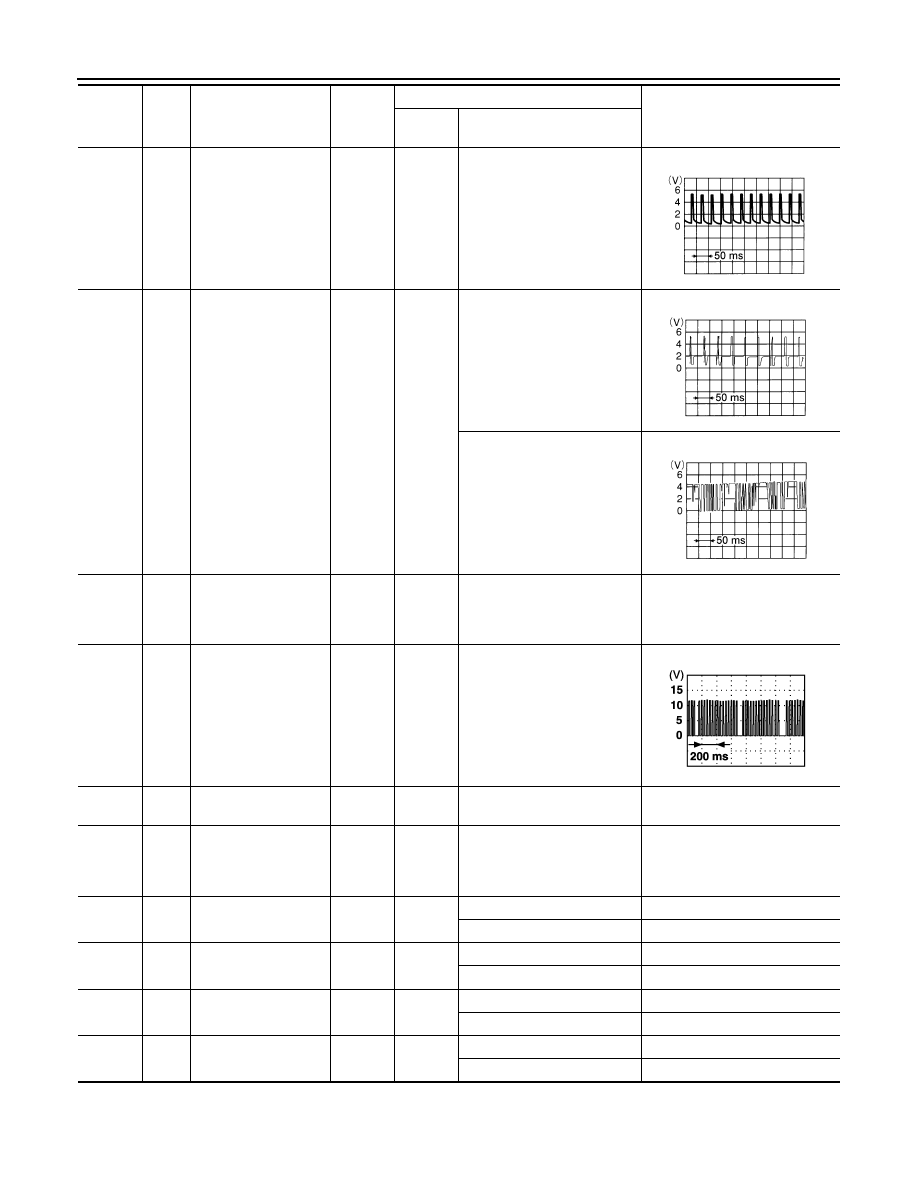

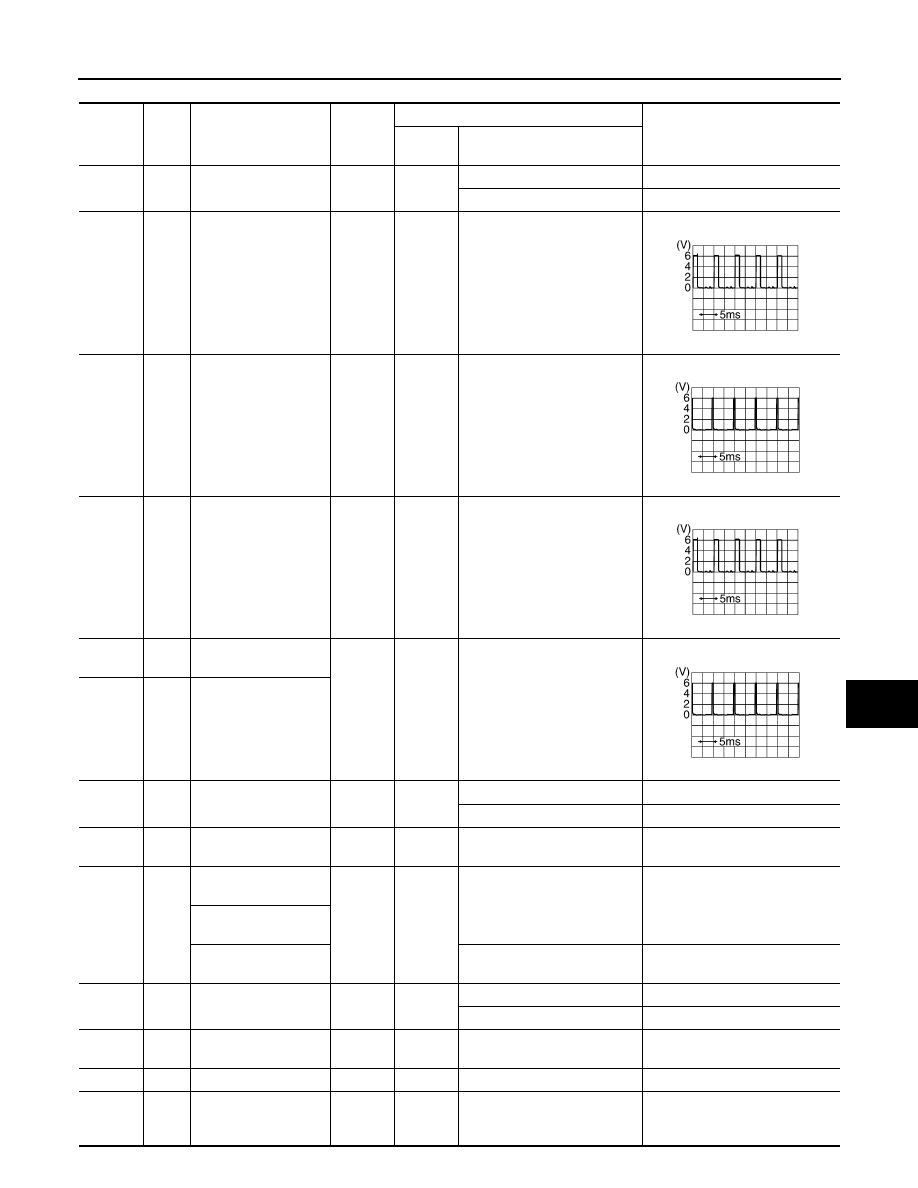

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

1

BR/W Key ring output

Output

OFF

ON (driver door open)

0V

OFF (driver door closed)

Battery voltage

2

SB

Combination switch in-
put 5

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

3

G/Y

Combination switch in-
put 4

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

4

Y

Combination switch in-
put 3

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

5

G/B

Combination switch in-
put 2

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

6

V

Combination switch in-
put 1

9

R/G

Brake switch

Input

ON

Brake pedal depressed

Battery voltage

Brake pedal released

0V

11

O

Ignition switch (ACC or
ON)

Input

ACC or

ON

Ignition switch ACC or ON

Battery voltage

12

R/L

Front door switch RH
(All)

Input

OFF

ON (open)

0V

Rear door switch lower
RH (King Cab)

Rear door switch up-
per RH (King Cab)

OFF (closed)

Battery voltage

13

GR

Rear door switch RH
(Crew Cab)

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

15

L/W

Tire pressure warning
check connector

Input

OFF

—

5V

16

SB

MR output

Output

—

—

—

18

P

Remote keyless entry
receiver and optical
sensor (ground)

Output

OFF

—

0V

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

DLK-68

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

19

V/W

Remote keyless entry
receiver (power sup-
ply)

Output

OFF

Ignition switch OFF

20

G/W

Remote keyless entry
receiver (signal)

Input

OFF

Stand-by (keyfob buttons re-
leased)

When remote keyless entry re-
ceiver receives signal from
keyfob (keyfob buttons
pressed)

21

G

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

22

G

BUS

—

—

Ignition switch ON or power
window timer operates

23

G/O

Security indicator lamp

Output

OFF

Goes OFF

→ illuminates (Ev-

ery 2.4 seconds)

Battery voltage

→ 0V

25

BR

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

27

W/R

Compressor ON signal

Input

ON

A/C switch OFF

5V

A/C switch ON

0V

28

L/R

Front blower monitor

Input

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

29

W/B

Hazard switch

Input

OFF

ON

0V

OFF

5V

31

P/L

Cargo lamp switch

Input

OFF

Cargo lamp switch ON

0

Cargo lamp switch OFF

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition
