Nissan Titan. Manual - part 60

BRM-62

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

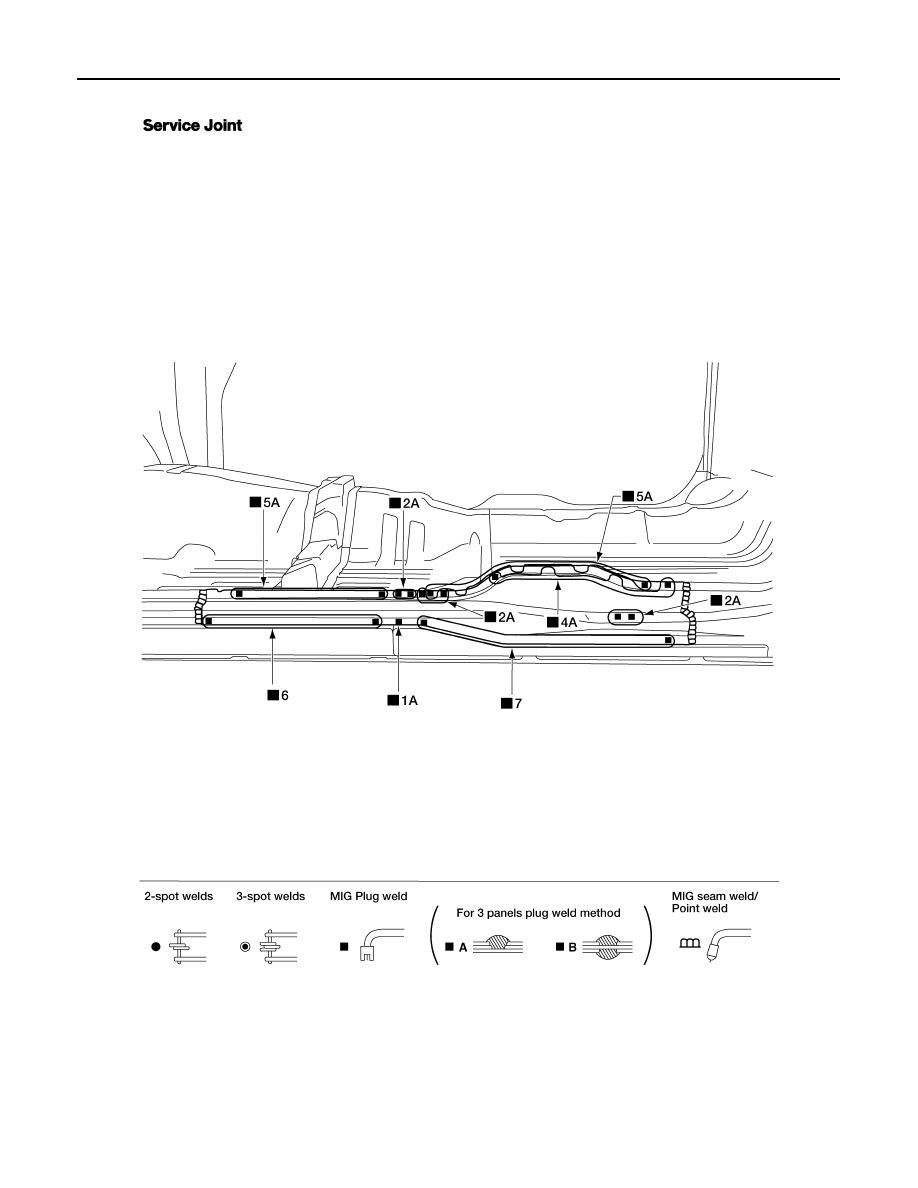

Center Sill Portion of Body Side Outer

Work with front pillar outer, rear pillar outer, and center sill portion of body side outer removed.

WIIA0344E

Change parts:

z

Center sill portion of body side outer

REPLACEMENT OPERATIONS

BRM-63

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Outer Sill Reinforcement

CREW CAB

ALKIA0535GB

Change parts:

z

Outer sill reinforcement

BRM-64

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

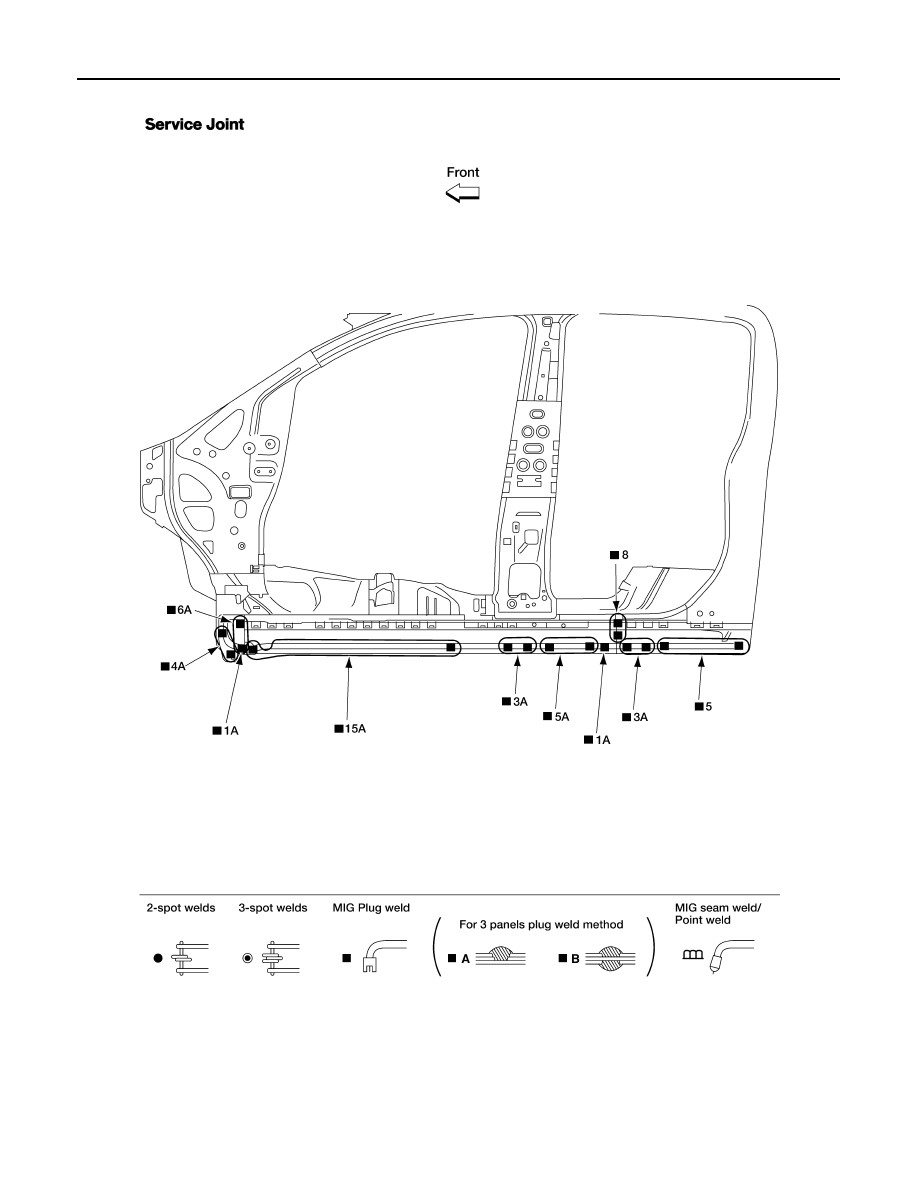

REAR CAB PILLAR

Work with rear panel removed.

KING CAB

Change parts:

z

Outer sill reinforcement

ALKIA0511GB

REPLACEMENT OPERATIONS

BRM-65

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

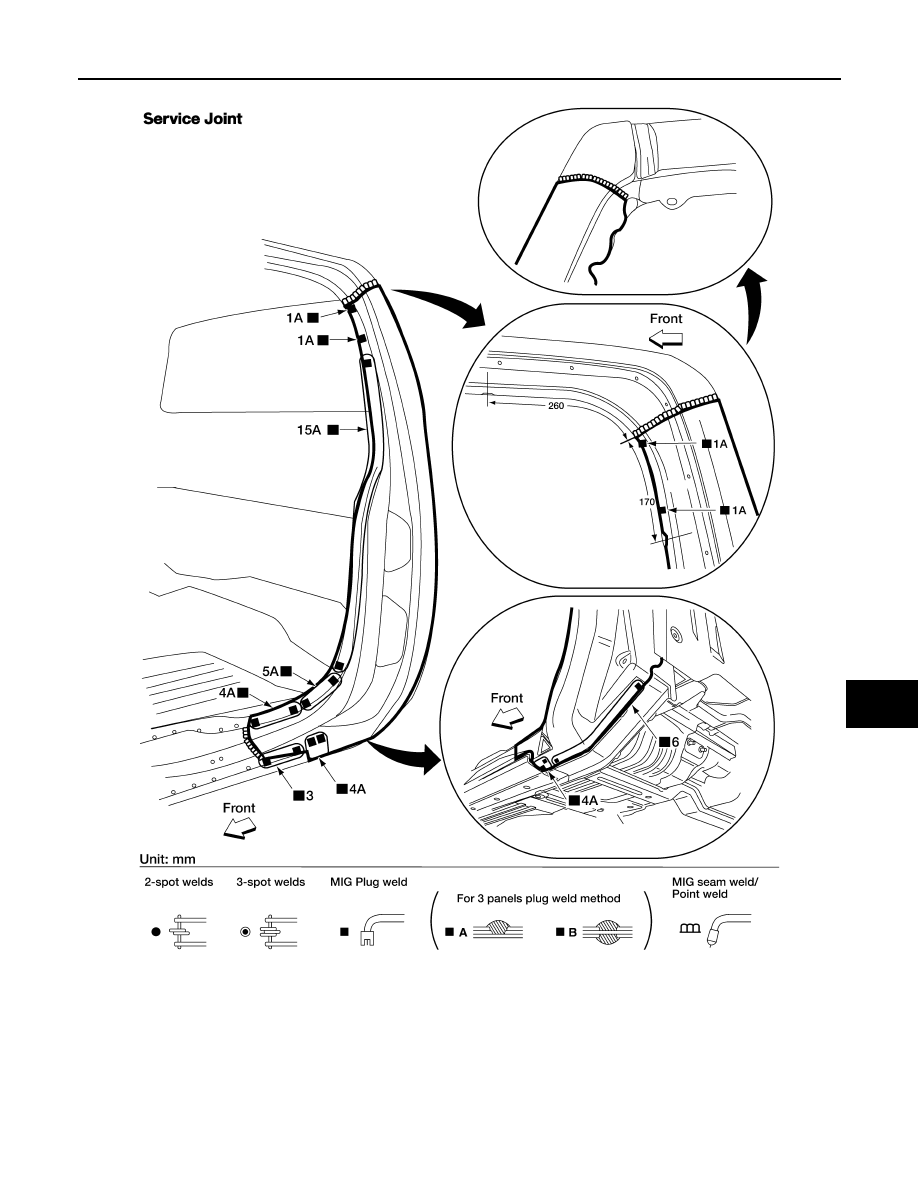

Rear Pillar Portion of Body Side Outer

ALKIA0519GB
