BODY ALIGNMENT

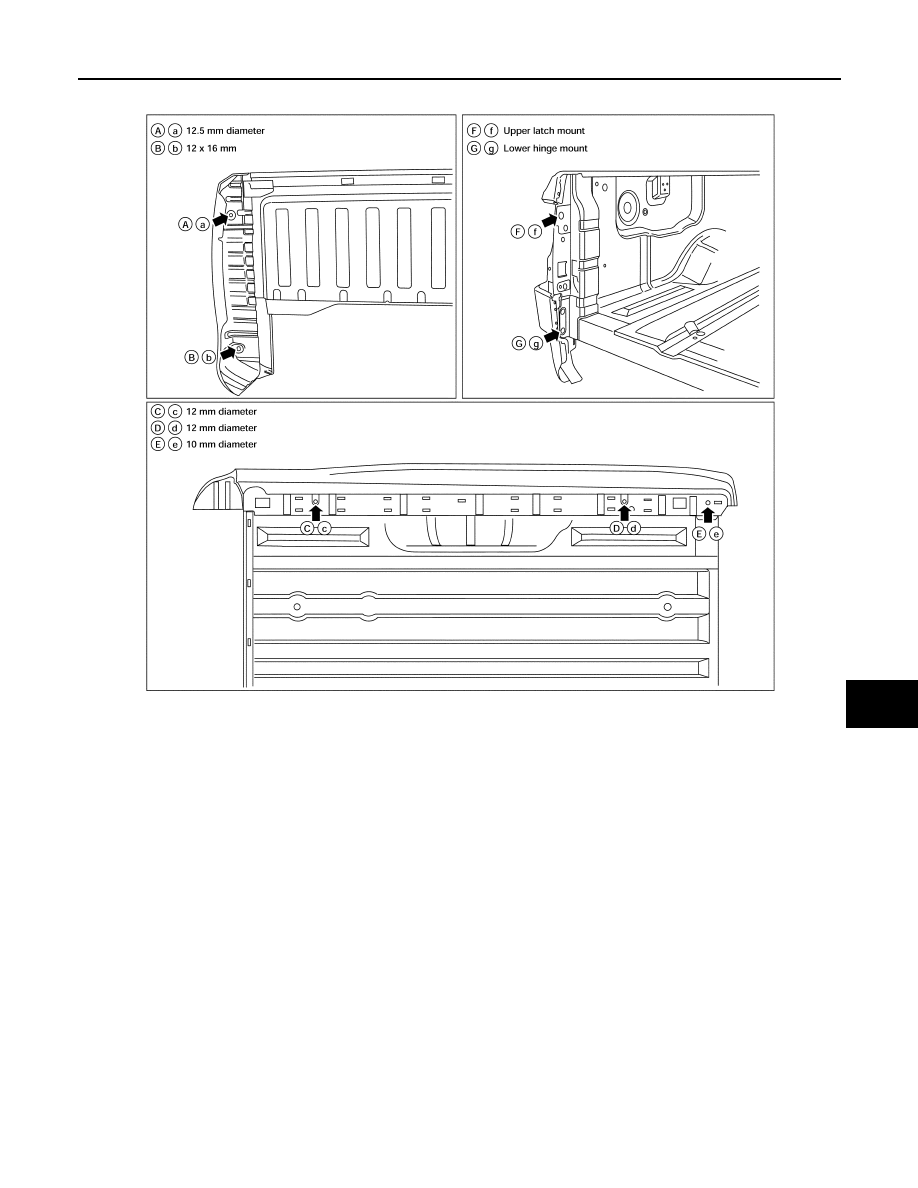

Long Bed Opening

ALKIA0501GB

BODY ALIGNMENT

BRM-51

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

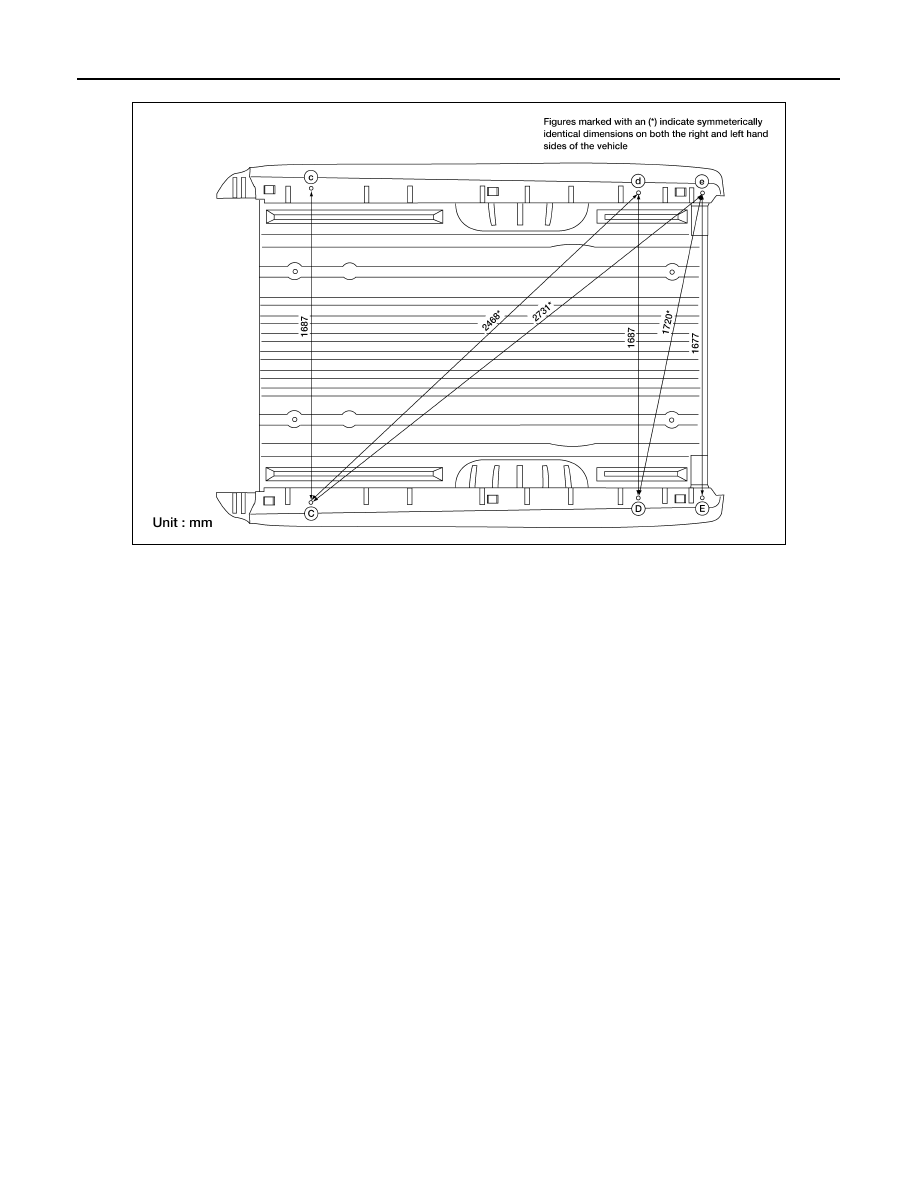

Measurement Points

LIIA1334E

BRM-52

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

REPLACEMENT OPERATIONS

Replacement Operation

INFOID:0000000009879120

DESCRIPTION

This section is prepared for technicians who have attained a high level of skill and experience in repairing col-

lision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body

repair techniques should not attempt to repair collision-damaged vehicles by using this section.

Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the orig-

inal functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains

additional information, including cautions and warnings, that are not including in this manual. Technicians

should refer to both manuals to ensure proper repairs.

Please note that this information is prepared for worldwide usage, and as such, certain procedures may not

apply in some regions or countries.

REPLACEMENT OPERATIONS

BRM-53

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

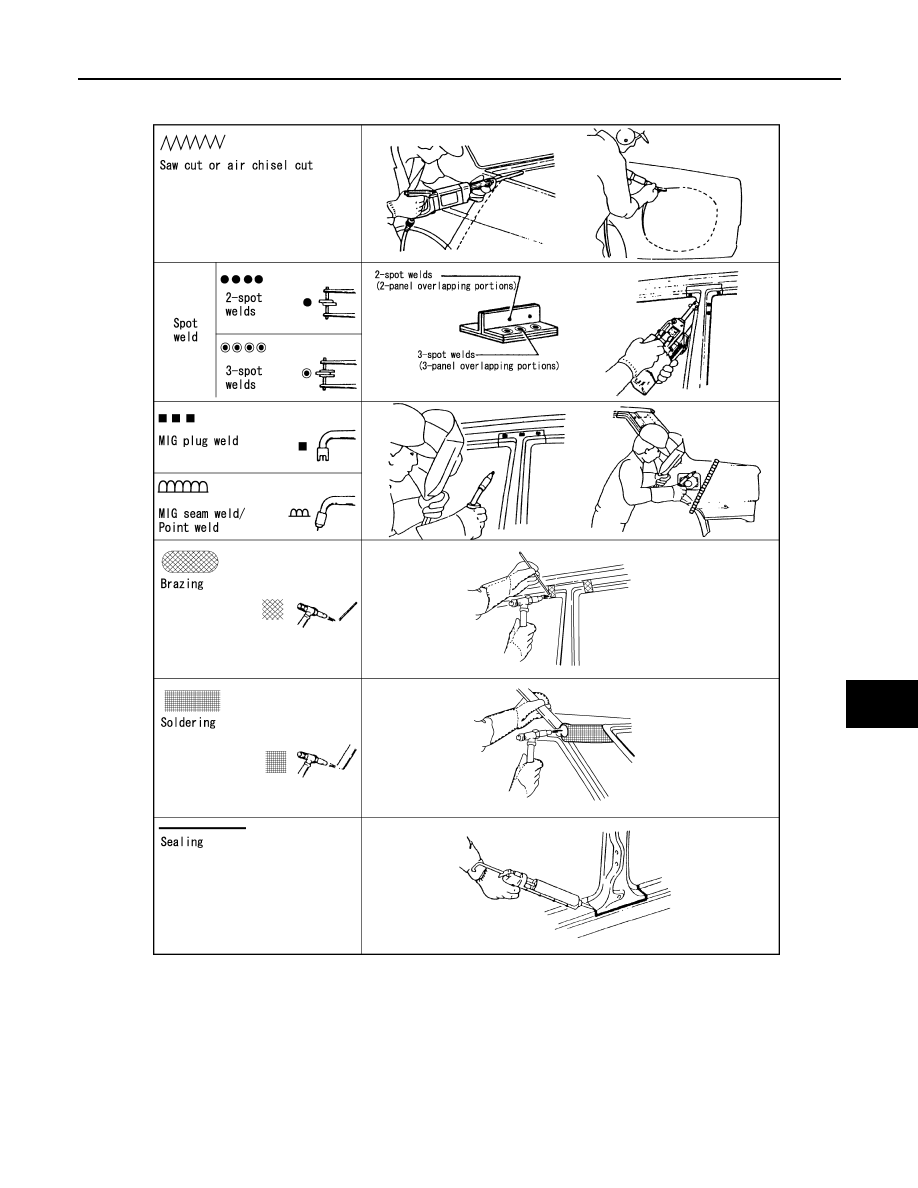

The symbols used in this section for cutting and welding / brazing operations are shown below.

PIIA0149E
