Nissan Titan A60. Manual - part 976

IN-CABIN MICROFILTER

VTL-7

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

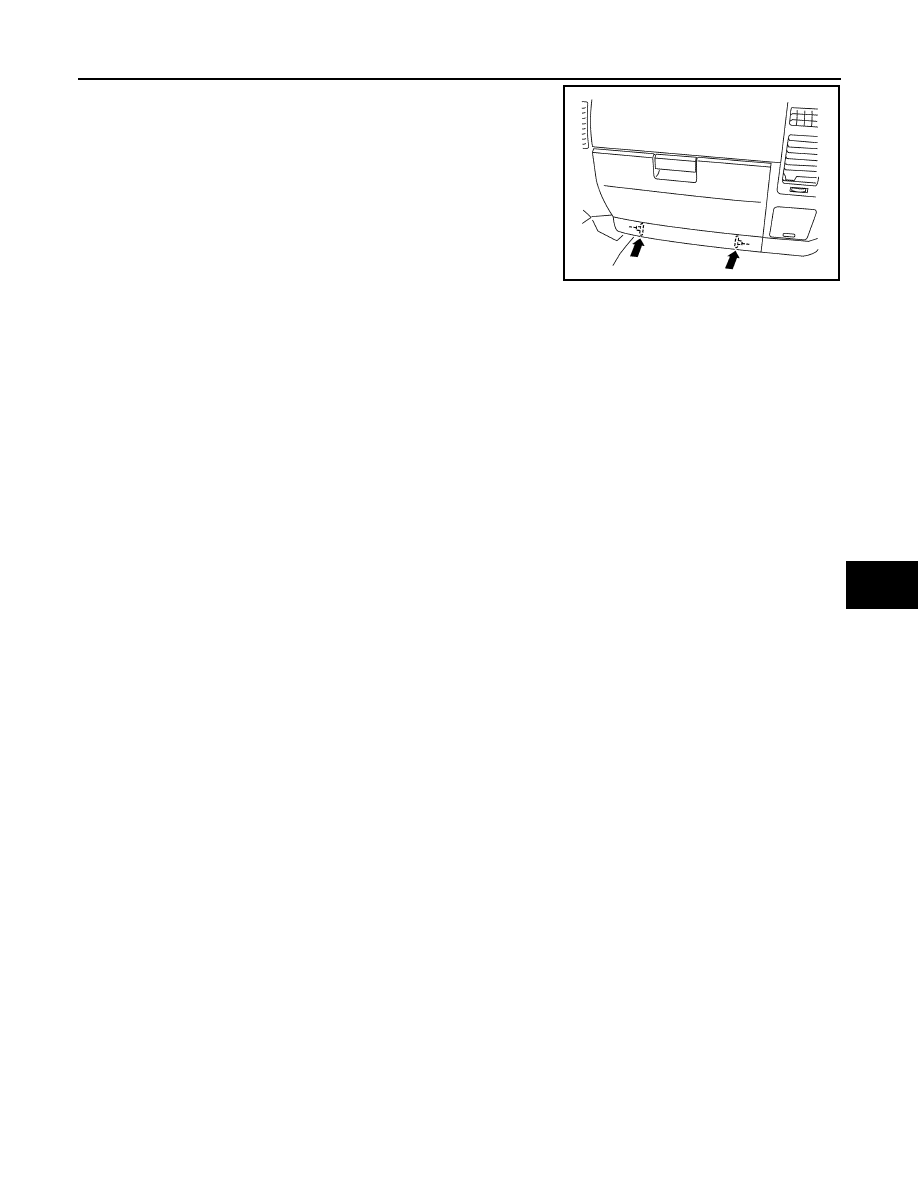

6. Install the lower glove box in the instrument panel and secure it

with the two hinge pins.

WLIA0027E

VTL-8

< REMOVAL AND INSTALLATION >

CONTROL UNIT

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000006161791

REMOVAL

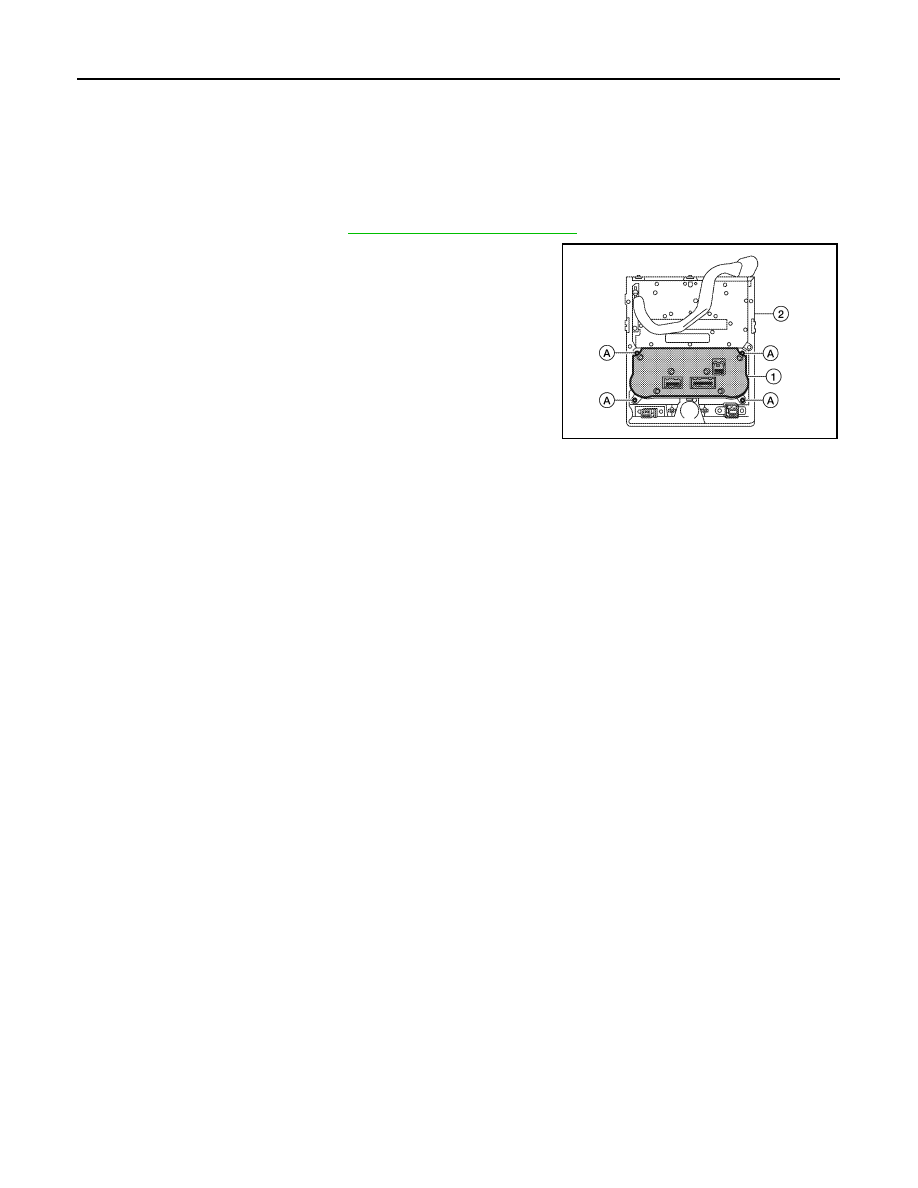

1. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

2. Remove the four screws (A) securing the front air control unit (1)

to cluster lid D (2).

3. Remove the front air control unit (1).
4. Remove the control knobs from the front air control unit.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0078ZZ

IN-VEHICLE SENSOR

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000006161792

REMOVAL

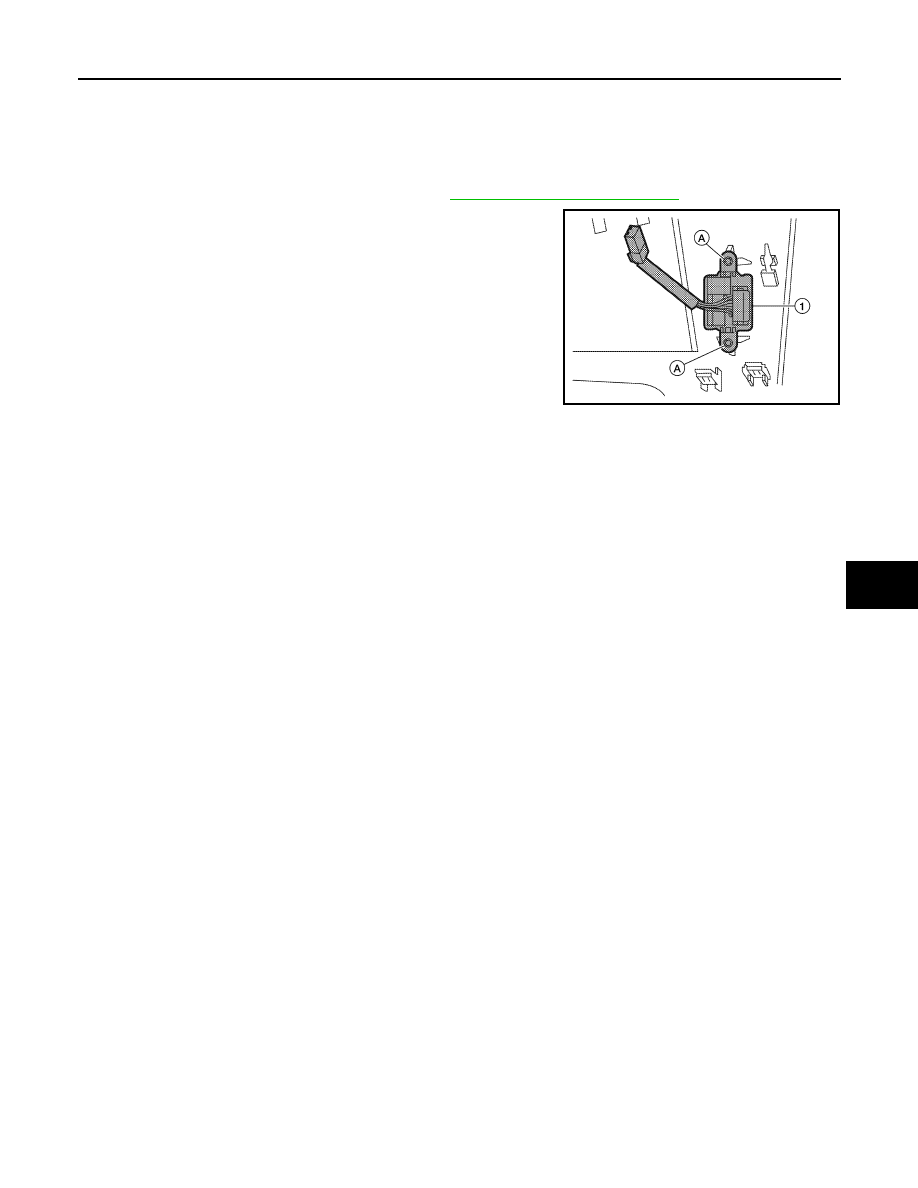

1. Remove the lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove the two screws (A).
3. Disconnect in-vehicle sensor electrical connector.
4. Remove the in-vehicle sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0060ZZ

VTL-10

< REMOVAL AND INSTALLATION >

OPTICAL SENSOR

OPTICAL SENSOR

Removal and Installation

INFOID:0000000006161793

REMOVAL

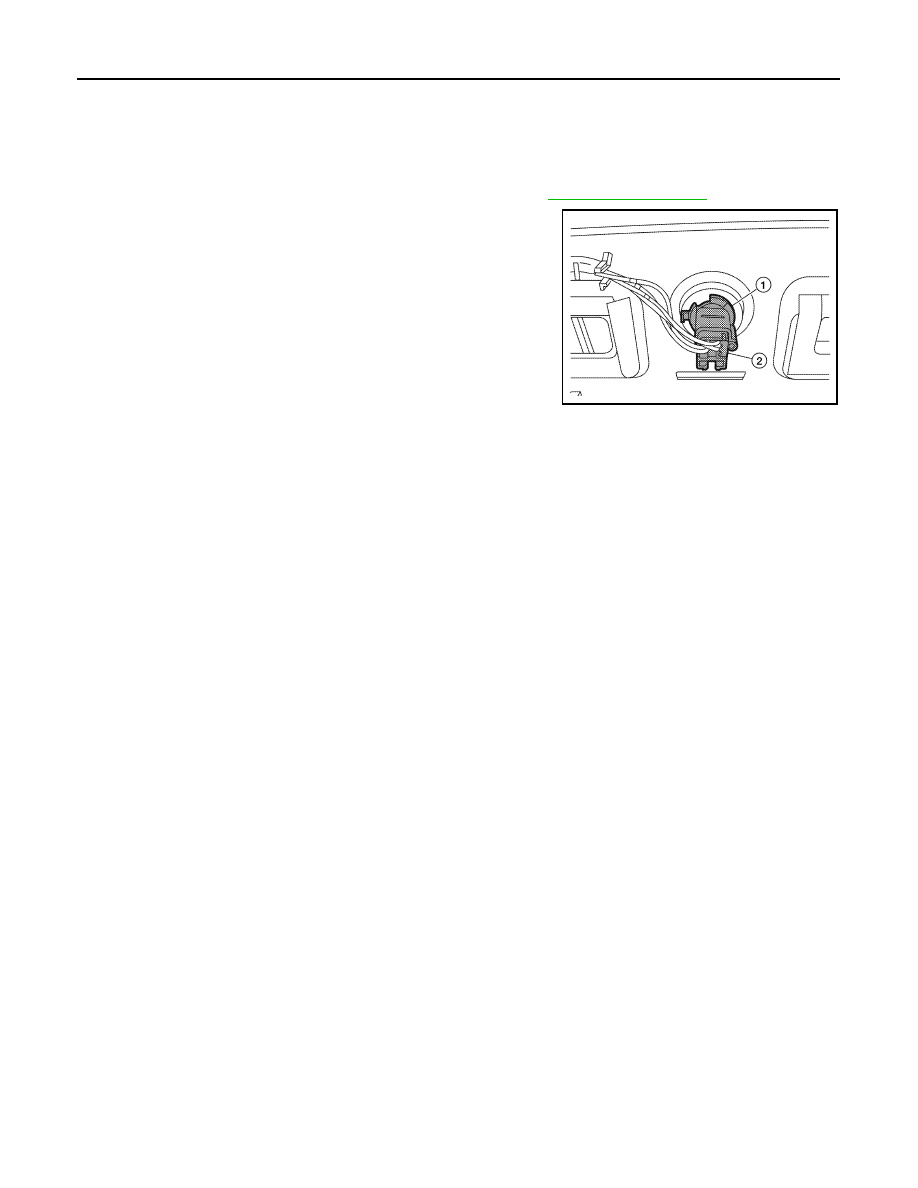

1. Remove the defroster grille from the instrument panel. Refer to

IP-11, "Exploded View"

.

2. Disconnect the optical sensor connector (2).
3. Twist the optical sensor (1) counter clockwise to remove it from

the defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0061ZZ
