TM-256

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

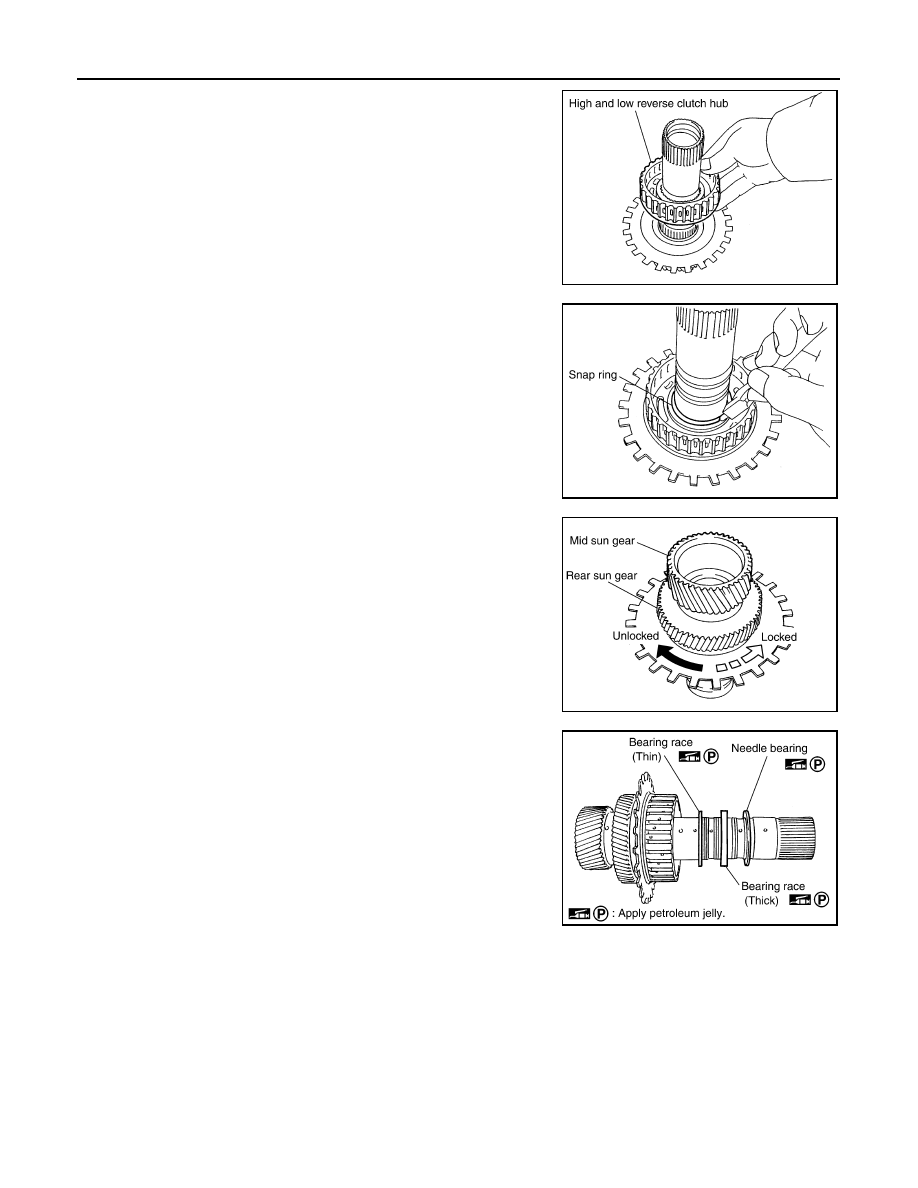

6. Install high and low reverse clutch hub to mid sun gear assem-

bly.

7. Install snap ring to mid sun gear assembly using suitable tool.

CAUTION:

Do not expand snap ring excessively.

8. Check operation of 1st one-way clutch.
a. Hold mid sun gear and turn rear sun gear.
b. Check 1st one-way clutch for correct locking and unlocking

directions.

CAUTION:

If not as shown, check installation direction of 1st one-way

clutch.

9. Install needle bearing and bearing races to high and low reverse

clutch hub.

CAUTION:

• Apply petroleum jelly to needle bearing and bearing

races.

• Take care with order of bearing races.

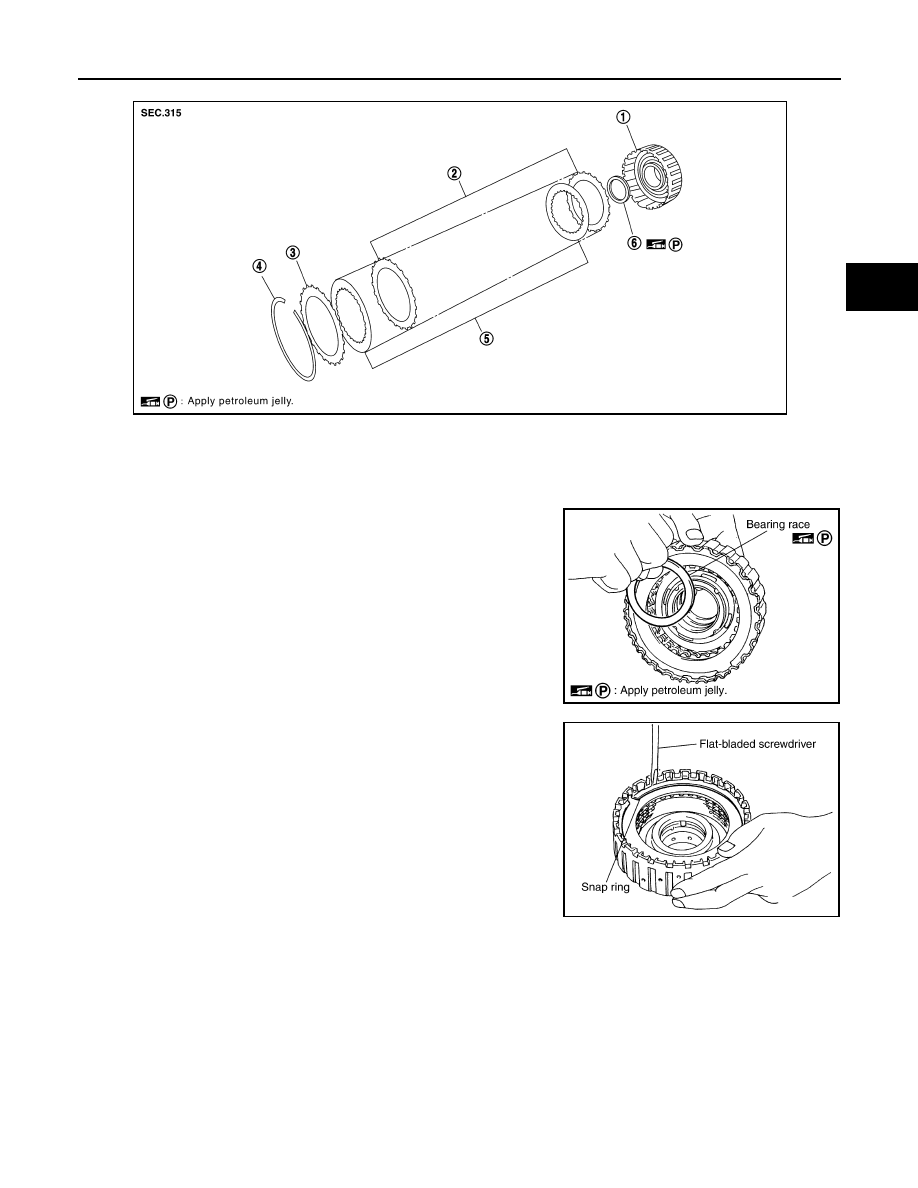

High and Low Reverse Clutch

INFOID:0000000006159469

COMPONENTS

SCIA2856E

SCIA2855E

SCIA3132E

SCIA5238E

REPAIR FOR COMPONENT PARTS

TM-257

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY

1. Remove bearing race from high and low reverse clutch drum.

2. Remove snap ring from high and low reverse clutch drum using

suitable tool.

3. Remove drive plates, driven plates and retaining plate from high

and low reverse clutch drum.

INSPECTION

• Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

• Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

• Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

High and low reverse clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Bearing race

SCIA5239E

SCIA5240E

SCIA2868E

TM-258

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

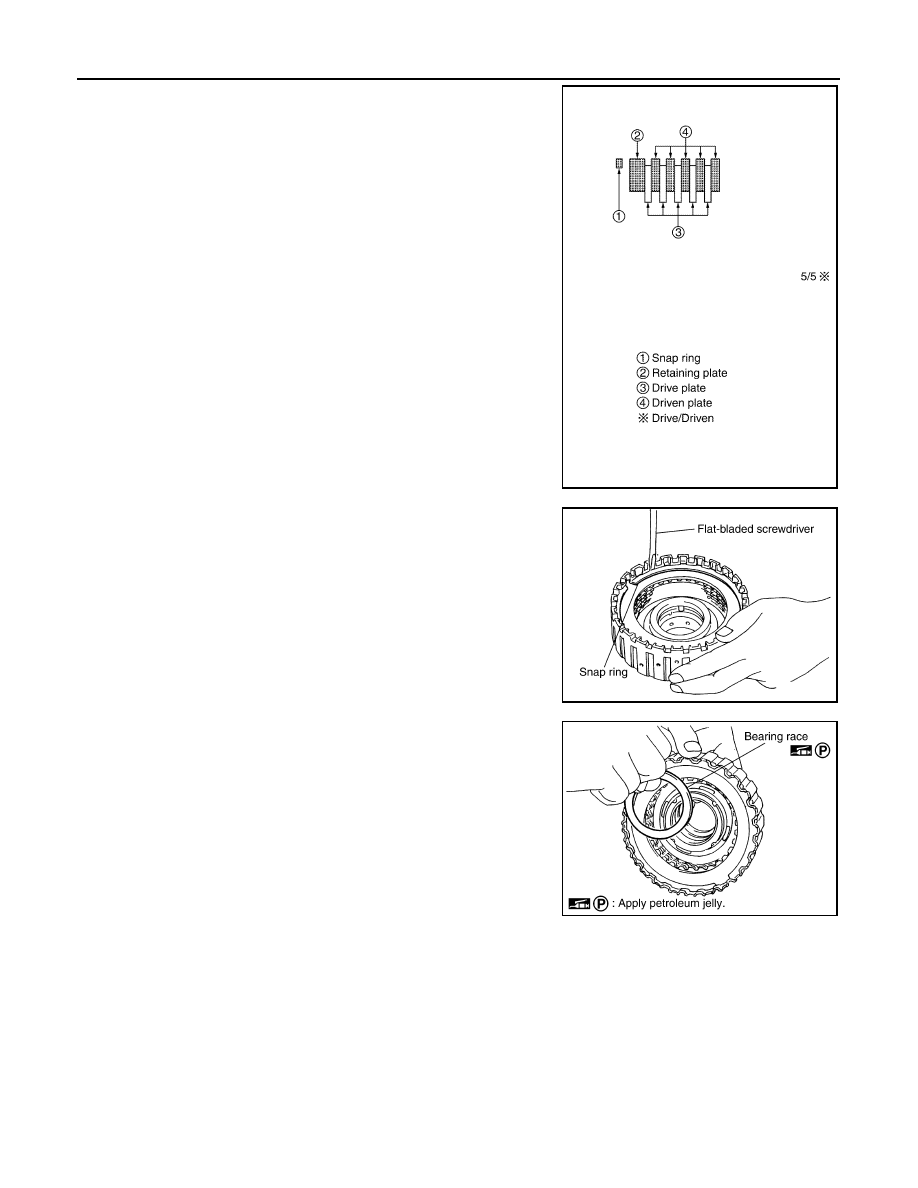

1. Install drive plates, driven plates and retaining plate in high and

low reverse clutch drum.

CAUTION:

Take care with the order of plates.

2. Install snap ring in high and low reverse clutch drum using suit-

able tool.

3. Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

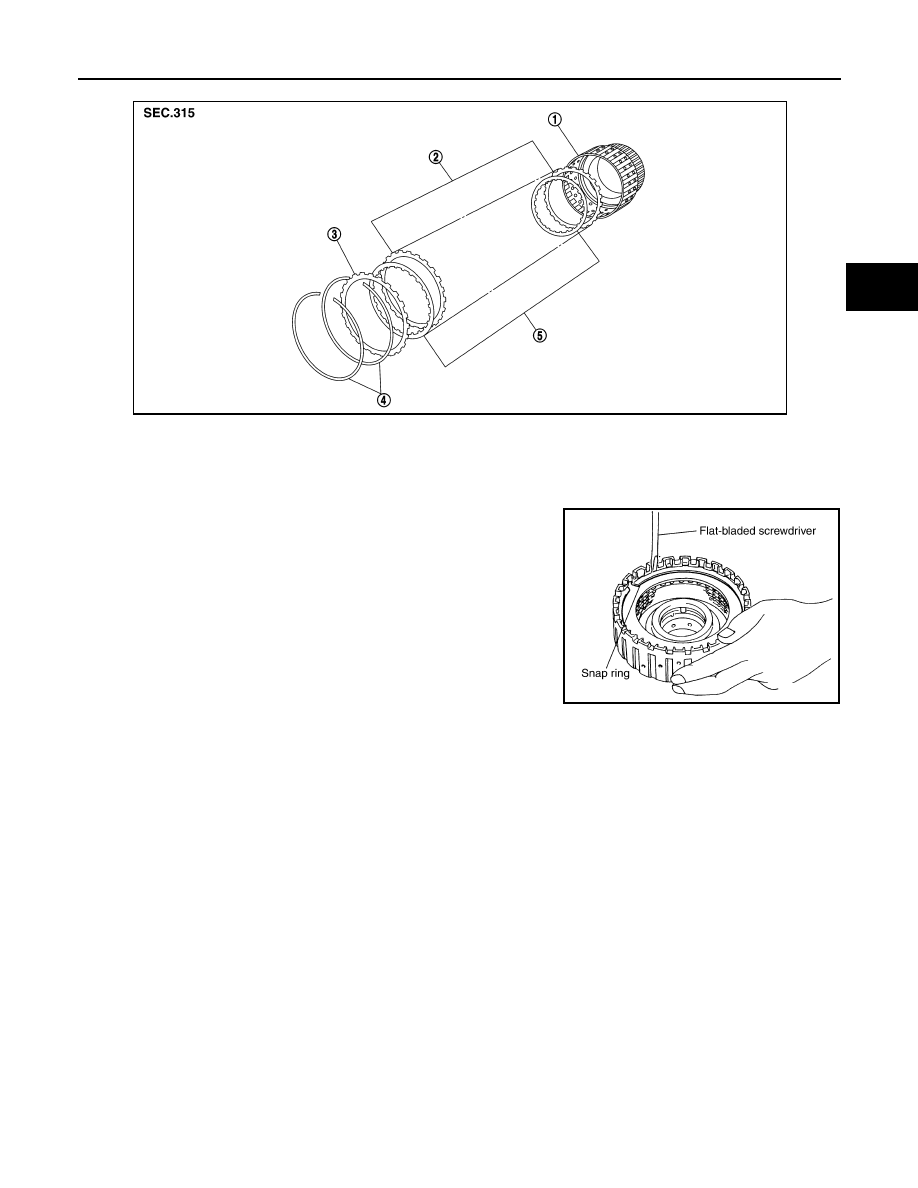

Direct Clutch

INFOID:0000000006159470

COMPONENTS

SCIA5241E

SCIA2868E

SCIA5240E

REPAIR FOR COMPONENT PARTS

TM-259

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY

1. Remove snap rings from direct clutch drum using suitable tool.
2. Remove drive plates, driven plates and retaining plate from

direct clutch drum.

INSPECTION

• Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Rings

• Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

• Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

SCIA5242E

SCIA2868E
