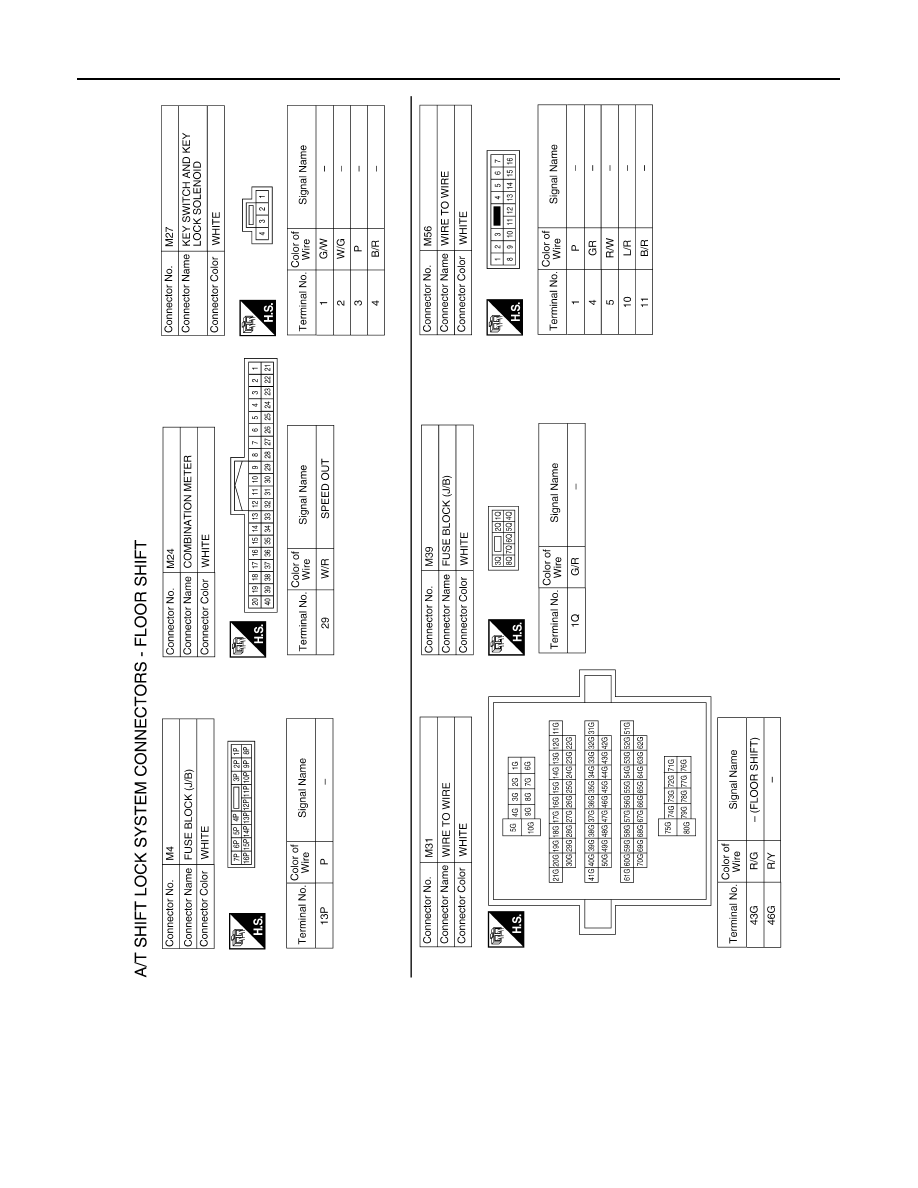

TM-136

< WIRING DIAGRAM >

A/T SHIFT LOCK SYSTEM

ABDIA0698GB

A/T SHIFT LOCK SYSTEM

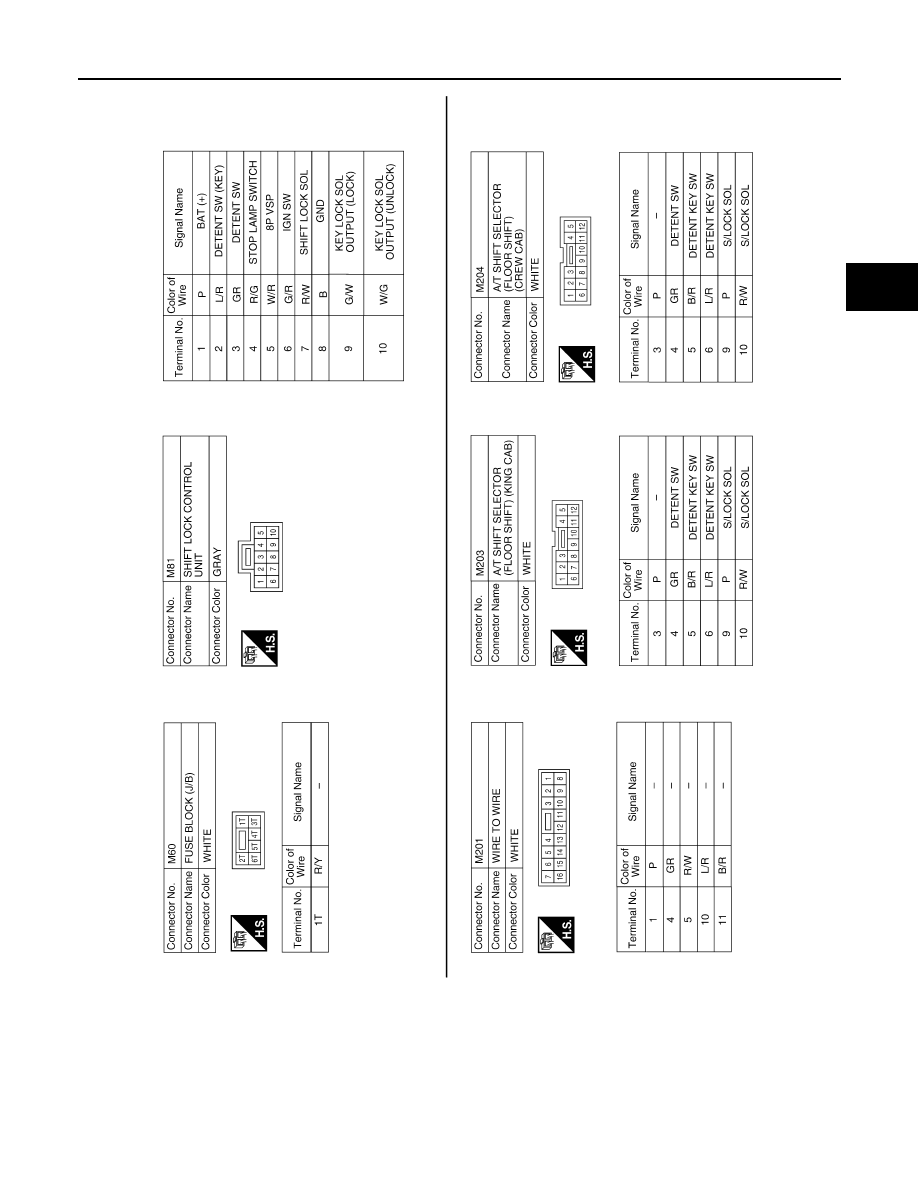

TM-137

< WIRING DIAGRAM >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDIA0304GB

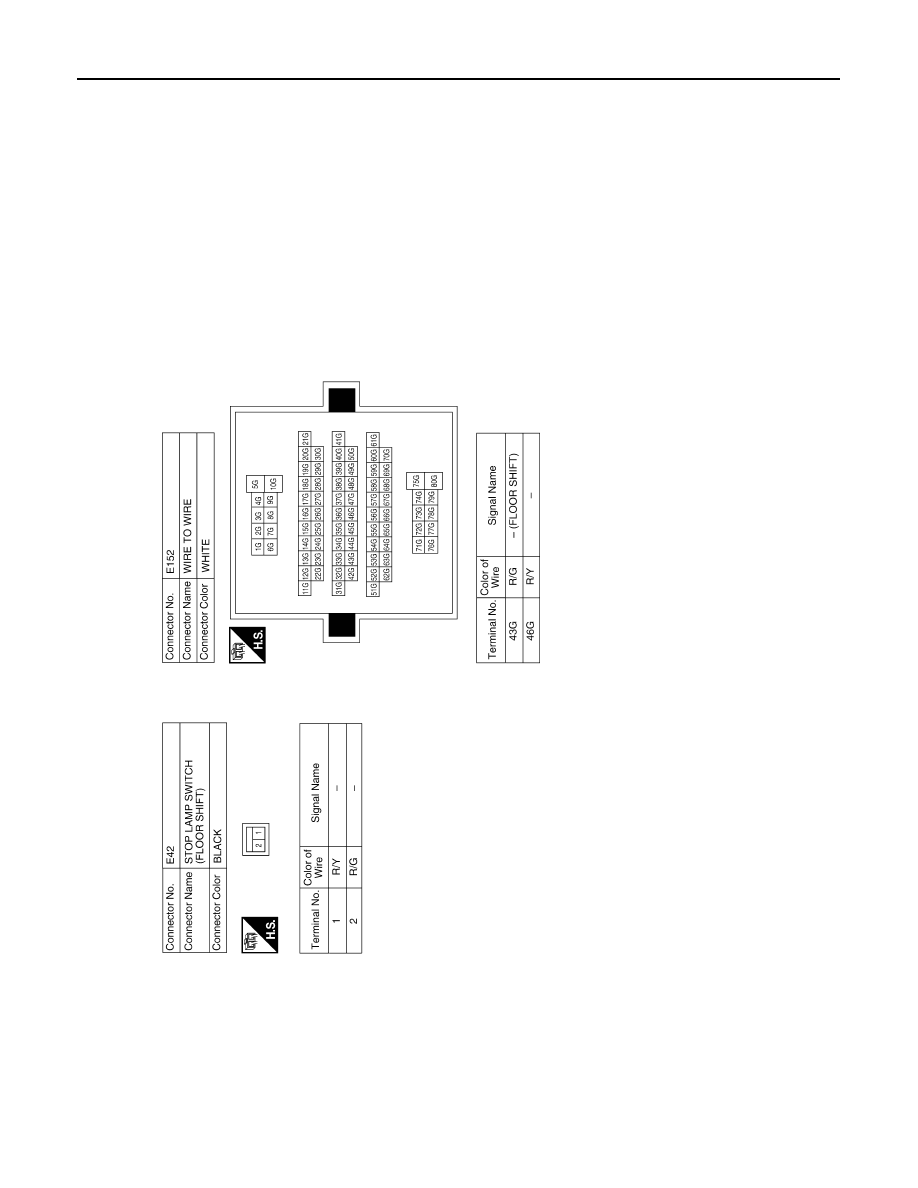

TM-138

< WIRING DIAGRAM >

A/T SHIFT LOCK SYSTEM

ABDIA0699GB

SYSTEM SYMPTOM

TM-139

< SYMPTOM DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

SYSTEM SYMPTOM

Symptom Table

INFOID:0000000006159429

• The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

• Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Refer to

TM-168, "Checking the

A/T Fluid (ATF)"

.

No.

Items

Symptom

Condition

Diagnostic Item

Reference

page

1

Shift
Shock

Large shock. (“N”

→“

D” position)

ON vehicle

1. Engine idle speed

EC-118

2. Engine speed signal

TM-58

3. Accelerator pedal position sensor

TM-76

4. Control cable adjustment

TM-184

5. ATF temperature sensor

TM-78

6. Front brake solenoid valve

TM-88

7. CAN communication line

TM-45

8. Fluid level and state

TM-168

9. Line pressure test

TM-177

10. Control valve with TCM

TM-197

OFF vehicle

11. Forward brake (Parts behind drum support is impossible
to perform inspection by disassembly. Refer to

TM-9

,

TM-10

.

TM-224

2

Shock is too large
when changing D

1

→

D

2

.

ON vehicle

1. Accelerator pedal position sensor

TM-76

2. Control cable adjustment

TM-184

3. Direct clutch solenoid valve

TM-90

4. CAN communication line

TM-45

5. Engine speed signal

TM-58

6. Input speed sensor

TM-53

7. Output speed sensor and vehicle speed signal

TM-55

,

TM-80

8. Fluid level and state

TM-168

9. Control valve with TCM

TM-197

OFF vehicle

10. Direct clutch

TM-258

3

Shock is too large
when changing D

2

→

D

3

.

ON vehicle

1. Accelerator pedal position sensor

TM-76

2. Control cable adjustment

TM-184

3. High and low reverse clutch solenoid valve

TM-92

4. CAN communication line

TM-45

5. Engine speed signal

TM-58

6. Input speed sensor

TM-53

7. Output speed sensor and vehicle speed signal

TM-55

,

TM-80

8. Fluid level and state

TM-168

9. Control valve with TCM

TM-197

OFF vehicle

10. High and low reverse clutch

TM-256
