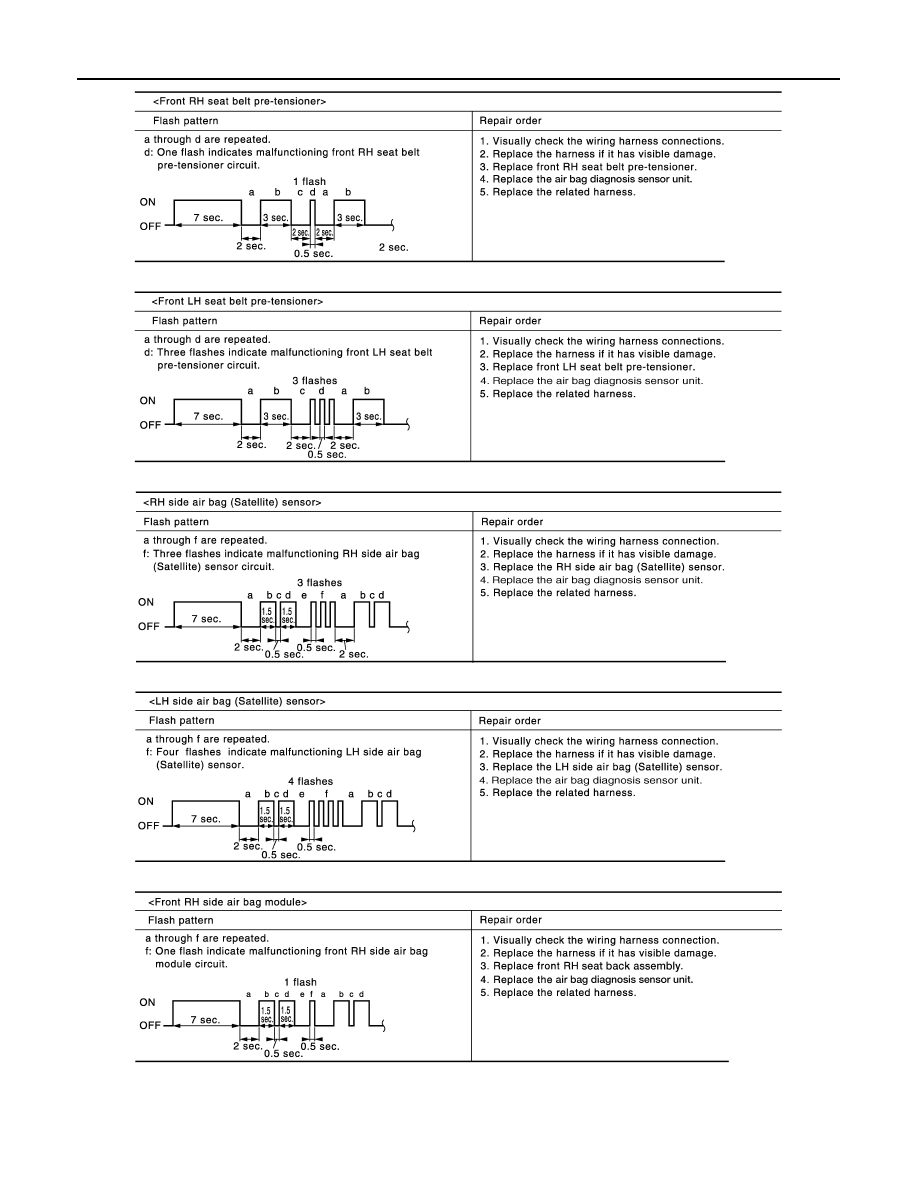

DIAGNOSIS SENSOR UNIT

WHIA0262E

WHIA0263E

WHIA0203E

WHIA0204E

WHIA0264E

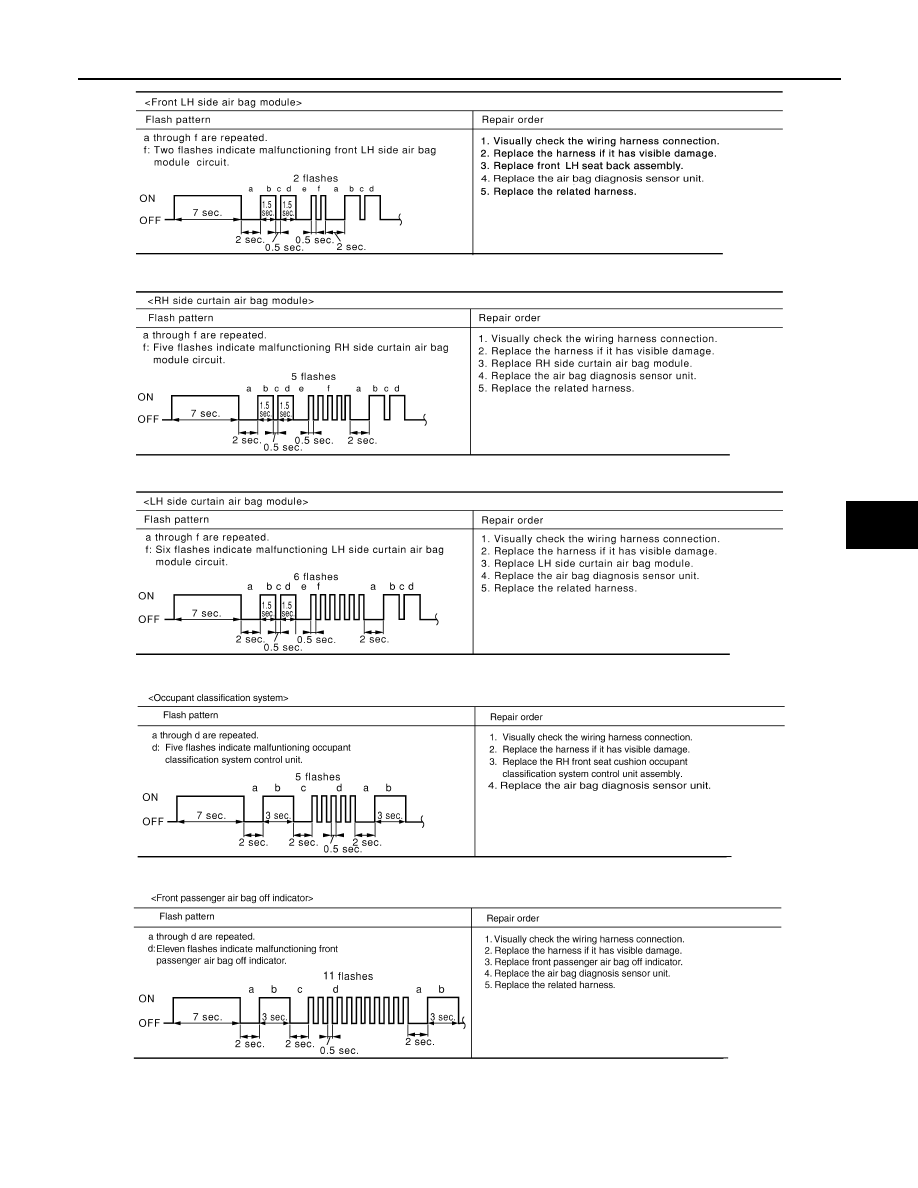

DIAGNOSIS SENSOR UNIT

SRC-65

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WHIA0265E

WHIA0266E

WHIA0267E

WHIA0211E

WHIA0212E

SRC-66

< WIRING DIAGRAM >

SRS AIR BAG CONTROL SYSTEM

WIRING DIAGRAM

SRS AIR BAG CONTROL SYSTEM

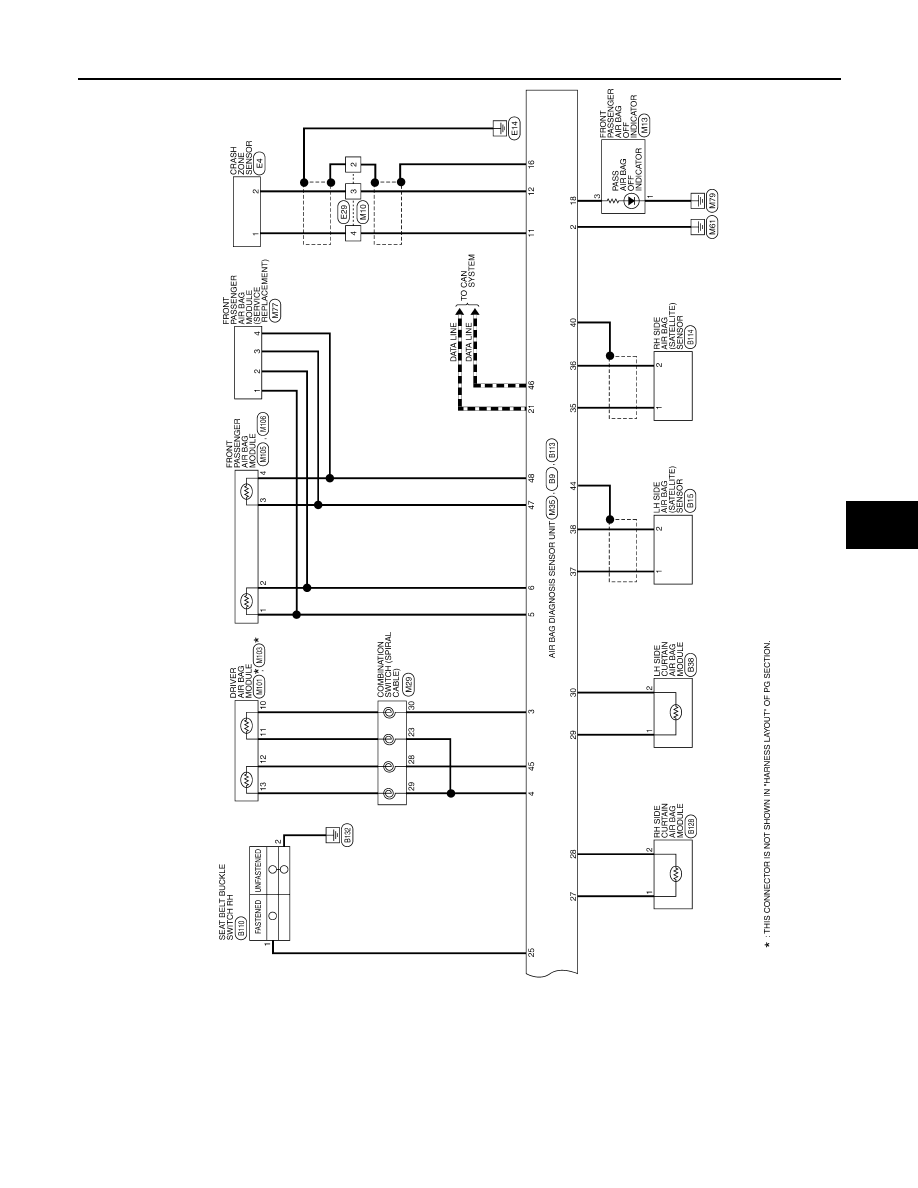

Wiring Diagram

INFOID:0000000006464303

ABHWA0134GB

SRS AIR BAG CONTROL SYSTEM

SRC-67

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

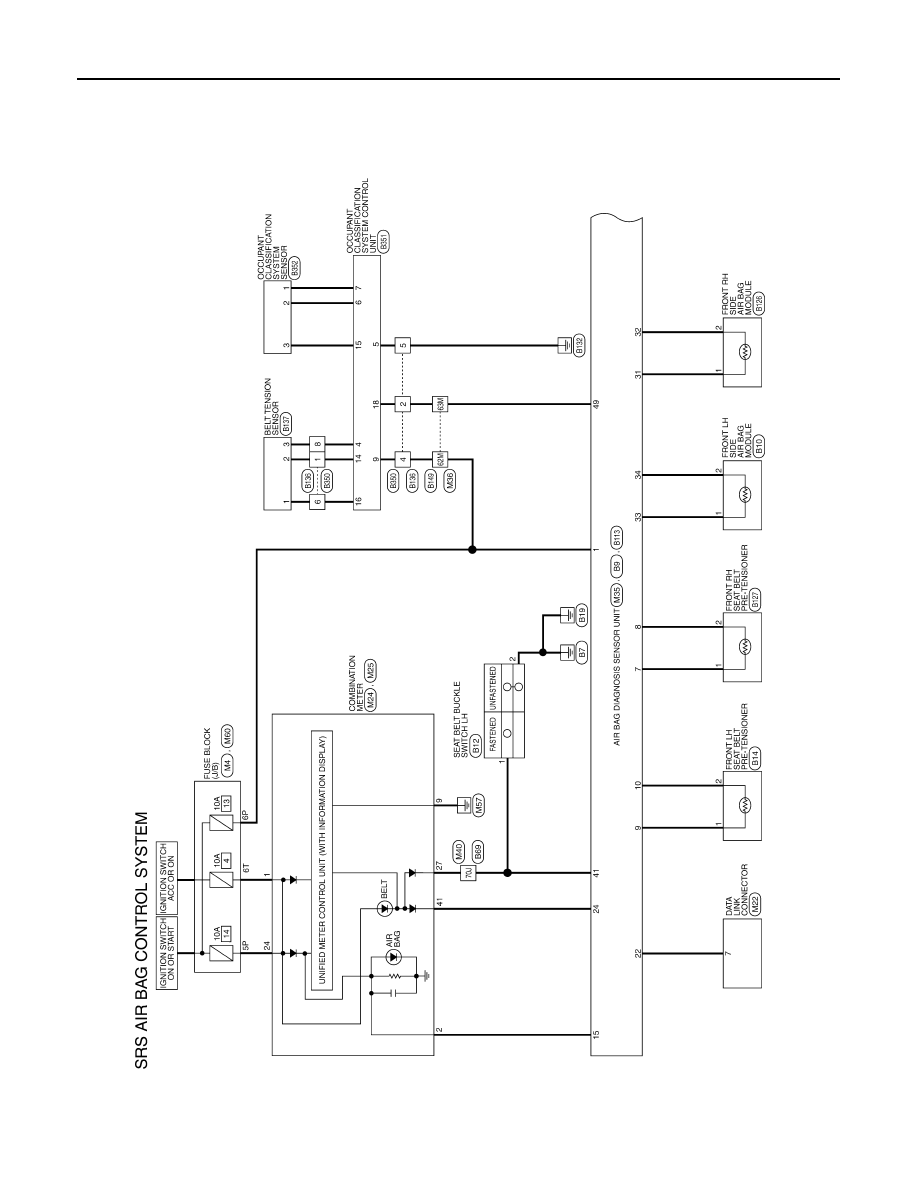

ABHWA0135GB
