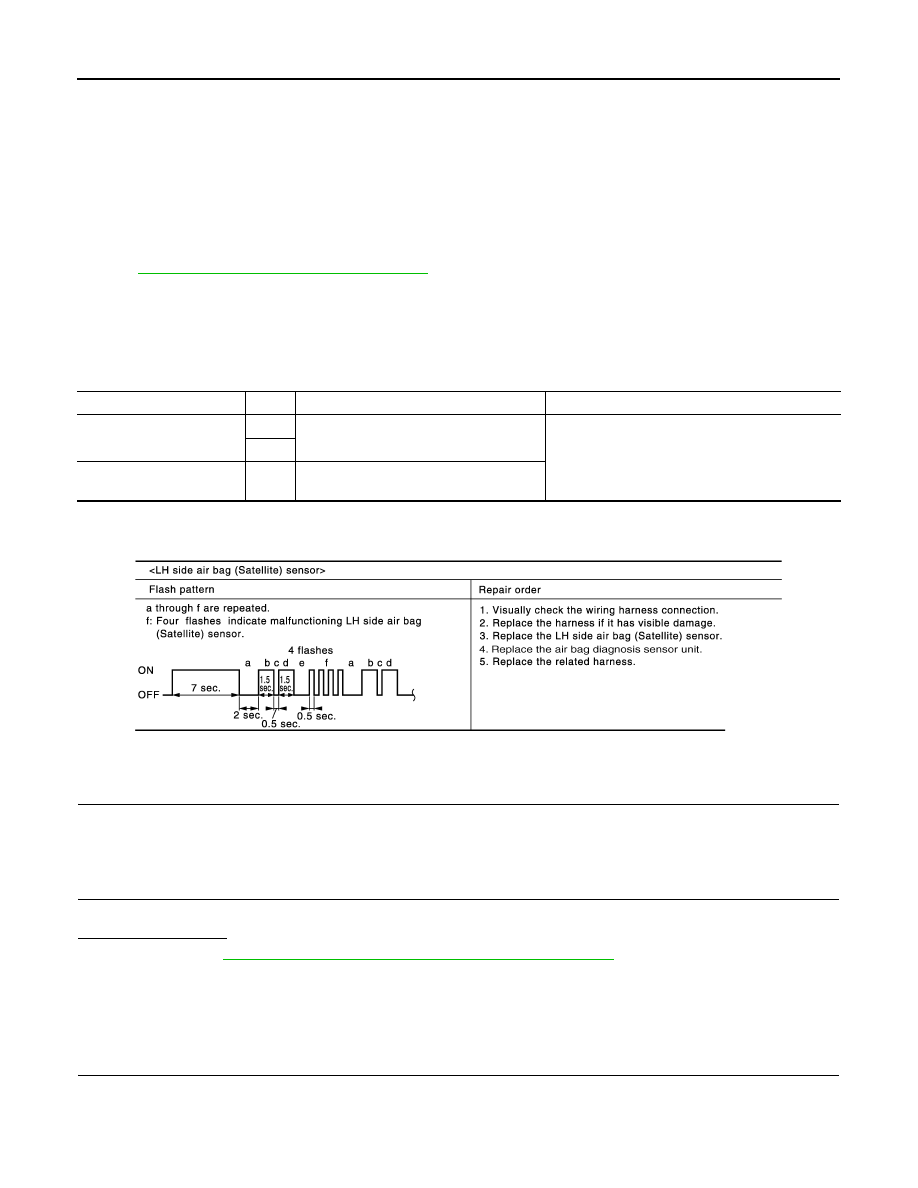

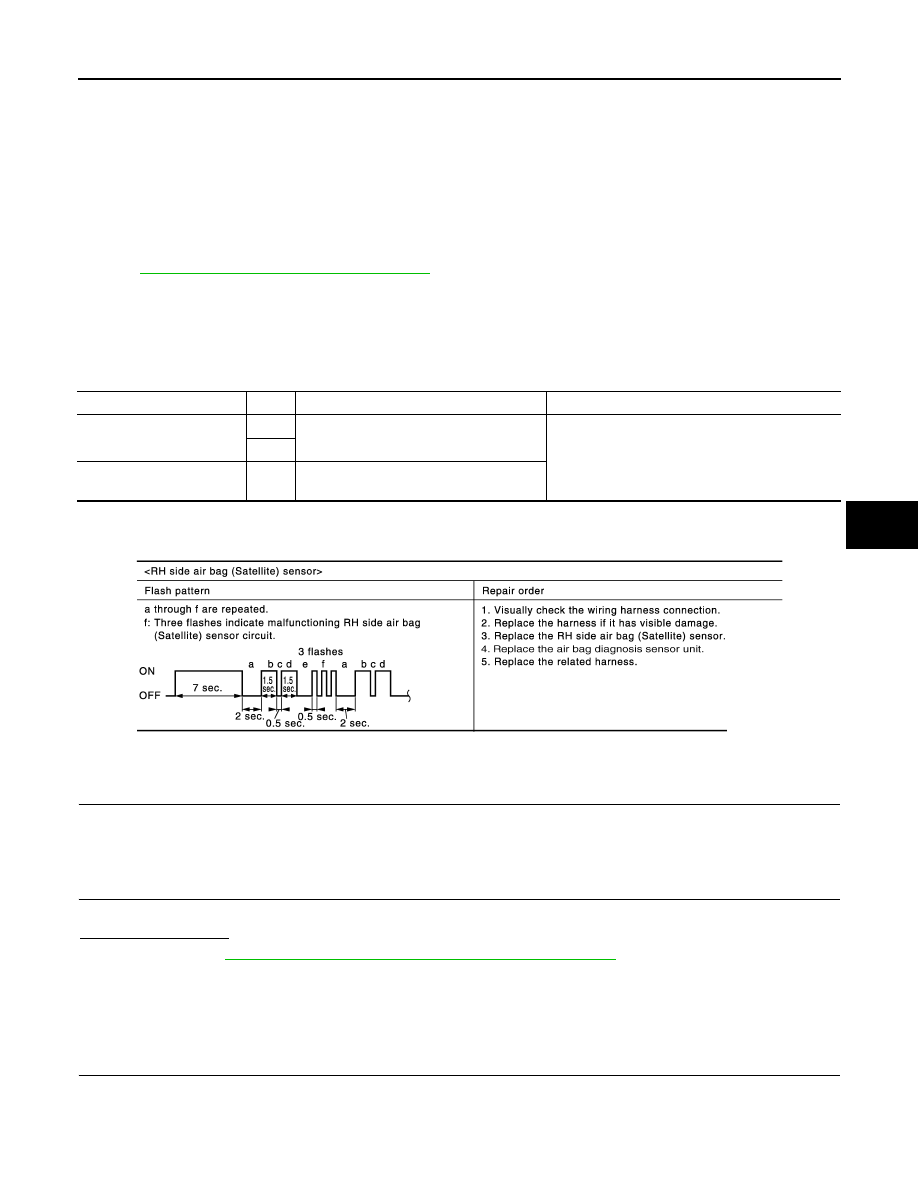

SRC-44 < DTC/CIRCUIT DIAGNOSIS > B1118 – B1120 SATELLITE SENSOR LH B1118 – B1120 SATELLITE SENSOR LH Description INFOID:0000000006163170 DTC B1118 – B1120 SATELLITE SENSOR LH The satellite sensor LH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the satellite sensor LH for internal failures and it's circuits for communication errors. PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000006163171 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT-lll. YES >> Refer to SRC-45, "Diagnosis Procedure (Component Diagnosis)" . NO >> Inspection End. DTC CONFIRMATION PROCEDURE (Without CONSULT-lll) NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode. 1. IGNITION SWITCH Turn ignition switch ON. >> GO TO 2 CONSULT-III name DTC DTC detecting condition Repair order SATELLITE SENS LH [UNIT FAIL] B1118 LH side air bag satellite sensor has mal- functioned. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the LH side air bag satellite sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1119 SATELLITE SENS LH [COMM FAIL] B1120 LH side air bag satellite sensor communi- WHIA0204E |
