Nissan Titan A60. Manual - part 858





SEC-70

< REMOVAL AND INSTALLATION >

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000006752630

REMOTE KEYLESS ENTRY RECEIVER

Removal

1. Remove the instrument lower panel RH. Refer to

IP-16, "Removal and Installation"

.

2. Remove the side ventilator assembly RH. Refer to

IP-11, "Exploded View"

.

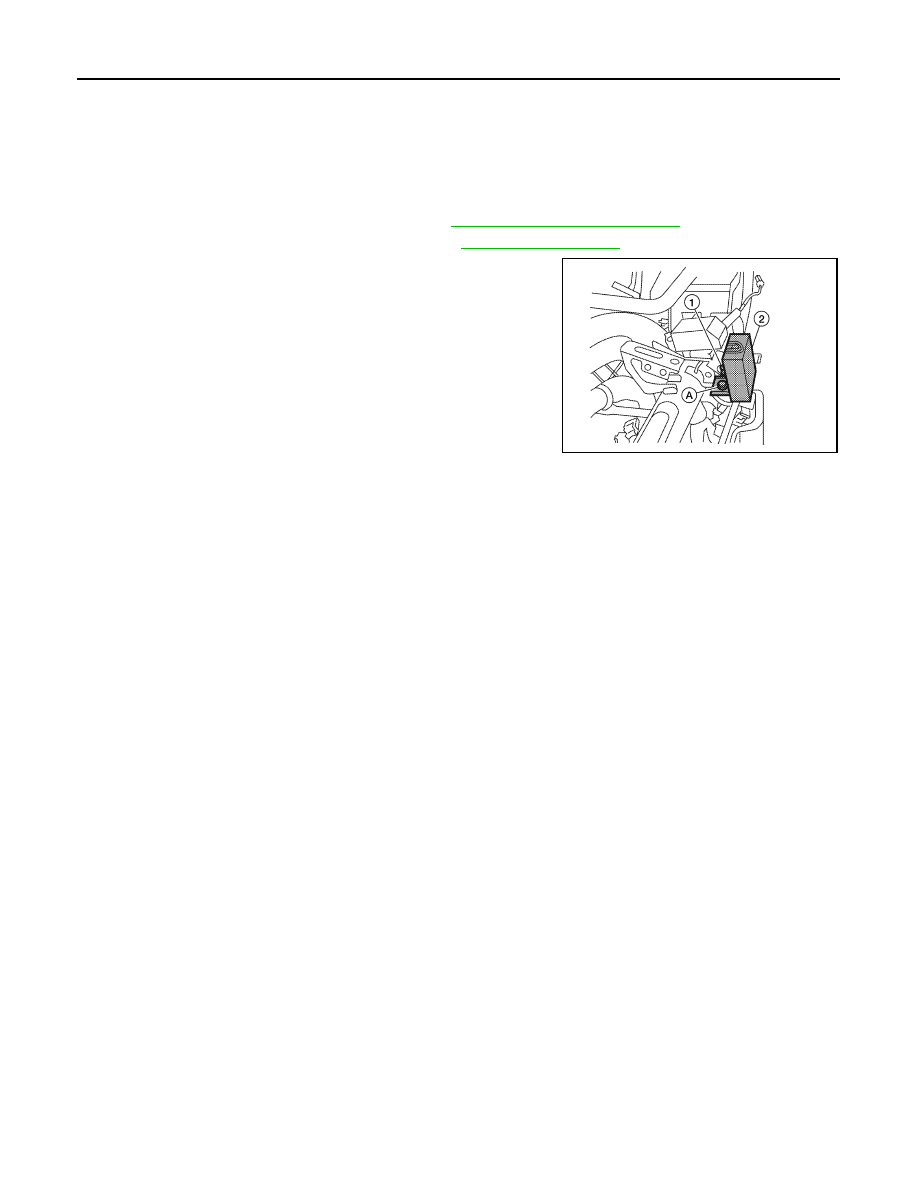

3. Disconnect the wire harness (1), remove the bolt (A), and the

RKE receiver (2).

Installation

Installation is in the reverse order of removal.

ALKIA0537ZZ

SN

SN-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

SN

A

O

P

CONTENTS

SONAR SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Work Flow  .................................................................

2

INSPECTION AND ADJUSTMENT .....................

4

Preliminary Check  .....................................................

4

SYSTEM DESCRIPTION  ..............................

5

REAR SONAR SYSTEM  .....................................

5

System Diagram ........................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

6

Component Description .............................................

6

Self-Diagnosis Function  ............................................

7

DTC/CIRCUIT DIAGNOSIS  ..........................

9

POWER SUPPLY AND GROUND CIRCUIT .......

9

Diagnosis Procedure .................................................

9

SONAR SENSOR CIRCUIT INSPECTION  ........

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

SONAR BUZZER CIRCUIT INSPECTION .........

11

Description ..............................................................

11

Diagnosis Procedure ...............................................

11

Component Inspection  ............................................

11

SONAR SYSTEM OFF SWITCH CIRCUIT IN-
SPECTION ..........................................................

13

Description ..............................................................

13

Diagnosis Procedure ...............................................

13

Component Inspection  ............................................

13

ECU DIAGNOSIS INFORMATION ..............

15

SONAR CONTROL UNIT FOR REAR SONAR
SYSTEM ............................................................

15

Reference Value ......................................................

15

DTC Index  ...............................................................

16

WIRING DIAGRAM ......................................

17

SONAR SYSTEM  ..............................................

17

Wiring Diagram ........................................................

17

SYMPTOM DIAGNOSIS  ..............................

24

SONAR SYSTEM SYMPTOMS  ........................

24

Symptom Table  .......................................................

24

PRECAUTION ..............................................

26

PRECAUTION ...................................................

26

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

26

UNIT REMOVAL AND INSTALLATION ......

27

SONAR SENSOR ..............................................

27

Removal and Installation  .........................................

27

SONAR CONTROL UNIT ..................................

28

Removal and Installation  .........................................

28

BUZZER ............................................................

29

Removal and Installation  .........................................

29

SN-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006159201

WORK FLOW

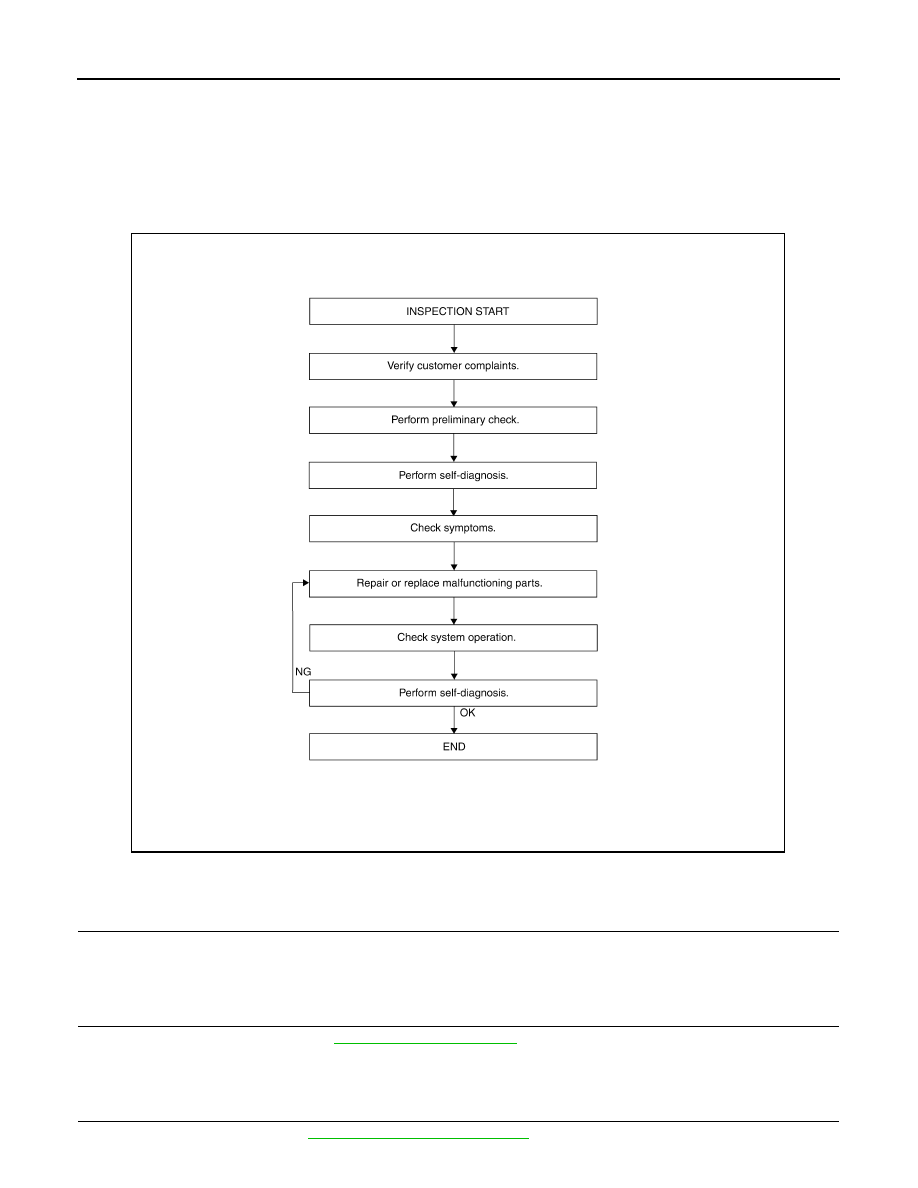

DETAILED FLOW

1.

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SN-4, "Preliminary Check"

.

>> GO TO 3

3.

SELF-DIAGNOSIS

Perform self-diagnosis.  Refer to

SN-7, "Self-Diagnosis Function"

.

AWNIA0199GB

SN

DIAGNOSIS AND REPAIR WORKFLOW

SN-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

>> GO TO 4

4.

SYMPTOM

Check for symptoms.  Refer to

SN-24, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

SYSTEM OPERATION

Check system operation.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform self-diagnosis.
Are any fault codes displayed?

YES

>> GO TO 5

NO

>> Inspection End.
