SEC-46

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

DTC Index

INFOID:0000000006709566

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

Priority

DTC

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
further testing
may be required.

—

—

—

U1000: CAN COMM CIRCUIT

—

—

BCS-27

B2190: NATS ANTTENA AMP

—

—

SEC-18

B2191: DIFFERENCE OF KEY

—

—

SEC-21

B2192: ID DISCORD BCM-ECM

—

—

SEC-22

B2193: CHAIN OF BCM-ECM

—

—

SEC-24

C1708: [NO DATA] FL

—

—

WT-14

C1709: [NO DATA] FR

—

—

WT-14

C1710: [NO DATA] RR

—

—

WT-14

C1711: [NO DATA] RL

—

—

WT-14

C1712: [CHECKSUM ERR] FL

—

—

WT-16

C1713: [CHECKSUM ERR] FR

—

—

WT-16

C1714: [CHECKSUM ERR] RR

—

—

WT-16

C1715: [CHECKSUM ERR] RL

—

—

WT-16

BCM (BODY CONTROL MODULE)

SEC-47

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

C1716: [PRESSDATA ERR] FL

—

—

WT-18

C1717: [PRESSDATA ERR] FR

—

—

WT-18

C1718: [PRESSDATA ERR] RR

—

—

WT-18

C1719: [PRESSDATA ERR] RL

—

—

WT-18

C1720: [CODE ERR] FL

—

—

WT-16

C1721: [CODE ERR] FR

—

—

WT-16

C1722: [CODE ERR] RR

—

—

WT-16

C1723: [CODE ERR] RL

—

—

WT-16

C1724: [BATT VOLT LOW] FL

—

—

WT-16

C1725: [BATT VOLT LOW] FR

—

—

WT-16

C1726: [BATT VOLT LOW] RR

—

—

WT-16

C1727: [BATT VOLT LOW] RL

—

—

WT-16

C1729: VHCL SPEED SIG ERR

—

—

WT-19

C1735: IGNITION SIGNAL

—

—

WT-20

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

SEC-48

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000006709567

VALUES ON THE DIAGNOSIS TOOL

*: If equipped

Monitor Item

Condition

Value/Status

A/C COMP REQ

A/C switch OFF

OFF

A/C switch ON

ON

TAIL&CLR REQ

Lighting switch OFF

OFF

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

ON

HL LO REQ

Lighting switch OFF

OFF

Lighting switch 2ND HI or AUTO (Light is illuminated)

ON

HL HI REQ

Lighting switch OFF

OFF

Lighting switch HI

ON

FR FOG REQ*

Lighting switch 2ND or AUTO (Light
is illuminated)

Front fog lamp switch OFF

OFF

• Front fog lamp switch ON
• Daytime light activated (Canada

only)

ON

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

LOW

Front wiper switch HI

HI

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

OFF

Front wiper stops at fail-safe opera-
tion

BLOCK

ST RLY REQ

Ignition switch OFF or ACC

OFF

Ignition switch START

ON

IGN RLY

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

RR DEF REQ*

Rear defogger switch OFF

OFF

Rear defogger switch ON

ON

OIL P SW

Ignition switch OFF, ACC or engine running

OPEN

Ignition switch ON

CLOSE

DTRL REQ

Daytime light system requested OFF with CONSULT-III.

OFF

Daytime light system requested ON with CONSULT-III.

ON

THFT HRN REQ

Not operated

OFF

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

ON

HORN CHIRP

Not operated

OFF

Door locking with keyfob (horn chirp mode)

ON

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-49

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

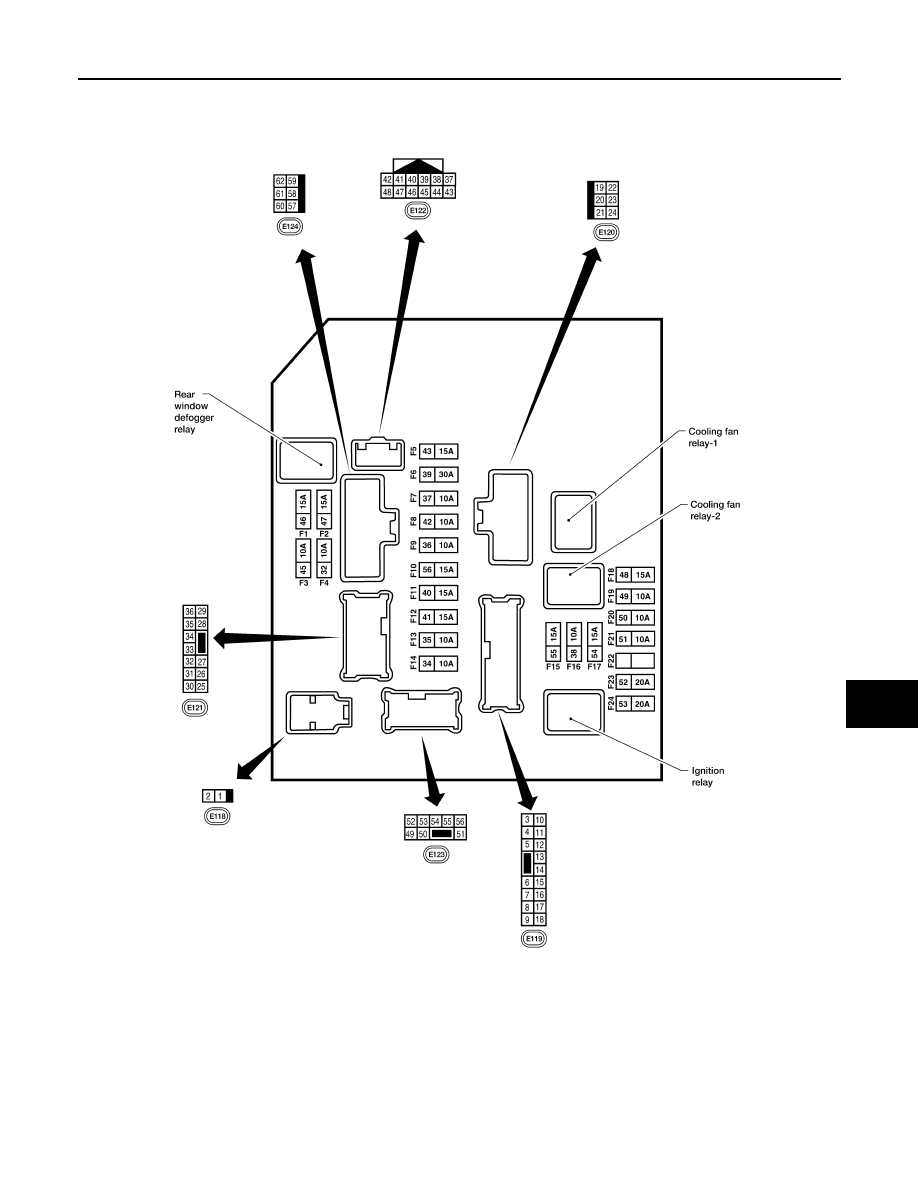

Terminal Layout

INFOID:0000000006709568

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R.  The other numbers rep-

resent the fuse numbers as they appear in the wiring diagrams.

Physical Values

INFOID:0000000006709569

PHYSICAL VALUES

AAMIA0386GB
