SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

DTC/CIRCUIT DIAGNOSIS  ..........................

2

HEATED SEAT ....................................................

2

Description ................................................................

2

WIRING DIAGRAM .......................................

3

POWER SEAT FOR DRIVER SIDE  ....................

3

Wiring Diagram - Without Automatic Drive Posi-
tioner .........................................................................

3

POWER SEAT FOR PASSENGER SIDE  ...........

7

Wiring Diagram  .........................................................

7

HEATED SEAT ...................................................

11

Wiring Diagram  .......................................................

11

SYMPTOM DIAGNOSIS  ..............................

15

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

15

Work Flow  ...............................................................

15

Generic Squeak and Rattle Troubleshooting  ..........

17

Diagnostic Worksheet  .............................................

19

PRECAUTION ..............................................

21

PRECAUTIONS ..................................................

21

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

21

Precaution for Work .................................................

21

PREPARATION ...........................................

22

PREPARATION .................................................

22

Special Service Tool ................................................

22

Commercial Service Tool  ........................................

22

REMOVAL AND INSTALLATION ...............

23

FRONT SEAT ....................................................

23

Exploded View .........................................................

23

Removal and Installation For Front Seat  .................

30

Removal and Installation For Seat Slide/Recline
Switch (Passenger Seat)  .........................................

30

REAR SEAT  ......................................................

34

Exploded View .........................................................

34

Removal and Installation  .........................................

36

UNIT DISASSEMBLY AND ASSEMBLY  ....

37

FRONT SEAT ....................................................

37

Exploded View .........................................................

37

Disassembly and Assembly .....................................

44

REAR SEAT  ......................................................

49

Exploded View .........................................................

49

SE-2

< DTC/CIRCUIT DIAGNOSIS >

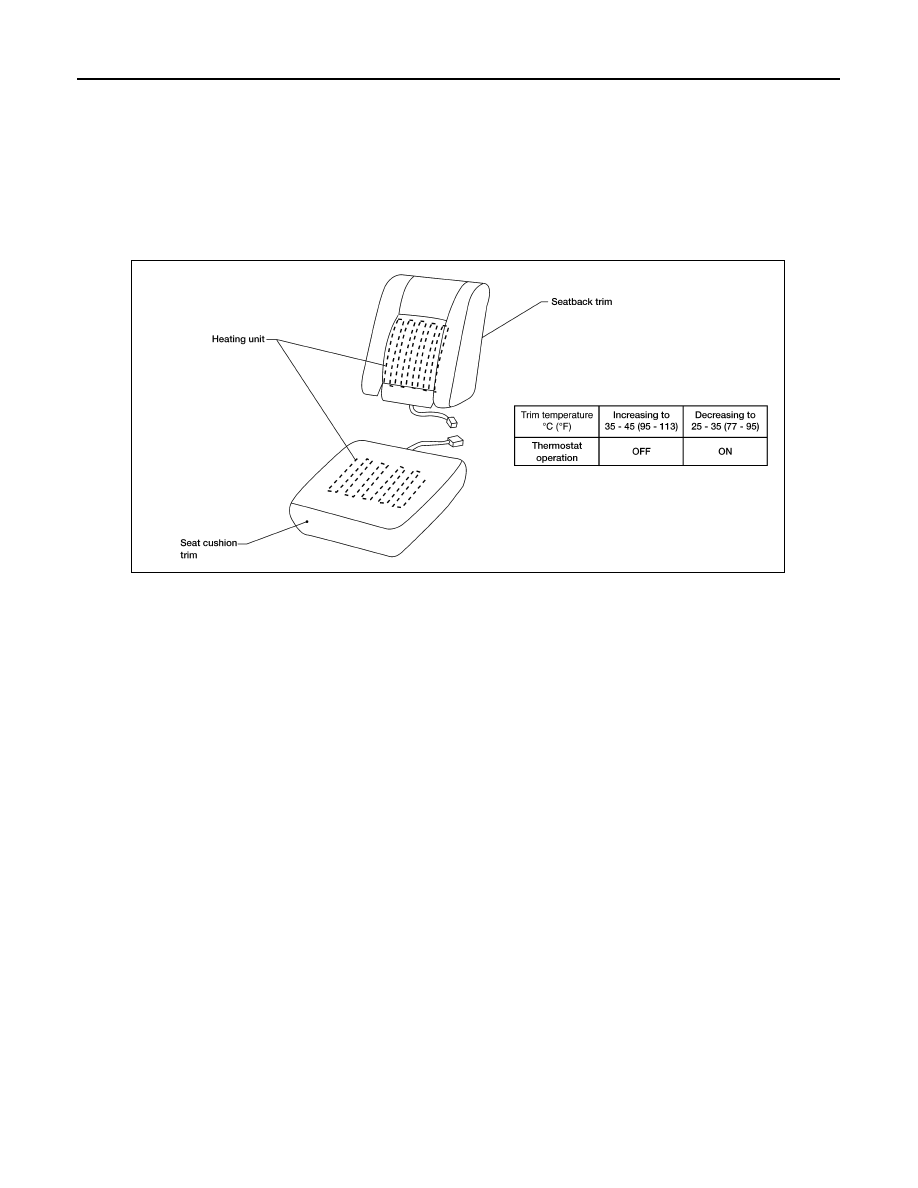

HEATED SEAT

DTC/CIRCUIT DIAGNOSIS

HEATED SEAT

Description

INFOID:0000000006163199

• When handling seat, be extremely careful not to scratch heating unit.

• Front passenger seat cushion and seatbacks equipped with air bags cannot be disassembled. They are

replaced as assemblies only.

• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.

WIIA0031E

POWER SEAT FOR DRIVER SIDE

SE-3

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT FOR DRIVER SIDE

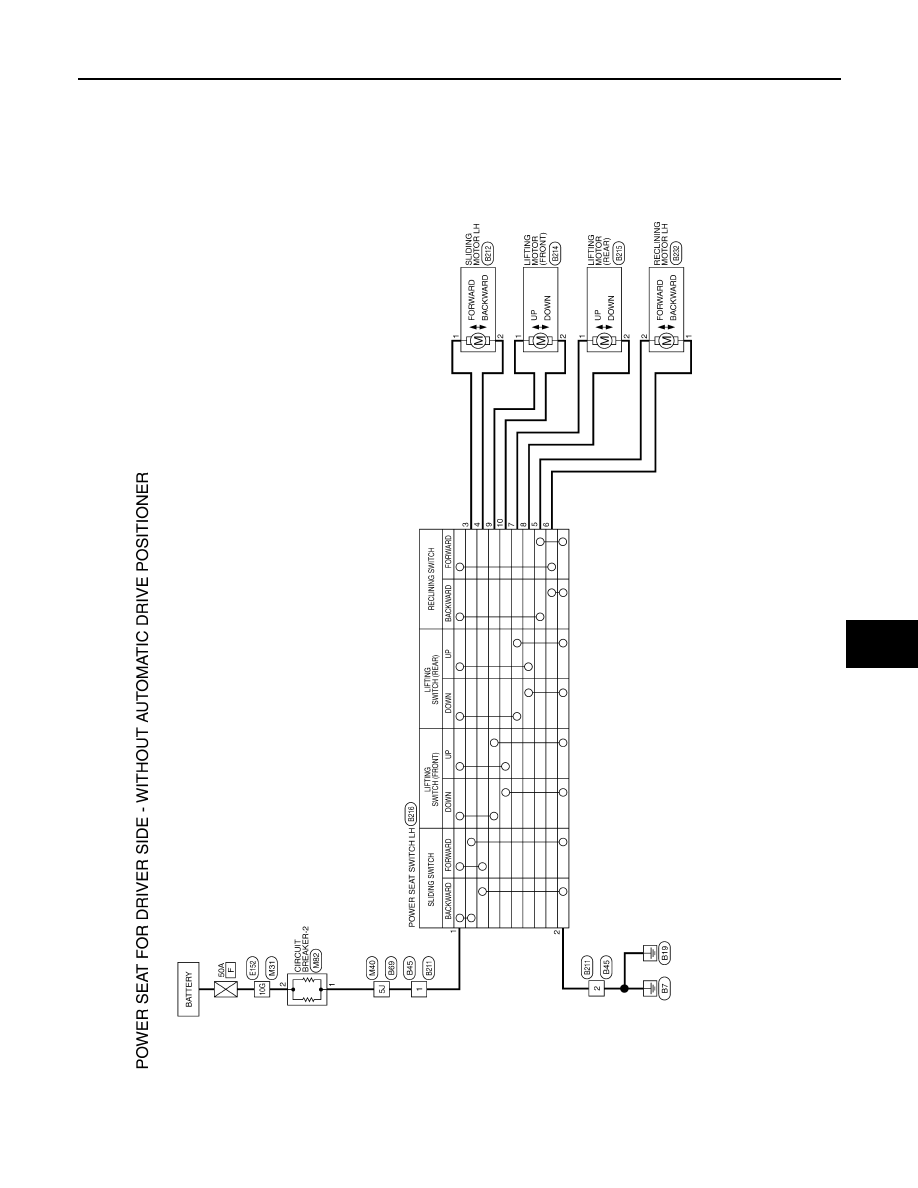

Wiring Diagram - Without Automatic Drive Positioner

INFOID:0000000006464312

ABJWA0095GB

SE-4

< WIRING DIAGRAM >

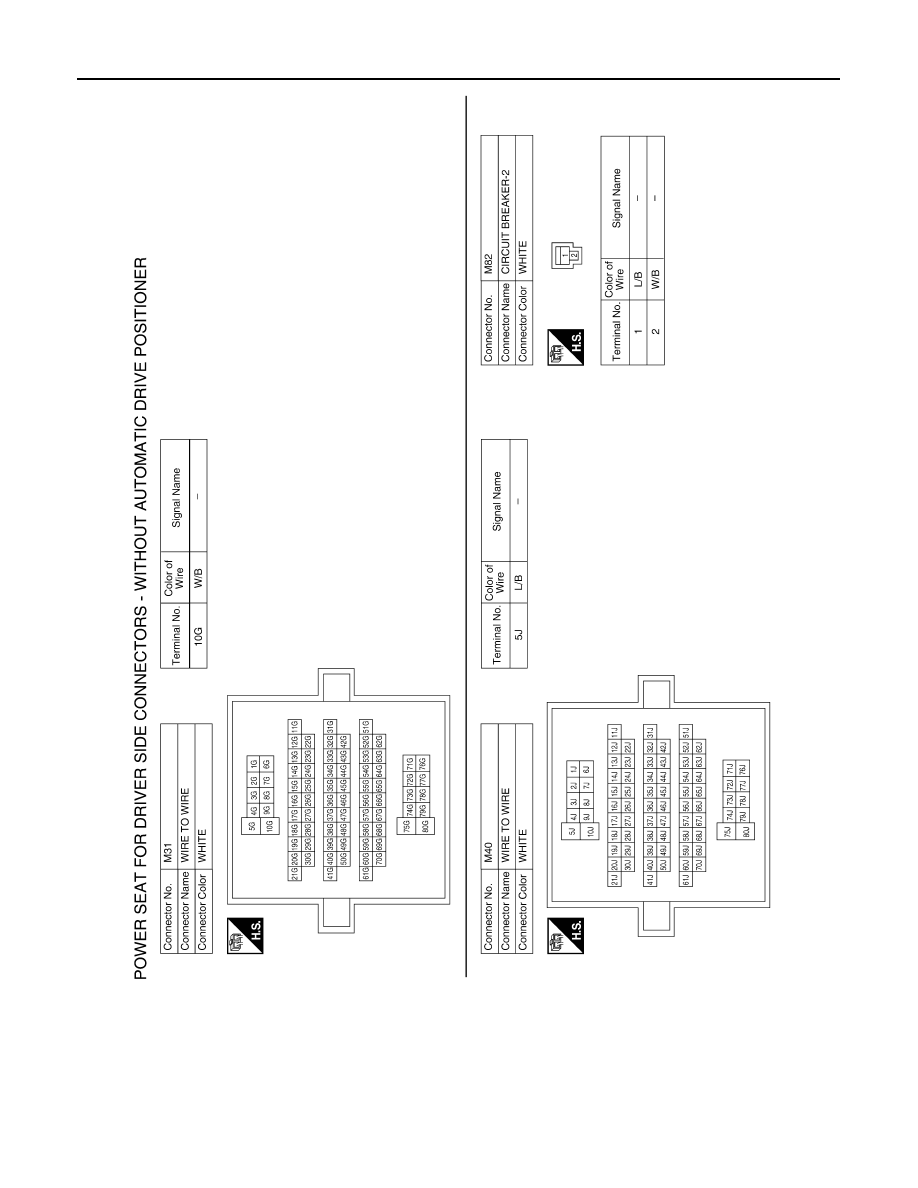

POWER SEAT FOR DRIVER SIDE

ABJIA0293GB
