LAN-16

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

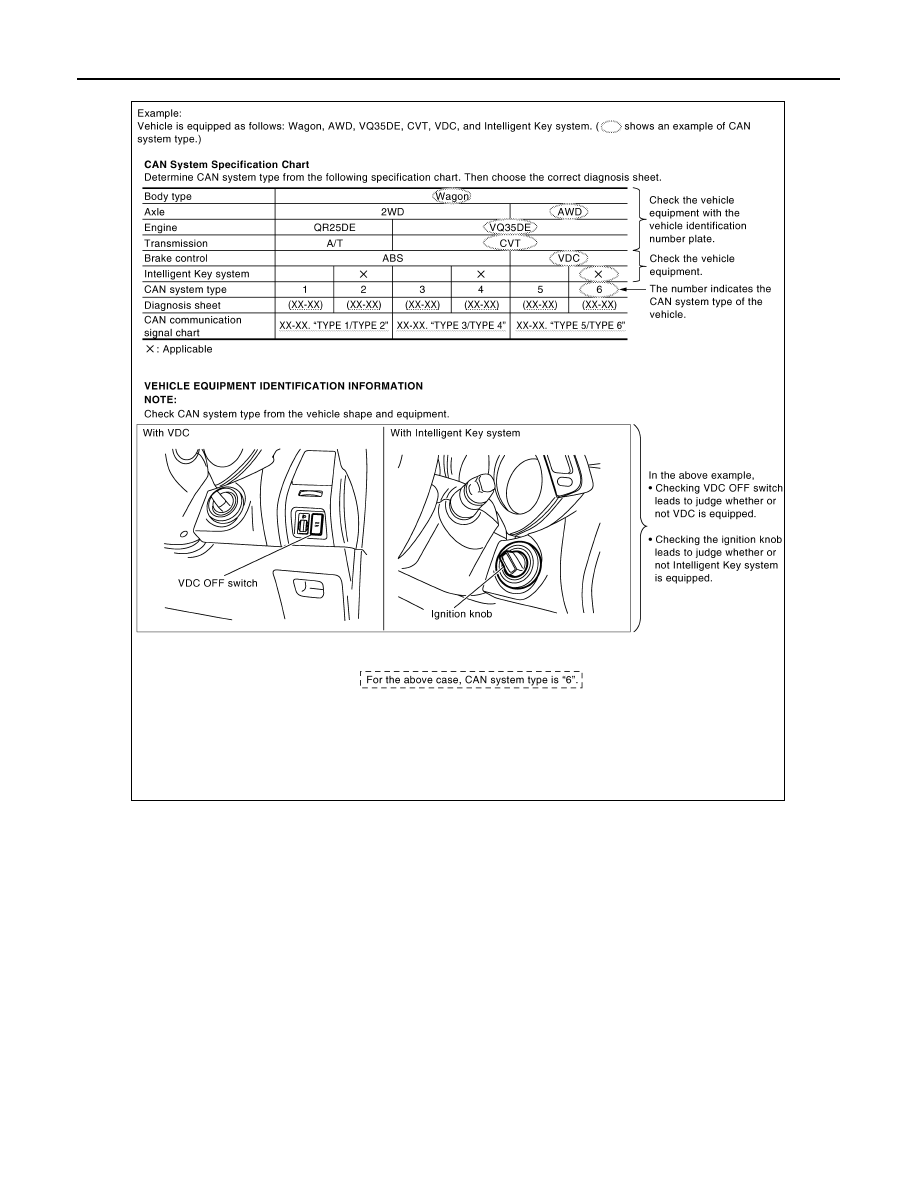

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

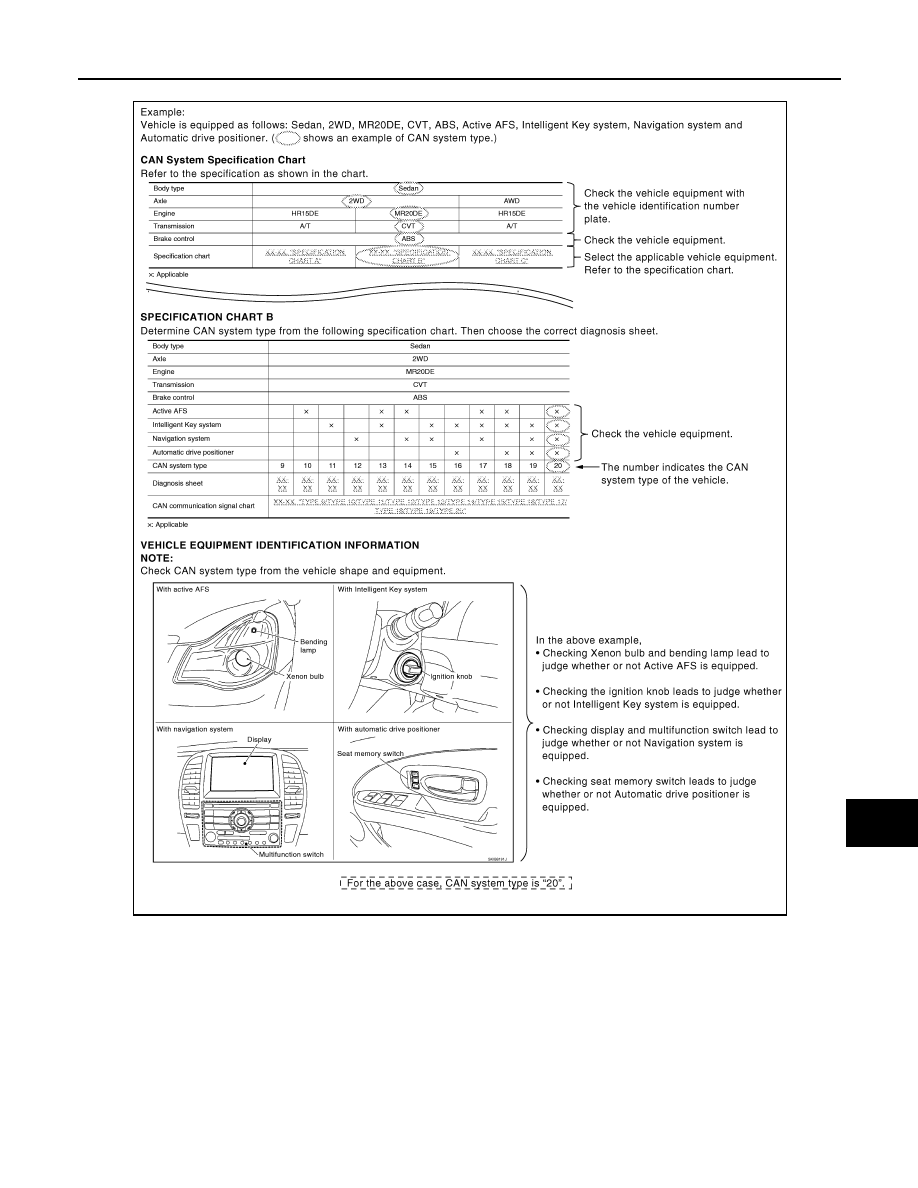

CAN System Type Specification Chart (Style B)

NOTE:

SKIB8888E

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-17

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview

sheet.

SKIB8889E

LAN-18

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

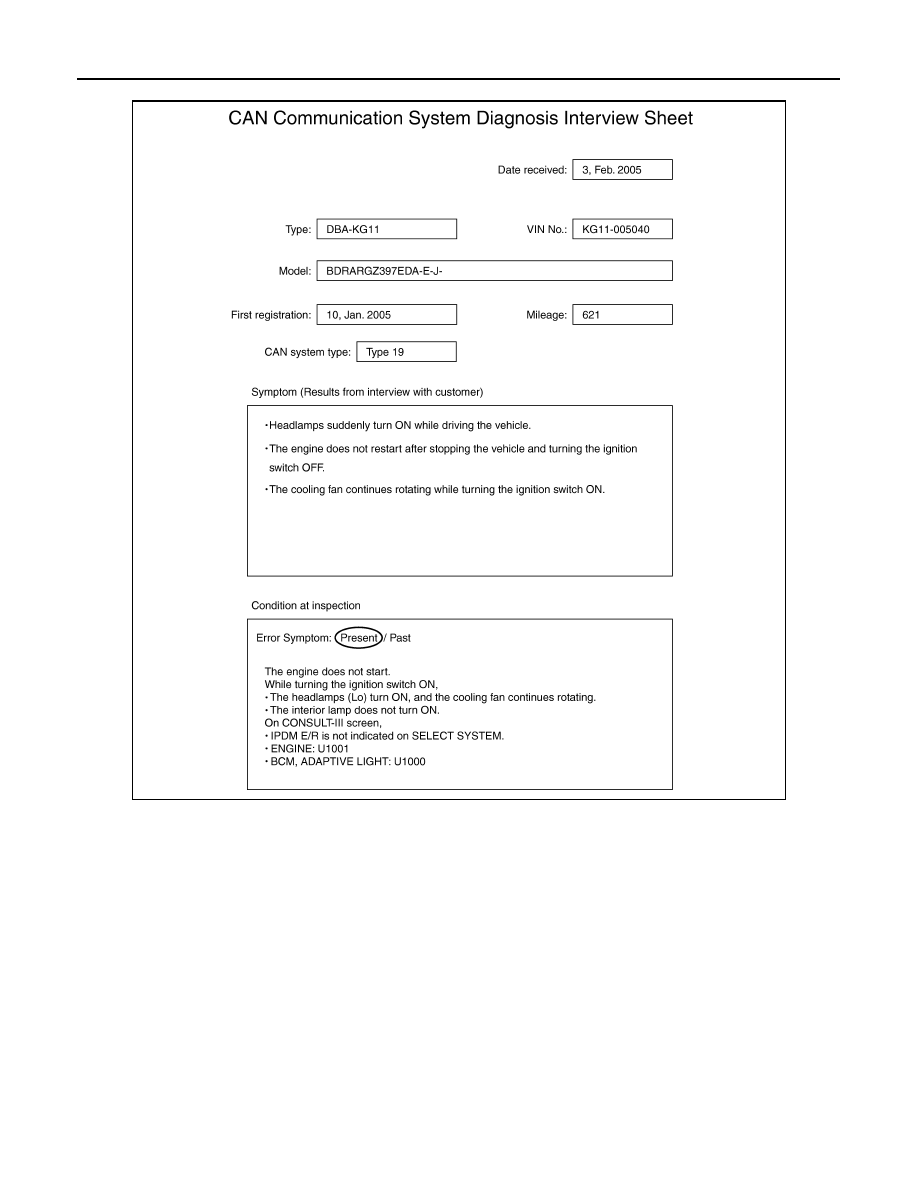

Interview Sheet (Example)

COLLECT DATA

Collect CONSULT-III Data

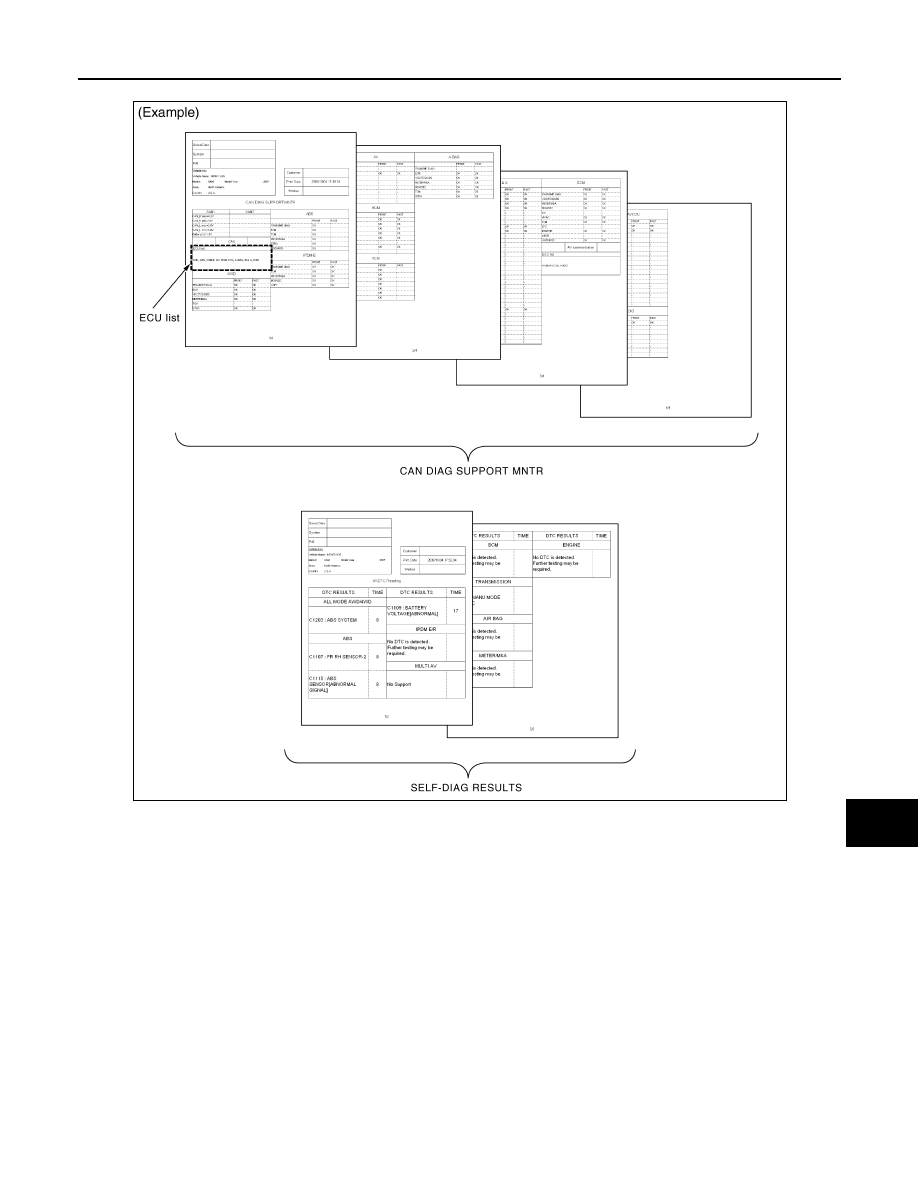

Print out or save the following CONSULT-III data.

• SELF-DIAG RESULTS

• CAN DIAG SUPPORT MNTR (“ECU list” included)

NOTE:

PKID1211E

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-19

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Some items may not be needed depending on CAN system type of vehicle.

Create On-board Diagnosis Copy Sheet

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle

monitor, etc. Copy them on the on-board diagnosis copy sheet.

NOTE:

PKID1212E
