Check continuity between front blower motor harness connector

M62 (B) terminal 1 and variable blower control harness connector

M122 (A) terminal 2.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Repair harness or connector.

14.

CHECK VARIABLE BLOWER CONTROL GROUND CIRCUIT

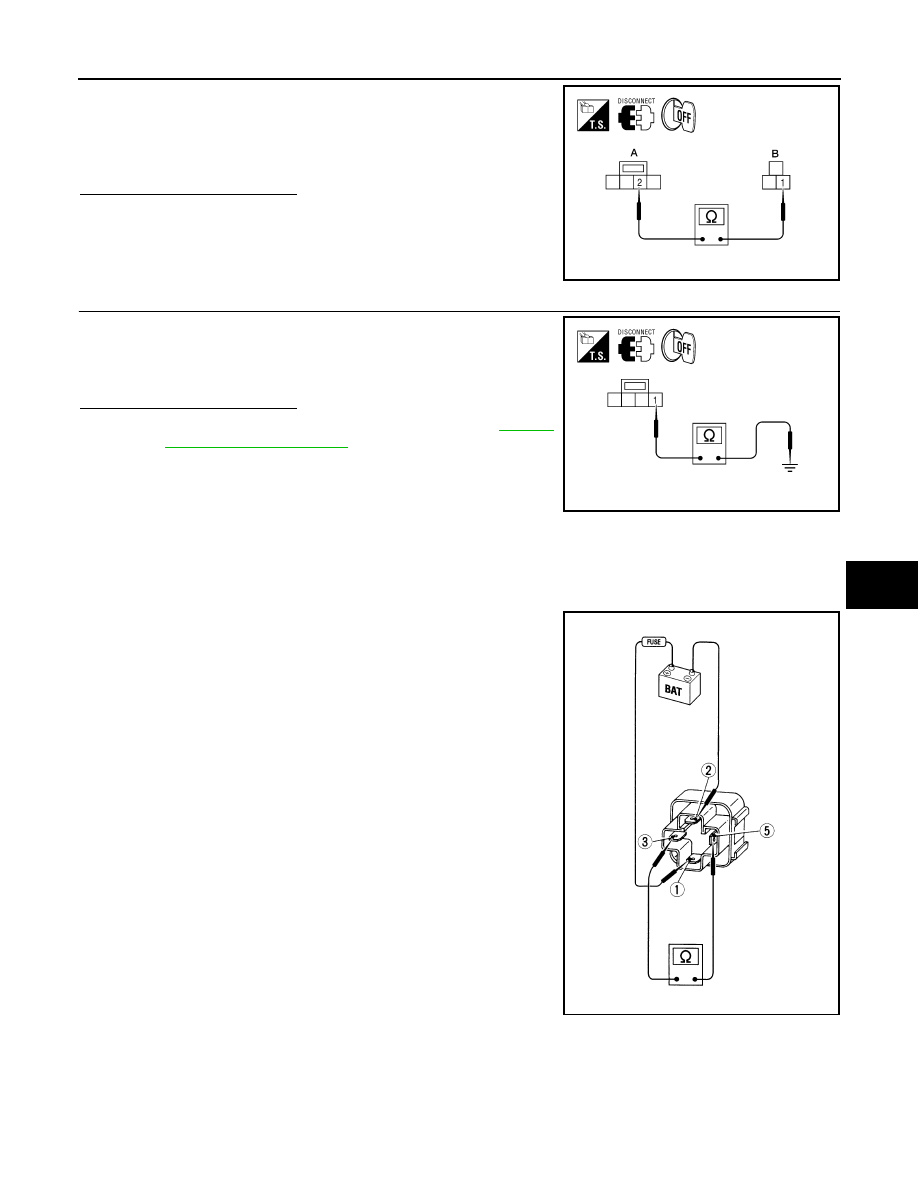

Check continuity between variable blower control harness connector

M122 terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace variable blower control. Refer to

VTL-22,

"Removal and Installation"

.

NO

>> Repair harness or connector.

Front Blower Motor Component Inspection

INFOID:0000000006164769

COMPONENT INSPECTION

Check continuity between terminals 3 and 5 by supplying 12 volts

and ground to coil side terminals 1 and 2 of the relay.

Front Blower Motor

1 - 2

: Continuity should exist.

AWIIA0179ZZ

1 - Ground

: Continuity should exist.

AWIIA0180ZZ

WJIA1401E

HAC-136

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

BLOWER MOTOR CONTROL SYSTEM

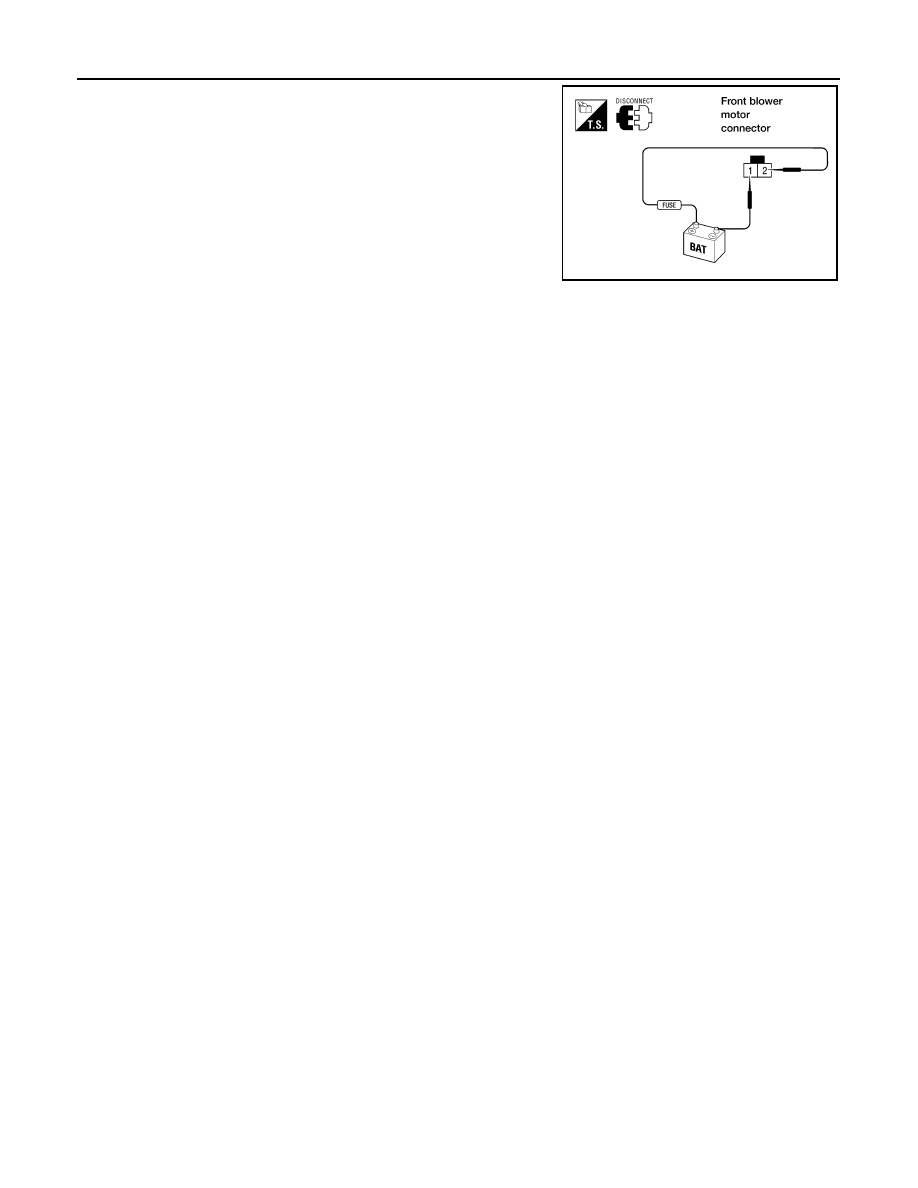

Confirm smooth rotation of the blower motor.

• Ensure that there are no foreign particles inside the blower unit.

• Apply 12 volts to terminal 2 and ground to terminal 1 and verify that

the motor operates freely and quietly.

WJIA1508E

MAGNET CLUTCH

HAC-137

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MAGNET CLUTCH

System Description

INFOID:0000000006164770

SYSTEM DESCRIPTION

The front air control controls compressor operation based on ambient and intake temperature and a signal

from ECM.

Low Temperature Protection Control

The front air control will turn the compressor ON or OFF as determined by a signal detected by the intake sen-

sor and the ambient sensor.

When intake air temperature is higher than the preset value, the compressor turns ON. The compressor turns

OFF when intake air temperature is lower than the preset value. That preset value is dependent on the ambi-

ent temperature, refer to the following table.

Magnet Clutch Component Function Check

INFOID:0000000006164771

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - MAGNET CLUTCH

1. Turn ignition switch ON.

2. Turn the blower control dial to low speed and press the A/C switch.
3. Press vent mode switch (

).

4. Confirm that the compressor clutch engages (sound or visual inspection). (Discharge air and blower

speed will depend on ambient, in-vehicle and set temperatures.)

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Go to diagnosis procedure. Refer to

HAC-137, "Magnet Clutch Diagnosis Procedure"

.

Magnet Clutch Diagnosis Procedure

INFOID:0000000006164772

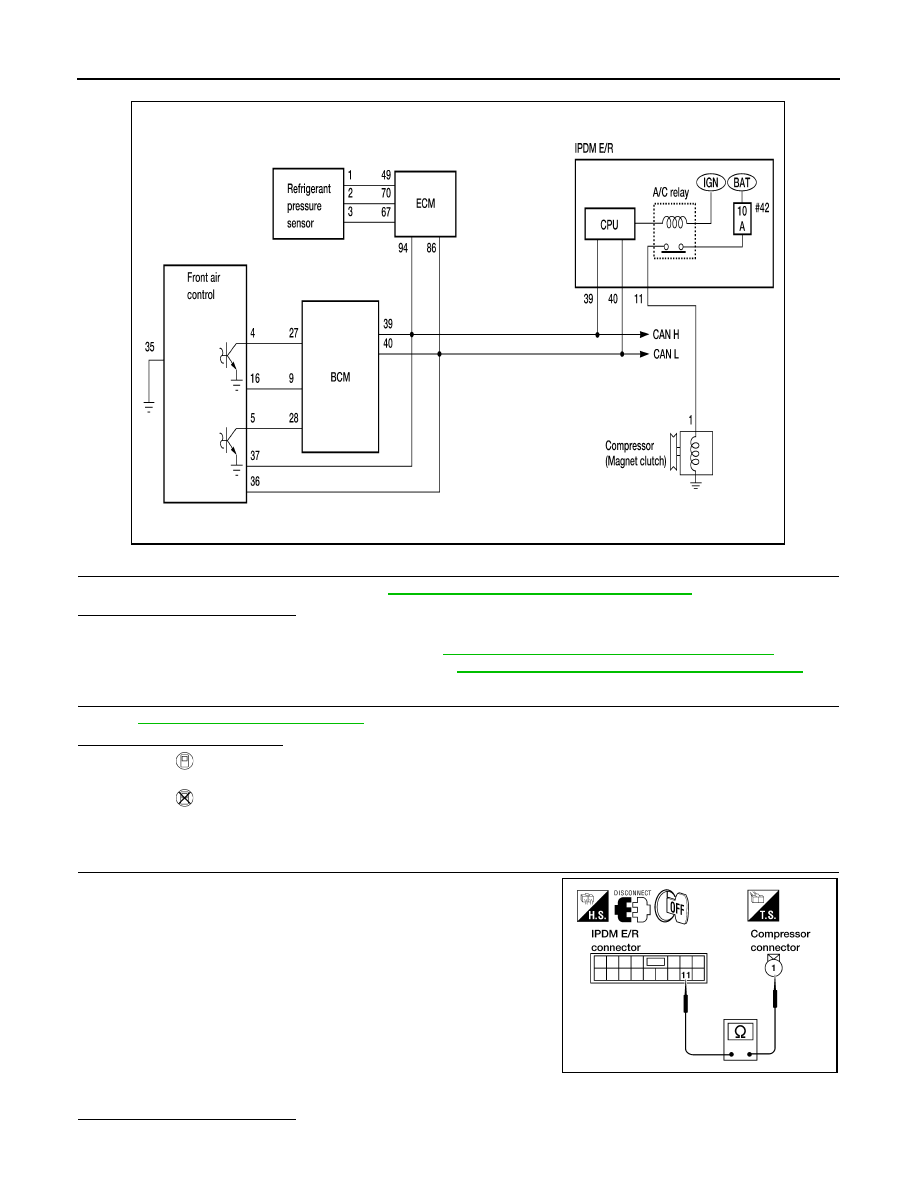

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH

Ambient temperature

°C (°F) Compressor ON intake temperature °C (°F)

Compressor OFF intake temperature

°C (°F)

0 (32)

5.5 (42)

5.0 (41)

10 (50)

5.5 (42)

5.0 (41)

20 (68)

5.5 (42)

5.0 (41)

30 (86)

4.0 (39)

3.5 (38)

40 (104)

3.5 (38)

3.0 (37)

50 (122)

3.5 (38)

3.0 (37)

HAC-138

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

MAGNET CLUTCH

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

1.

CHECK INTAKE AND AMBIENT SENSOR CIRCUITS

Check intake and ambient sensors. Refer to

HAC-114, "Front Air Control Self-Diagnosis"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> • Malfunctioning intake sensor. Refer to

HAC-147, "Intake Sensor Diagnosis Procedure"

.

• Malfunctioning ambient sensor. Refer to

HAC-144, "Ambient Sensor Diagnosis Procedure"

.

2.

PERFORM AUTO ACTIVE TEST

Refer to

PCS-11, "Diagnosis Description"

.

Does magnet clutch operate?

YES

>> •

WITH CONSULT-III

GO TO 5.

•

WITHOUT CONSULT-III

GO TO 6.

NO

>> Check 10A fuse (No. 42, located in IPDM E/R), and GO TO 3.

3.

CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector and compressor (magnet

clutch) connector.

3. Check continuity between IPDM E/R harness connector E119

terminal 11 and A/C compressor harness connector F3 terminal

1.

4. Check continuity between IPDM E/R harness connector E119

terminal 11 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

AWIIA0415GB

11 – 1

: Continuity should exist.

11 – ground

: Continuity should not exist.

WJIA0560E
