Nissan Titan A60. Manual - part 578

CONDENSER

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

Removal and Installation for Condenser

INFOID:0000000006163117

REMOVAL

1. Discharge the refrigerant. Refer to

HA-29, "HFC-134a (R-134a) Service Procedure"

 .

2. Remove the radiator. Refer to

CO-16, "Removal and Installation"

 .

CAUTION:

Be careful not to damage the core surface of the condenser and the radiator.

3. Disconnect the high-pressure flexible hose and the high-pressure pipe from the condenser.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

4. Disconnect the refrigerant pressure sensor connector.

• Remove the refrigerant pressure sensor from the condenser

as necessary.

5. Lift the condenser out of the mounting grommets to remove the

condenser.

INSTALLATION

Installation is in the reverse order of removal.

Refer to

HA-28, "Component"

 .

CAUTION:

• Replace the O-rings of the high-pressure pipe, refrigerant pressure sensor, and high-pressure flexi-

ble hose with new ones, then apply compressor oil to them when installing them.

• After charging refrigerant, check for leaks.

• Replace the grommets as necessary.

LJIA0145E

HA-42

< REMOVAL AND INSTALLATION >

REFRIGERANT PRESSURE SENSOR

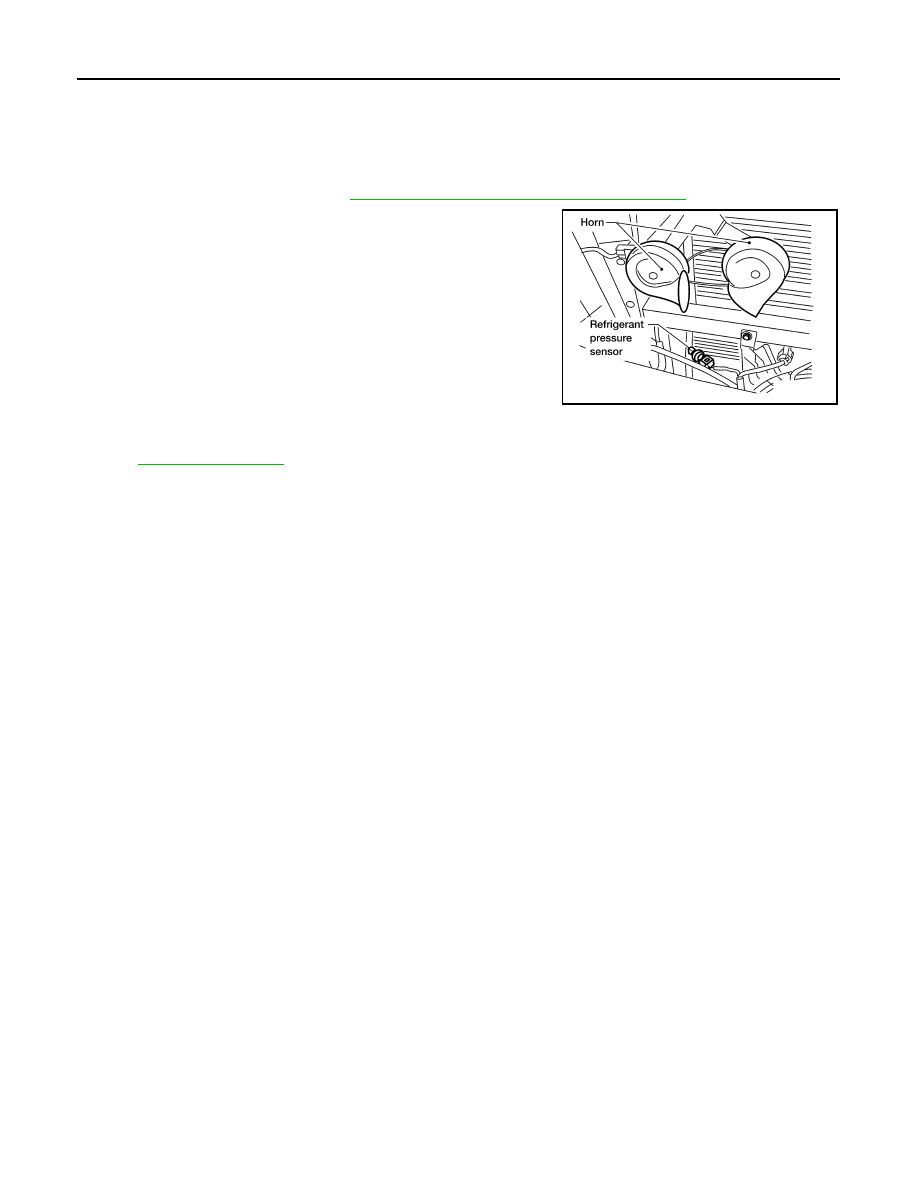

REFRIGERANT PRESSURE SENSOR

Removal and Installation for Refrigerant Pressure Sensor

INFOID:0000000006163118

REMOVAL

1. Discharge the refrigerant. Refer to

HA-29, "HFC-134a (R-134a) Service Procedure"

 .

2. Disconnect the refrigerant pressure sensor electrical connector

and remove the refrigerant pressure sensor from the condenser.

CAUTION:

Be careful not to damage the condenser fins.

INSTALLATION

Installation is in the reverse order of removal.

Refer to

HA-28, "Component"

 .

CAUTION:

• Be careful not to damage the condenser fins.

• Replace the O-ring of the refrigerant pressure sensor with a new one, then apply compressor oil to it

when installing it.

• After charging refrigerant, check for leaks.

LJIA0145E

EXPANSION VALVE

HA-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

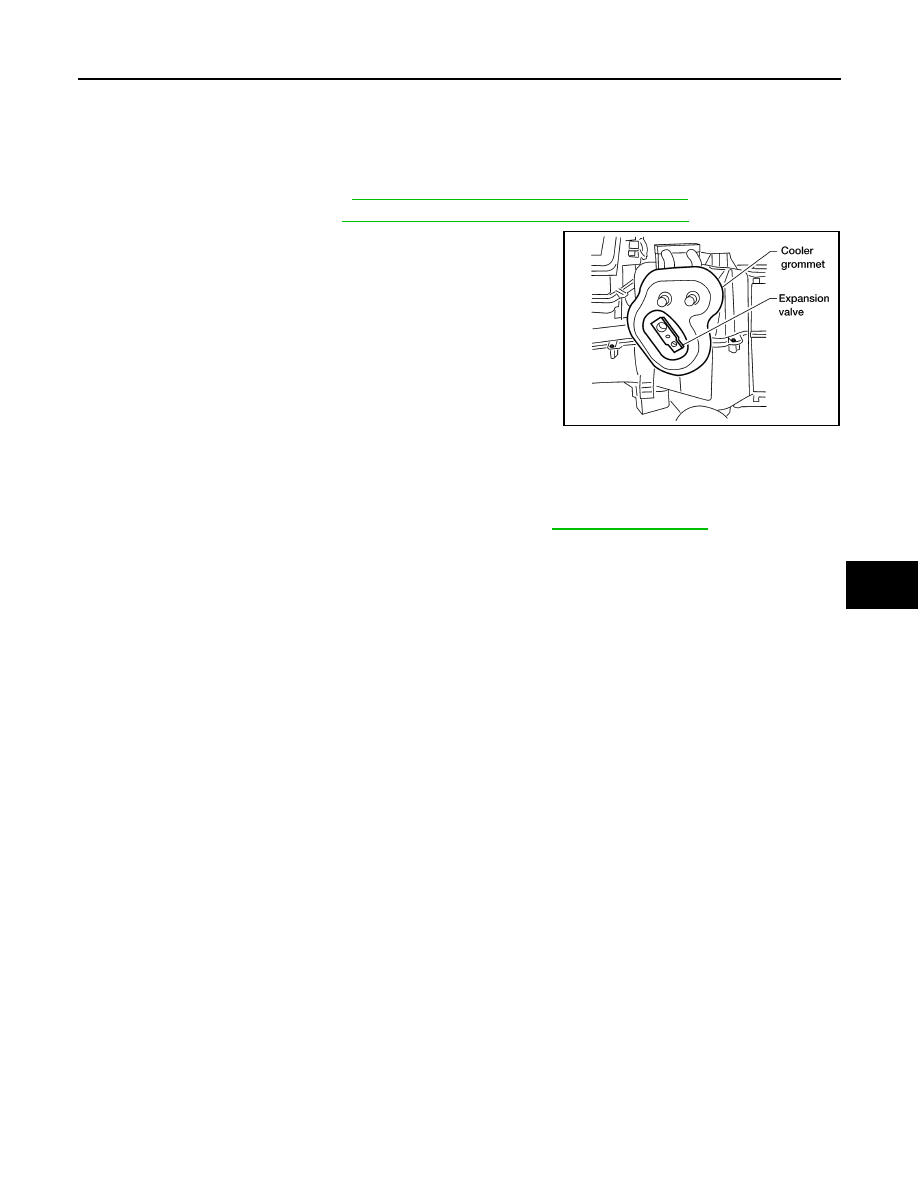

EXPANSION VALVE

Removal and Installation for Expansion Valve

INFOID:0000000006163119

REMOVAL

1. Discharge the refrigerant. Refer to

HA-29, "HFC-134a (R-134a) Service Procedure"

 .

2. Remove the evaporator. Refer to

VTL-27, "Removal and Installation for Evaporator"

 .

3. Remove the cooler grommet.
4. Remove the expansion valve.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace the O-rings on the A/C refrigerant pipes with new ones, then apply compressor oil to them

when installing them.

• After charging refrigerant, check for leaks.

WJIA0582E

Expansion valve bolts

: 4 N·m (0.41 kg-m, 35 in-lb)

A/C refrigerant pipe to expansion valve bolt

: Refer to

HA-28, "Component"

 .

HA-44

< REMOVAL AND INSTALLATION >

LIQUID TANK

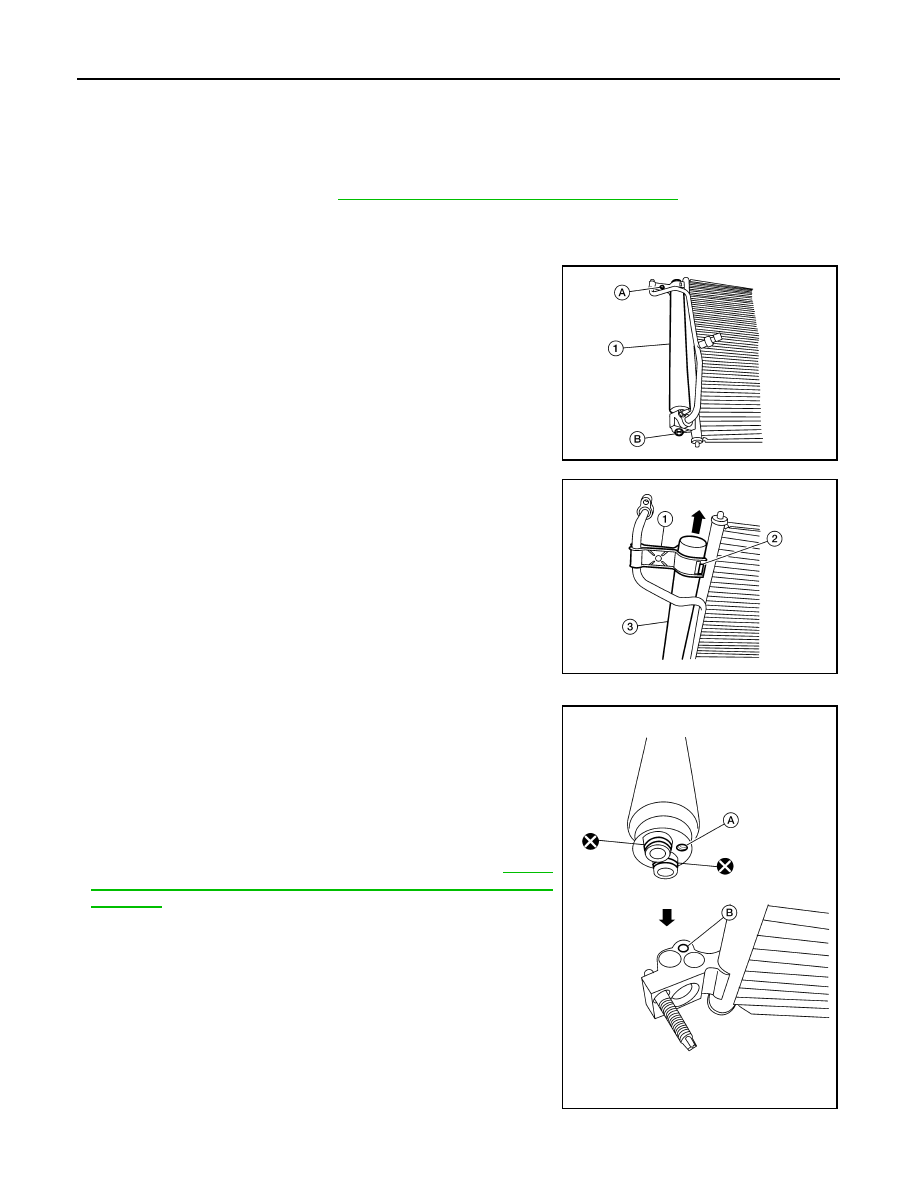

LIQUID TANK

Removal and Installation of Liquid Tank

INFOID:0000000006713222

REMOVAL

1. Remove the condenser. Refer to

HA-41, "Removal and Installation for Condenser"

.

2. Clean liquid tank and its surrounding area, and remove dirt and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

3. Remove bracket bolt (A) and liquid tank attachment bolt (B) from

liquid tank (1) at the condenser mounting block.

4. Remove liquid tank bracket (1) from protruding part of con-

denser (2).

5. Slide liquid tank (3) upward away from condenser mounting

block, and remove liquid tank (3).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Be careful to align the threaded liquid tank attachment bolt hole (A)

with condenser mounting block hole (B).

CAUTION:

• Make sure liquid tank attachment bolt is securely installed at

condenser mounting block (B).

• Always replace O-rings for A/C piping and liquid tank with

new ones, and apply compressor oil when installing.

• When recharging refrigerant, check for leaks. Refer to

HA-24,

"Checking System for Leaks Using the Fluorescent Dye Leak

Detector"

.

ALIIA0403ZZ

ALIIA0404ZZ

ALIIA0405ZZ
