GI-46

< BASIC INSPECTION >

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

INPUT-OUTPUT VOLTAGE CHART

• The voltage value is based on the body ground.
• *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 1 does not detect battery voltage. Control unit

does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not supply power to light up the
lamp.

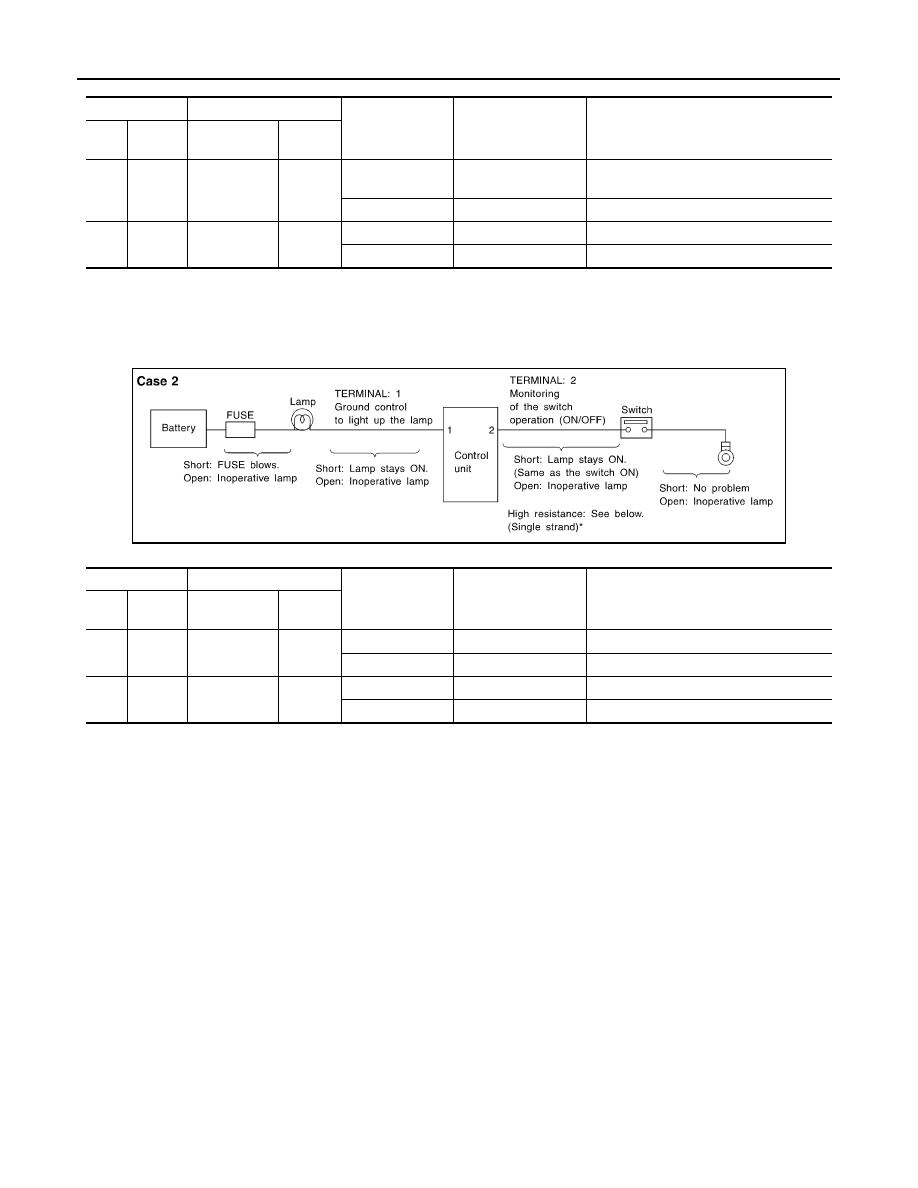

CASE 2

INPUT-OUTPUT VOLTAGE CHART

• The voltage value is based on the body ground.
• *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 2 does not detect approx. 0V. Control unit

does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not control ground to light up the
lamp.

Terminal No.

Description

Condition

Value (Approx.)

In case of high resistance such as single
strand (V) *

+

Signal name

Input/

Output

1

Body
ground

Switch

Input

Switch ON

Battery voltage

Lower than battery voltage Approx. 8 (Ex-
ample)

Switch OFF

0 V

Approx. 0

2

Body
ground

Lamp

Output

Switch ON

Battery voltage

Approx. 0 (Inoperative lamp)

Switch OFF

0 V

Approx. 0

Terminal No.

Description

Condition

Value (Approx.)

In case of high resistance such as single
strand (V) *

+

Signal name

Input/

Output

1

Body
ground

Lamp

Output

Switch ON

0V

Battery voltage (Inoperative lamp)

Switch OFF

Battery voltage

Battery voltage

2

Body
ground

Switch

Input

Switch ON

0 V

Higher than 0 Approx. 4 (Example)

Switch OFF

5 V

Approx. 5

MGI035A

CONSULT-III CHECKING SYSTEM

GI-47

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

CONSULT-III CHECKING SYSTEM

Description

INFOID:0000000006163388

• When CONSULT-III is connected with a data link connector

equipped on the vehicle side, it will communicate with the control

unit equipped in the vehicle and then enable various kinds of diag-

nostic tests.

• Refer to “CONSULT-III Operation Manual” for more information.

Function and System Application

INFOID:0000000006163389

x: Applicable
*1:With automatic drive positioner
*2: With 4-wheel drive
*3: With electronic locking rear differential

CONSULT-III Data Link Connector (DLC) Circuit

INFOID:0000000006163390

INSPECTION PROCEDURE

If the CONSULT-III cannot diagnose the system properly, check the following items.

1

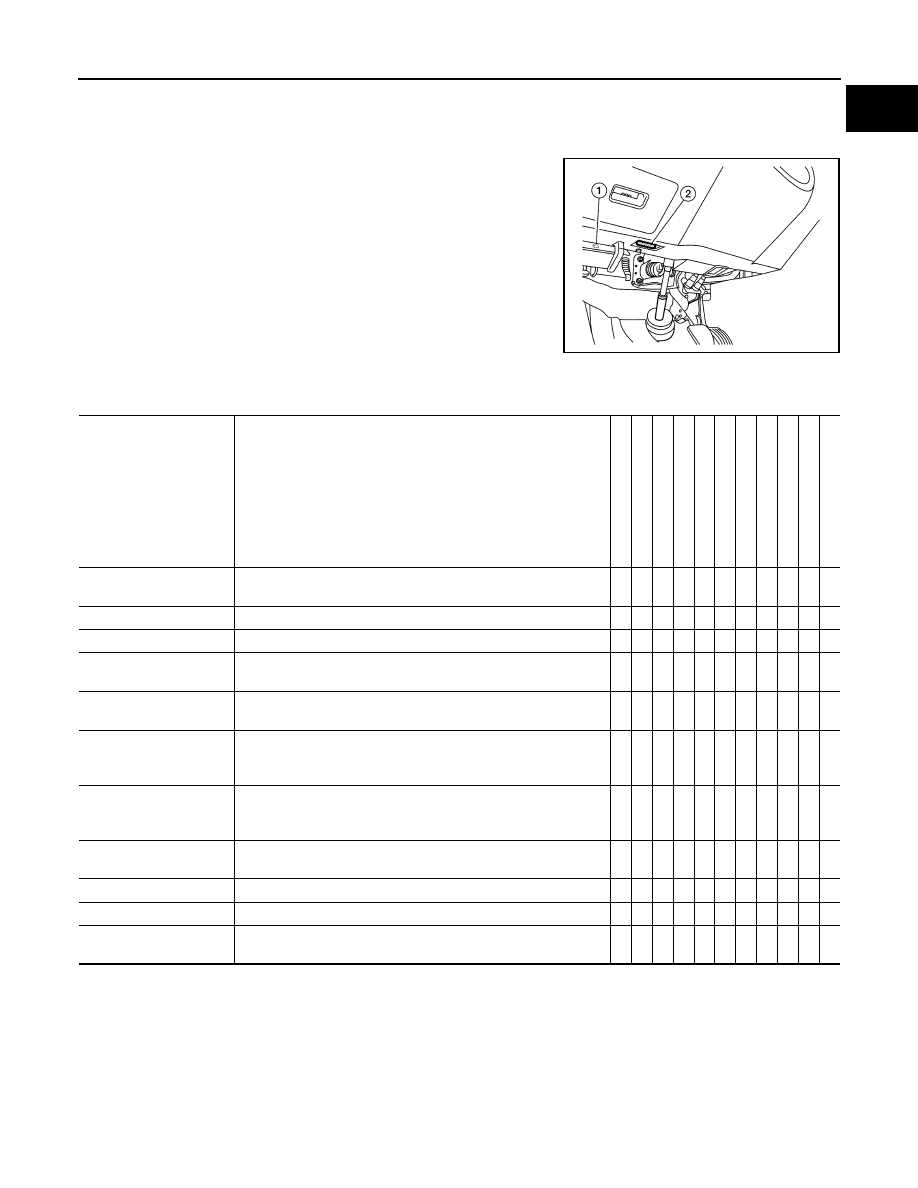

: Hood release handle

2

: Data link connector

ALBIA0047ZZ

Direct Diagnostic Mode

Description

ENGINE

T

R

ANSMI

SSION

AB

S

AI

R BAG

IPDM

 E/R

BCM

METER/

M&A

AUT

O

 DRIVE

POS.

*1

ALL MODE

A

W

D/4WD

*2

DIFF LOCK

*3

HV

A

C

Work support

This mode enables a technician to adjust some devices faster and
more accurately by following the indications on CONSULT-III.

x

-

x

-

-

x

-

x

-

-

-

Self-diagnostic results

Self-diagnostic results can be read and erased quickly.

x

x

x

x

x

x

x

x

x

x

x

Data monitor

Input/Output data in the ECU can be read.

x

x

x

x

x

x

x

x

x

x

x

CAN diagnosis

The condition of CAN communication can be indicated by a topol-
ogy.

x

x

x

x

x

x

x

x

x

x

x

CAN diagnosis support
monitor

The communication condition of CAN communication line can be
read.

x

x

x

-

x

x

x

x

x

x

x

Active test

Diagnostic Test Mode in which CONSULT-III drives some actua-
tors apart from the ECUs and also shifts some parameters in a
specified range.

x

-

x

-

x

x

-

x

-

-

-

Function test

This mode can show results of self-diagnosis of ECU with either
“OK” or “NG”. For engines, more practical tests regarding sen-
sors/switches and/or actuators are available.

x

x

x

x

-

-

-

-

-

-

-

DTC & SRT confirmation

The results of SRT (System Readiness Test) and the self-diagno-
sis status/result can be confirmed.

x

x

-

-

-

-

-

-

-

-

-

ECU Identification

ECU part number can be read.

x

x

x

x

-

x

-

x

-

x

x

Configuration

Sets control module parameters to match vehicle options.

-

-

-

-

-

x

-

-

-

-

-

Special Function

Other results or histories, etc. that are recorded in ECU are dis-
played.

-

-

-

x

-

-

-

-

-

-

-

GI-48

< BASIC INSPECTION >

CONSULT-III CHECKING SYSTEM

NOTE:

The CAN and DDL2 circuits from DLC pins 6, 7 and 14 may be connected to more than one system. A short in

any circuit connected to a control unit in one system may affect CONSULT-III access to other systems.

Symptom

Check item

CONSULT-III cannot access
any system.

• CONSULT-III DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4)

CONSULT-III cannot access in-
dividual system. (Other sys-
tems can be accessed.)

• Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit between the system and CONSULT-III DLC (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit CAN communication line. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

CONSULT-III CHECKING SYSTEM

GI-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

WIRING DIAGRAM

CONSULT-III CHECKING SYSTEM

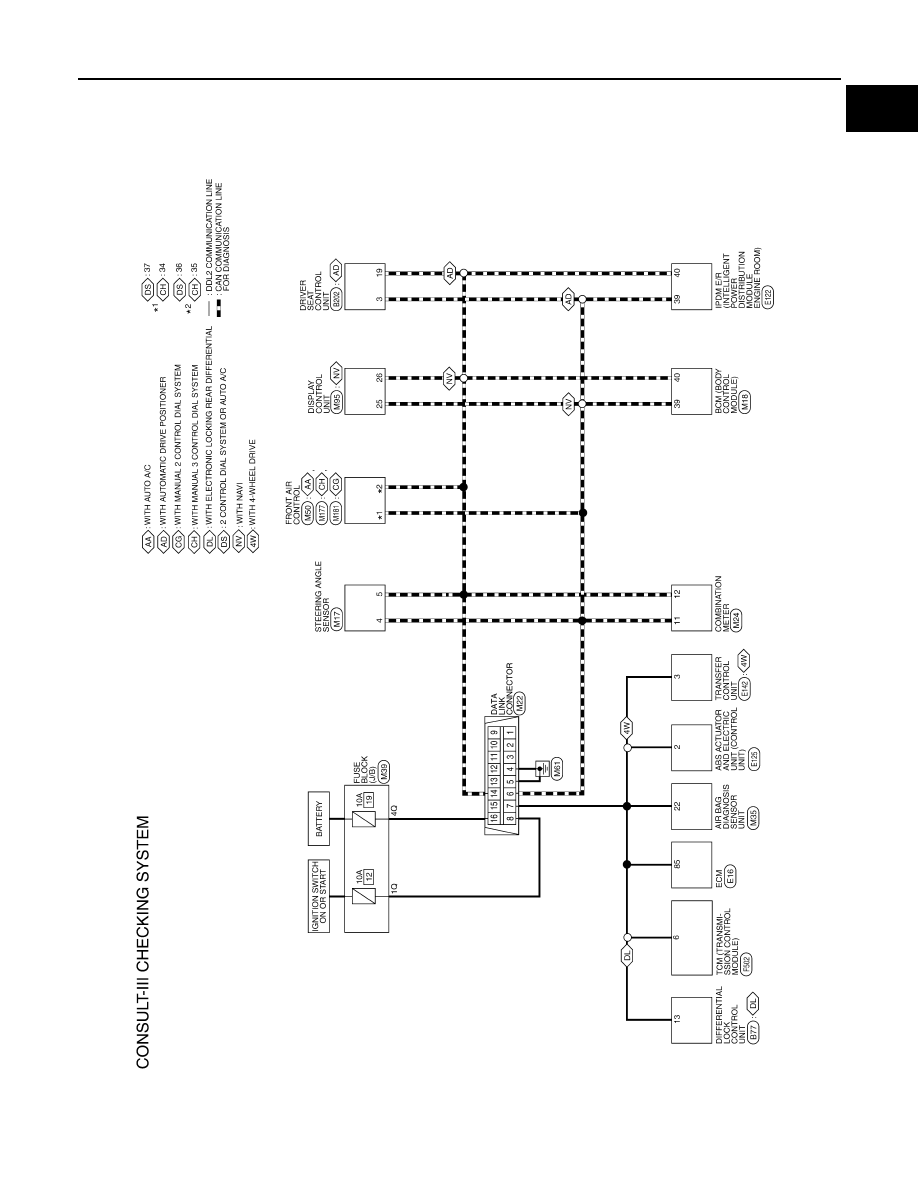

Wiring Diagram

INFOID:0000000006459114

ABAWA0065GB
