GI-10

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

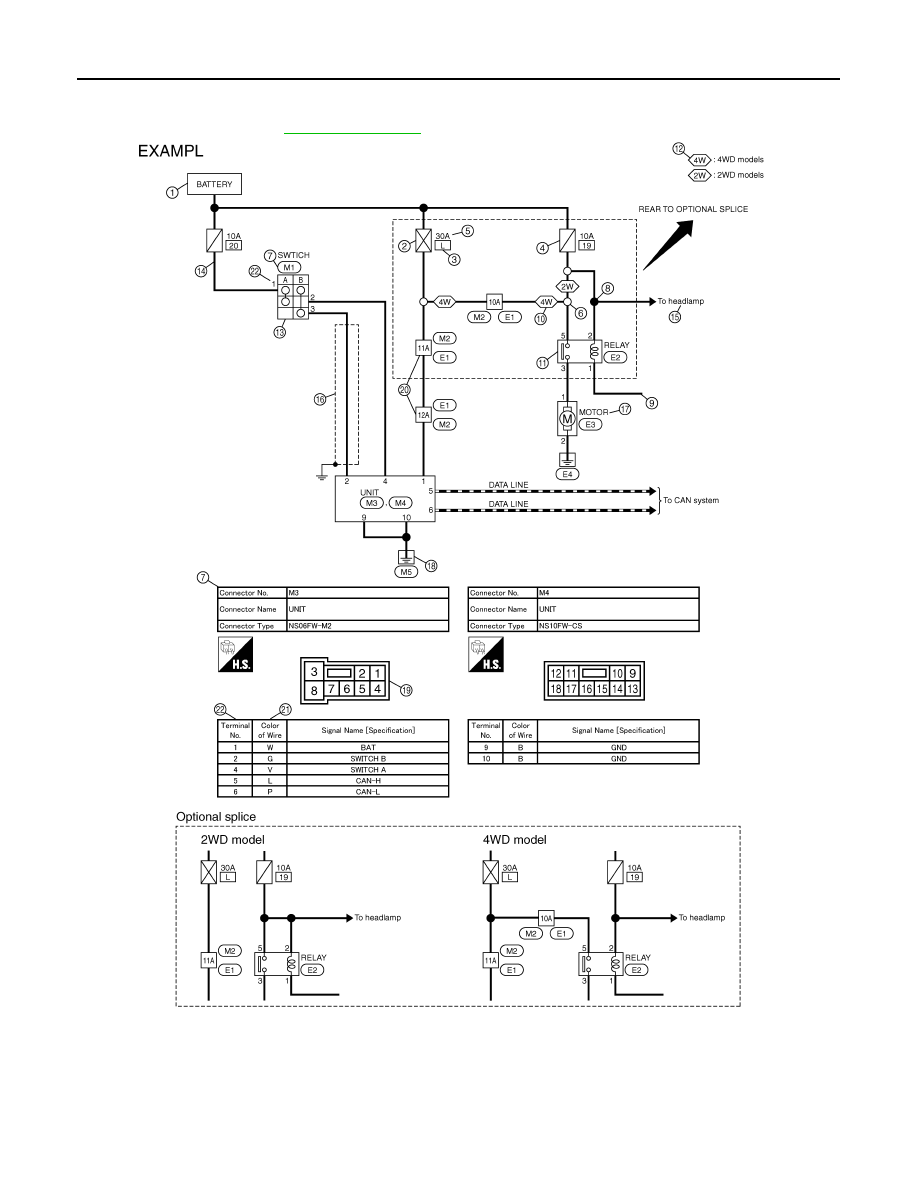

Sample/wiring diagram -example-

INFOID:0000000006163358

• For detail, refer to following

GI-11, "Description"

.

JCAWA0005GB

HOW TO READ WIRING DIAGRAMS

GI-11

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Description

INFOID:0000000006163359

SWITCH POSITIONS

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.

A vehicle is in the “normal” condition when:

Number

Item

Description

1

Power supply

• This means the power supply of fusible link or fuse.

2

Fusible link

• “X” means the fusible link.

3

Number of fusible link/
fuse

• This means the number of fusible link or fuse location.

4

Fuse

• “/” means the fuse.

5

Current rating of fus-
ible link/fuse

• This means the current rating of the fusible link or fuse.

6

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

7

Connector number

• The letter shows which harness the connector is located in.
• Example “M”: main harness. For detail and to locate the connector, refer to

PG-64, "Elec-

trical Units Location"

PG-40, "Harness Layout"

.

8

Splice

• The shaded circle “

” means the splice.

9

Page crossing

• This circuit continues to an adjacent page.

10

Option abbreviation

• This means the vehicle specifications which layouts the circuit between “ ”.

11

Relay

• This shows an internal representation of the relay.

12

Option description

• This shows a description of the option abbreviation used on the page.

13

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A

position. Continuity exists between terminals 1 and 3 when the switch is in the B position.

14

Circuit (Wiring)

• This means the wiring.

15

System branch

• This shows that the circuit is branched to other systems.

16

Shielded line

• The line enclosed by broken line circle shows shield wire.

17

Component name

• This shows the name of a component.

18

Ground (GND)

• This shows the ground connection.

19

Connector

• This means the connector information.
• This unit-side is described by the connector symbols.

20

Connectors

• This means that a transmission line bypasses two connectors or more.

21

Wire color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

• When the wire color is striped, the base color is given first, followed by the stripe color as

shown below:
Example: L/W = Blue with White Stripe

22

Terminal number

• This means the terminal number of a connector.

GI-12

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

• ignition switch is “OFF”,

• doors, hood and trunk lid/back door are closed,

• pedals are not depressed, and

• parking brake is released.

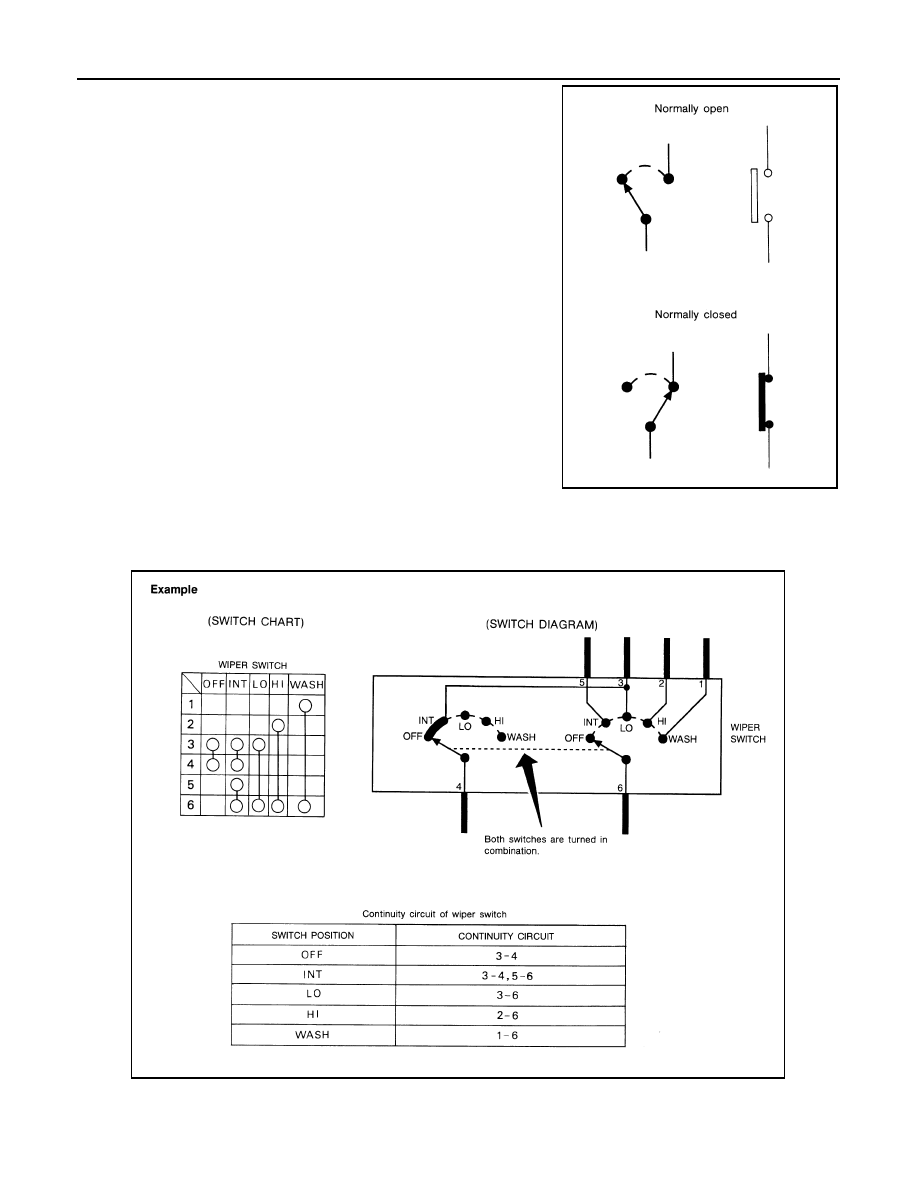

MULTIPLE SWITCH

The continuity of multiple switch is described in two ways as shown below.

• The switch chart is used in schematic diagrams.

• The switch diagram is used in wiring diagrams.

SGI860

JSAIA0017GB

ABBREVIATIONS

GI-13

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

ABBREVIATIONS

Abbreviation List

INFOID:0000000006163360

The following ABBREVIATIONS are used:

ABBREVIATION

DESCRIPTION

A/C

Air Conditioner

A/T

Automatic Transaxle/Transmission

ATF

Automatic Transmission Fluid

AWD

All wheel drive

D

1

Drive range [First Gear (1GR)]

D

2

Drive range [Second Gear (2GR)]

D

3

Drive range [Third Gear (3GR)]

D

4

Drive range [Fourth Gear (4GR)]

FR, RR

Front, Rear

LH, RH

Left-Hand, Right-Hand

OD

Overdrive

P/S

Power Steering

SAE

Society of Automotive Engineers, Inc.

SDS

Service Data and Specifications

SST

Special Service Tools

2WD

2-Wheel Drive

4WD

4-Wheel Drive

2

2

2nd range [Second Gear (2GR)]

2

1

2nd range [First Gear (1GR)]

1

2

1st range [Second Gear (2GR)]

1

1

1st range [First Gear (1GR)]
