ON-VEHICLE SERVICE

FSU-9

< PERIODIC MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

• Any turning angles are not adjustable. If any of steering angles are out of the specification, check if the

following parts are worn or damaged.

- Steering gear

- Steering column

- Front suspension components

If found that they are worn or damaged, replace them with new ones.

FSU-10

< PERIODIC MAINTENANCE >

UPPER BALL JOINT AND LOWER BALL JOINT

UPPER BALL JOINT AND LOWER BALL JOINT

Inspection

INFOID:0000000006161670

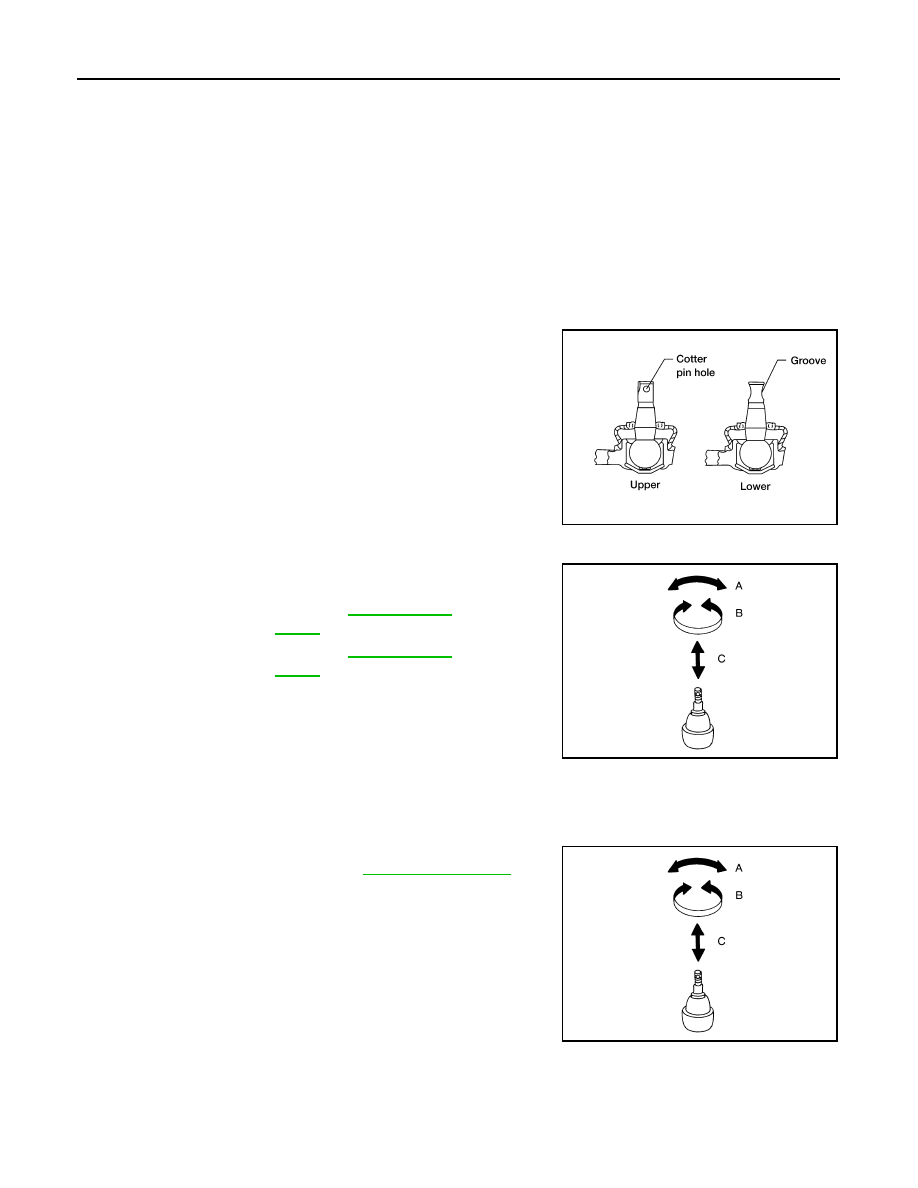

• Check the ball joint for excessive play. Replace the upper or lower link assembly if any of the following

exists:

- Ball joint stud is worn.

- Ball joint is hard to swing.

- Ball joint play in axial directions or end play is excessive.

Swinging Force

NOTE:

Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball

joint is properly broken in.
1. Measure the ball joint swinging force using a suitable tool.

• Measure at the cotter pin hole for upper ball joint as shown.

• Measure at the groove for lower ball joint as shown.

2. Verify the ball joint swinging force is within specification.

Turning Force

NOTE:

Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball

joint is properly broken in.

Vertical End Play

Check dust cover for damage. Replace it and the cover clamp if necessary.

NOTE:

WEIA0076E

Swinging force (A)
Upper ball joint

: Refer to

FSU-24, "Ball

Joint"

.

Lower ball joint

: Refer to

FSU-24, "Ball

Joint"

.

SFA858A

Turning torque (B)

: Refer to

FSU-24, "Ball Joint"

.

SFA858A

UPPER BALL JOINT AND LOWER BALL JOINT

FSU-11

< PERIODIC MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

Before checking the axial forces and end play, turn the lower ball

joint at least 10 revolutions so that the ball joint is properly broken in.

Vertical end play (C)

: Refer to

FSU-24, "Ball Joint"

.

SFA858A

FSU-12

< PERIODIC MAINTENANCE >

KNUCKLE

KNUCKLE

On-Vehicle Inspection and Service

INFOID:0000000006161671

Make sure the mounting conditions (looseness, backlash) of each component and component status (wear,

damage) are within specifications. Refer to

FSU-24, "Ball Joint"

 .
