PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON ......................

134

Description ............................................................

134

Diagnosis Procedure .............................................

134

BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .....................................................

135

Description ............................................................

135

Diagnosis Procedure .............................................

135

PRECAUTION ............................................

136

PRECAUTIONS ................................................

136

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

136

Precaution for Work  ..............................................

136

REMOVAL AND INSTALLATION .............

137

HEADLAMP ......................................................

137

Aiming Adjustment  ................................................

137

Bulb Replacement .................................................

138

Removal and Installation .......................................

139

Disassembly and Assembly  ..................................

140

AUTO LIGHT SYSTEM  ....................................

141

Removal and Installation .......................................

141

FRONT FOG LAMP ..........................................

142

Aiming Adjustment .................................................

142

Bulb Replacement  .................................................

143

Removal and Installation  .......................................

143

LIGHTING & TURN SIGNAL SWITCH  ...........

144

Removal and Installation  .......................................

144

HAZARD SWITCH  ..........................................

145

Removal and Installation  .......................................

145

PUDDLE LAMP ...............................................

146

Removal and Installation  .......................................

146

Bulb Replacement  .................................................

146

HIGH-MOUNTED STOP LAMP  ......................

147

Bulb Replacement  .................................................

147

Removal and Installation  .......................................

147

REAR COMBINATION LAMP .........................

148

Bulb Replacement  .................................................

148

Removal and Installation  .......................................

148

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

149

SERVICE DATA AND SPECIFICATIONS
(SDS) ...............................................................

149

Headlamp ..............................................................

149

Exterior Lamp  ........................................................

149

EXL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006178982

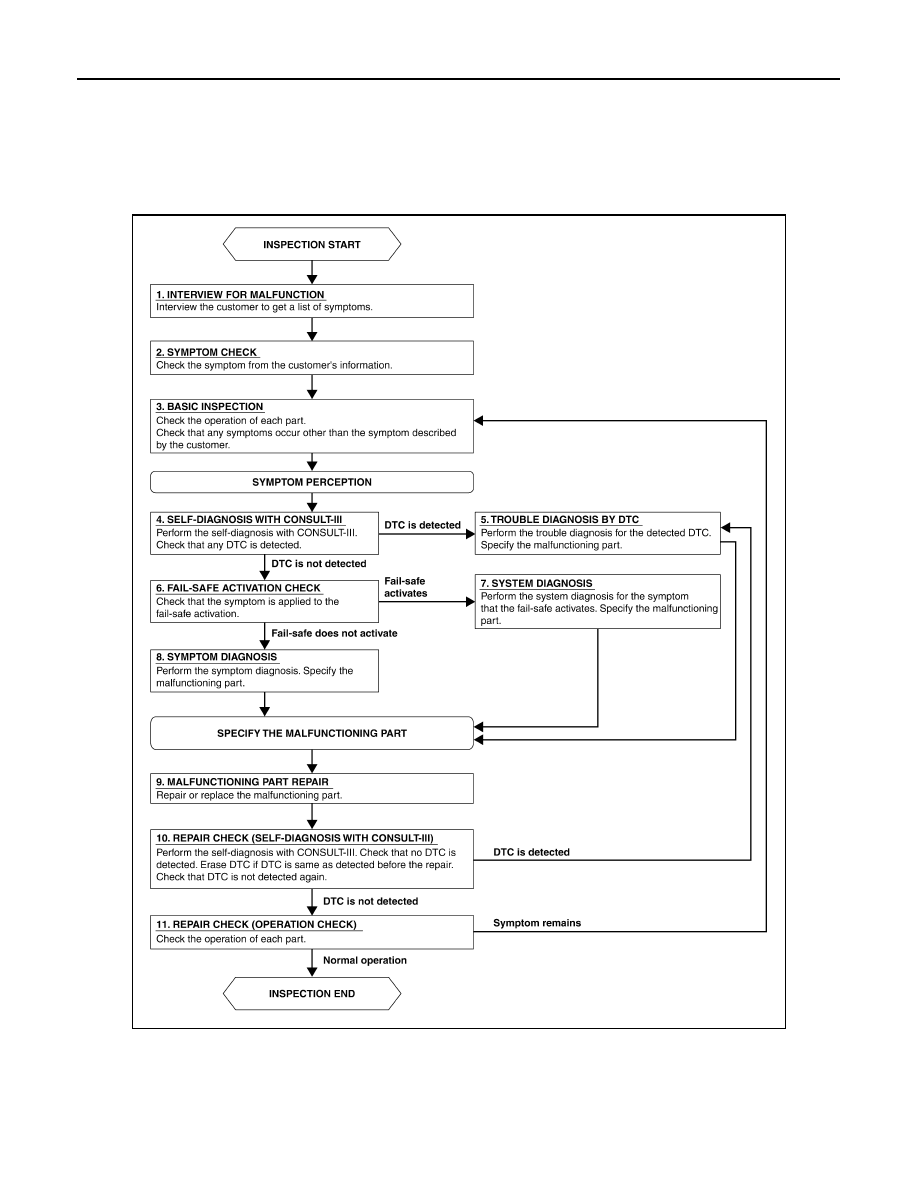

OVERALL SEQUENCE

AWLIA1661GB

DIAGNOSIS AND REPAIR WORKFLOW

EXL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2.

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verify that no DTCs are detected. Erase all DTCs detected prior

to the repair. Verify that DTC is not detected again.
Is any DTC detected?

EXL-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3.
