HOW TO SET SRT CODE

HOW TO SET SRT CODE

Description

INFOID:0000000006471076

OUTLINE

In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least

once. Each diagnosis may require actual driving for a long period of time under various conditions.

SRT ITEM

The table below shows required self-diagnostic items to set the SRT to “CMPLT”.

*: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by one based on the priority for
models with CONSULT-III.

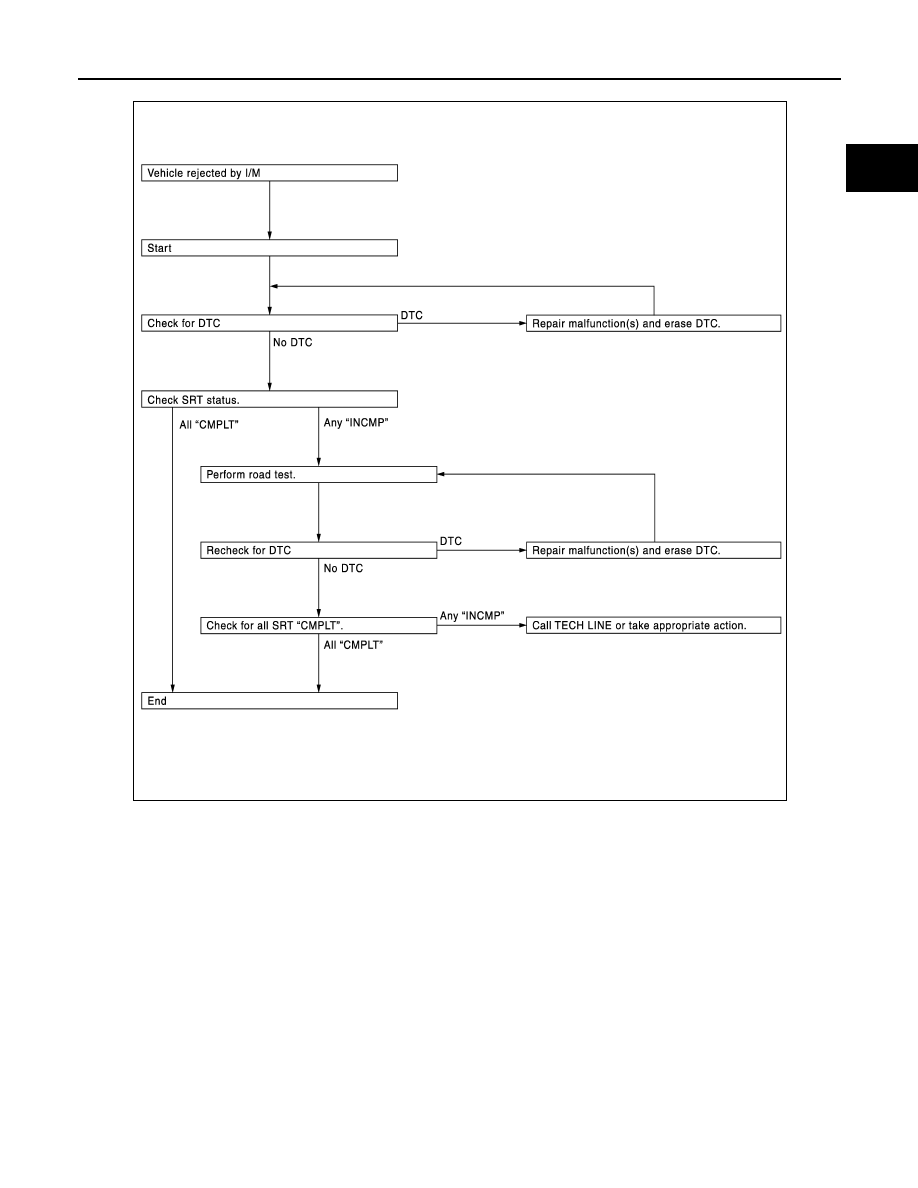

SRT SERVICE PROCEDURE

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review

the flowchart diagnostic sequence, referring to the following flowchart.

SRT item

(CONSULT-III indication)

Performance

Priority*

Required self-diagnostic items to set the SRT to “CMPLT”

Corresponding

DTC No.

CATALYST

2

Three way catalyst function

P0420, P0430

EVAP SYSTEM

2

EVAP control system purge flow monitoring

P0441

1

EVAP control system

P0442

2

EVAP control system

P0456

HO2S

2

Air fuel ratio (A/F) sensor 1

P0133, P0153

Heated oxygen sensor 2

P0137, P0157

Heated oxygen sensor 2

P0138, P0158

Heated oxygen sensor 2

P0139, P0159

HOW TO SET SRT CODE

EC-123

< BASIC INSPECTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

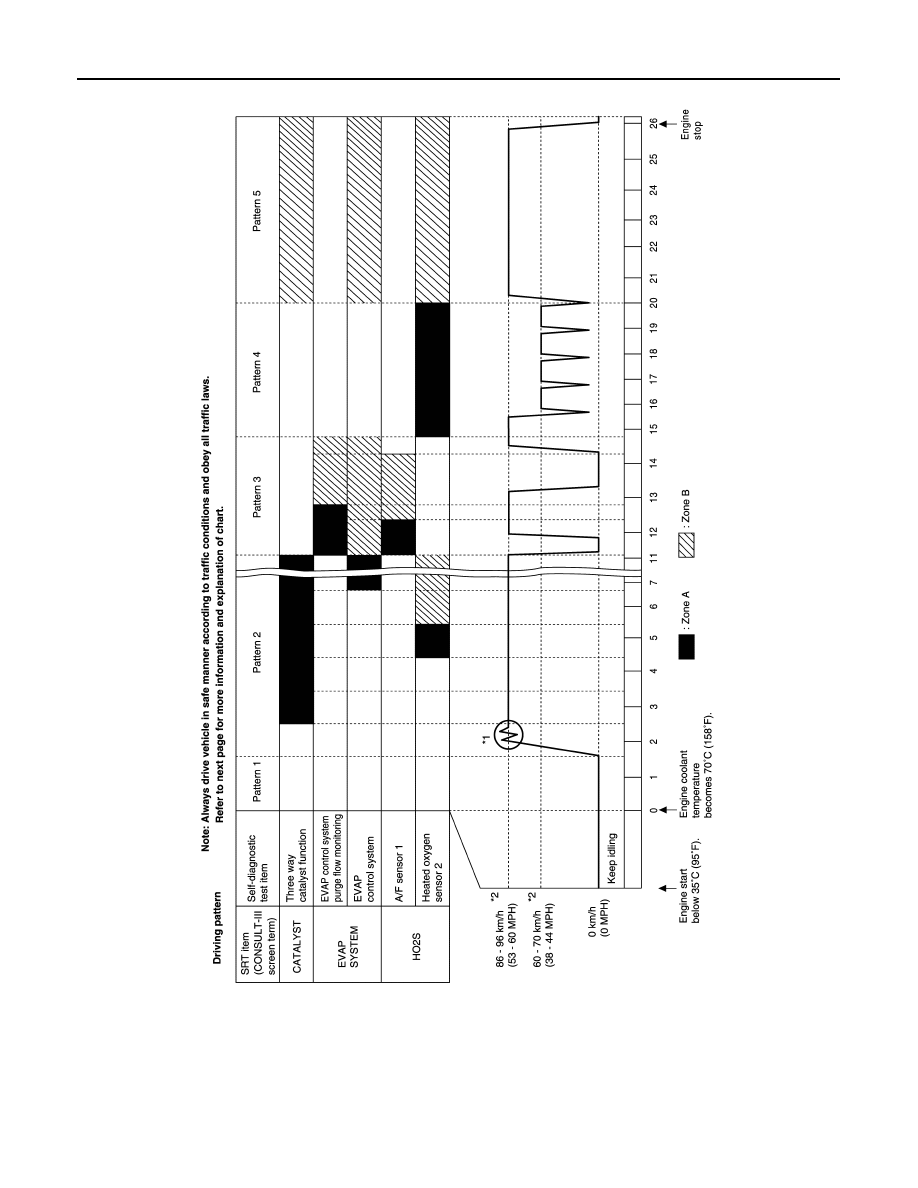

SRT Set Driving Pattern

INFOID:0000000006570017

CAUTION:

JSBIA0399GB

EC-124

< BASIC INSPECTION >

[VK56DE]

HOW TO SET SRT CODE

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal

and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h

(56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-

est.

JSBIA0836GB

HOW TO SET SRT CODE

EC-125

< BASIC INSPECTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within

zone A.

*: Normal conditions refer to the following:

• Sea level

• Flat road

• Ambient air temperature: 20 - 30

°C (68 - 86°F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°C (68 - 86°F)], diagno-

sis may also be performed.

Work Procedure

INFOID:0000000006570018

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-72, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK SRT STATUS

WITH CONSULT-III

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

WITHOUT CONSULT-III

Perform “SRT status” mode with

EC-44, "DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code"

.

WITH GST

Select Service $01 with GST.
Is SRT code(s) set?

YES

>> END

NO-1 >> With CONSULT-III: GO TO 3.

NO-2 >> Without CONSULT-III: GO TO 4.

3.

DTC CONFIRMATION PROCEDURE

1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.

2. For SRT(s) that is not set, perform the corresponding “DTC CONFIRMATION PROCEDURE” according to

the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-44, "DIAGNOSIS DESCRIPTION : Sys-

tem Readiness Test (SRT) Code"

.

3. Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-72, "DTC Index"

.

NO

>> GO TO 10.

4.

PERFORM ROAD TEST

• Check the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-44, "DIAGNOSIS DESCRIPTION :

System Readiness Test (SRT) Code"

.

• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to

EC-44, "DIAGNOSIS

DESCRIPTION : Driving Pattern"

.

In order to set all SRTs, the SRT set driving pattern must be performed at least once.

>> GO TO 5.

5.

PATTERN 1

1. Check the vehicle condition;

-

Engine coolant temperature is

−10 to 35°C (14 to 95°F).

-

Fuel tank temperature is more than 0

°C (32°F).

2. Start the engine.

3. Keep engine idling until the engine coolant temperature is greater than 70

°C (158°F)

NOTE:

ECM terminal voltage is follows;

• Engine coolant temperature
