Nissan Titan A60. Manual - part 338

EC-18

< SYSTEM DESCRIPTION >

[VK56DE]

ENGINE CONTROL SYSTEM

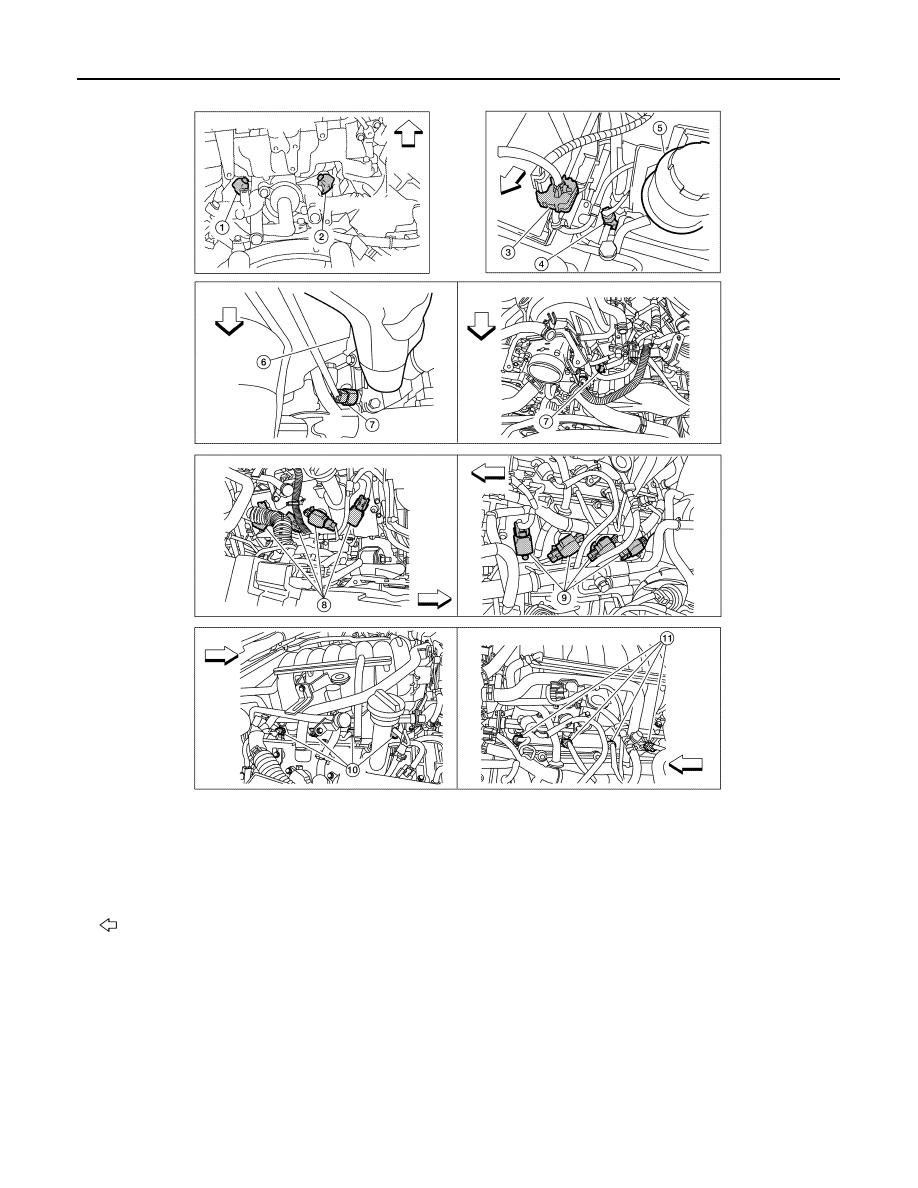

1.

Knock sensor (bank 1) (view with en-
gine removed)

2.

Knock sensor (bank 2) (view with en-
gine removed)

3.

Battery current sensor

4.

Power steering pressure sensor

5.

Power steering fluid reservoir

6.

Intake manifold

7.

Engine coolant temperature sensor

8.

Ignition coils (with power transistor)

9.

Ignition coil (with power transistor)

10. Injector harness connectors (bank 2) 11. Injector harness connectors (bank 1)

: Vehicle front

BBIA0774E

ENGINE CONTROL SYSTEM

EC-19

< SYSTEM DESCRIPTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

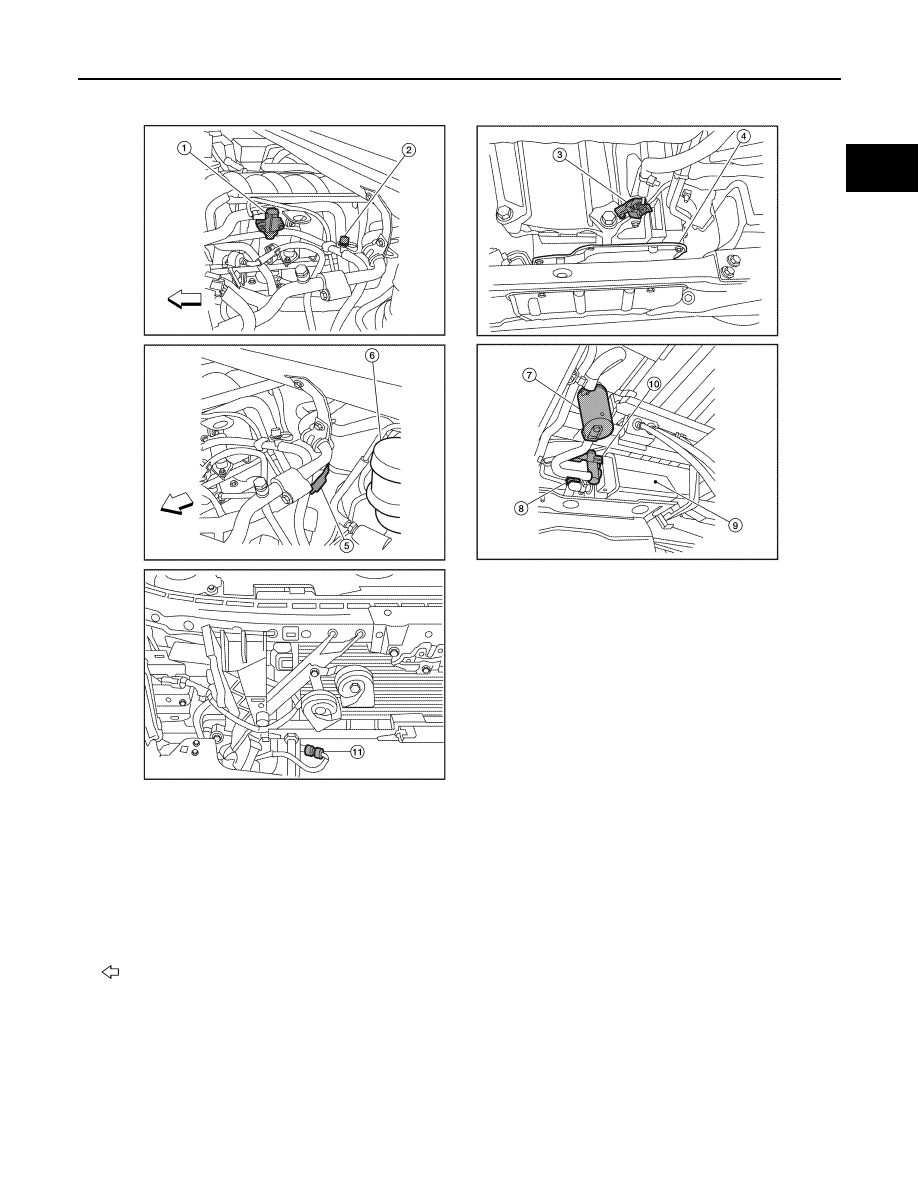

1.

EVAP canister purge volume control
solenoid valve (view with engine
cover removed)

2.

EVAP service port

3.

Crankshaft position sensor (POS)
(view from under the vehicle)

4.

Engine oil pan

5.

Condenser-1

6.

Brake fluid reservoir

7.

Drain filter (view from under vehicle) 8.

EVAP control system pressure sen-
sor

9.

EVAP canister

10. EVAP canister vent control valve

(view with fuel tank removed)

11. Refrigerant pressure sensor (view

with front grille removed)

: Vehicle front

ALBIA0549ZZ

EC-20

< SYSTEM DESCRIPTION >

[VK56DE]

ENGINE CONTROL SYSTEM

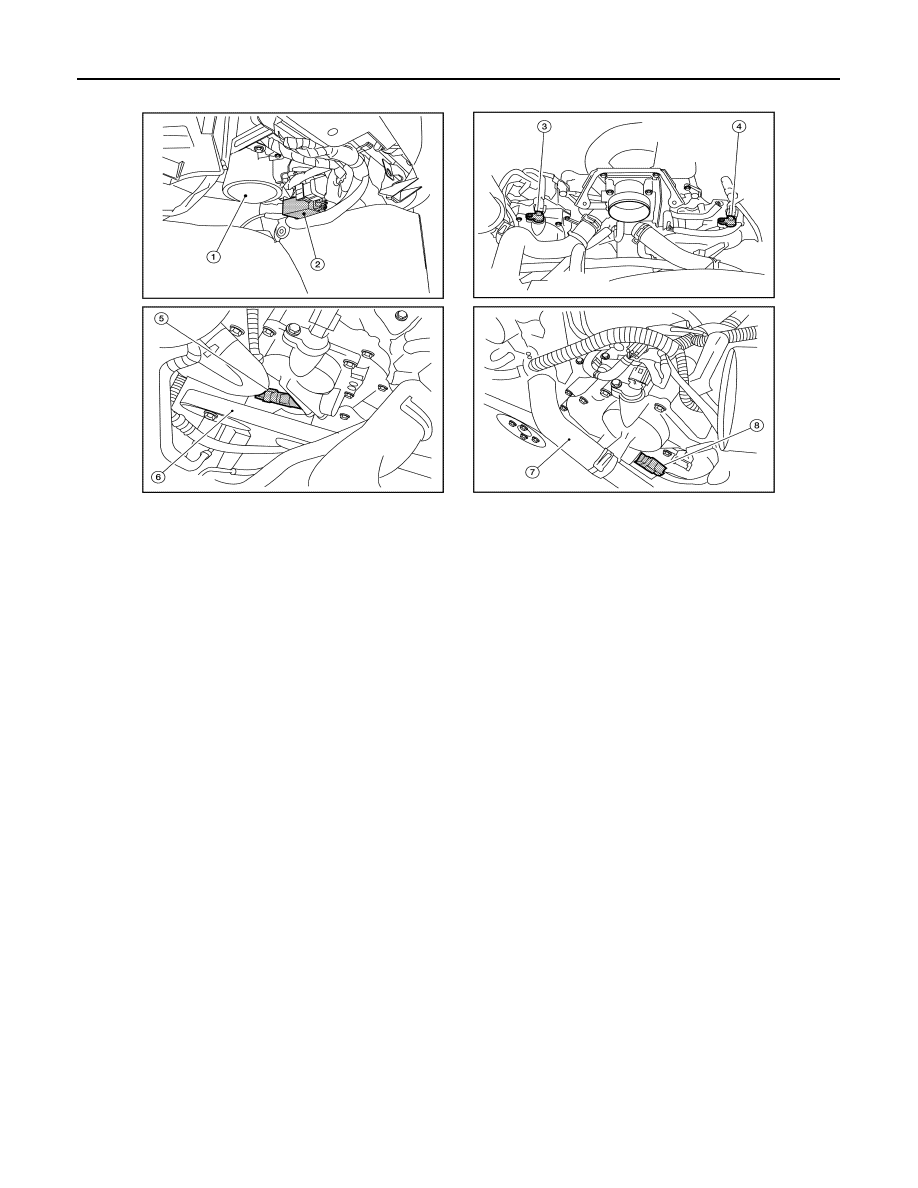

1.

Fuel pump control module (FFV
models only)

2.

Blower motor

3.

Intake valve timing control position
sensor (bank 2) (view with engine
cover and intake air duct removed)

4.

Intake valve timing control position
sensor (bank 1) (view with engine
cover and intake air duct removed)

5.

Intake valve timing control solenoid
valve (bank 2) (view with engine cov-
er and intake air duct removed)

6

Drive belt (view with engine cover
and intake air duct removed)

7.

Radiator hose (view with engine cov-
er and intake air duct removed)

8.

Intake valve timing control solenoid
valve (bank 1) (view with engine cov-
er and intake air duct removed)

BBIA0779E

ENGINE CONTROL SYSTEM

EC-21

< SYSTEM DESCRIPTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

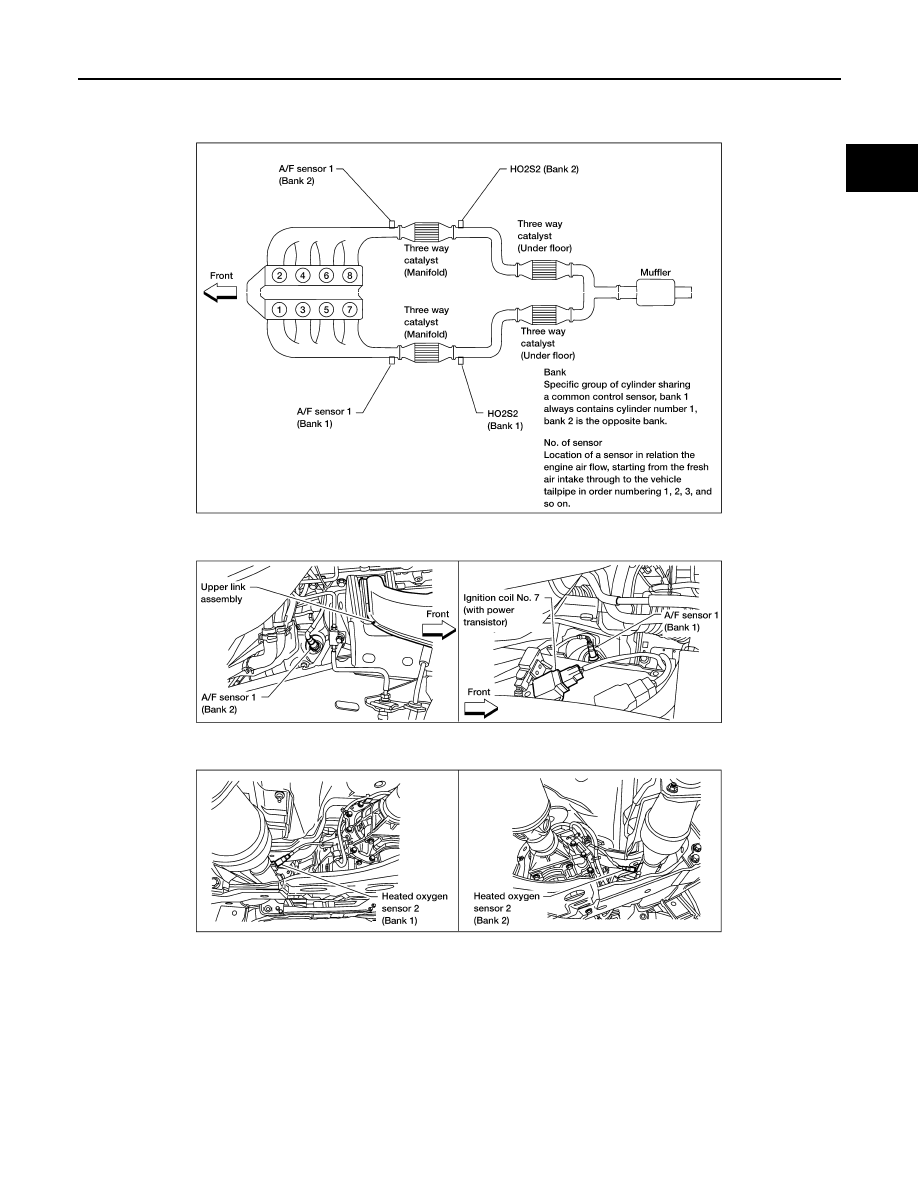

BBIA0384E
