REAR FINAL DRIVE

DLN-271

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

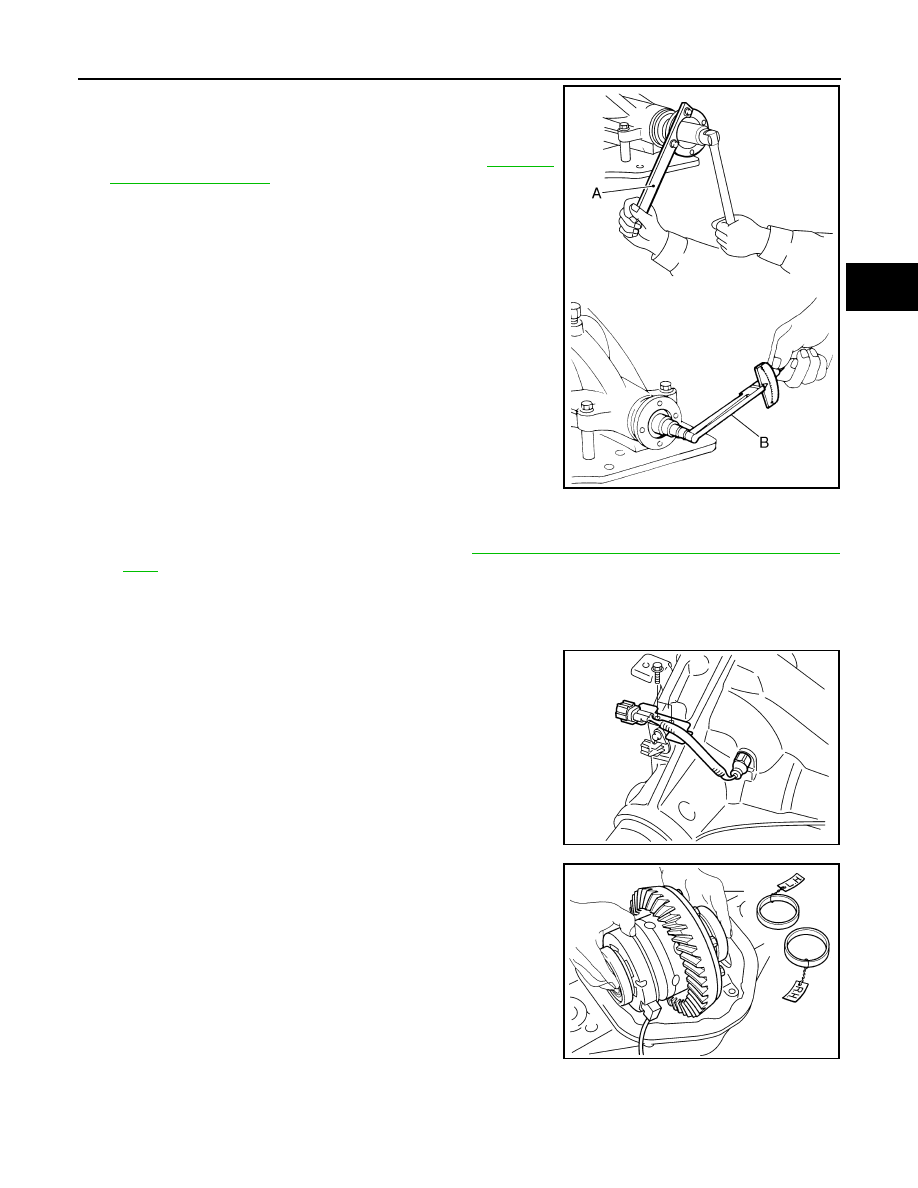

6. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut and new drive

pinion lock nut washer. Then adjust the drive pinion lock nut

tightening torque using suitable tool A, and check the drive pin-

ion bearing preload torque using Tool B. Refer to

DLN-273,

"General Specification"

.

CAUTION:

• Do not reuse drive pinion lock nut or drive pinion lock nut

washer.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque.

• If the drive pinion bearing preload torque exceeds the

specified value, replace collapsible spacer and tighten it

again to adjust. Do not loosen drive pinion lock nut to

adjust the drive pinion bearing preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3

times to check for unusual noise, rotation malfunction,

and other malfunctions.

Differential Assembly

1. Apply sealant to threads of differential lock position switch.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Seal-

ants"

.

CAUTION:

Remove old sealant adhering to gear carrier and differential lock position switch. Also remove any

moisture, oil, or foreign material adhering to application and gear carrier and differential lock posi-

tion switch.

2. Install differential lock position switch on gear carrier and tighten

differential lock position switch bolts to the specified torque.

3. Apply gear oil to side bearings. Install differential case assembly

with side bearing outer races into gear carrier.

4. Apply multi-purpose grease to new sensor connector.

CAUTION:

Do not reuse sensor connector.

Tool number

B: ST3127S000 (J-25765-A)

WDIA0379E

SDIA2633E

SDIA2588E

DLN-272

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 (ELD) ]

REAR FINAL DRIVE

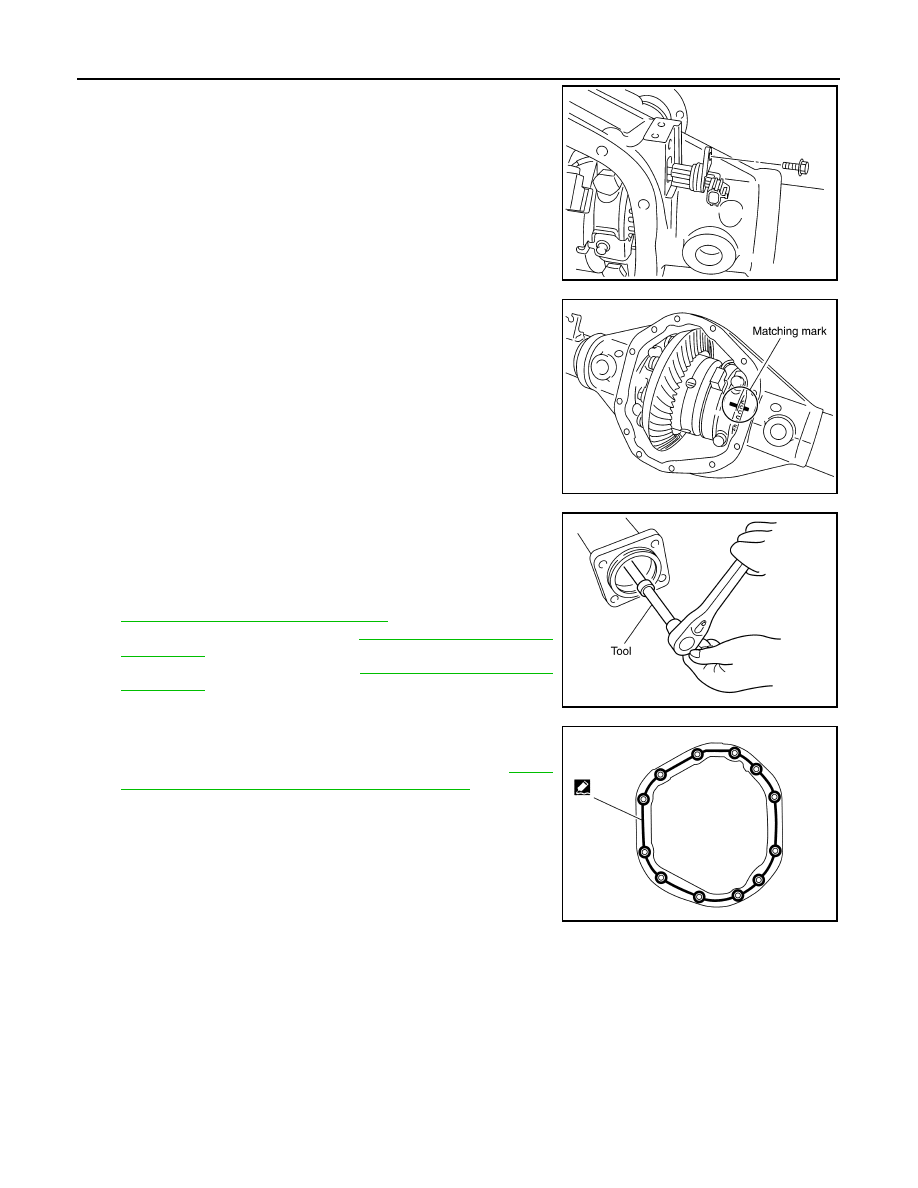

5. Connect differential lock solenoid harness to new sensor con-

nector. Then install new sensor connector to gear carrier and

tighten to the specified torque.

6. Align paint matching mark on side bearing caps with those on

gear carrier and install side bearing caps on gear carrier.

CAUTION:

Do not tighten side bearing cap bolts at this point. This

allows further tightening of side bearing adjusters.

7. Tighten each side bearing adjusters using adjuster tool. Perform

the following adjustments.

• Adjusting backlash of drive gear and drive pinion. Refer to

DLN-273, "Inspection and Adjustment"

.

• Check total preload. Refer to

DLN-273, "Inspection and

Adjustment"

.

• Check tooth contact. Refer to

DLN-273, "Inspection and

Adjustment"

.

8. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

9. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque.

SDIA2585E

SDIA2632E

Tool number

:  —  (C - 4164)

PDIA0337E

PDIA1061E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-273

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006179632

Inspection and Adjustment

INFOID:0000000006179633

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

Applied model

4WD

VK56DE

5A/T

OR (PRO-4X)

Final drive model

M226

Gear ratio

3.357

Number of pinion gears

2

Number of teeth (Drive gear / drive pinion)

47/14

Oil capacity (Approx.)

2.01   (4-1/4 US pt, 3-1/2 lmp pt)

Drive pinion adjustment spacer type

Collapsible

Item

Specification

Drive pinion bearing preload torque

1.7 - 3.1 (0.18 - 0.31, 15 - 27)

Total preload torque
(Total preload torque = drive pinion bearing preload
torque + Side bearing preload torque)

2.38 - 4.46 (0.25 - 0.45, 21 - 39)

Item

Standard

Drive gear to drive pinion gear

0.12 - 0.20 (0.0050 - 0.0078)

Item

Limit

Companion flange face

 0.13 (0.0051) or less

Companion flange inner side
