PREPARATION

PREPARATION

PREPARATION

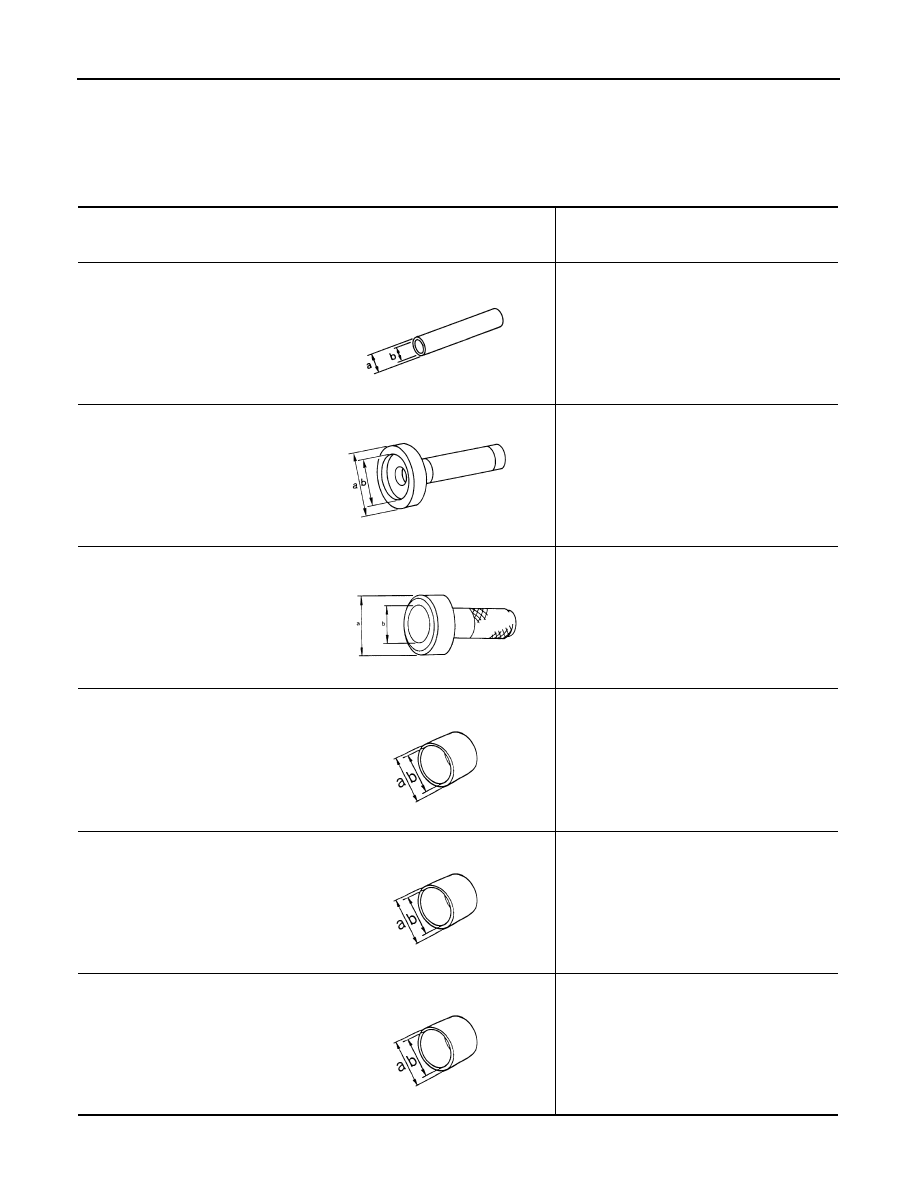

Special Service Tool

INFOID:0000000006179498

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV32102700
(

—

)

Drift

• Installing mainshaft rear bearing
a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.

KV38100200
(

—

)

Drift

• Removing sun gear assembly and planetary

carrier assembly

• Removing input bearing
• Installing sun gear assembly and planetary

carrier assembly

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

KV38100500
(

—

)

Drift

• Installing front oil seal
• Installing rear oil seal
• Installing rear bearing
• Installing front bearing
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

KV40104830
(

—

)

Drift

• Installing input oil seal
a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.50 in) dia.

KV40105310
(

—

)

Drift

• Installing dust cover
a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

ST27863000
(

—

)

Drift

• Installing carrier bearing
a: 75 mm (2.95 in) dia.
b: 62 mm (2.44 in) dia.

ZZA0534D

ZZA1143D

ZZA0811D

ZZA1003D

ZZA1003D

ZZA1003D

PREPARATION

DLN-89

< PREPARATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

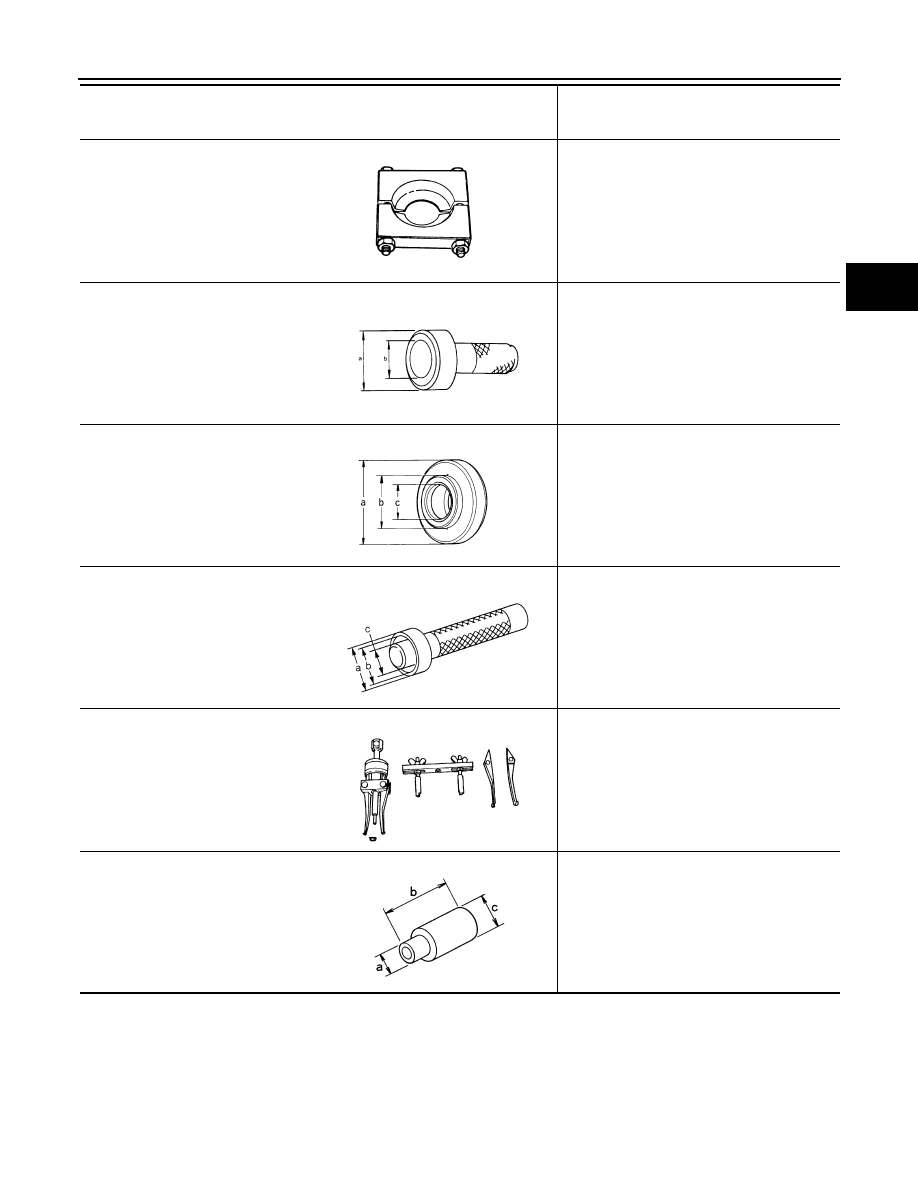

ST30021000
(J-22912-01)
Puller

• Removing carrier bearing
• Removing front bearing
• Removing rear bearing

ST30720000
(J-25405)
Drift

• Installing input bearing
• Installing input oil seal
• Installing carrier bearing
a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

ST30901000
(J-26010-01)
Drift

• Installing rear bearing
• Installing front bearing
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.38 in) dia.

ST33220000
(

—

)

Drift

• Installing needle bearing
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

ST33290001
(J-34286)
Puller

• Removing front oil seal
• Removing rear oil seal
• Removing metal bushing

ST33710000
(

—

)

Drift

• Removing needle bearing
• Removing metal bushing
• Removing rear bearing
a: 24 mm (0.94 in) dia.
b: 89 mm (3.5 in)
c: 30 mm (1.18 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0537D

ZZA0811D

ZZA0978D

ZZA1046D

ZZA0601D

ZZA1057D

DLN-90

< PREPARATION >

[TRANSFER: TX15B]

PREPARATION

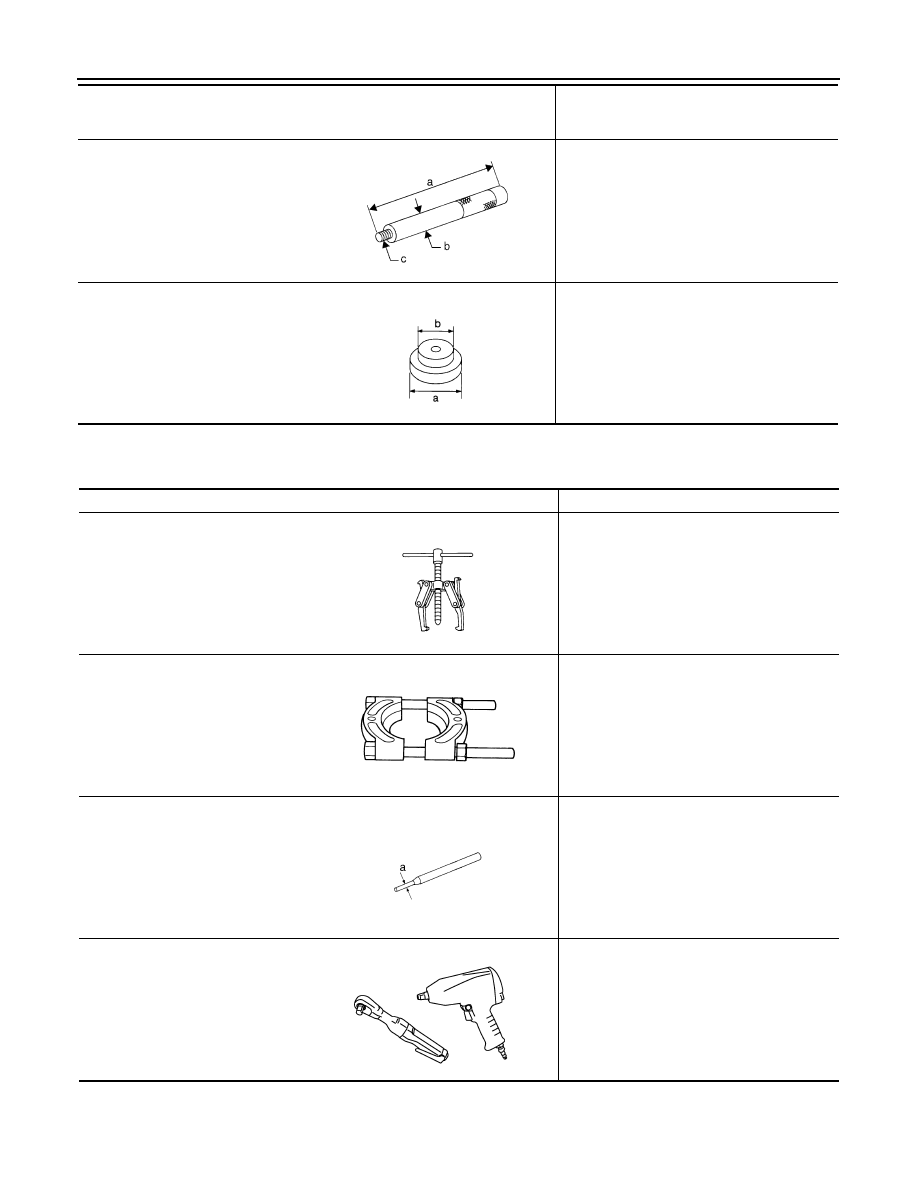

Commercial Service Tool

INFOID:0000000006179499

ST35325000
(

—

)

Drift bar

• Removing metal bushing
a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

× 1.5P

ST35300000
(

—

)

Drift

• Removing carrier bearing
• Installing metal bushing
• Removing front bearing
a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT663

NT073

Tool name

Description

Puller

• Removing companion flange
• Removing mainshaft rear bearing

Puller

• Removing mainshaft rear bearing

Pin punch

• Removing retaining pin
a: 6 mm (0.24 in) dia.

Power tool

• Loosening bolts and nuts

NT077

ZZB0823D

NT410

PBIC0190E
